Clutch Switch: Testing and Inspection

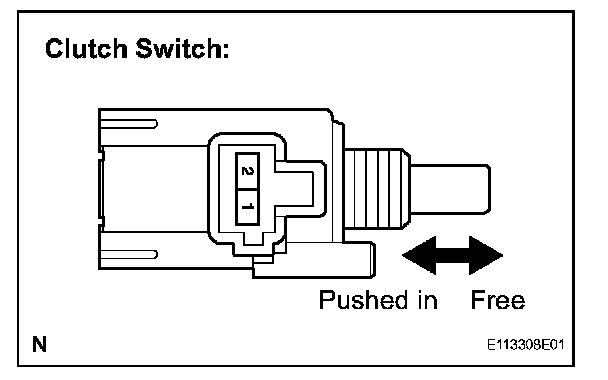

INSPECTION1. INSPECT CLUTCH SWITCH
a. Remove the clutch switch.

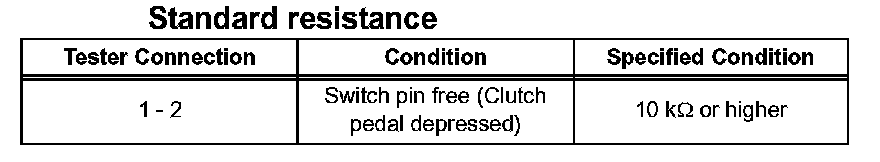

b. Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the clutch switch.
1. INSPECT CLUTCH SWITCH
a. Remove the clutch switch.
b. Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the clutch switch.
