Headlamp Dimmer Switch: Testing and Inspection

INSPECTION

1. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY

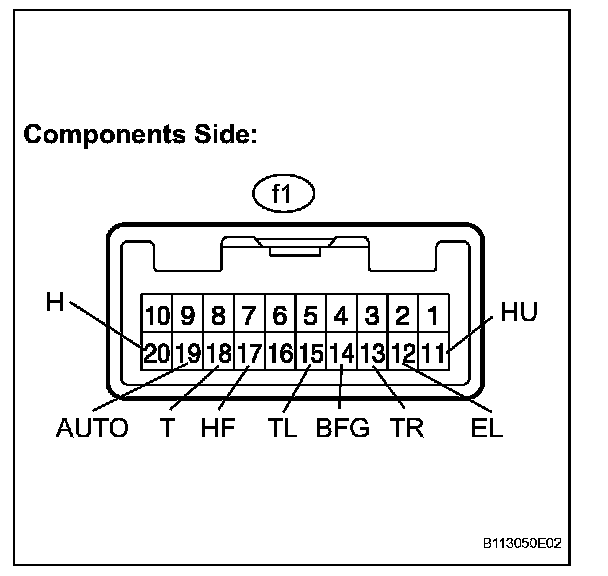

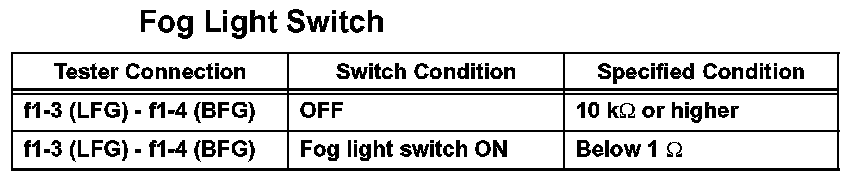

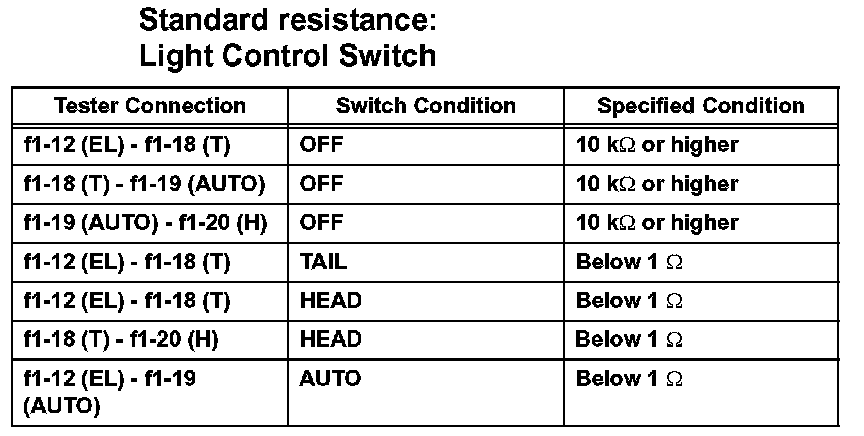

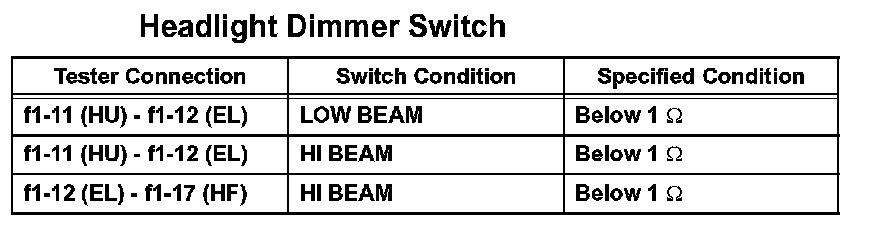

a. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the headlight dimmer switch assembly.
