Dimmer Switch: Testing and Inspection

INSPECTION

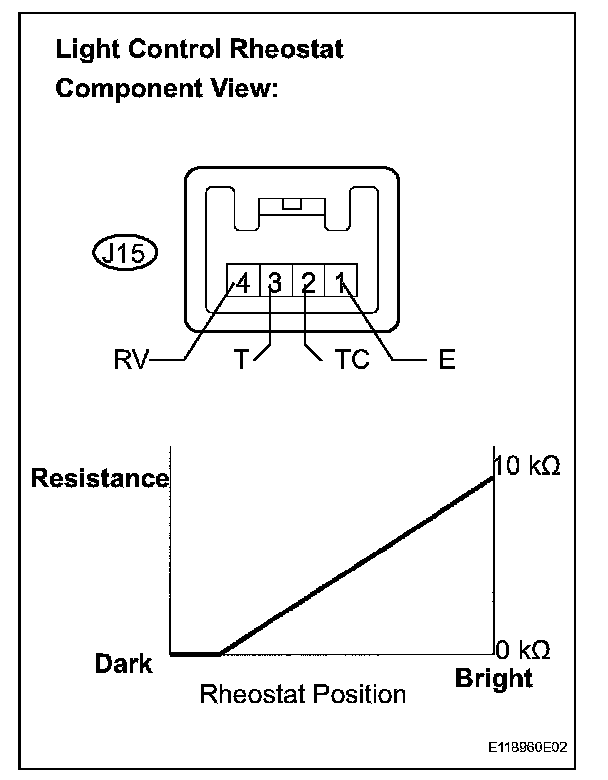

1. INSPECT LIGHT CONTROL RHEOSTAT

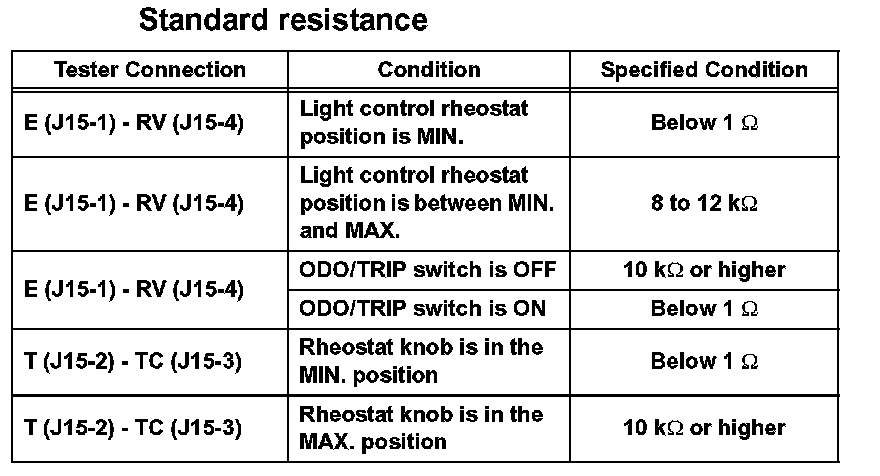

a. Measure the resistance according to the value(s) in the table.

HINT: If the value is not as specified, replace the light control rheostat.
