On-vehicle inspection

ENGINE OIL LEVEL SENSOR

ON-VEHICLE INSPECTION

1. INSPECT ENGINE OIL LEVEL SENSOR




a. Remove the engine oil level sensor.

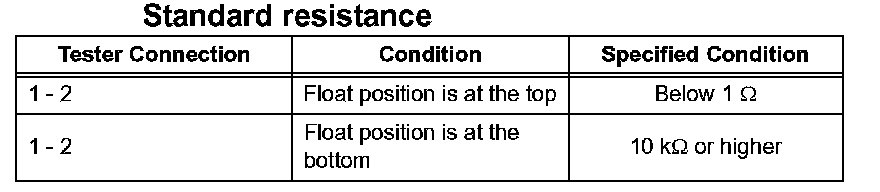

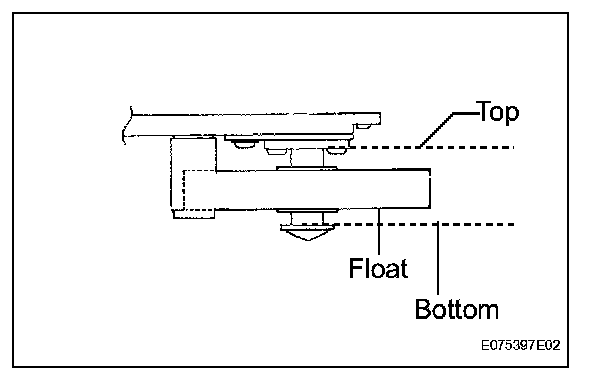

b. Measure the resistance according to the value(s) in the table.

HINT: If the value is not as specified, replace the engine oil level sensor.
