Cruise Control Switch: Testing and Inspection

INSPECTION

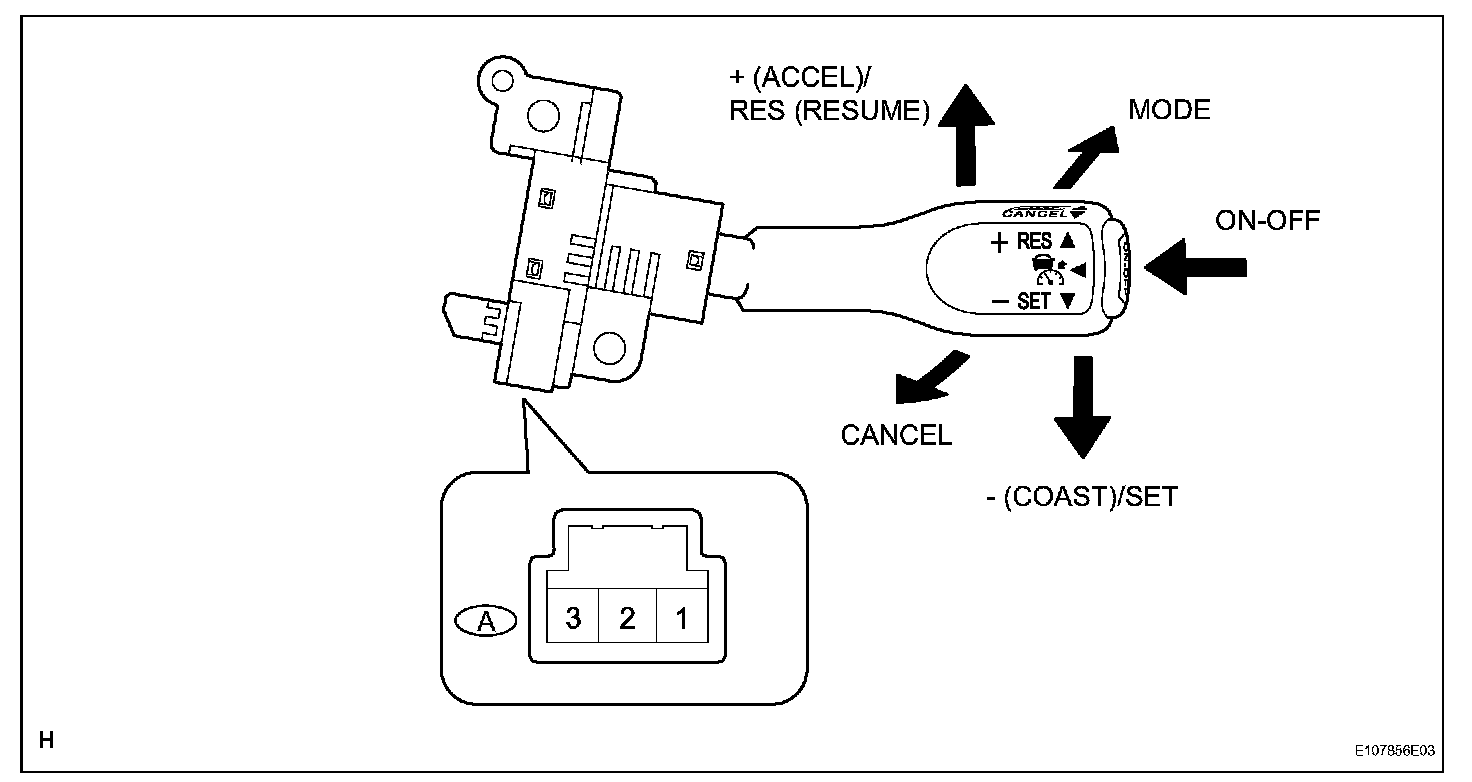

1. INSPECT CRUISE CONTROL MAIN SWITCH




a. Remove the cruise control main switch

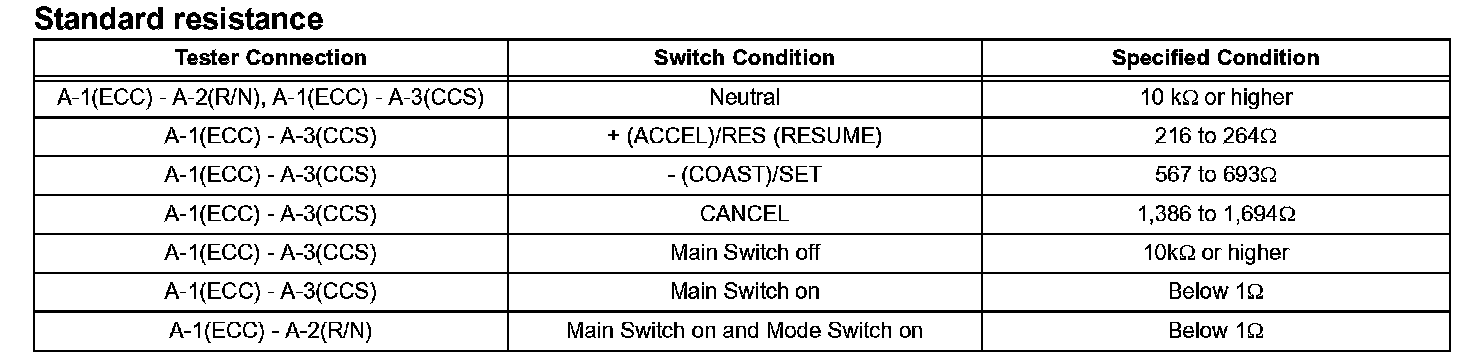

b. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the cruise control main switch
