Temperature Sensor (Gauge): Testing and Inspection

Engine Coolant Temperature Receiver Gauge Malfunction

DESCRIPTION
- In this circuit, the meter CPU receives engine coolant temperature signals from the ECM using the CAN lines.
- The meter CPU displays engine coolant temperature that is calculated based on the data received from the ECM.

HINT: If there is an open or short in the engine coolant temperature sensor circuit, the ECM will store the DTCs. Perform troubleshooting of the "SFI System"

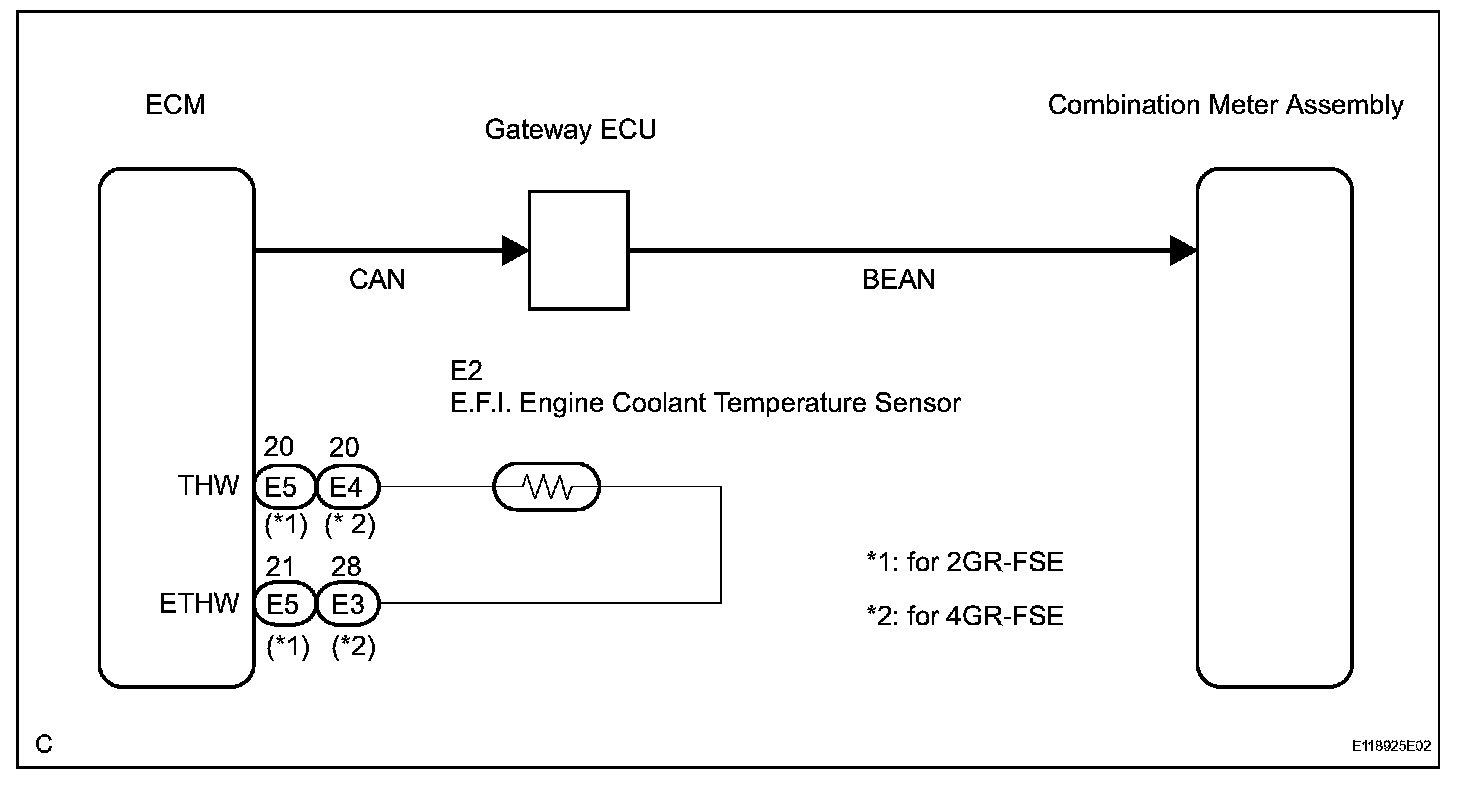

Wiring Diagram:

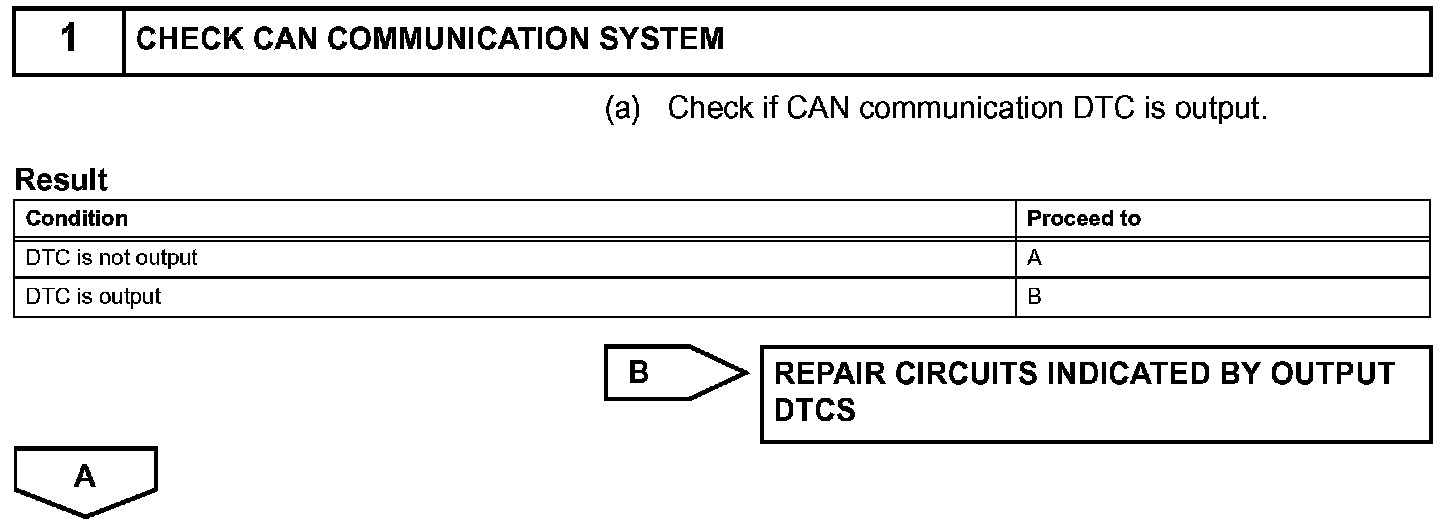

Step 1:

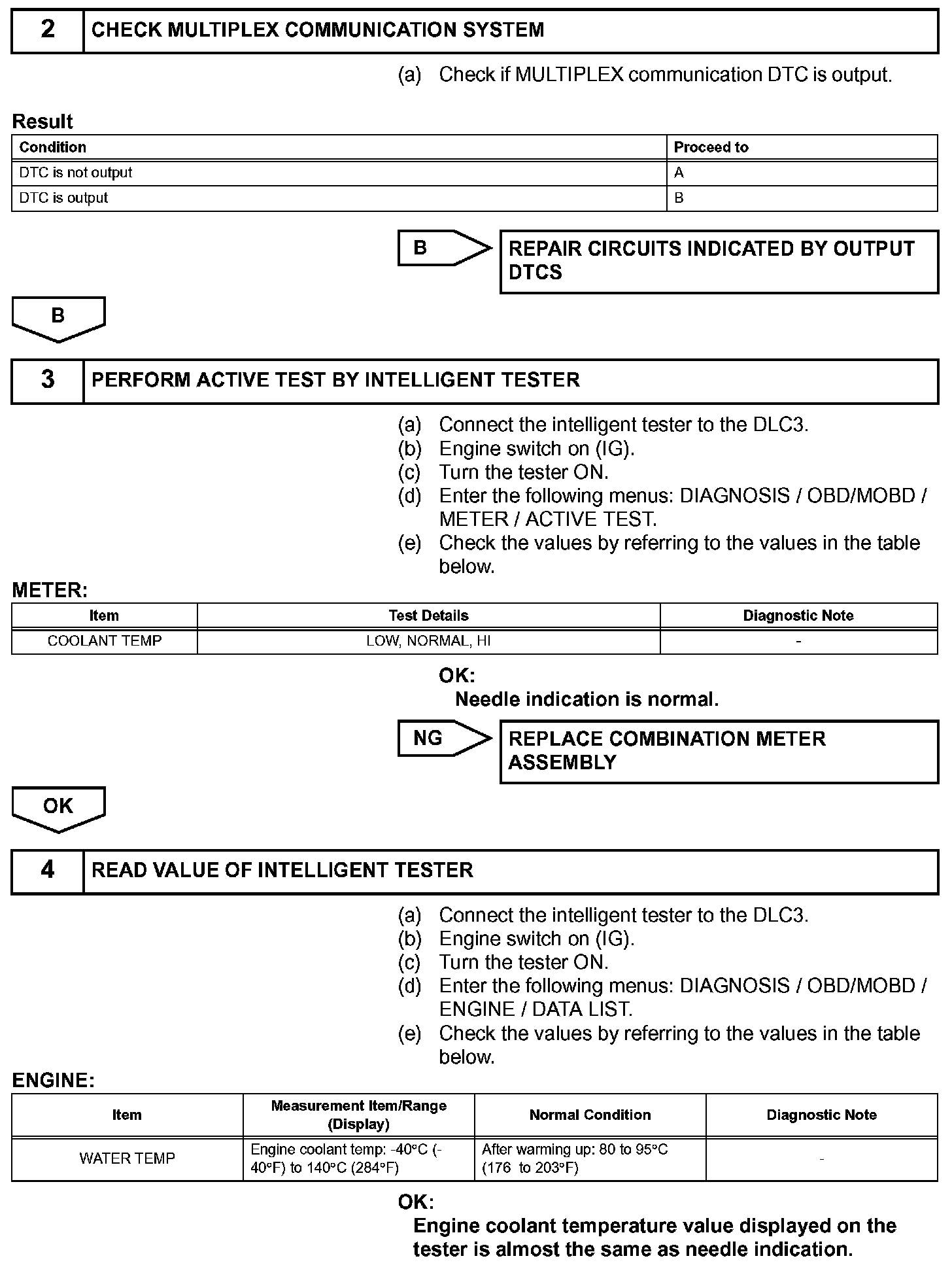

Step 2-4:

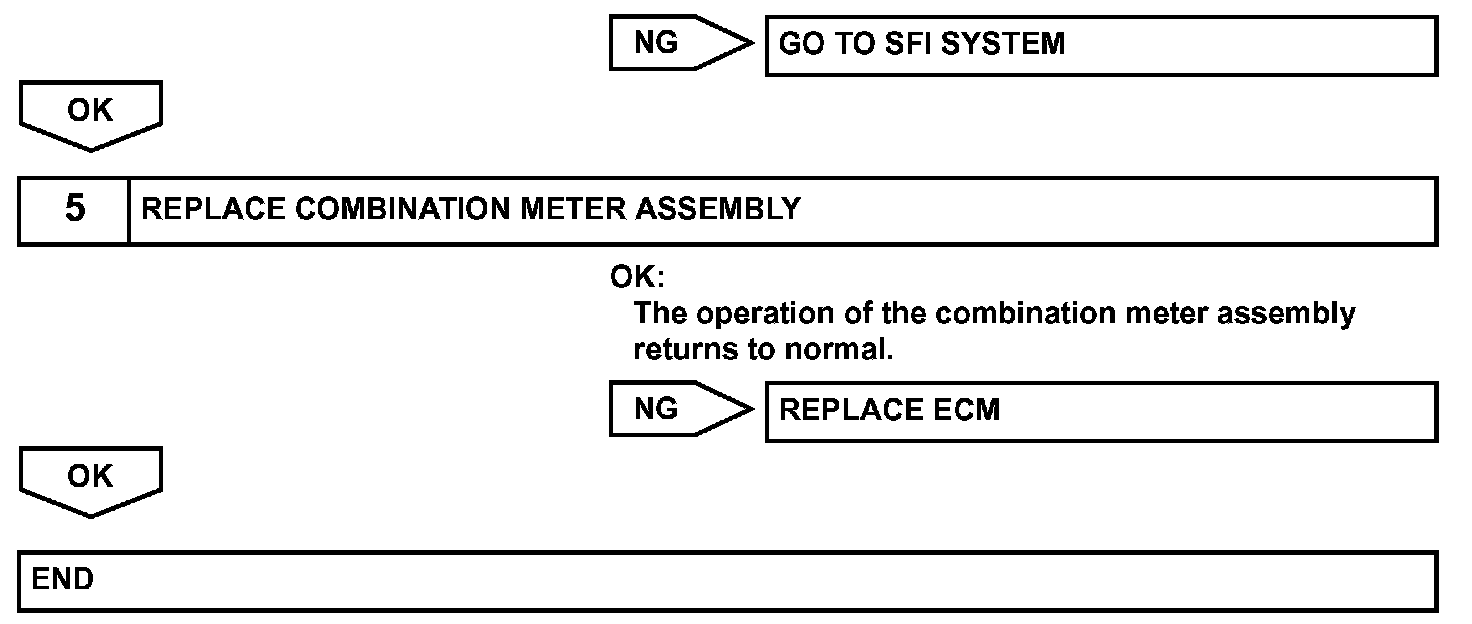

Step 4(continued)-5:

INSPECTION PROCEDURE
