Fuel Door Switch: Service and Repair

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination)
2. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)
3. REMOVE FRONT DOOR OPENING TRIM COVER LH
4. REMOVE SIDE INSTRUMENT PANEL LH
5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
6. REMOVE FUEL LID OPENER SWITCH

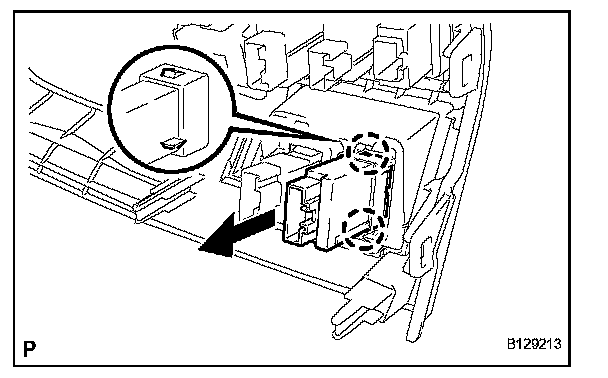

a. Disengage the 2 claws and remove the fuel lid opener switch.

INSTALLATION

1. INSTALL FUEL LID OPENER SWITCH

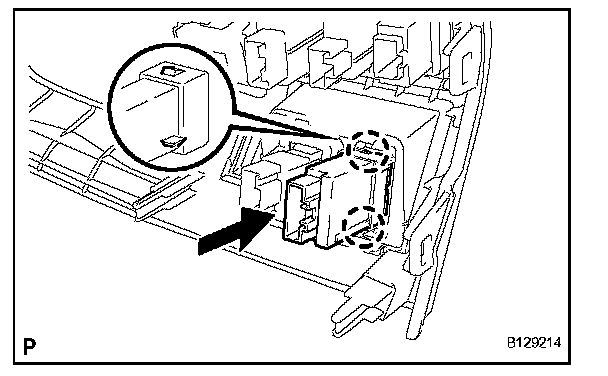

a. Engage the 2 claws and install the fuel lid opener switch.

2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
3. INSTALL SIDE INSTRUMENT PANEL LH
4. INSTALL FRONT DOOR OPENING TRIM COVER LH
5. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination)
6. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination)
