Seat Belt

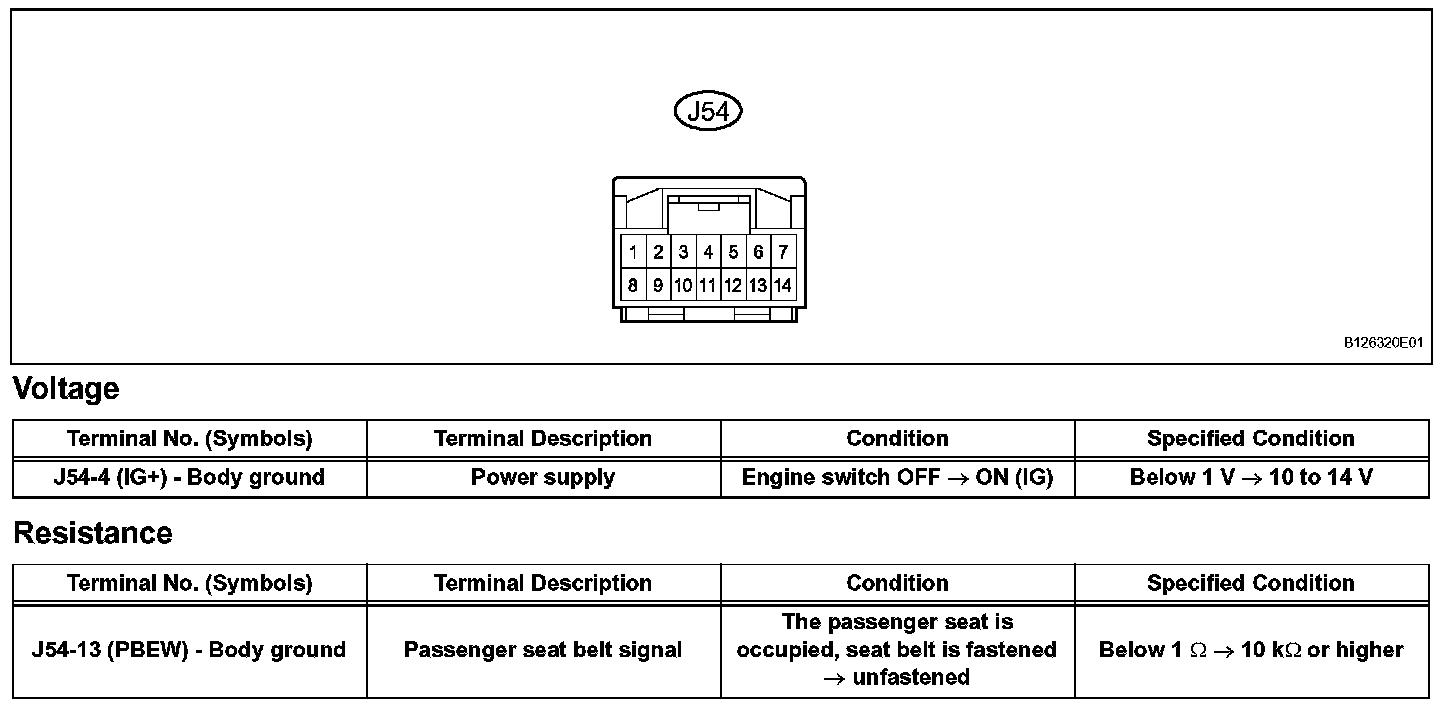

Terminals Of Control Module/Pinouts-Combination Meter Assembly:

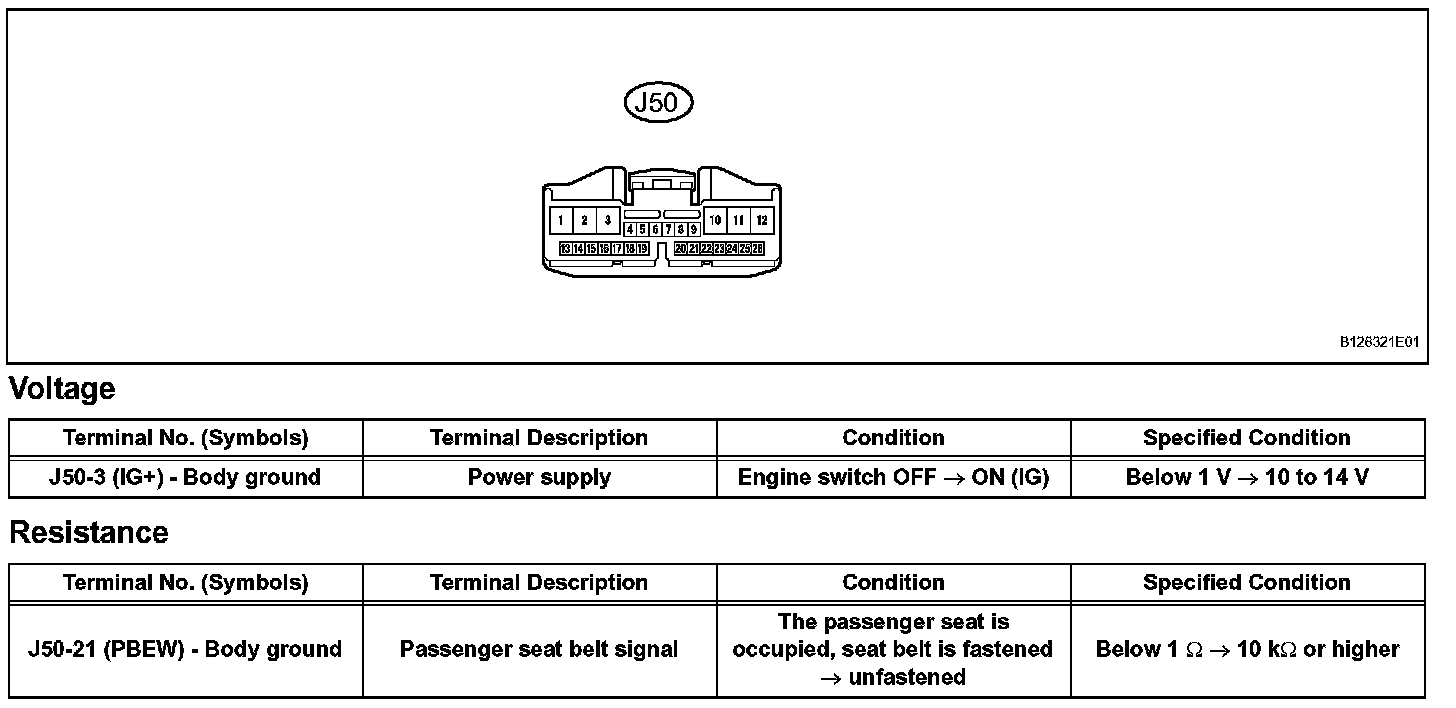

Terminals Of Control Module/Pinouts-Multi-Media Module Display (With Navigation System):

Terminals Of Control Module/Pinouts-Integration Control & Panel (Without Navigation System):
