Initial Inspection

INSPECTION







1. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH

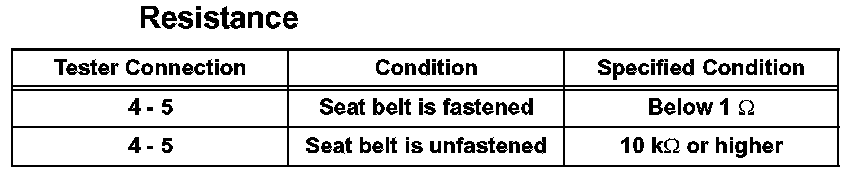

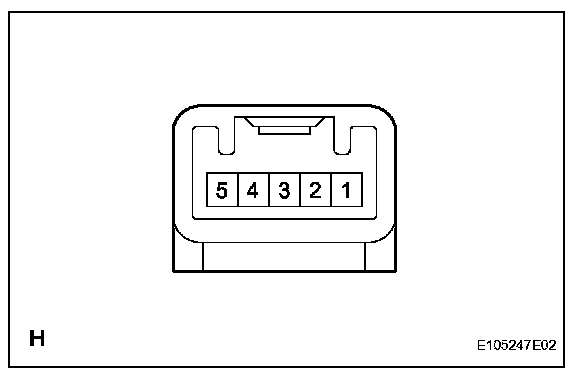

a. Measure the resistance between terminals of the switch when the switch is operated.

HINT:
- This is the inspection procedure of the inner belt switch for the tension reducer.
- The circuit of the seat belt warning or airbag system cannot be inspected by this procedure.







2. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH

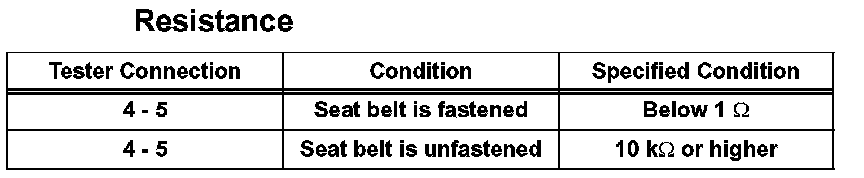

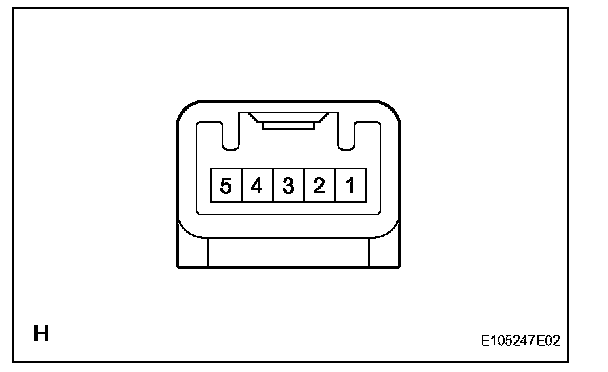

a. Measure the resistance between terminals of the switch when the switch is operated.

HINT:
- This is the inspection procedure of the inner belt switch for the tension reducer.
- The circuit of the seat belt warning or airbag system cannot be inspected by this procedure.
