Function of Warning Indicator and Message

FUNCTION OF WARNING INDICATOR AND MESSAGE

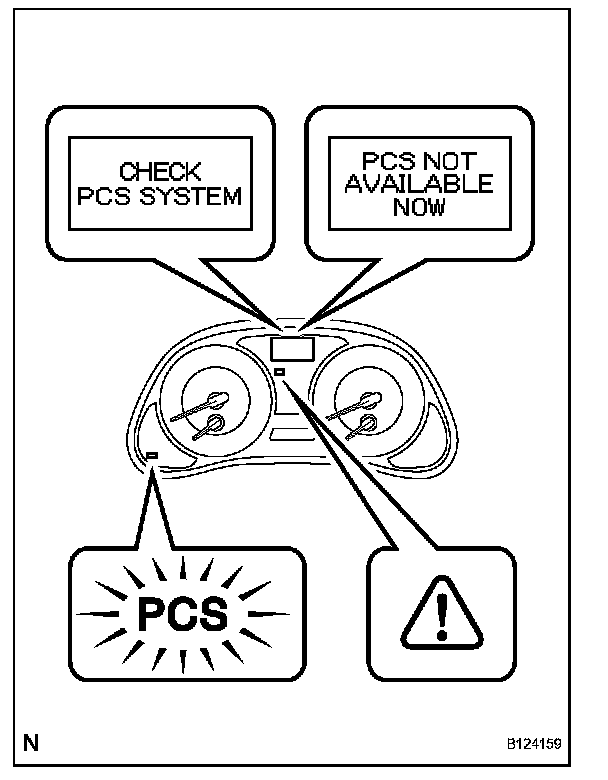

a. If the pre-collision system is not functioning properly, the driver is warned by the master warning indicator and multi-information display warning message on the combination meter.




b. Initial check.
1. The initial check occurs when the engine switch is off for more than 2 seconds, and then turned on (IG). The initial check consists of a pre-collision system diagnostic check with a duration of approximately 3 seconds.

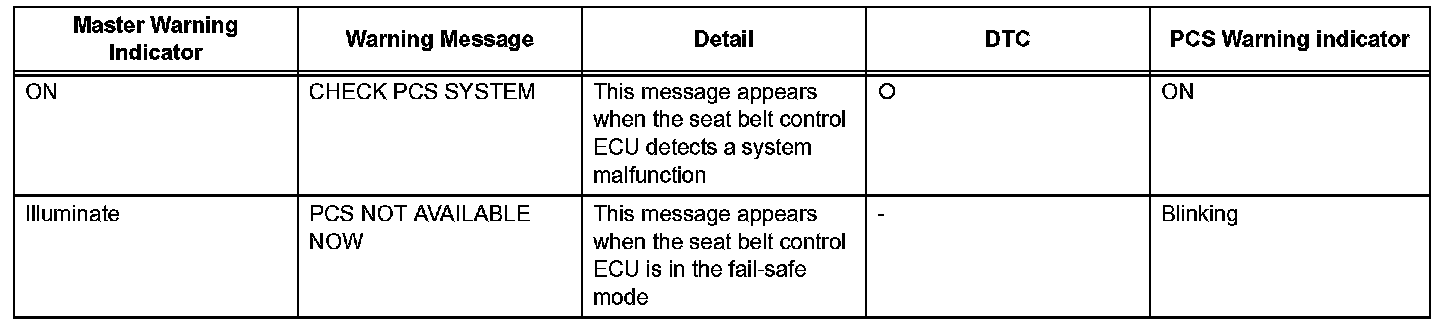

2. If a malfunction is detected during the initial check, the multi-information display will output "CHECK PCS SYSTEM " or "PCS NOT AVAILABLE NOW".

c. Constant check.
1. The seat belt control ECU and distance control ECU constantly monitor the pre-collision system for malfunctions after the initial check approximately 3 seconds after turning the engine switch on (IG).
2. "CHECK PCS SYSTEM" or "PCS NOT AVAILABLE NOW" is displayed on the multi-information display in the combination meter assembly when the constant check detects malfunctions in the pre-collision system.
