Pre-Collision Safety System

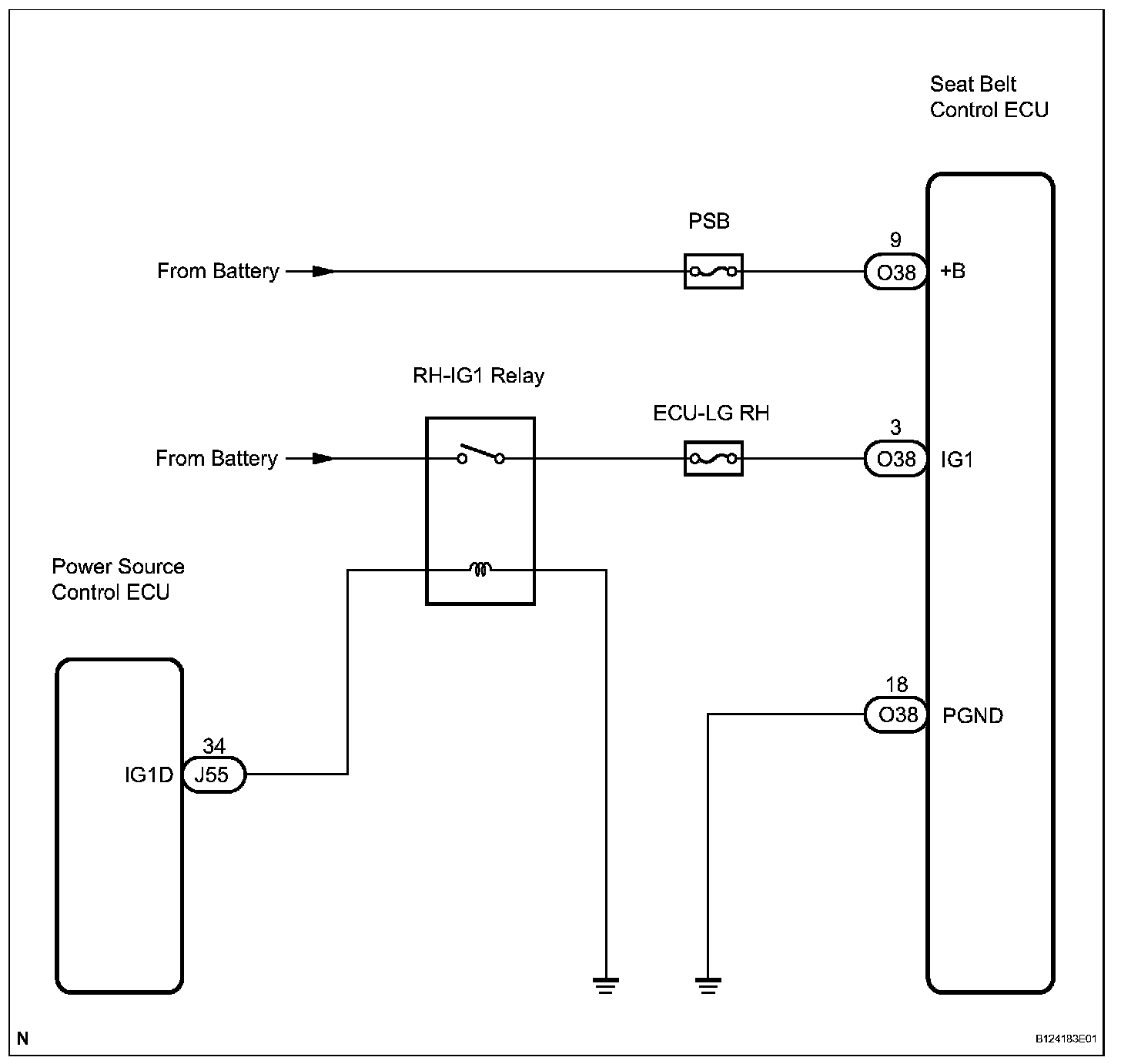

Power Source Circuit

DESCRIPTION
This circuit supplies power to the seat belt control ECU.

NOTE: When the seat belt control ECU is replaced with a new one, INITIALIZATION must be performed.
