Fuel Pump Ballast Resistor: Testing and Inspection
INSPECTIONINSPECT FUEL PUMP RESISTOR

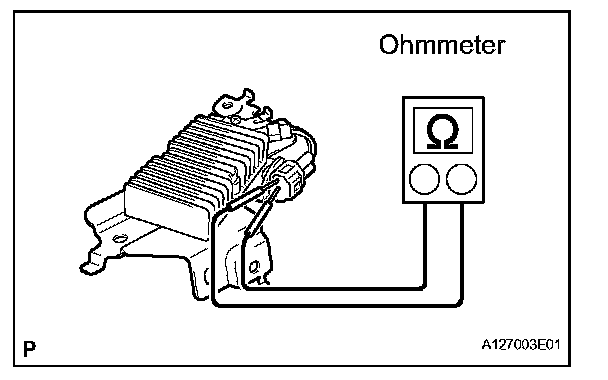

a. Measure the resistance between the terminals.
Standard resistance:
0.30 to 0.34 Ohms at 20 degrees C (68 degrees F)
If the result is not as specified, replace the fuel pump resistor.
