Fuel Injector: Testing and Inspection

INSPECTION

INSPECT INJECTOR

NOTE: This inspection aims at inspecting the fuel injectors for opens or shorts, because the fuel injectors of this vehicle are a high-pressure type and cannot be inspected for fuel injection volume.

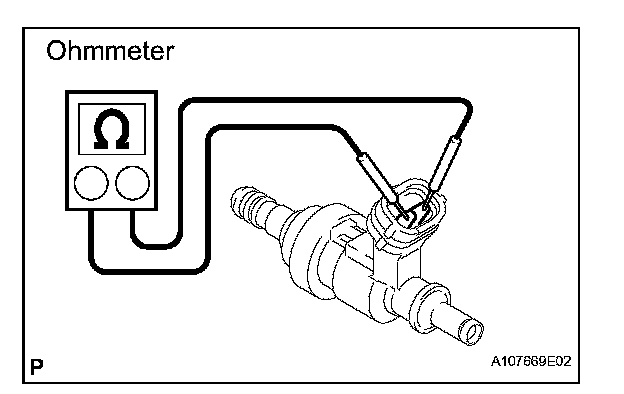

a. Check the injector resistance.

Standard resistance:
2.01 to 2.31 Ohms at 20 degrees C (68 degrees F)

If the result is not as specified, replace the injector.
