Cold Start Injector: Testing and Inspection

INSPECTION

INSPECT COLD START INJECTOR

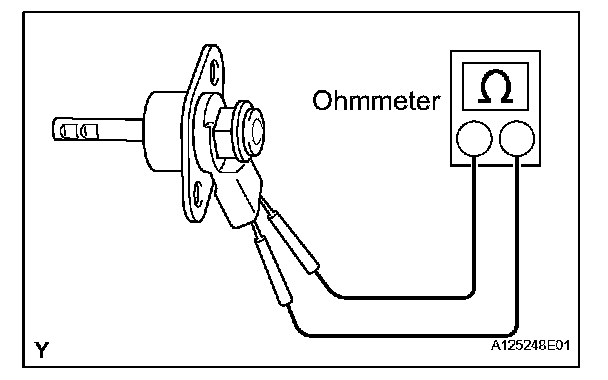

a. Check the cold start injector resistance.

Standard resistance: 1.5 to 6.5 Ohms at 20 degrees C (68 degrees F)
