Positive Crankcase Ventilation Valve: Service and Repair

REMOVAL

1. REMOVE V-BANK COVER SUB-ASSEMBLY




2. DISCONNECT VENTILATION HOSE
a. Disconnect the ventilation hose from the ventilation valve.

3. REMOVE VENTILATION VALVE
a. Remove the ventilation valve.

INSTALLATION

1. INSTALL VENTILATION VALVE




a. Install the ventilation valve.

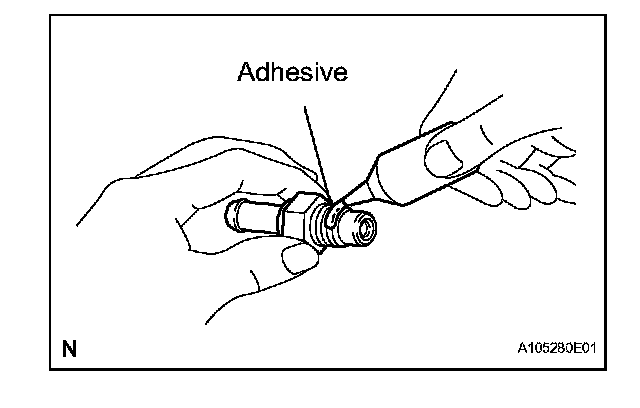

1. Apply adhesive to 2 or 3 threads.

Adhesive:
Part No. 08833-00070, THREE BOND 1324 or equivalent.

2. Install the ventilation valve.

Torque: 27 N.m (275 kgf.cm, 20 ft.lbf)




2. CONNECT VENTILATION HOSE
a. Connect the ventilation hose to the ventilation valve.

3. INSTALL V-BANK COVER SUB-ASSEMBLY
