Pinout Values and Diagnostic Parameters

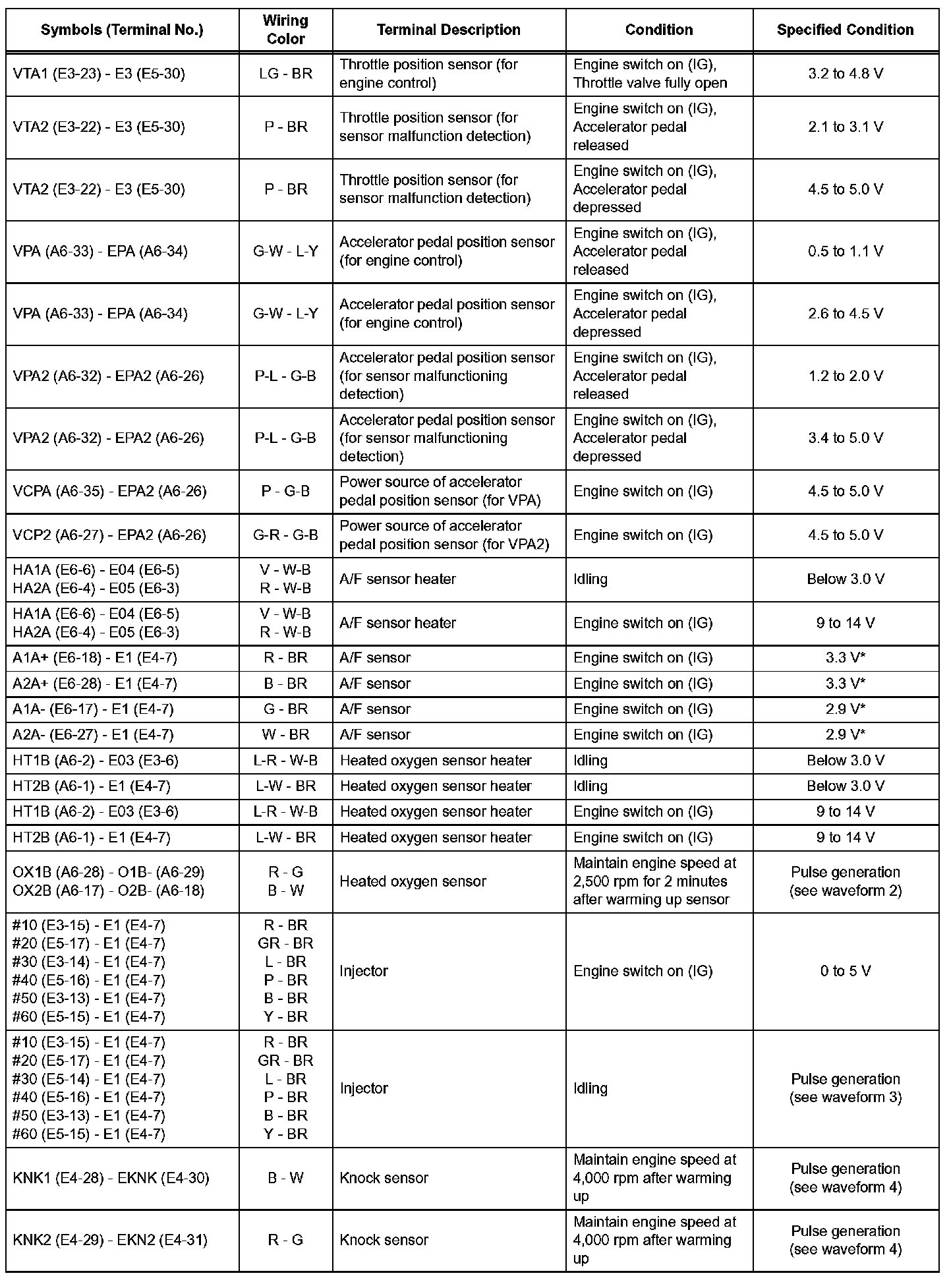

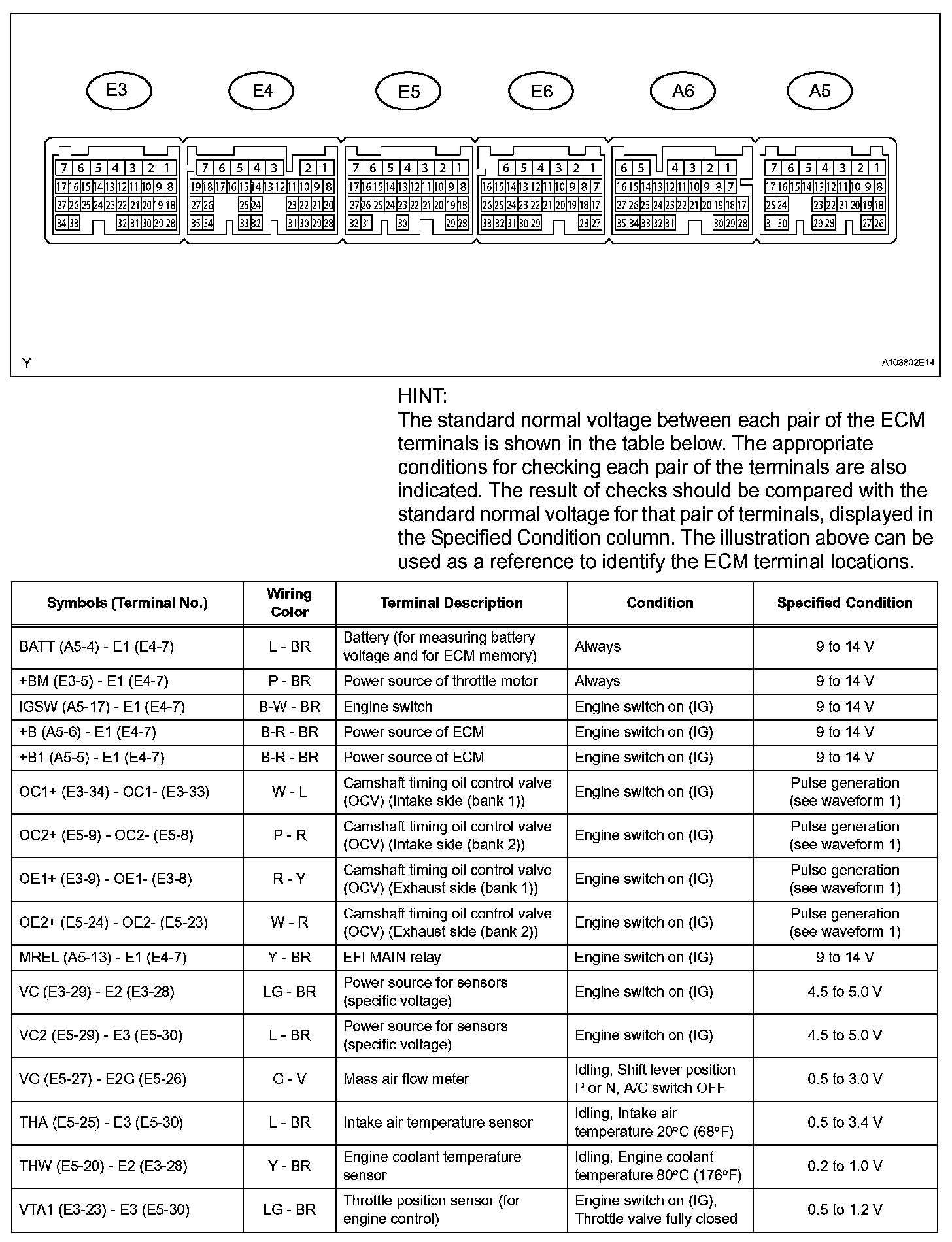

Terminals Of ECM/Pinouts (Part 1):

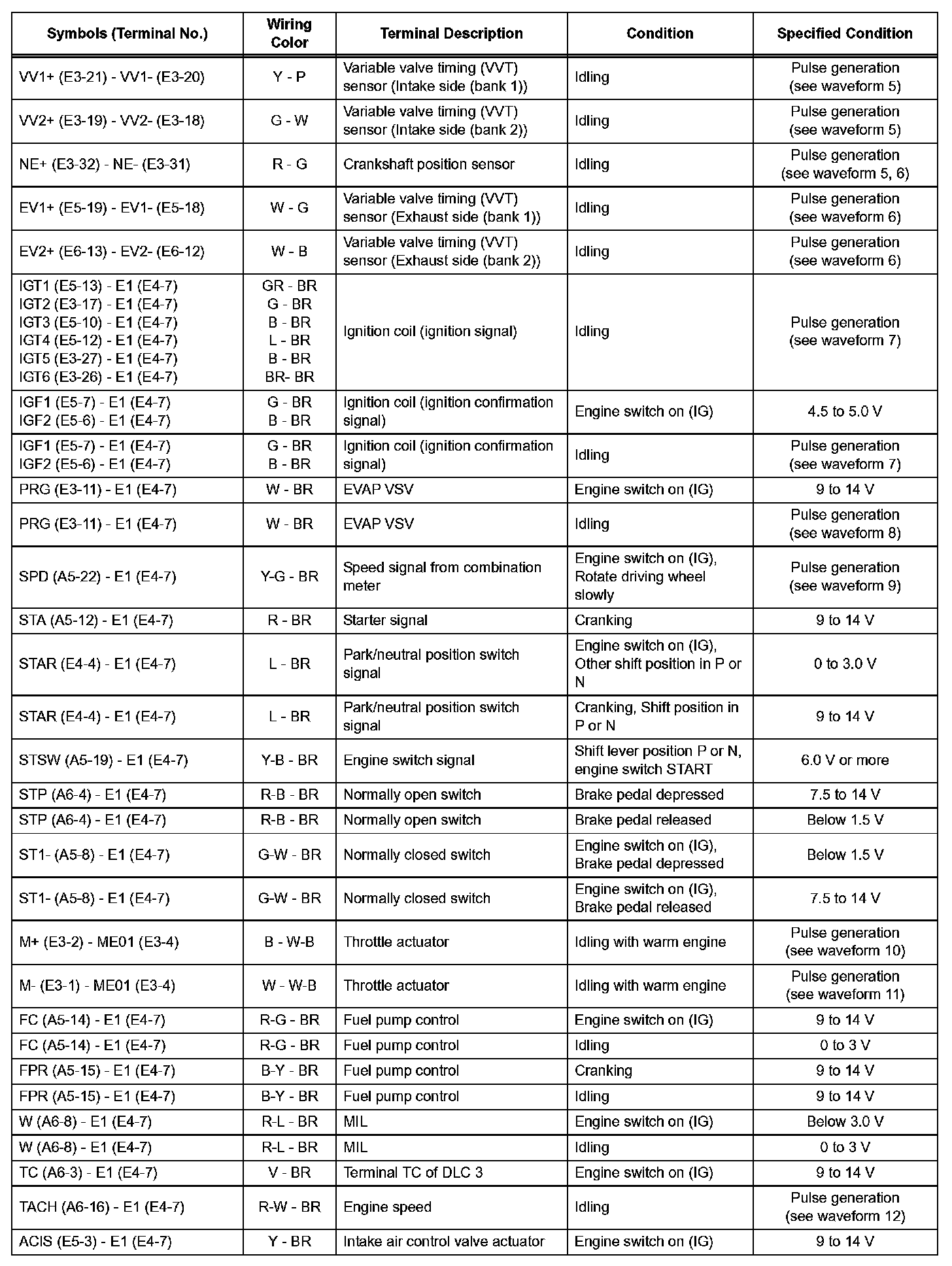

Terminals Of ECM/Pinouts (Part 2):

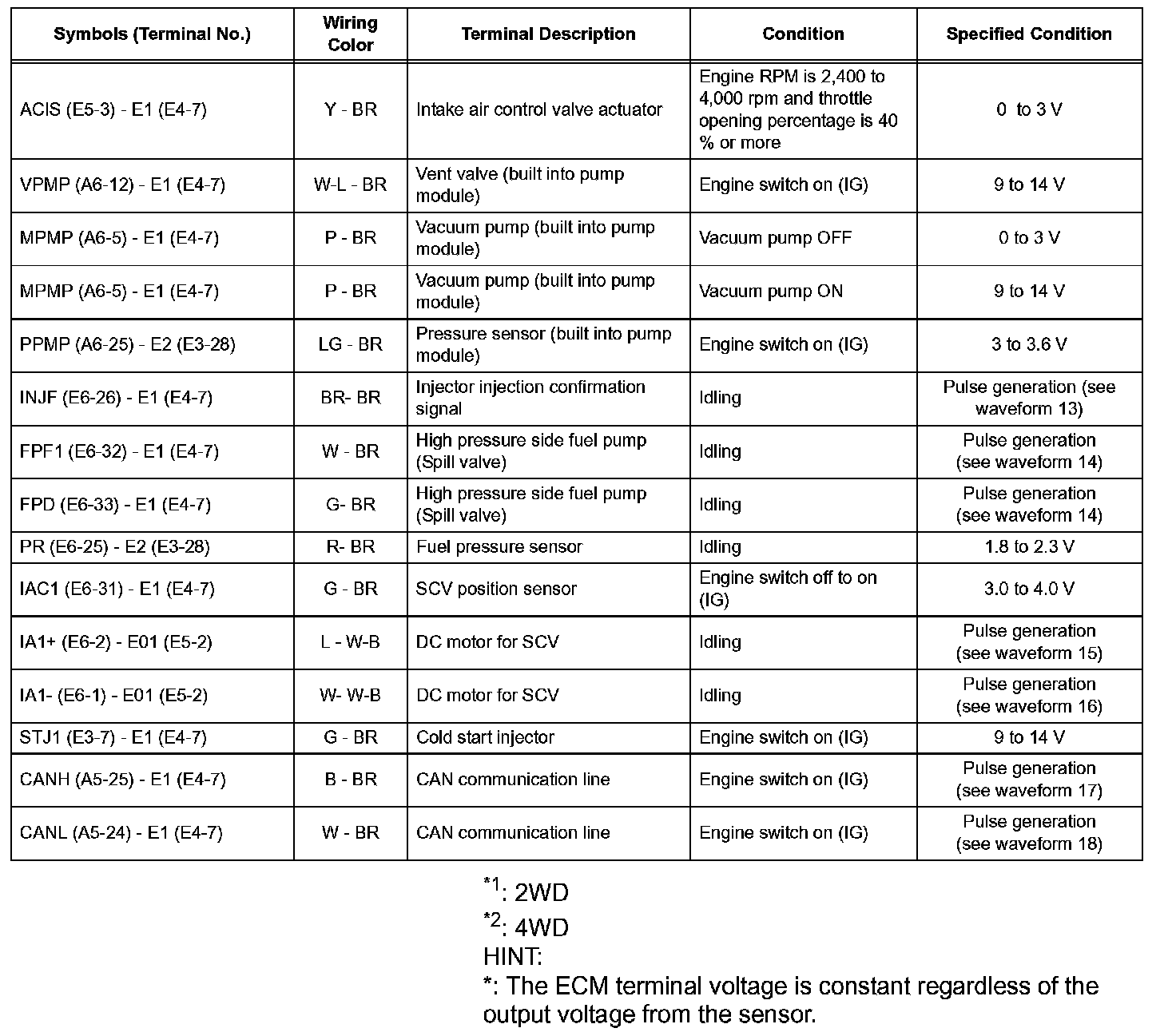

Terminals Of ECM/Pinouts (Part 3):

Terminals Of ECM/Pinouts (Part 4):

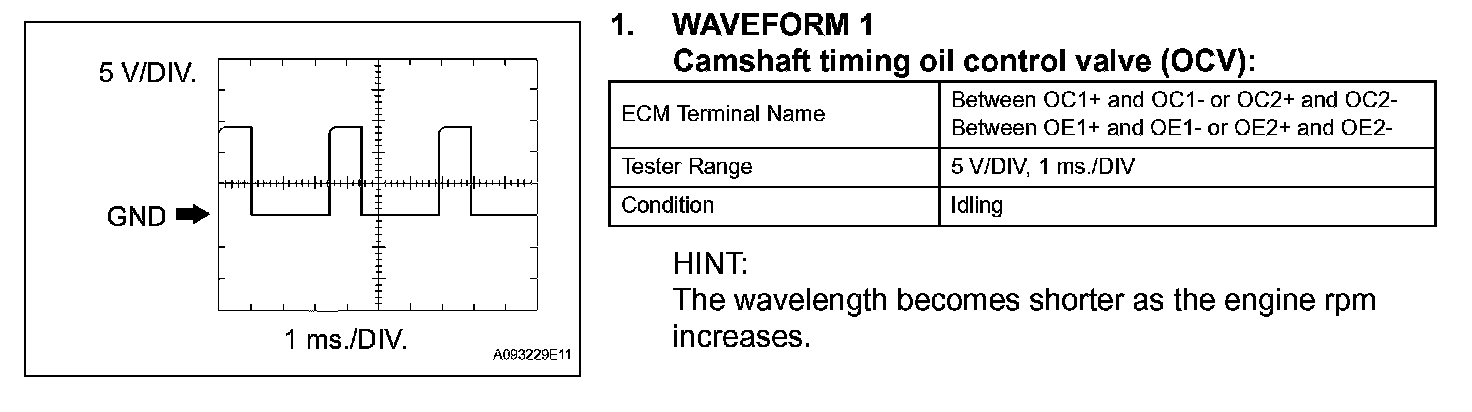

Oscilloscope Waveforms:

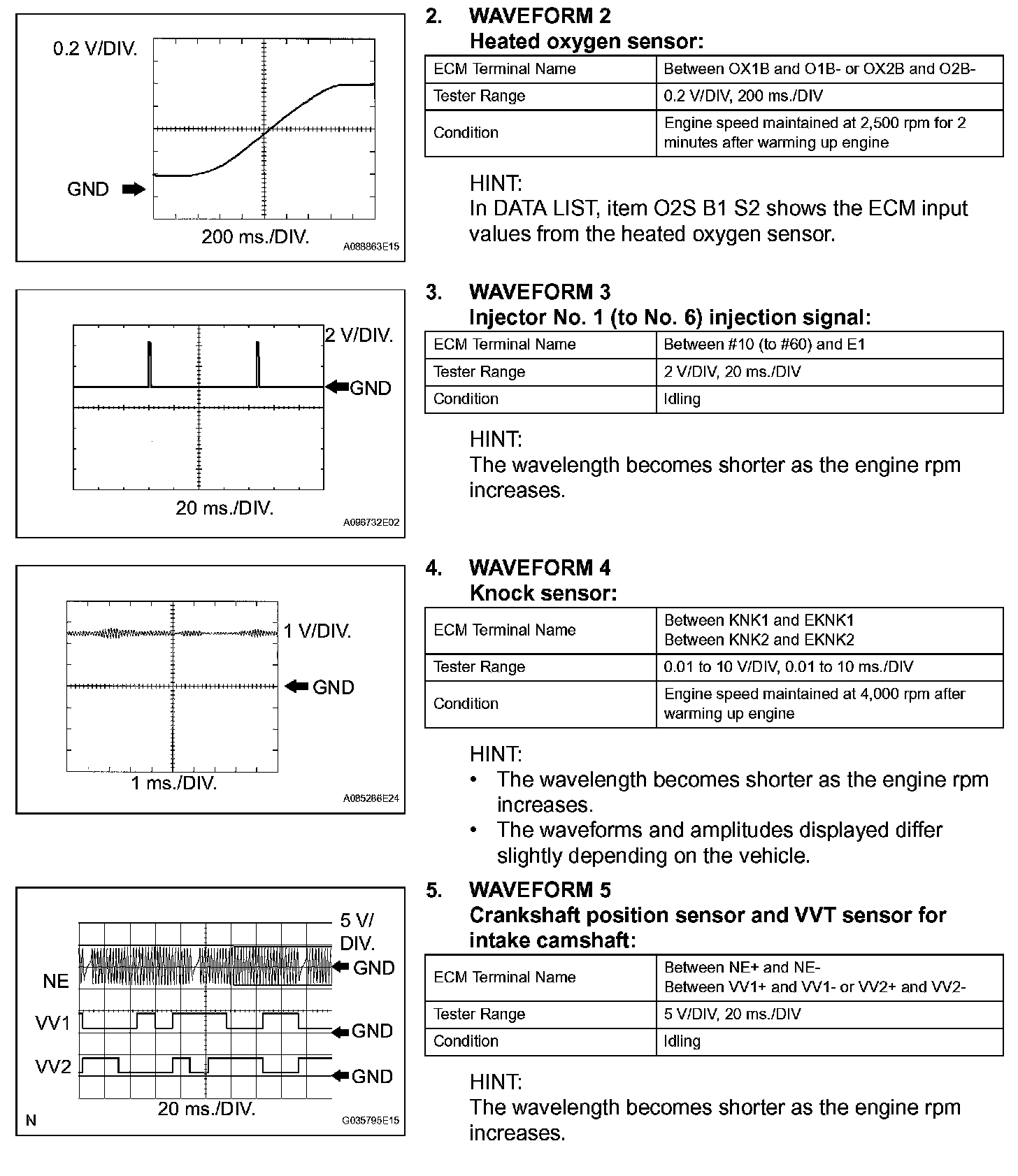

Oscilloscope Waveforms:

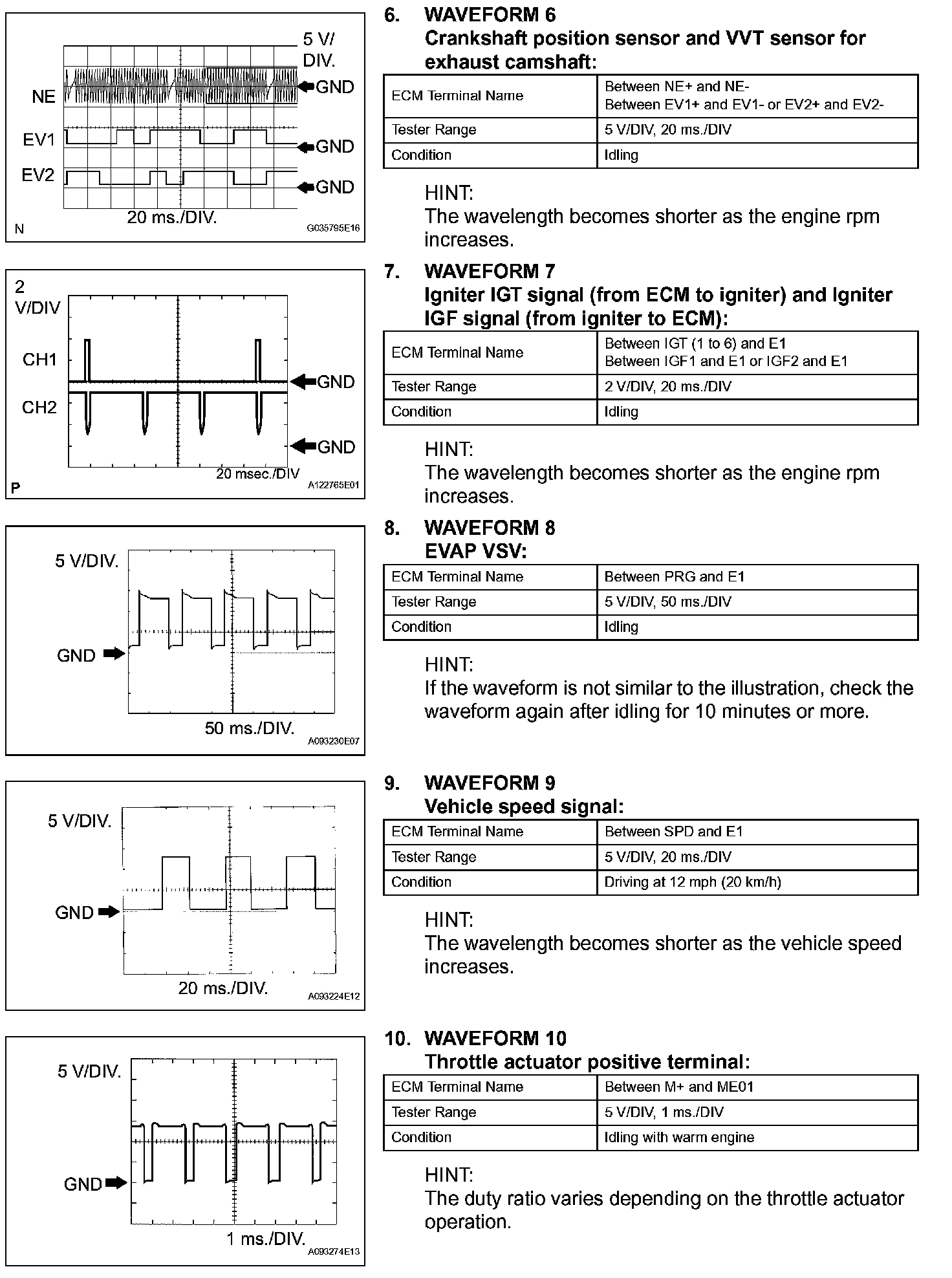

Oscilloscope Waveforms:

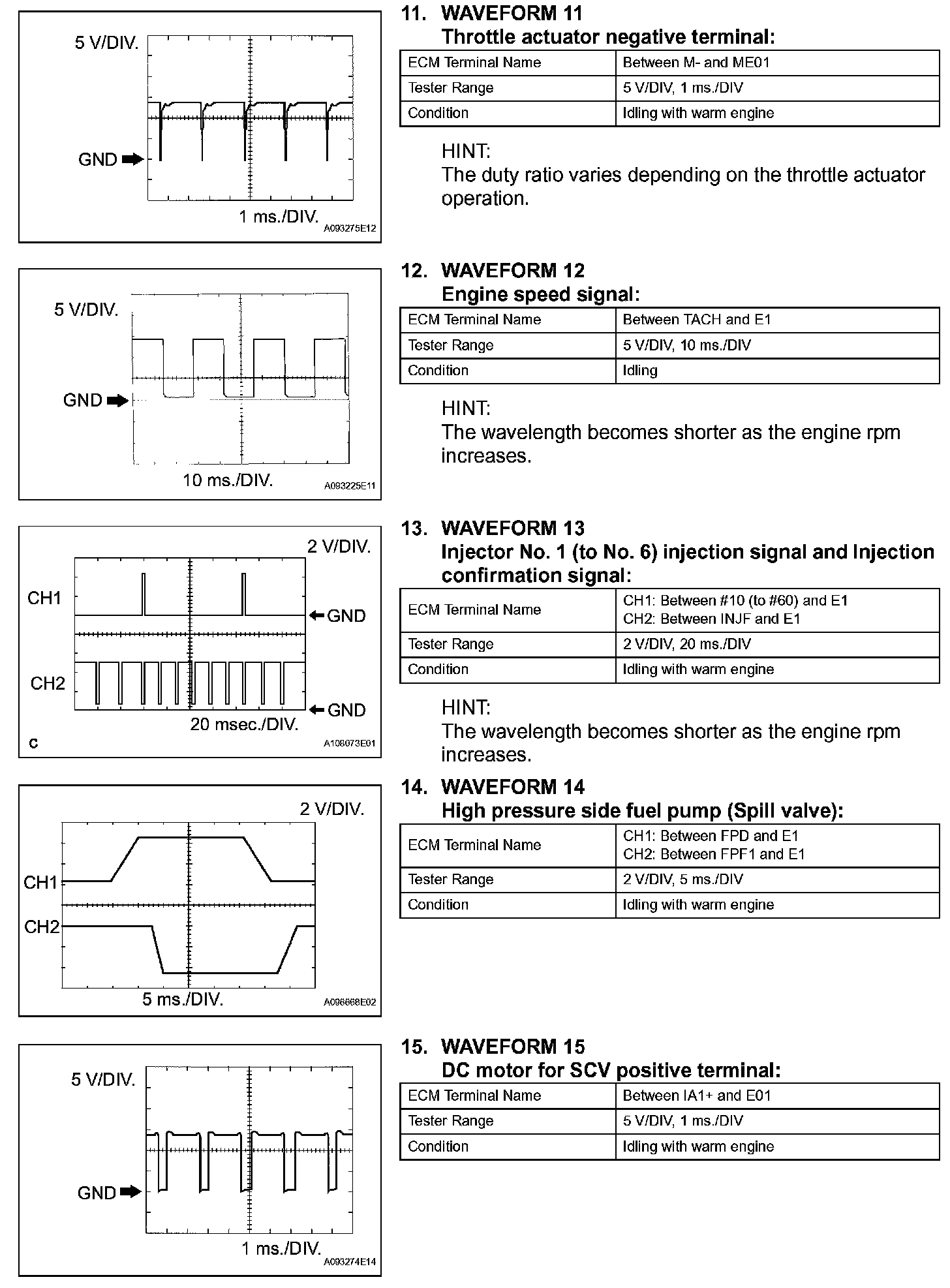

Oscilloscope Waveforms:

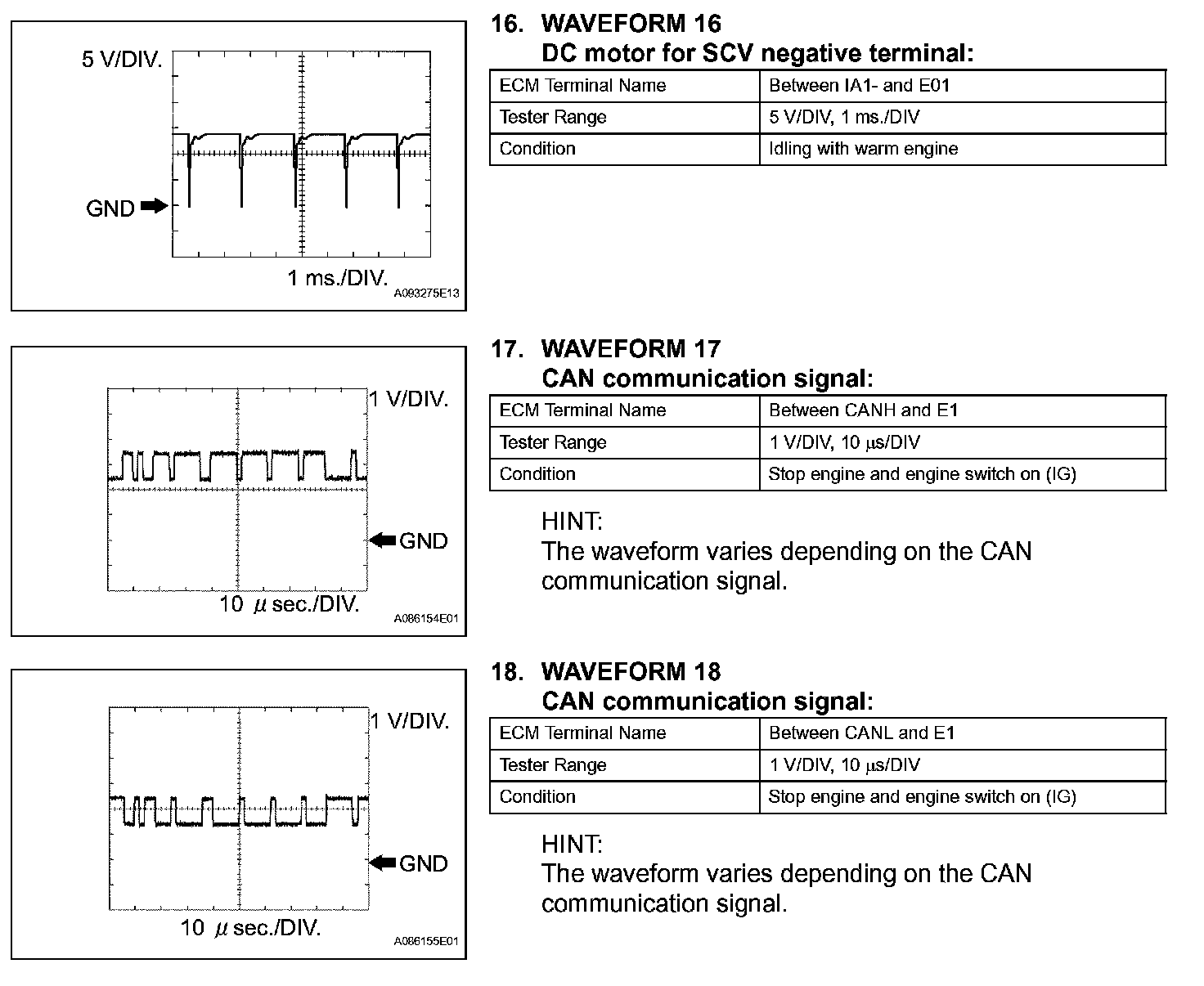

Oscilloscope Waveforms:
