Yaw Rate Sensor Communication Stop Mode

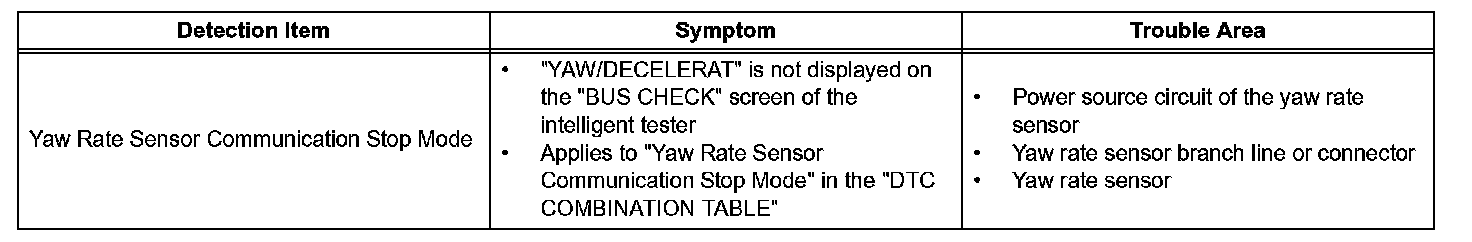

Yaw Rate Sensor Communication Stop ModeDetection Item:
DESCRIPTION
HINT: "YAW/DECELERATE" refers to the circuit that includes the yaw rate sensor.

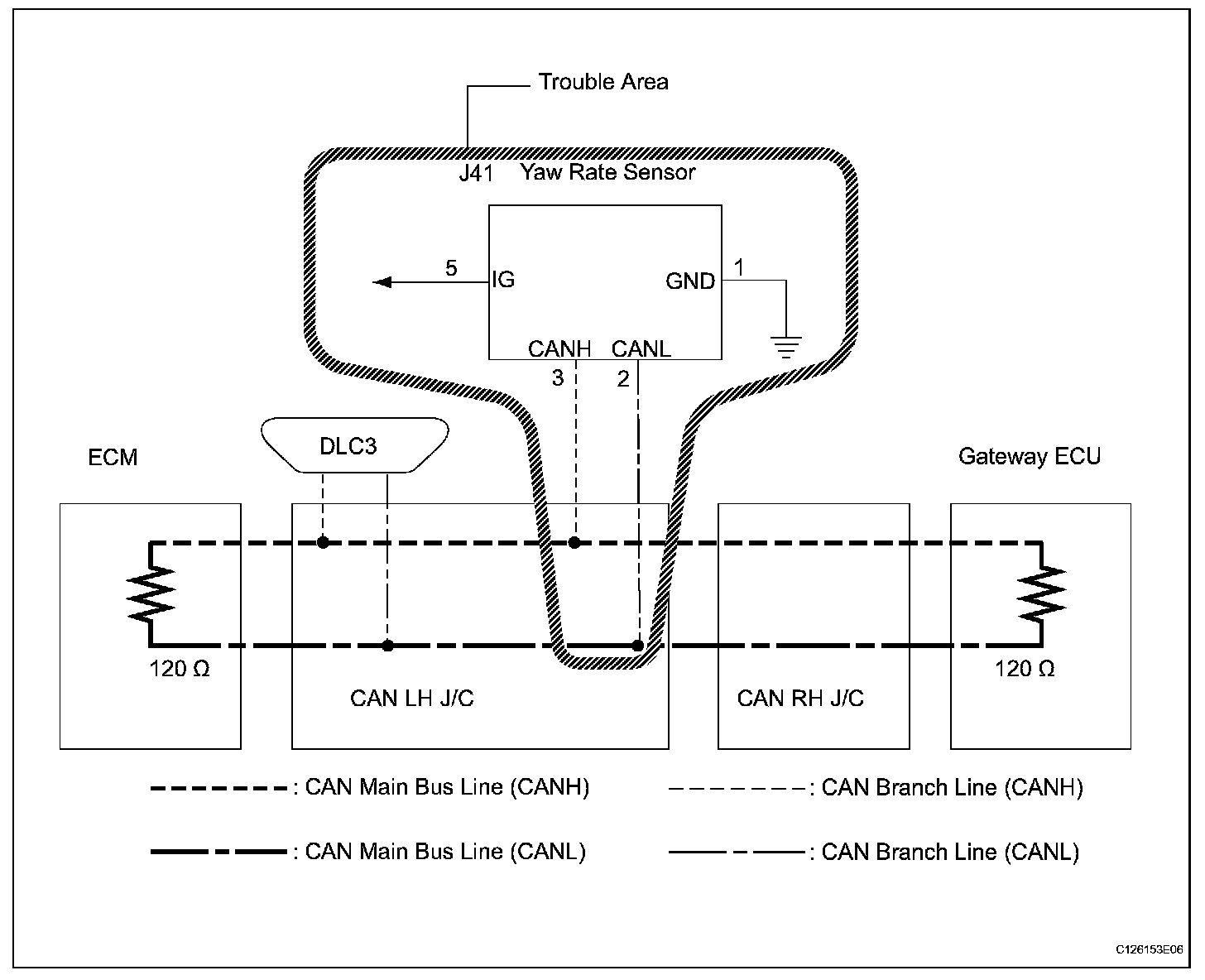

Wiring Diagram:

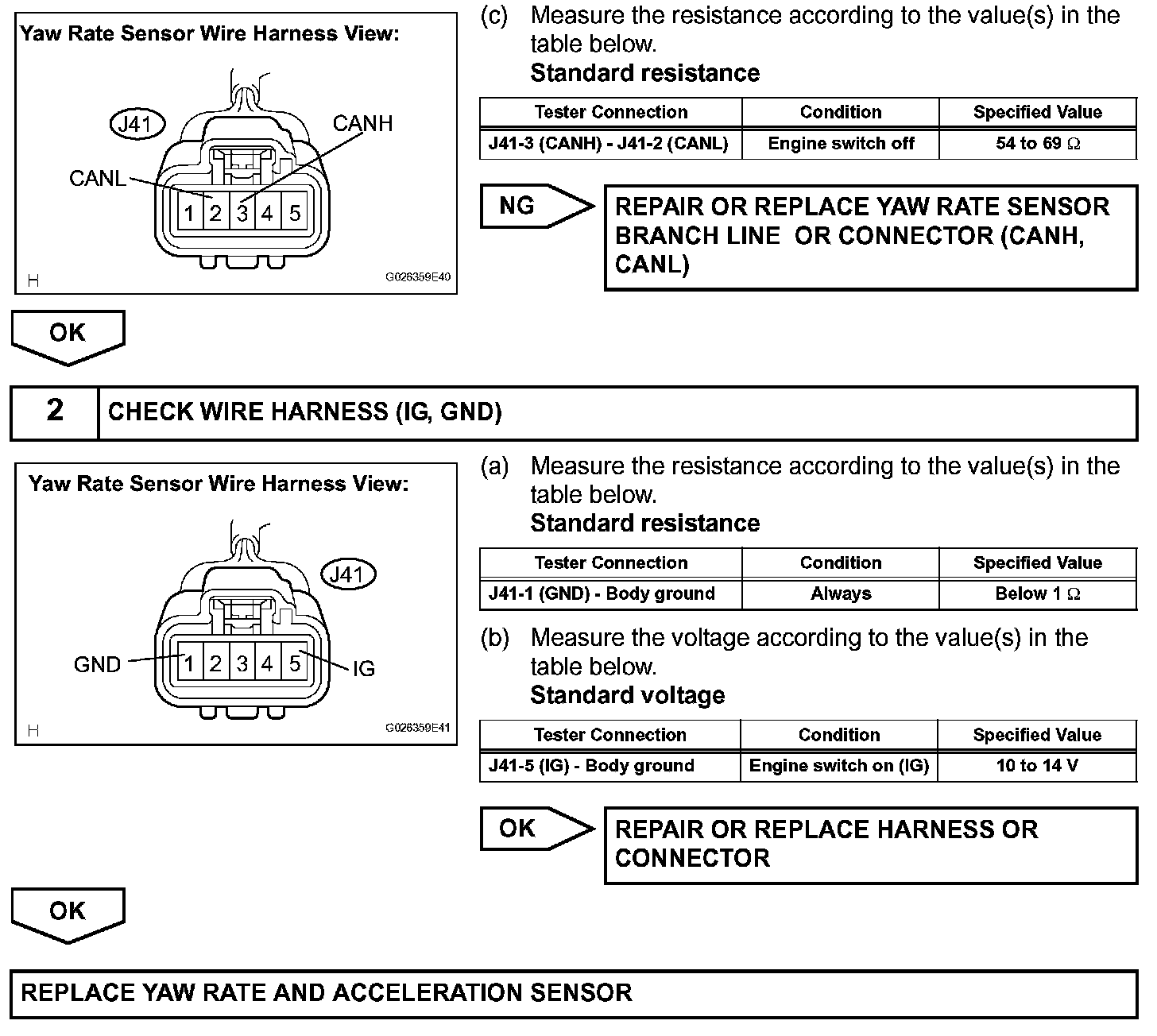

Step 1:
Step 1(continued)-2:

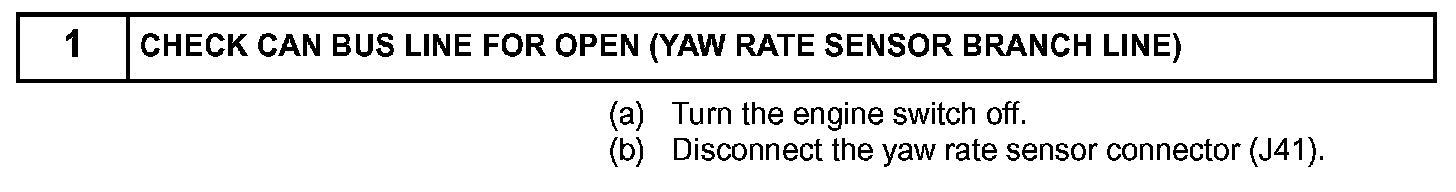

INSPECTION PROCEDURE
