Short to B+ in CAN Bus Line
Short to B+ in CAN Bus LineDESCRIPTION

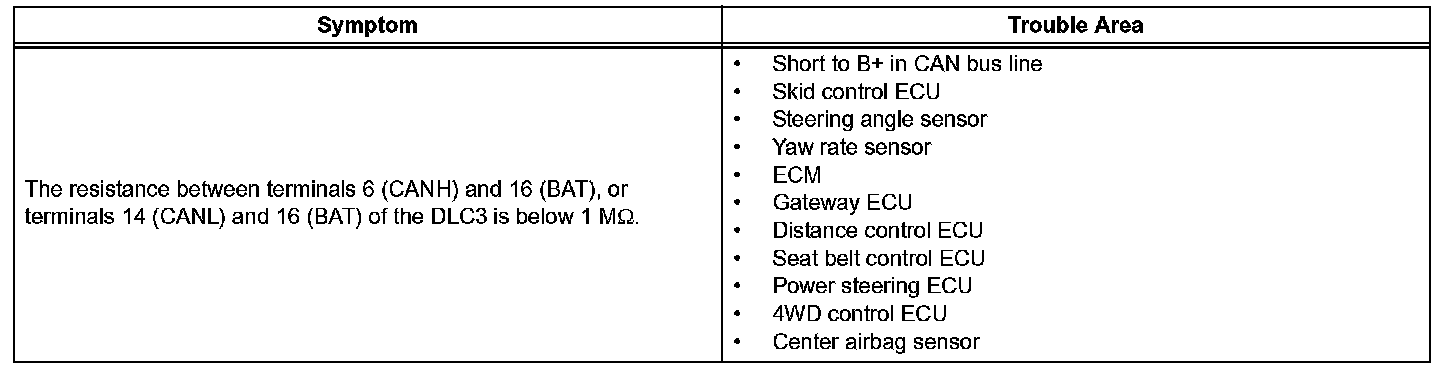

A short to B+ is suspected in the CAN bus line when the resistance between terminals 6 (CANH) and 16 (BAT), or terminals 14 (CANL) and 16 (BAT) of the DLC3 is 1M Ohm.

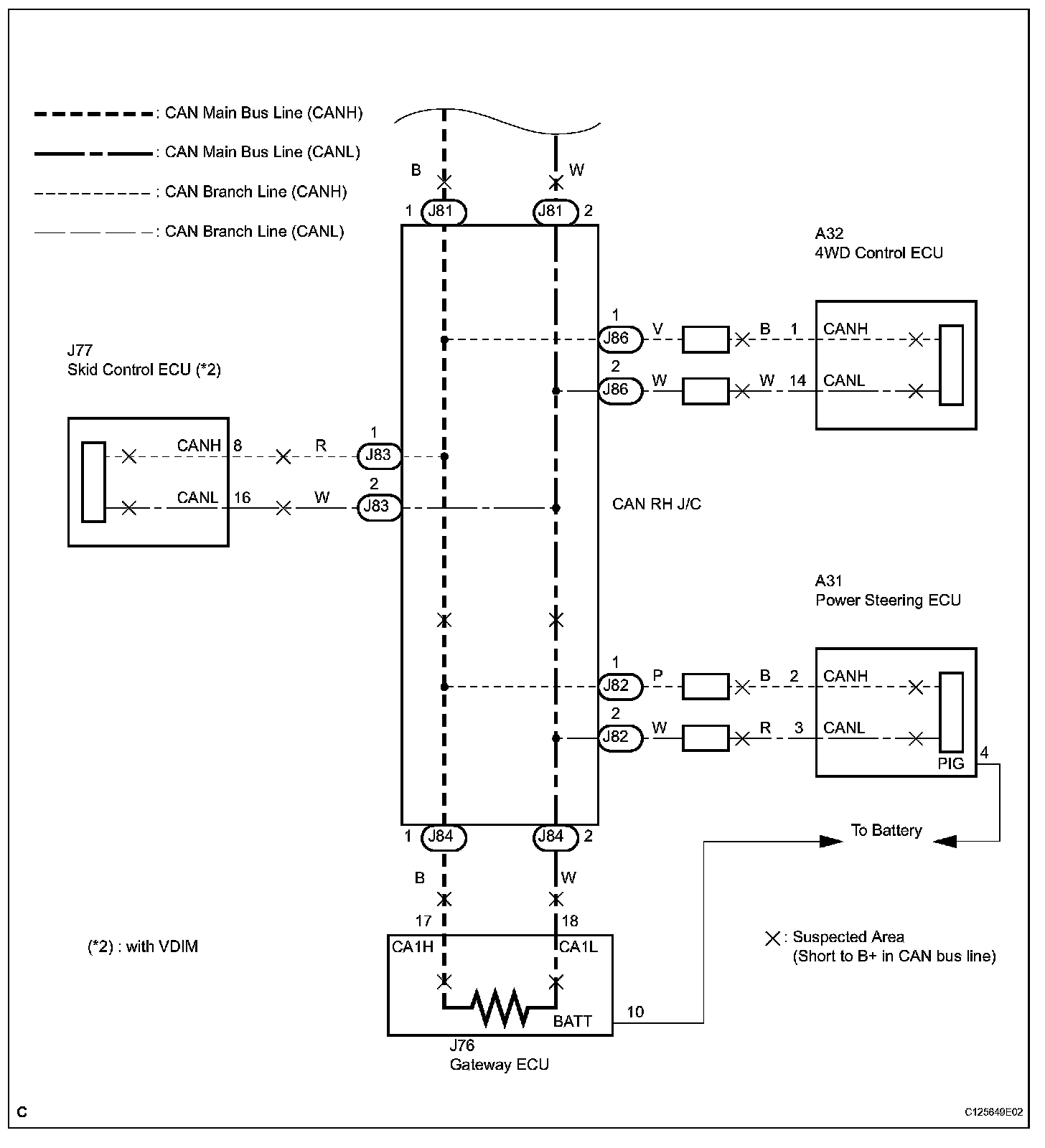

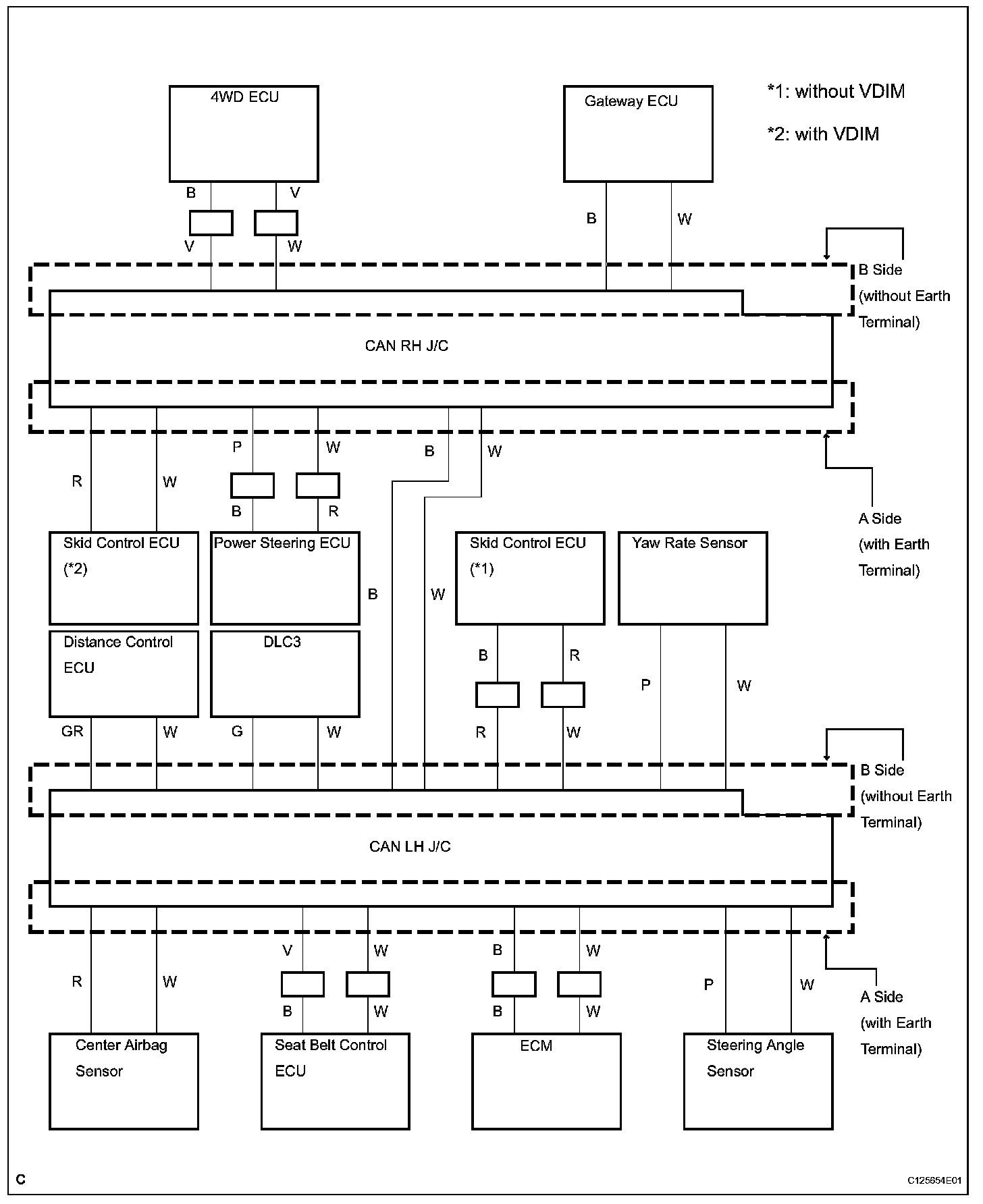

Wiring Diagram (Part 1):

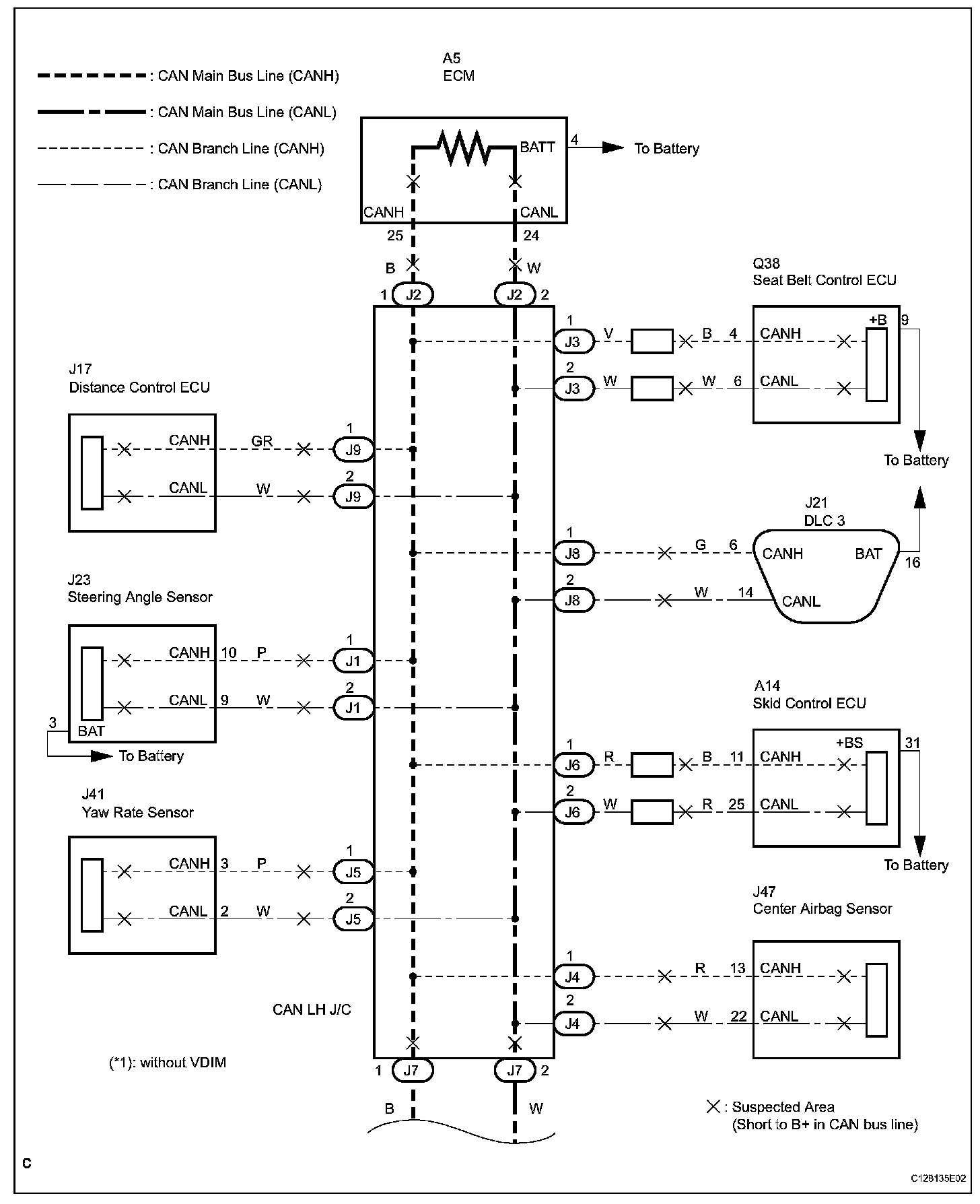

Wiring Diagram (Part 2):

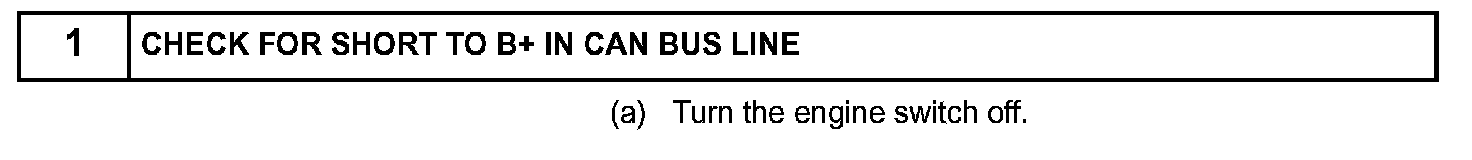

Step 1:

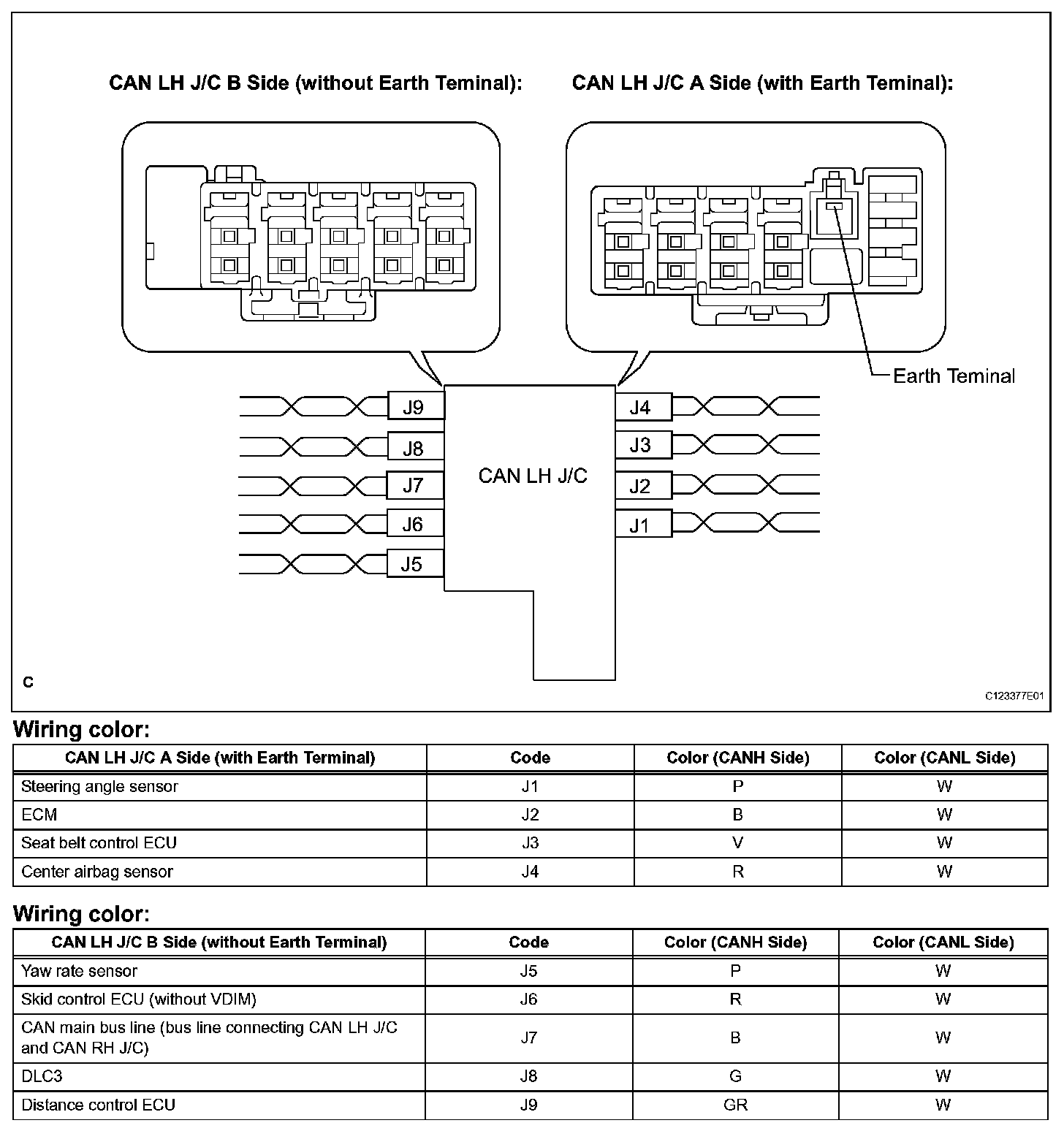

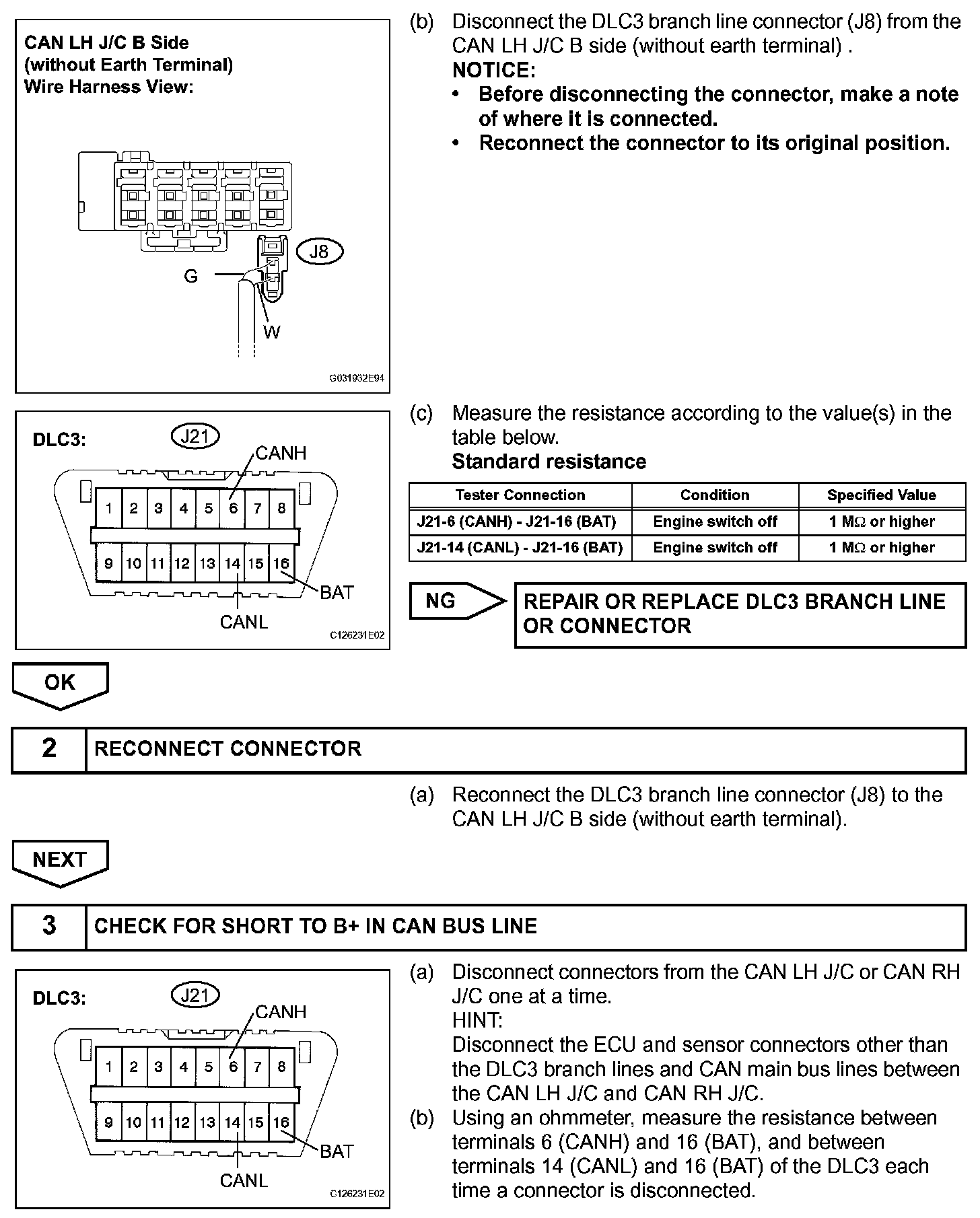

Step 1(continued)-3:
Step 3(continued):
Step 3(continued):
Step 3(continued):

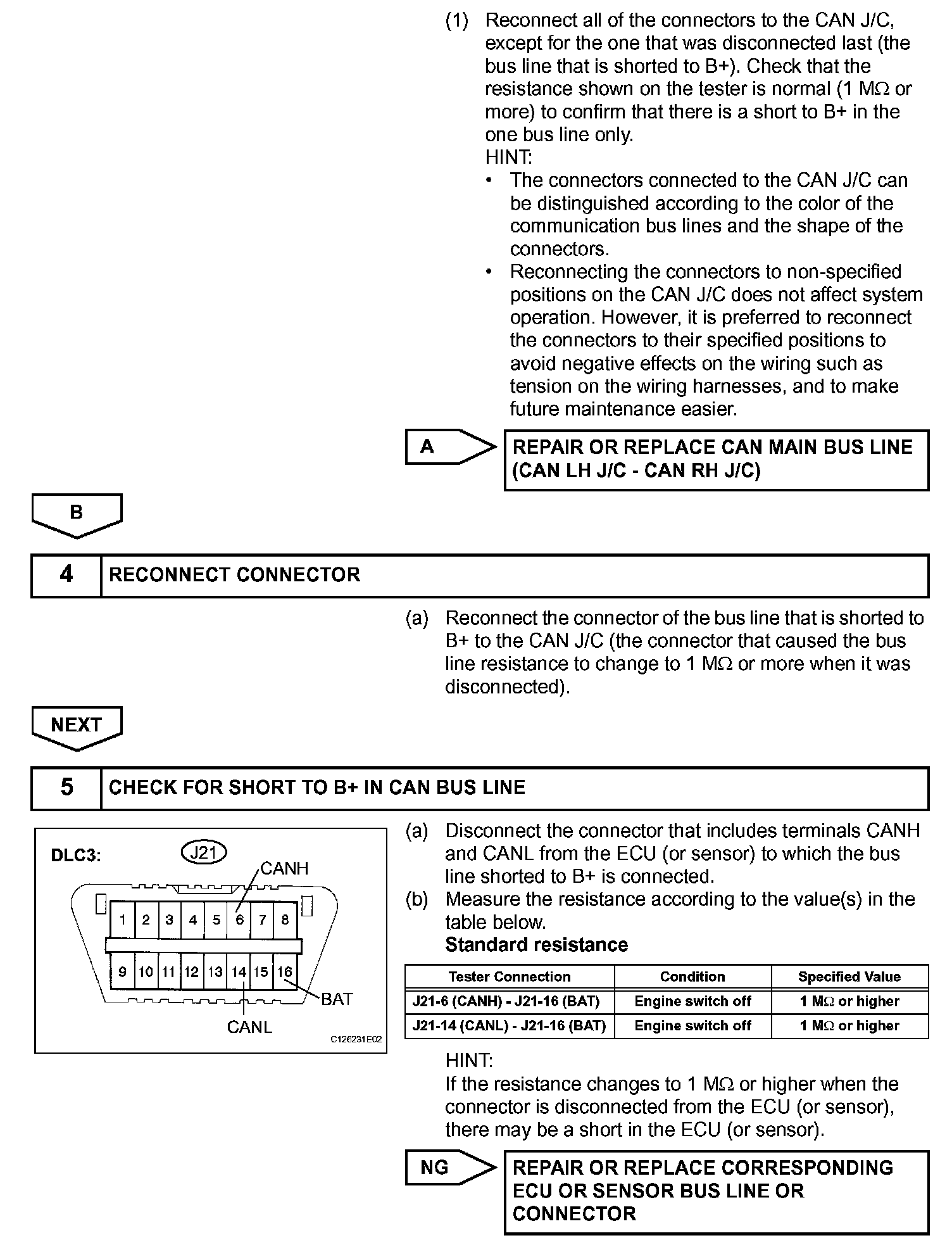

Step 3(continued)-5:
Step 5(continued):

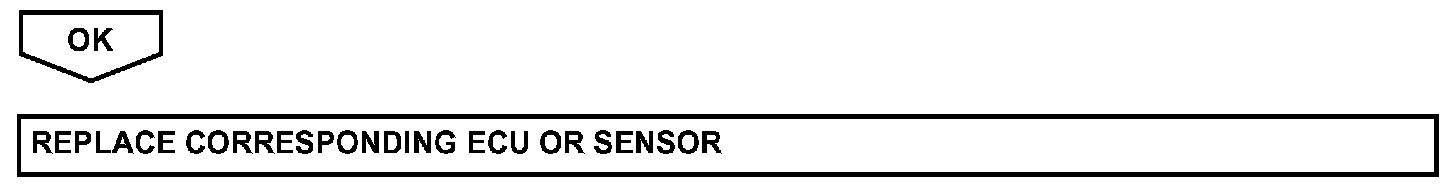

INSPECTION PROCEDURE
