Short in CAN Bus Lines

Short in CAN Bus Lines

DESCRIPTION

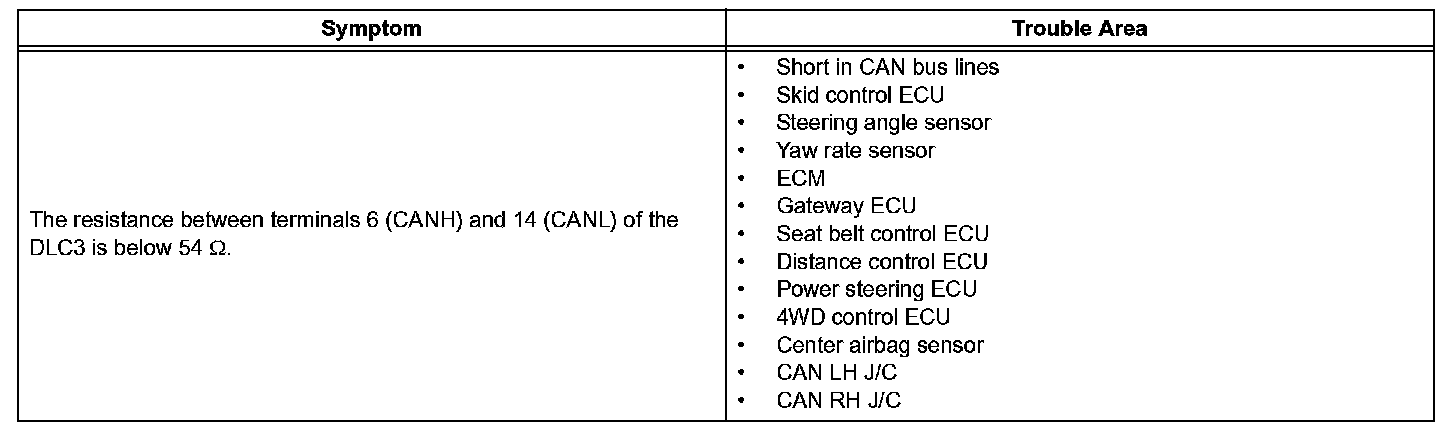

The CAN bus lines are considered to be shorted when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is 54 Ohms.

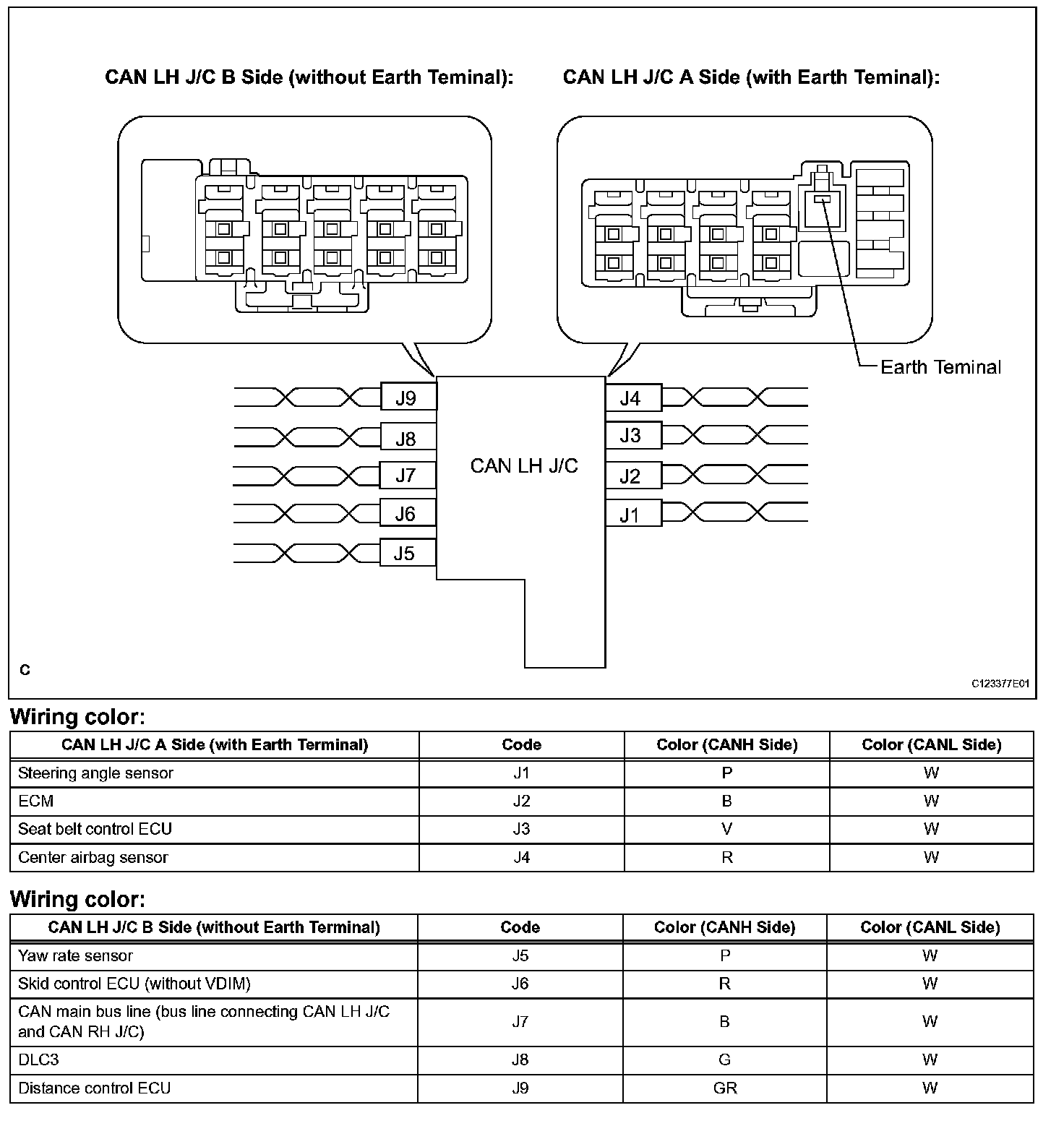

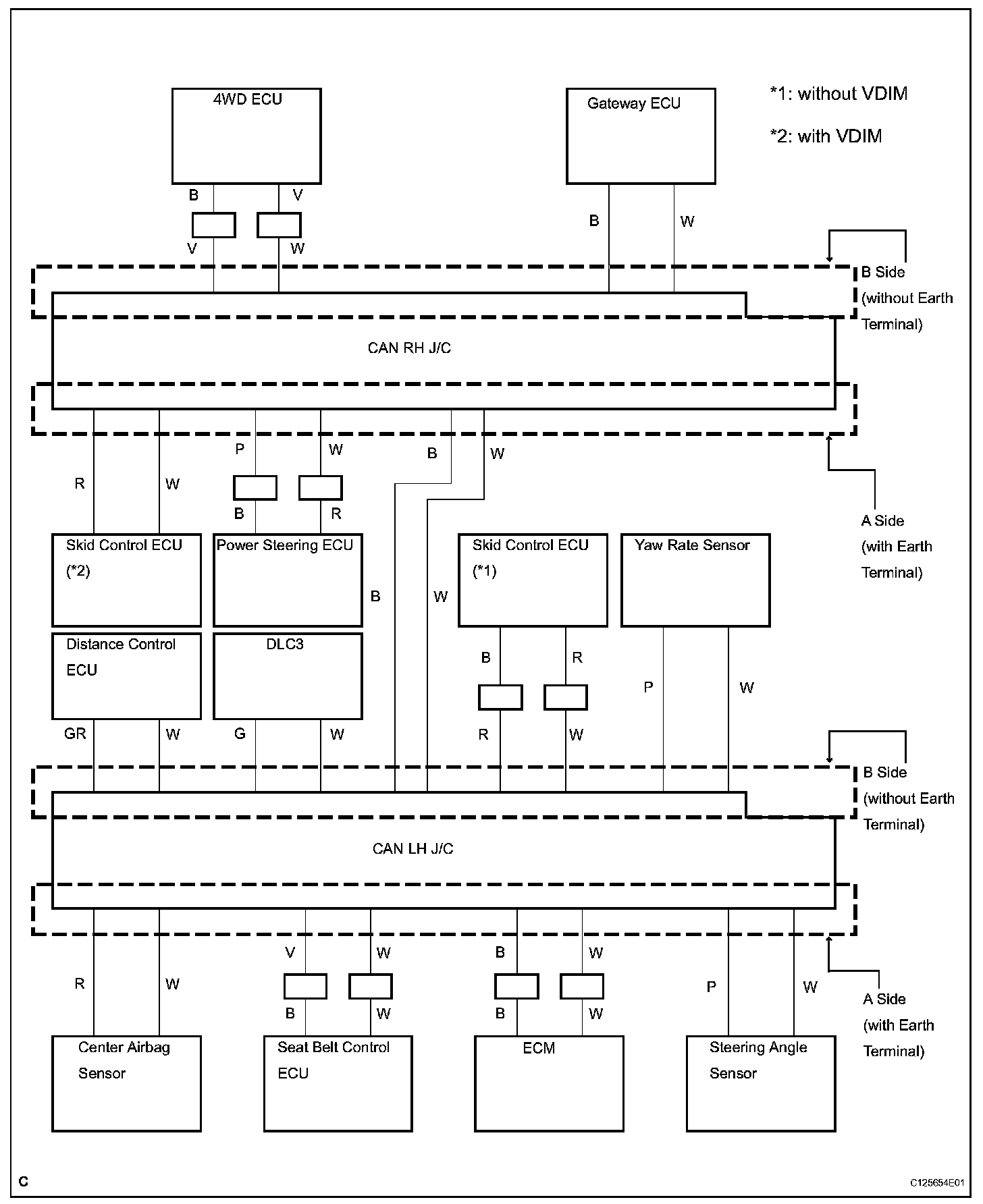

Wiring Diagram (Part 1):

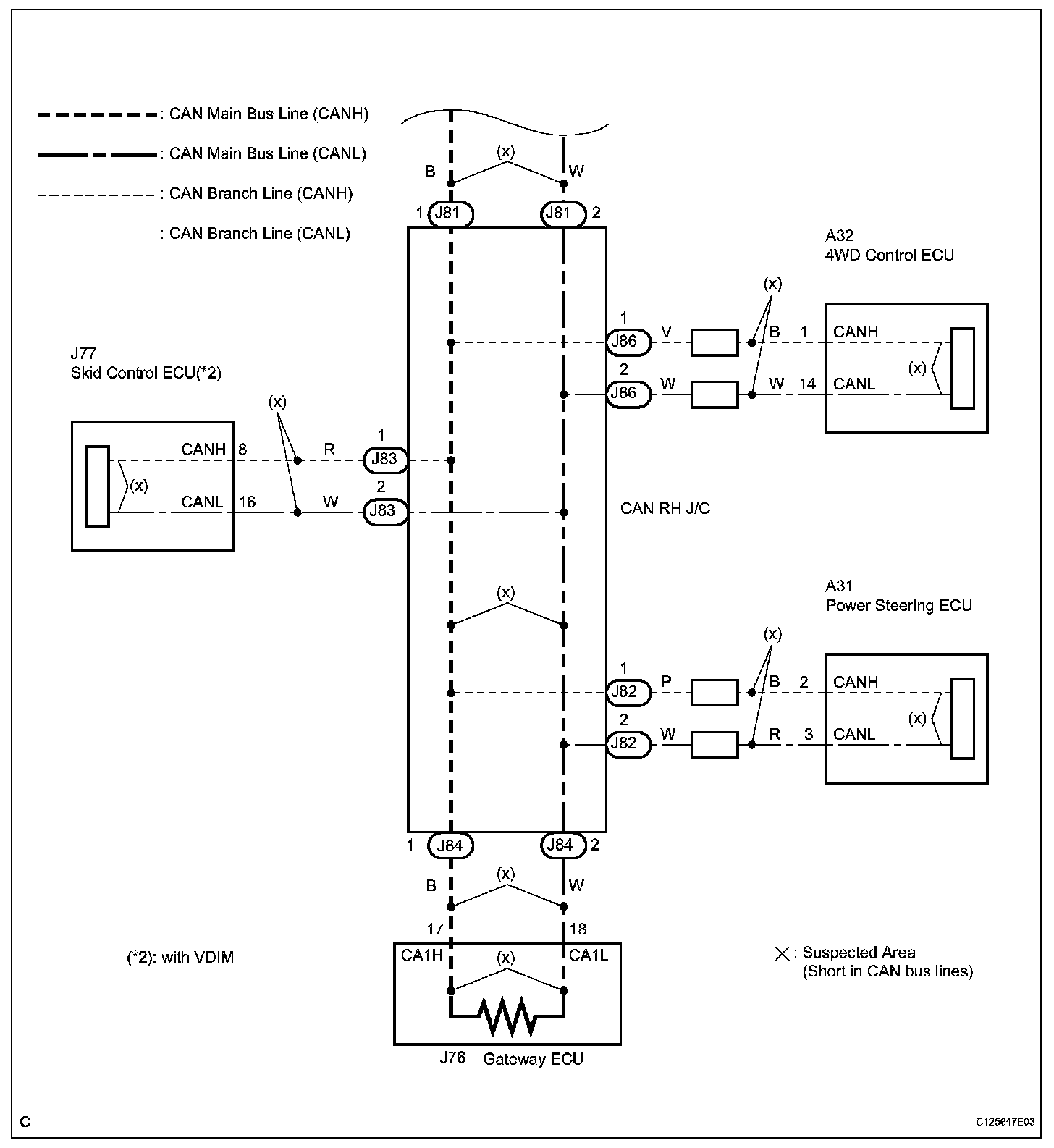

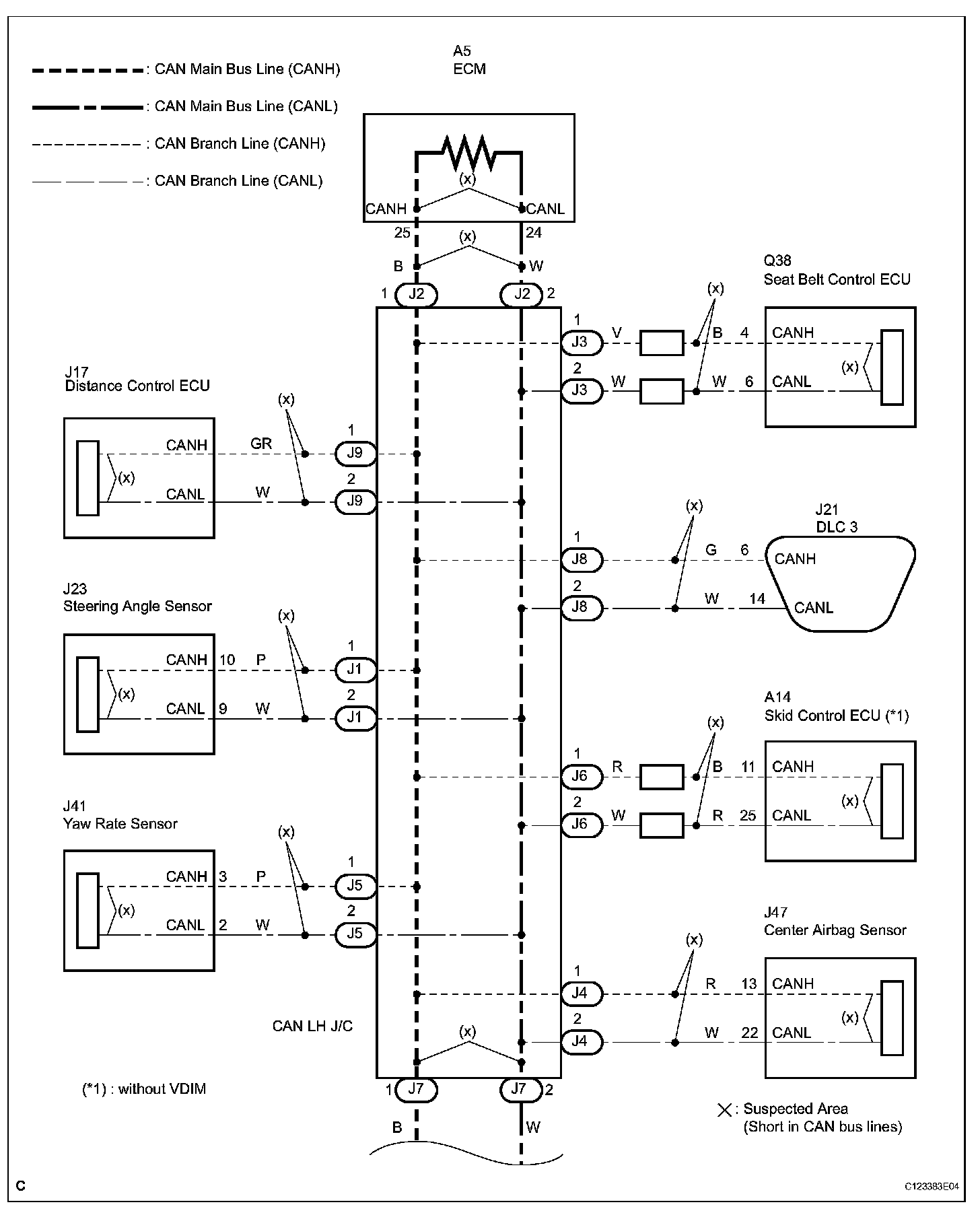

Wiring Diagram (Part 2):

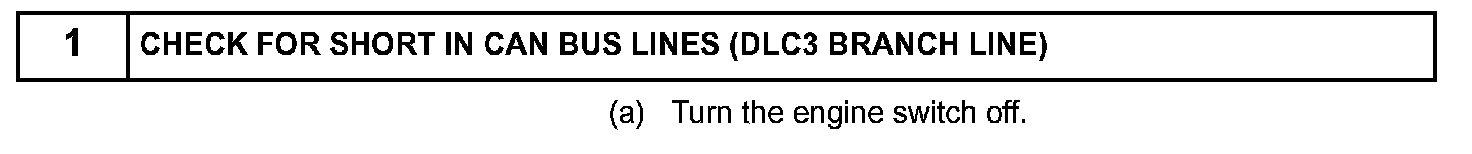

Step 1:

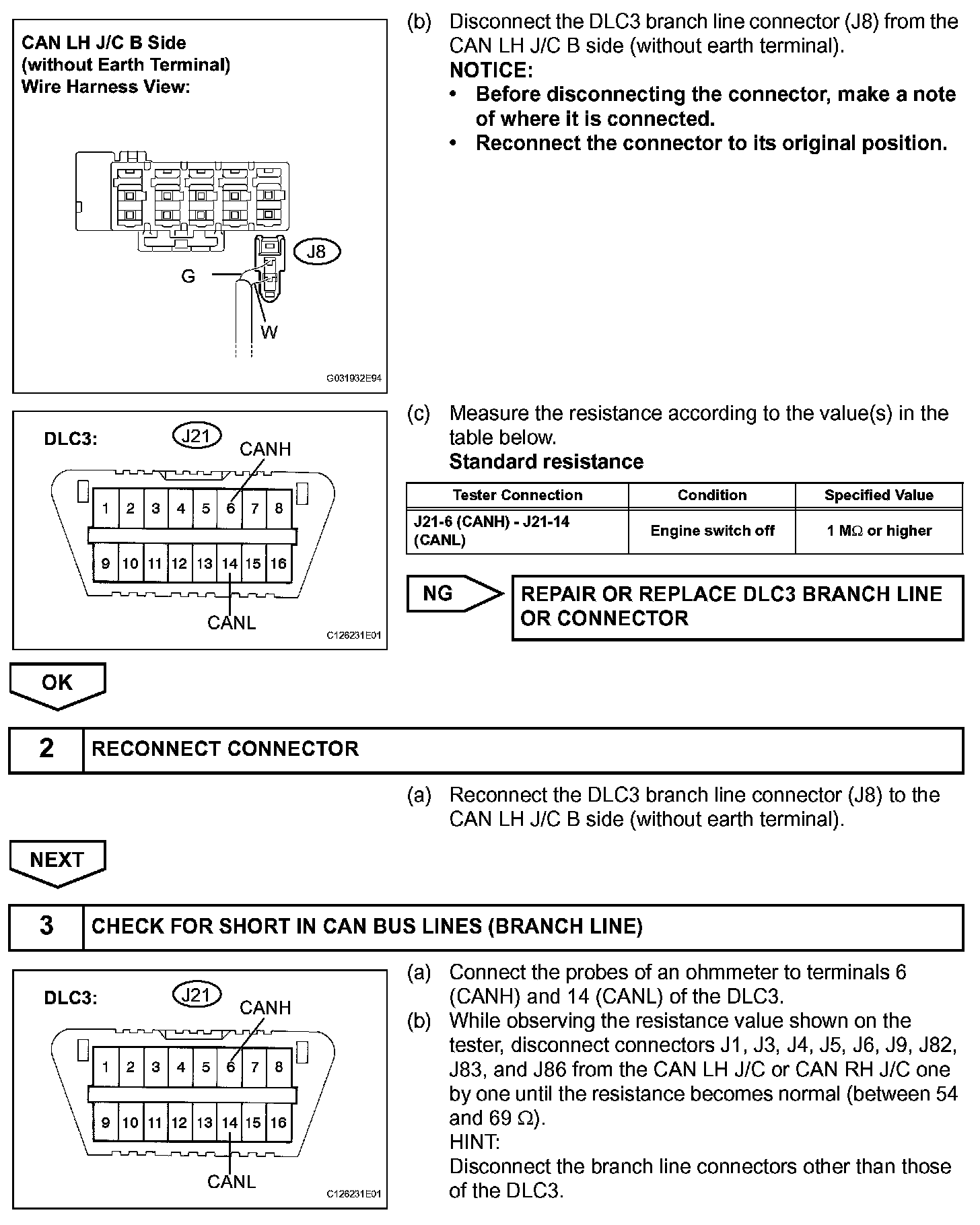

Step 1(continued)-3:

Step 3(continued):

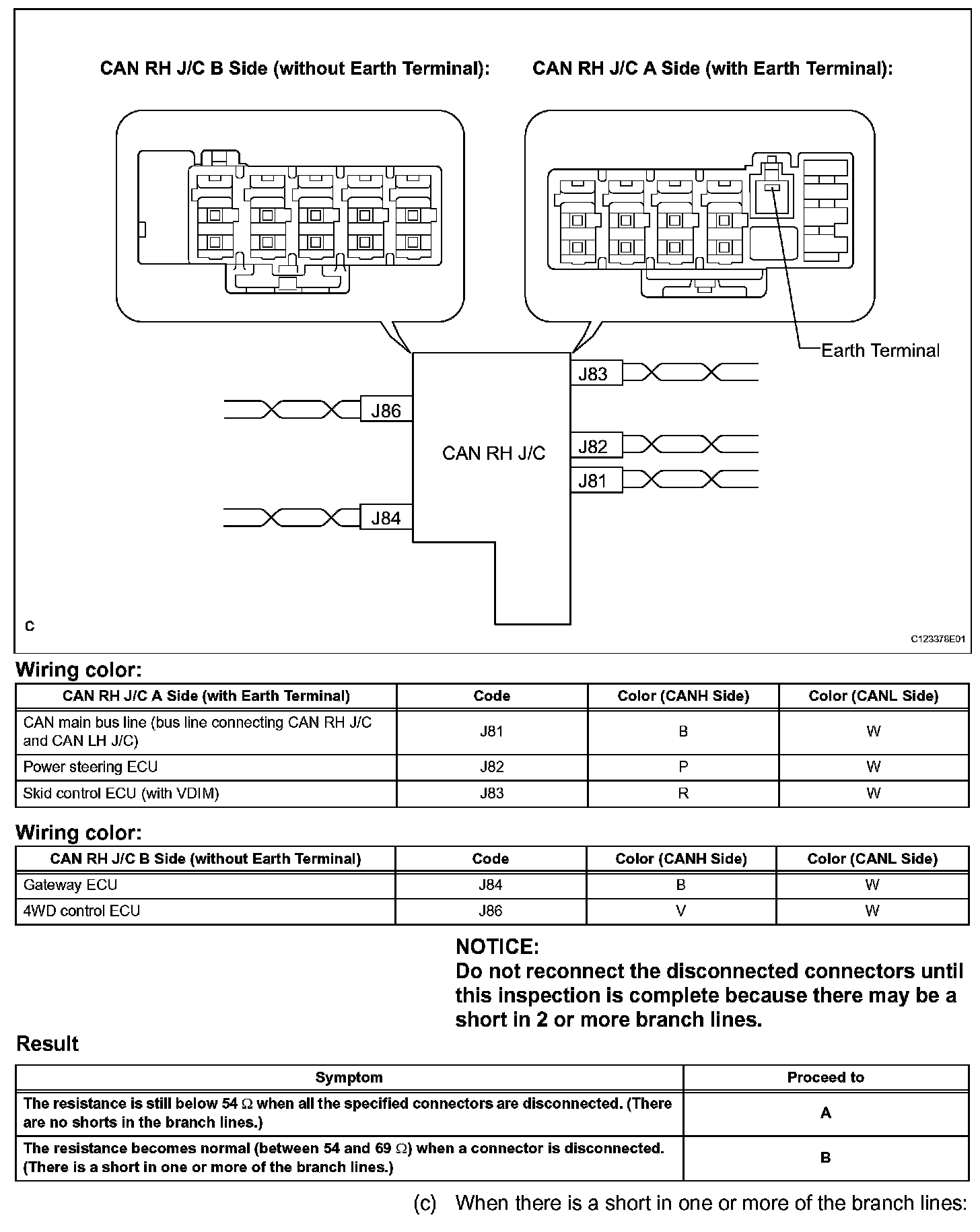

Step 3(continued):

Step 3(continued):

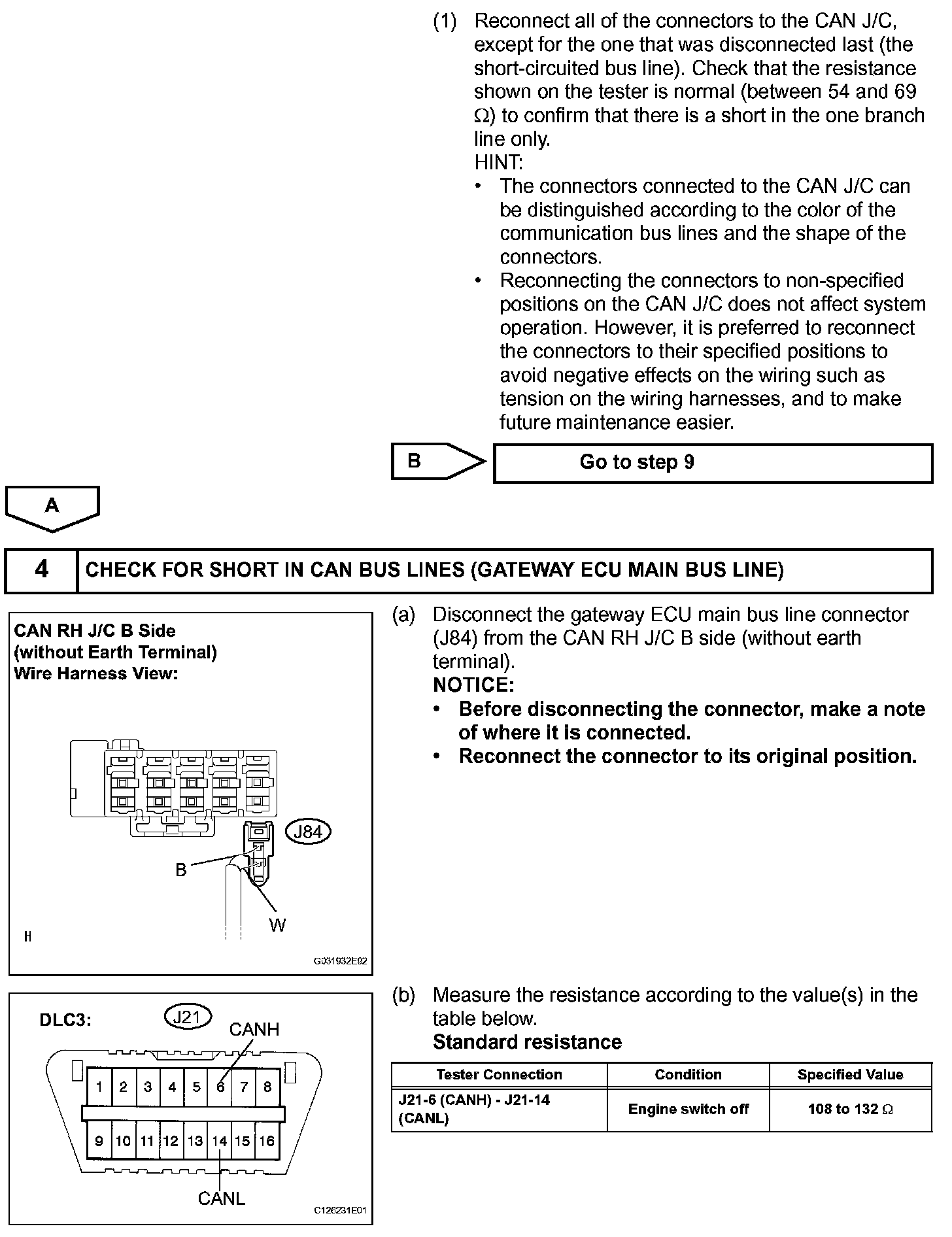

Step 3(continued)-4:

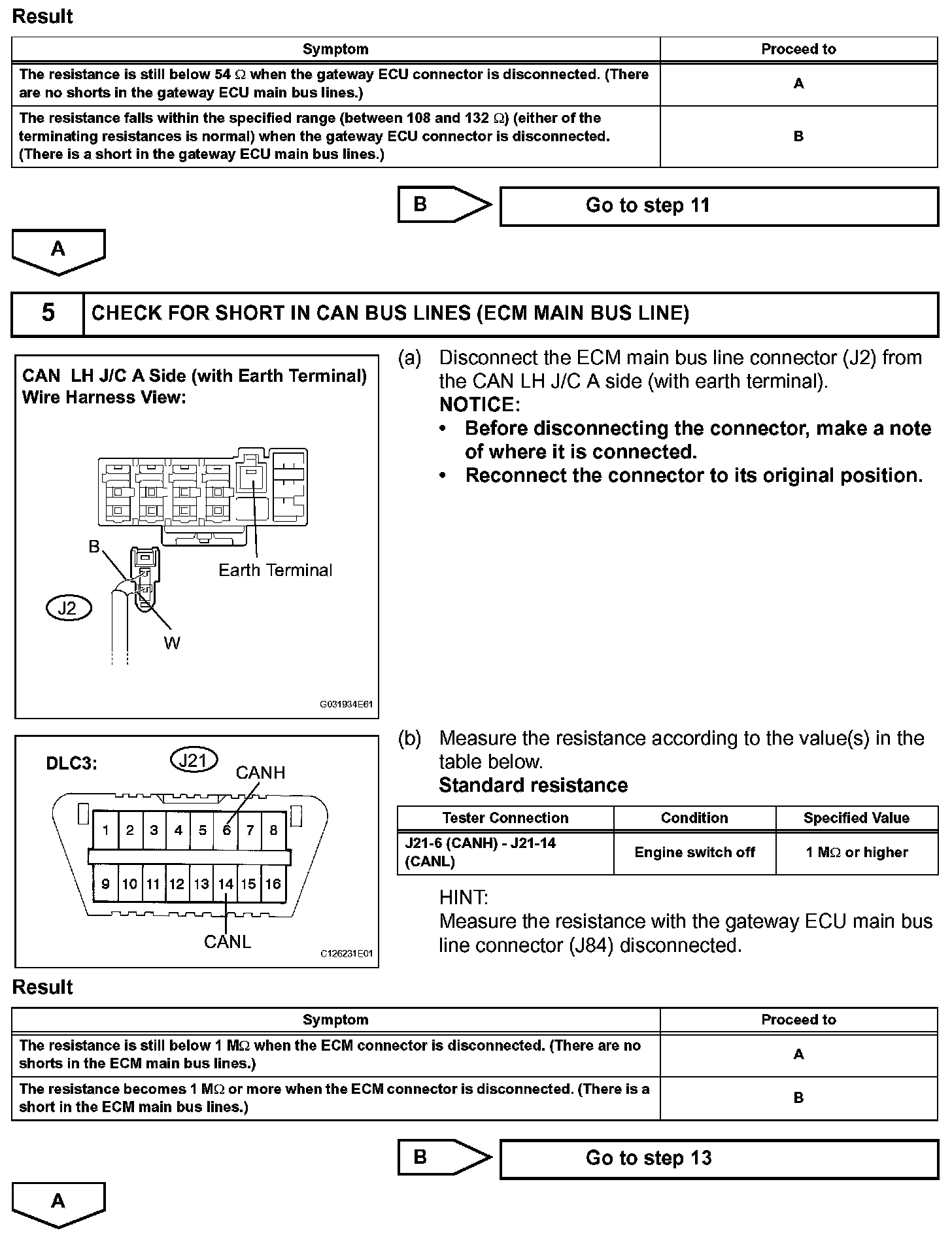

Step 4(continued)-5:

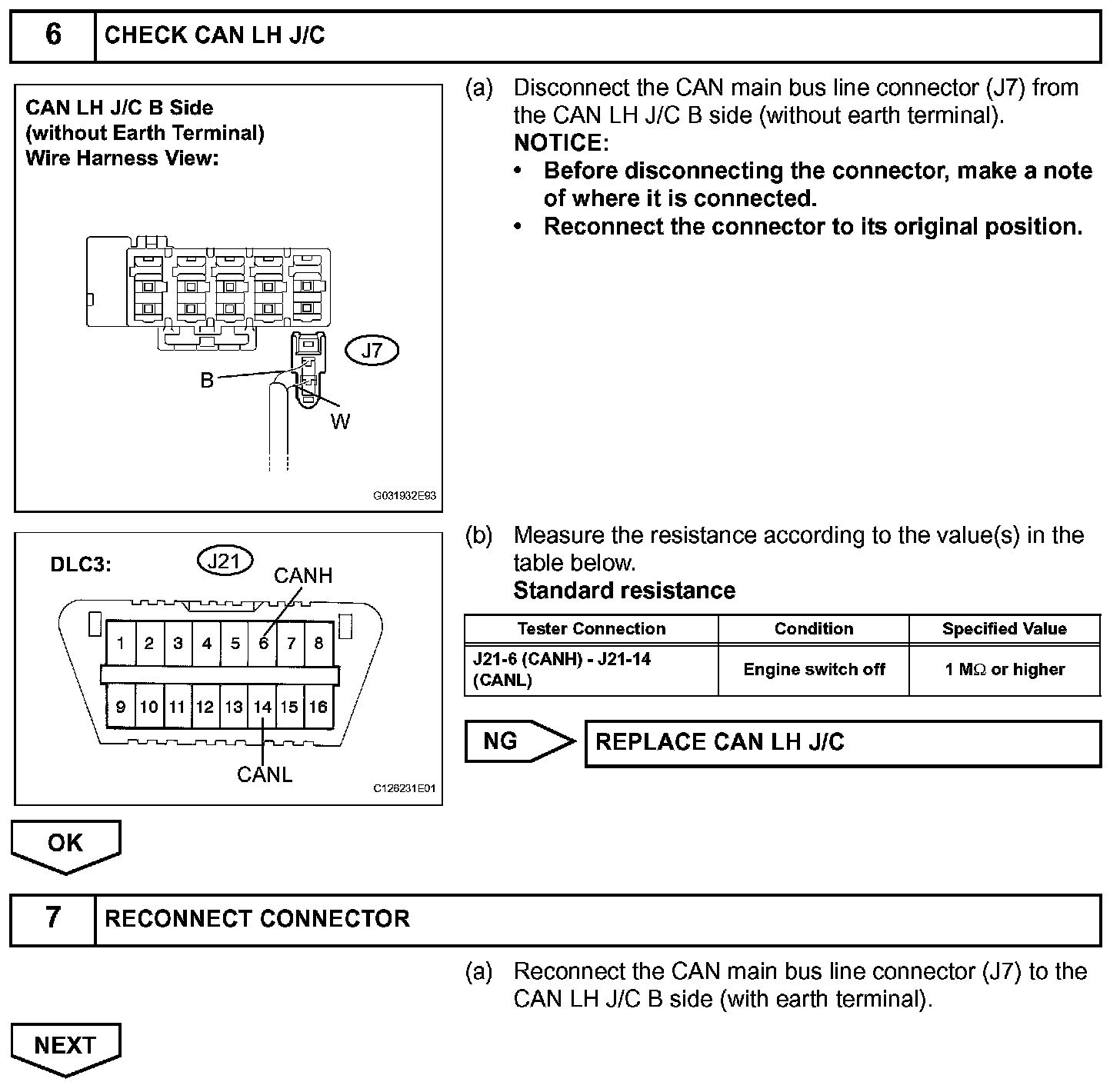

Step 6-7:

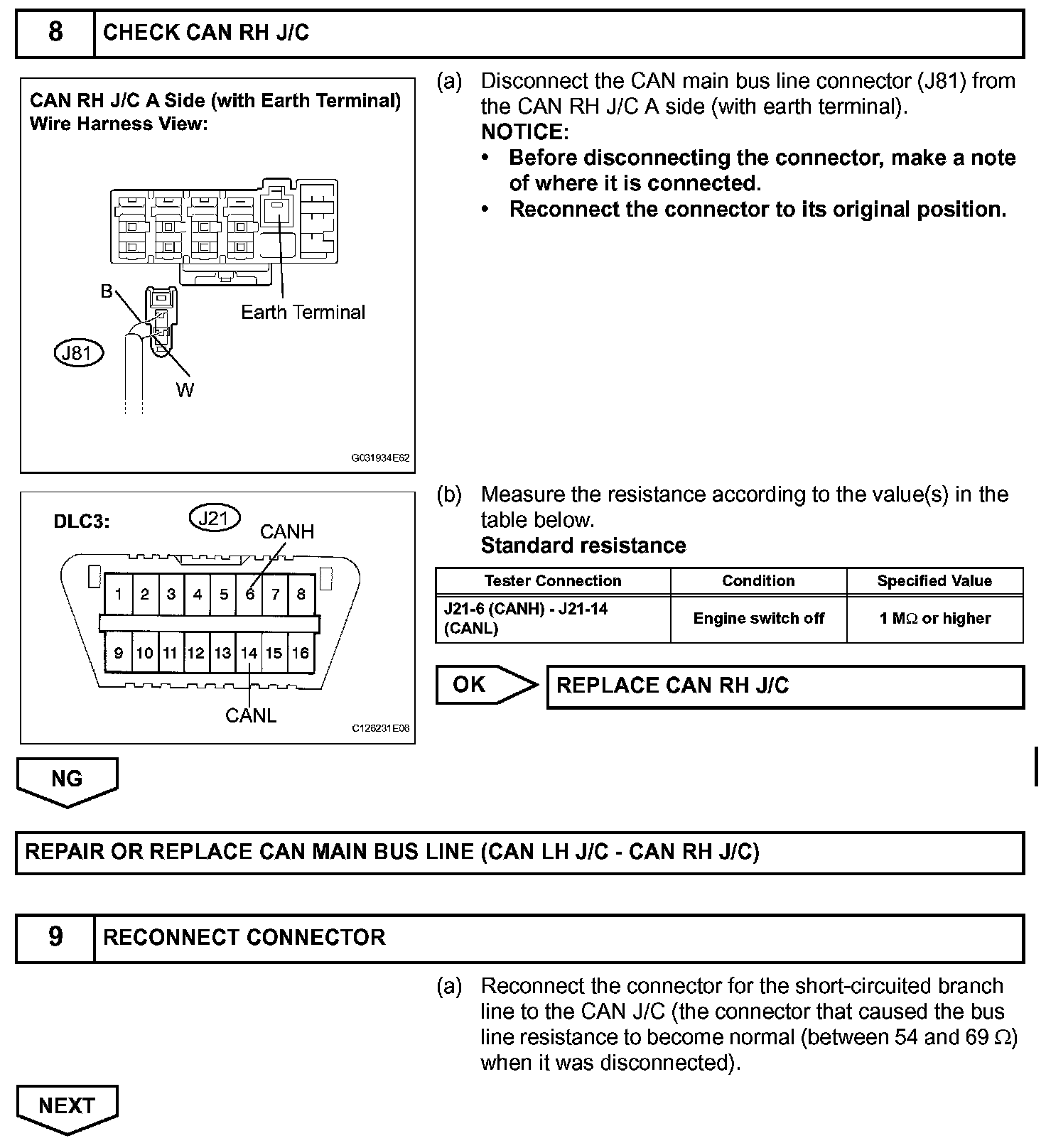

Step 8-9:

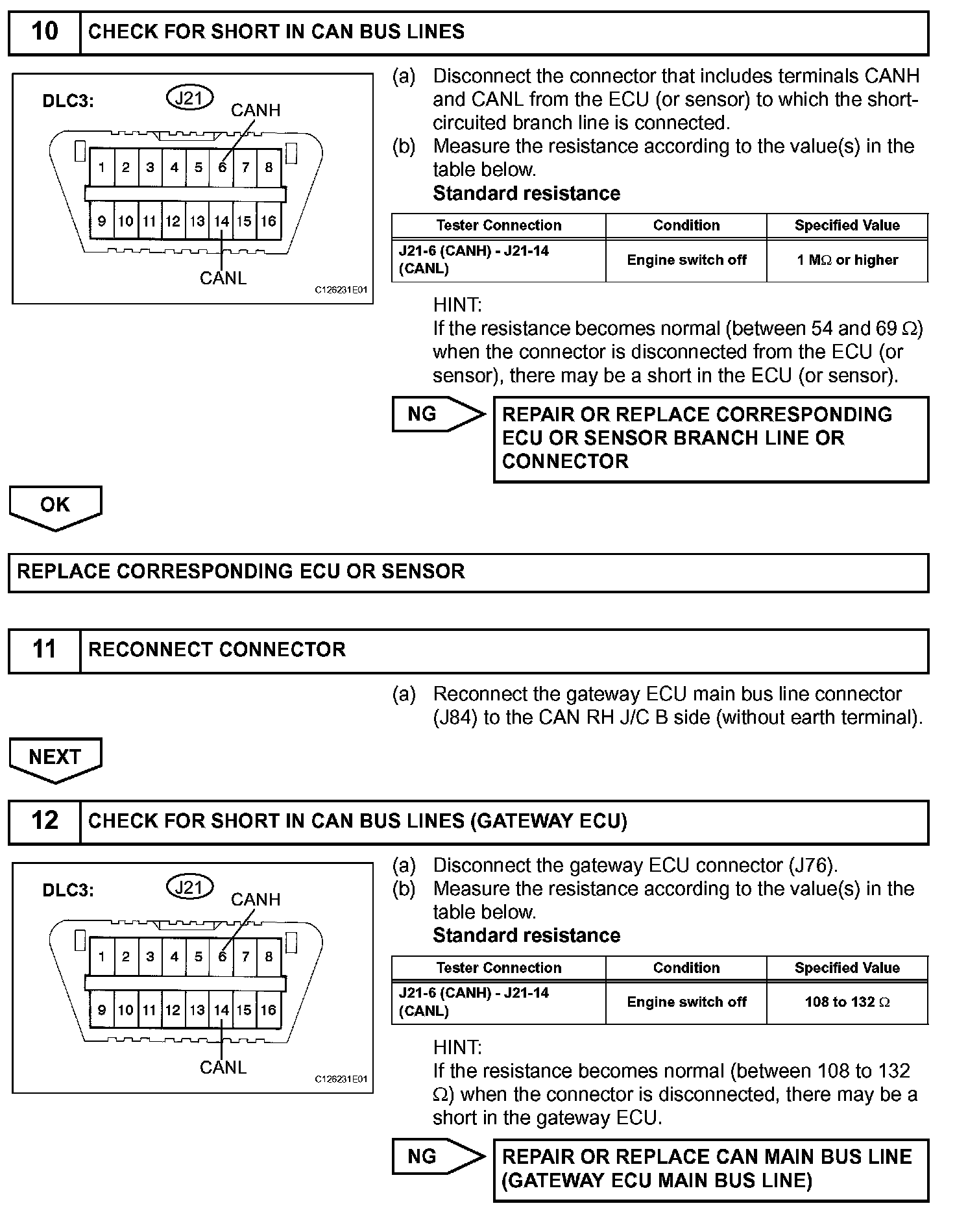

Step 10-12:

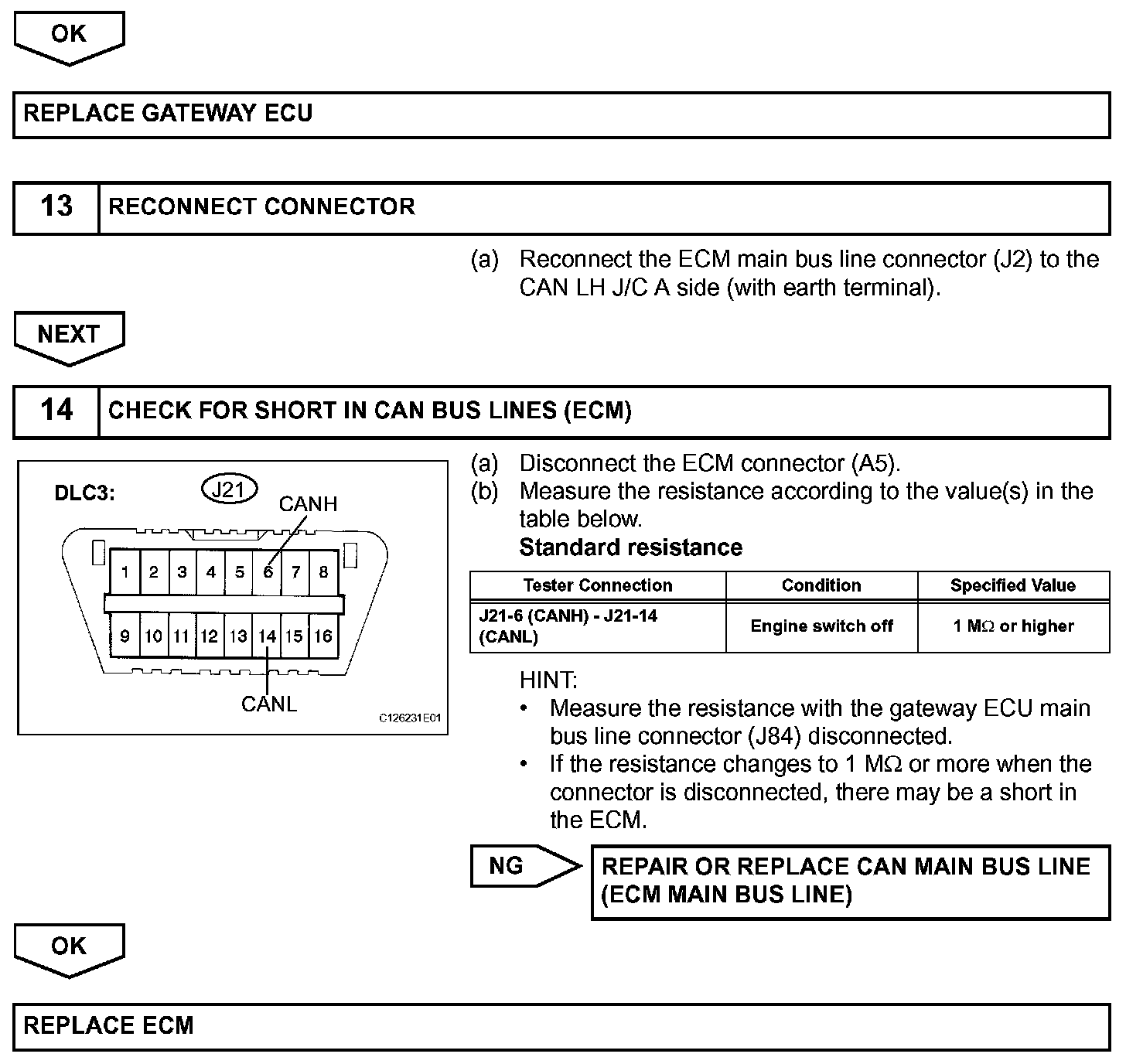

Step 12(continued)-14:

INSPECTION PROCEDURE
