Gateway ECU Communication Stop Mode

Gateway ECU Communication Stop Mode

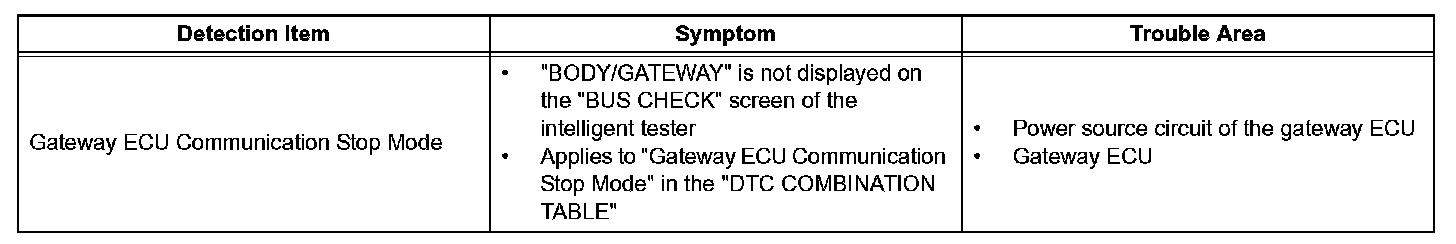

Detection Item:

DESCRIPTION

HINT: "BODY/GATEWAY" refers to the circuit that includes the gateway ECU.

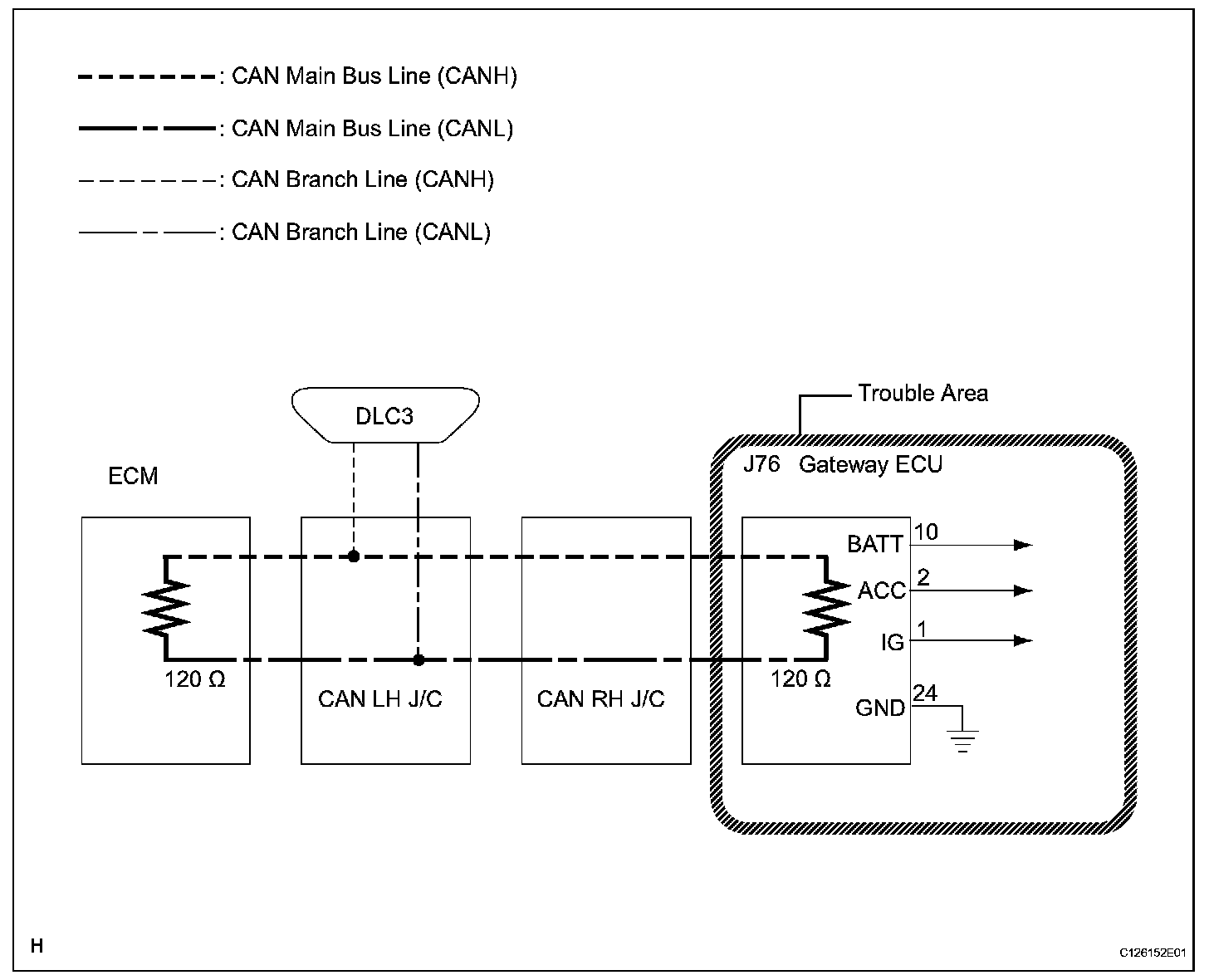

Wiring Diagram:

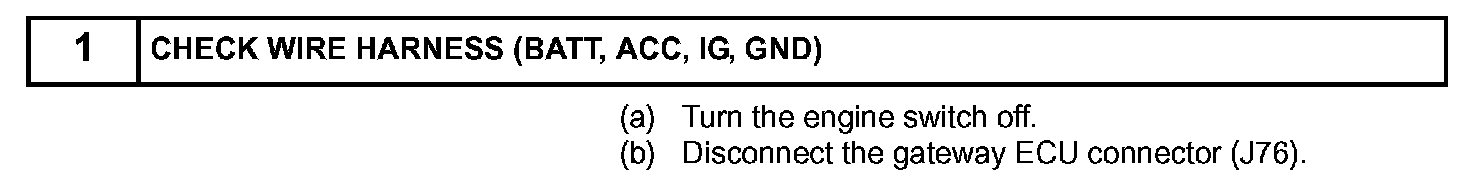

Step 1:

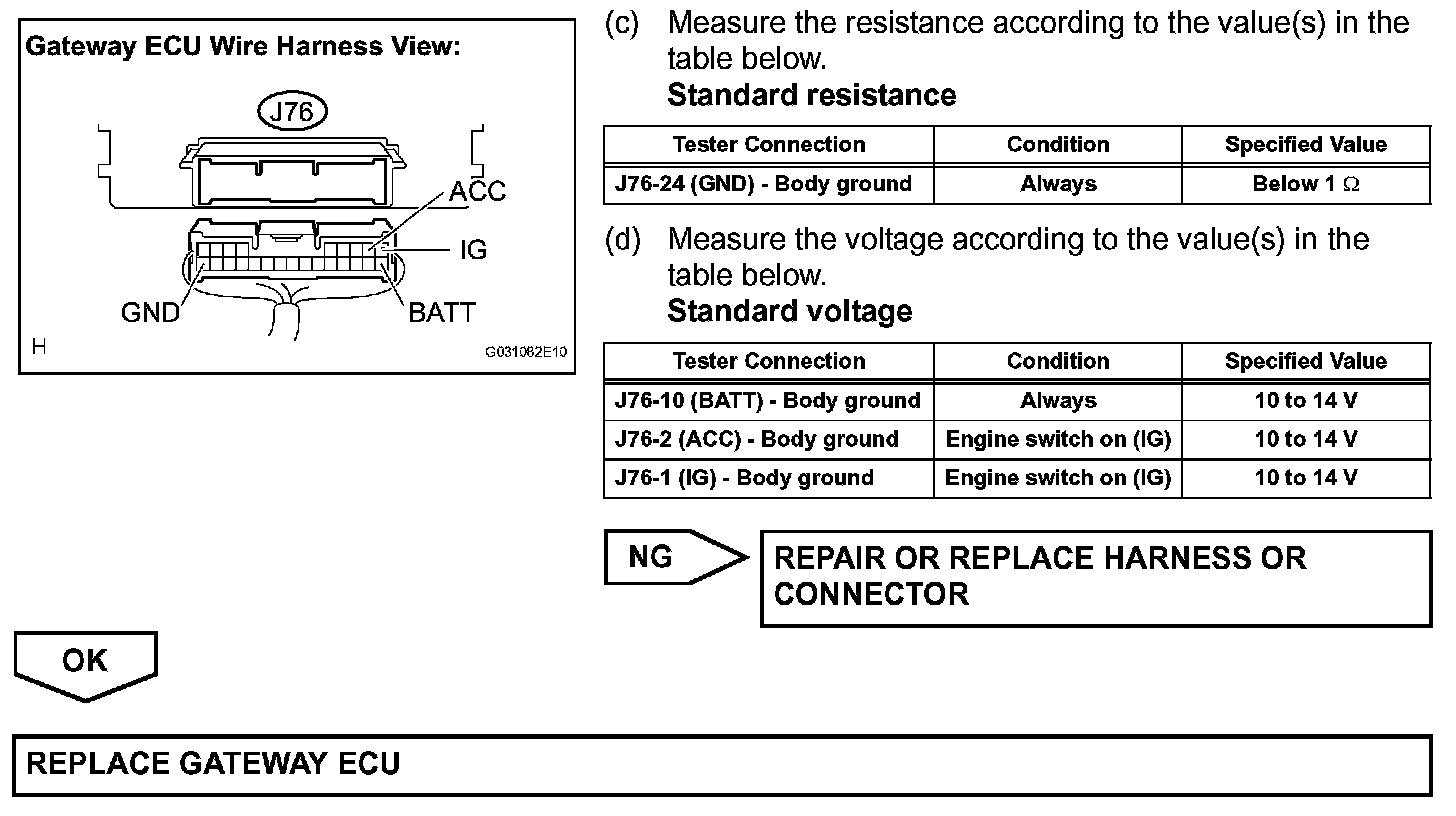

Step 1(continued):

INSPECTION PROCEDURE
