Center Airbag Sensor Communication Stop Mode

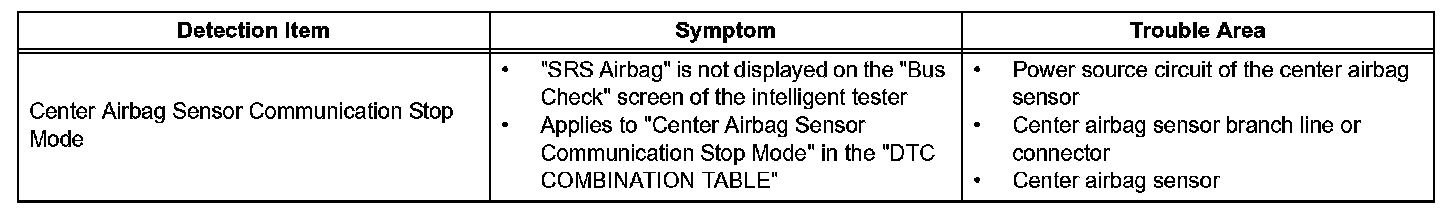

Center Airbag Sensor Communication Stop ModeDetection Item:
DESCRIPTION
HINT: "SRS AIRBAG" refers to the circuit that includes the center airbag sensor.

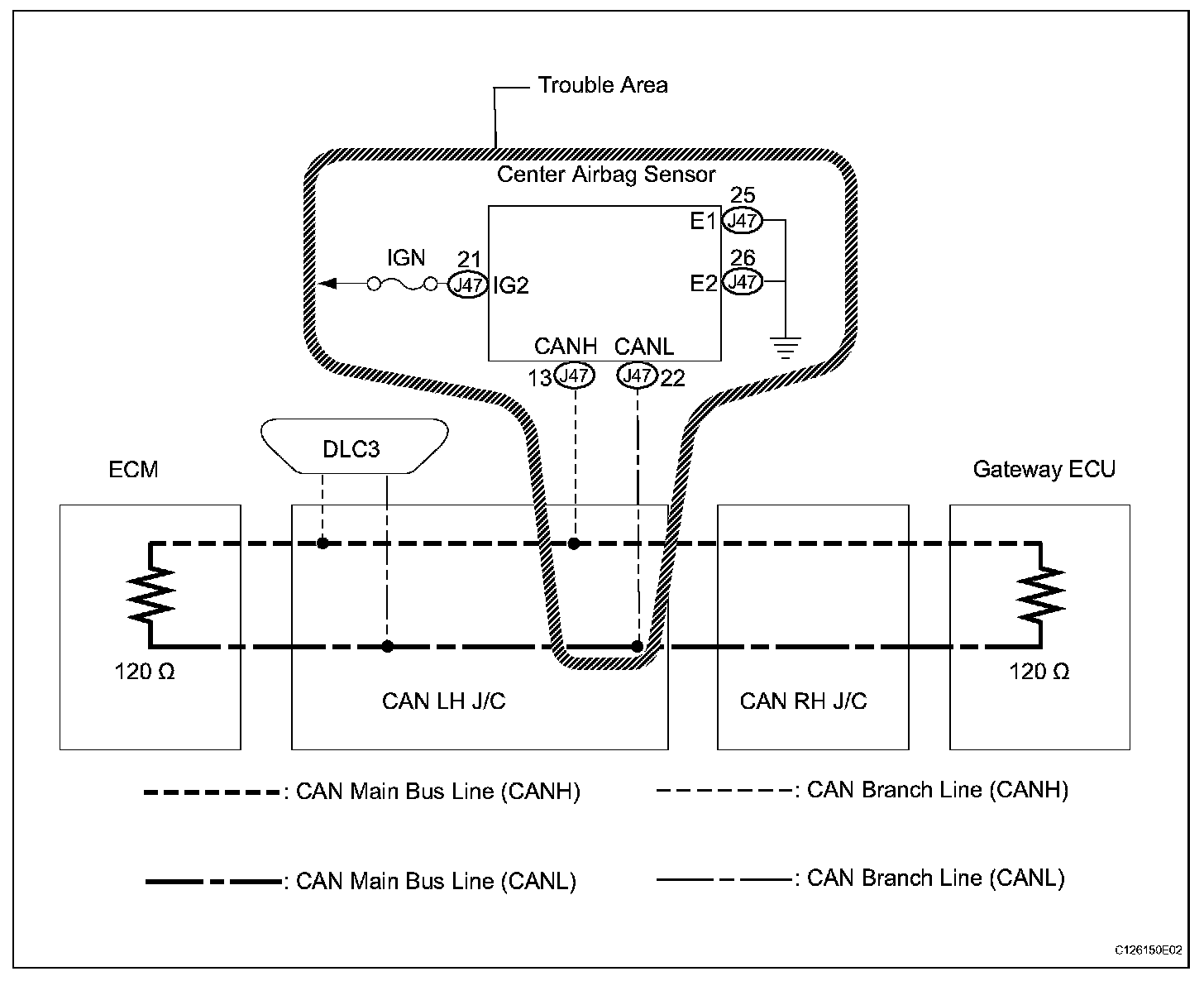

Wiring Diagram:

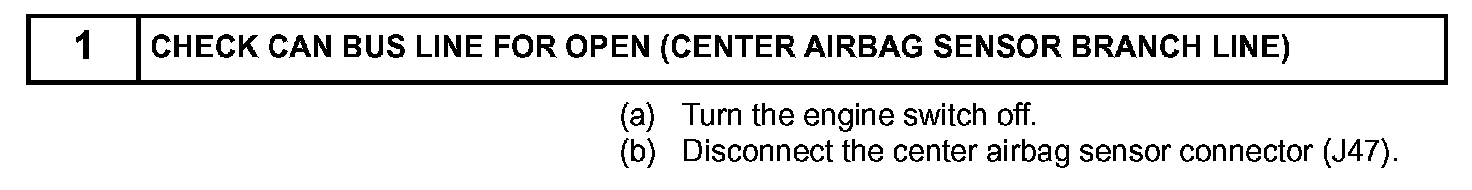

Step 1:

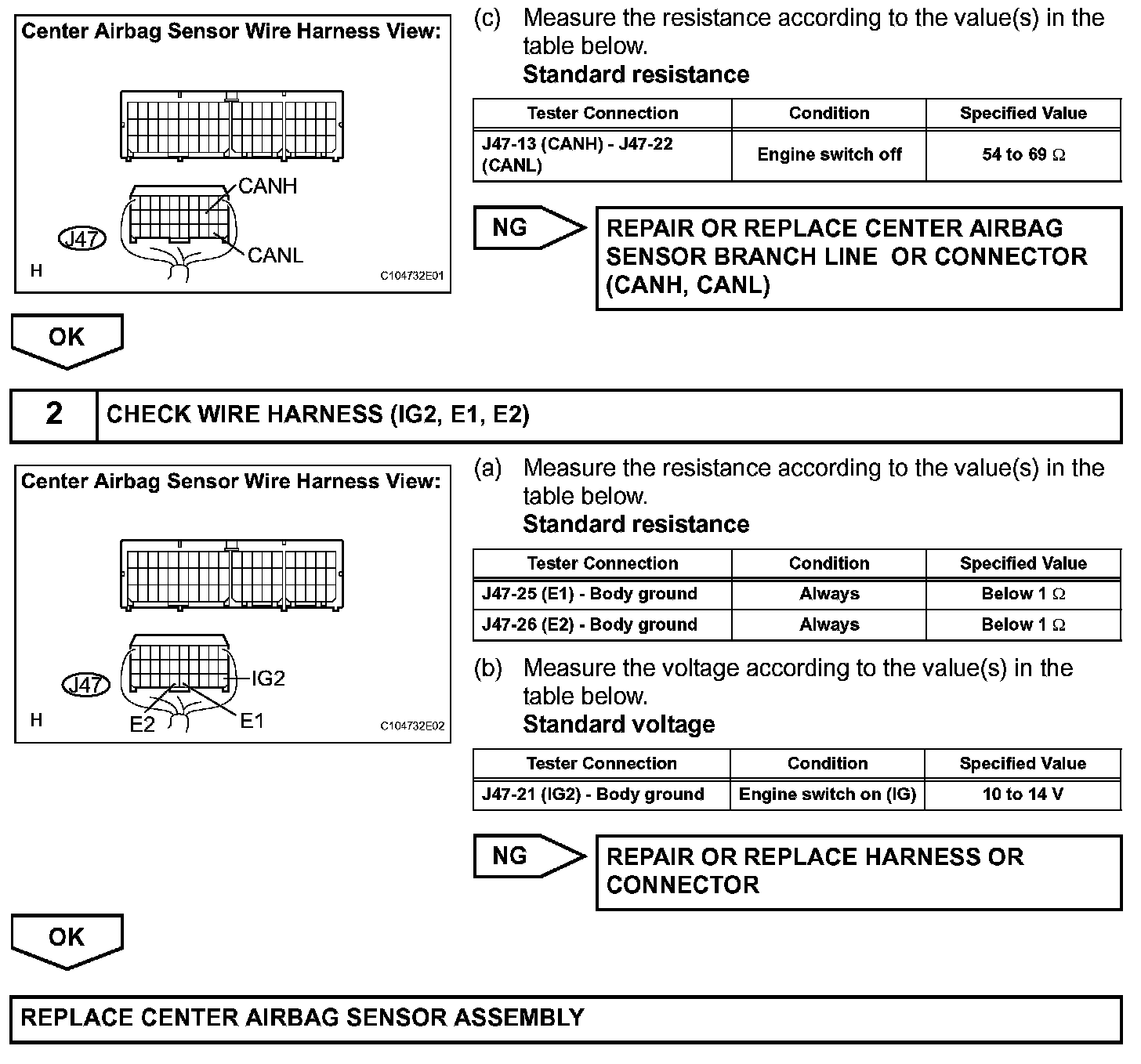

Step 1(continued)-2:
INSPECTION PROCEDURE
