Rear Axle Hub Bolt

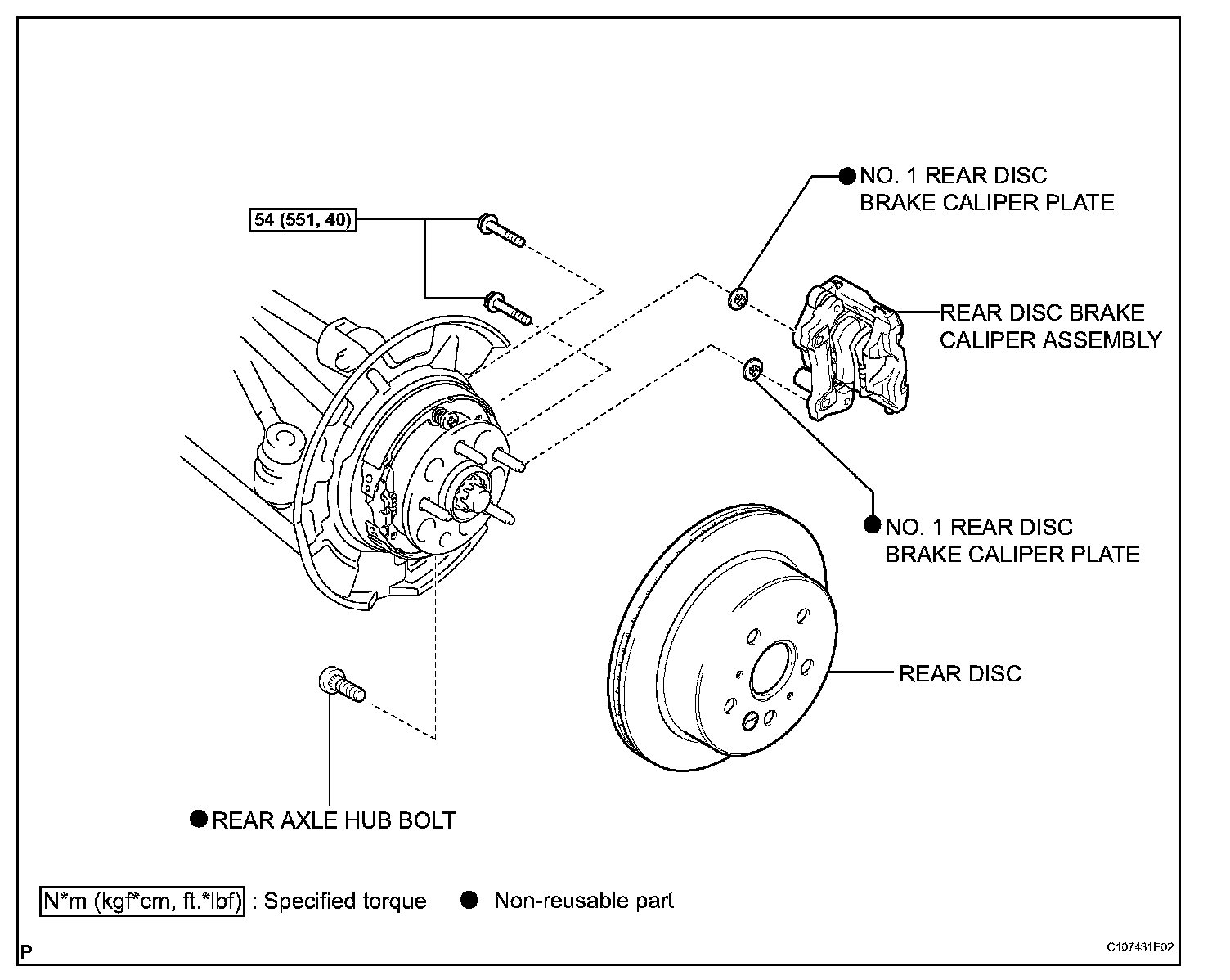

REAR AXLE HUB BOLTComponents:
REPLACEMENT
1. REMOVE REAR WHEEL
2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY
3. REMOVE REAR DISC
4. REMOVE REAR AXLE HUB BOLT

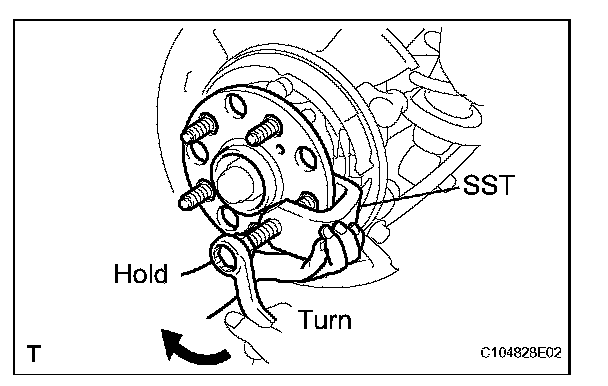

a) Using SST, remove the rear axle hub bolt.
SST 09628-10011
NOTICE: Do not damage the threads of the hub bolt.
5. INSTALL REAR AXLE HUB BOLT

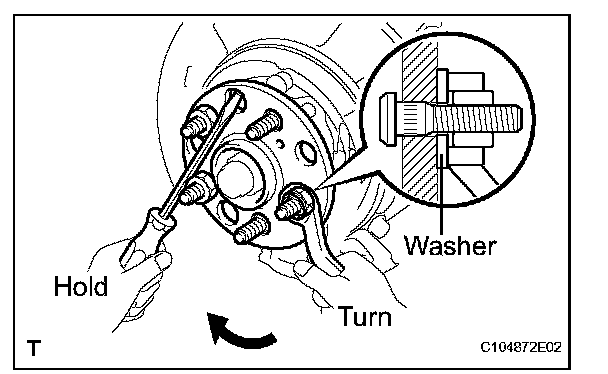

a) Install a washer and nut to a new bolt as shown in the illustration.
b) Using a screwdriver or equivalent to hold the rear axle hub, install the rear axle hub bolt by tightening the nut.
NOTICE: Do not damage the threads of the hub bolt.
6. INSTALL REAR DISC
7. ADJUST PARKING BRAKE SHOE CLEARANCE
8. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
