Pinout Values and Diagnostic Parameters

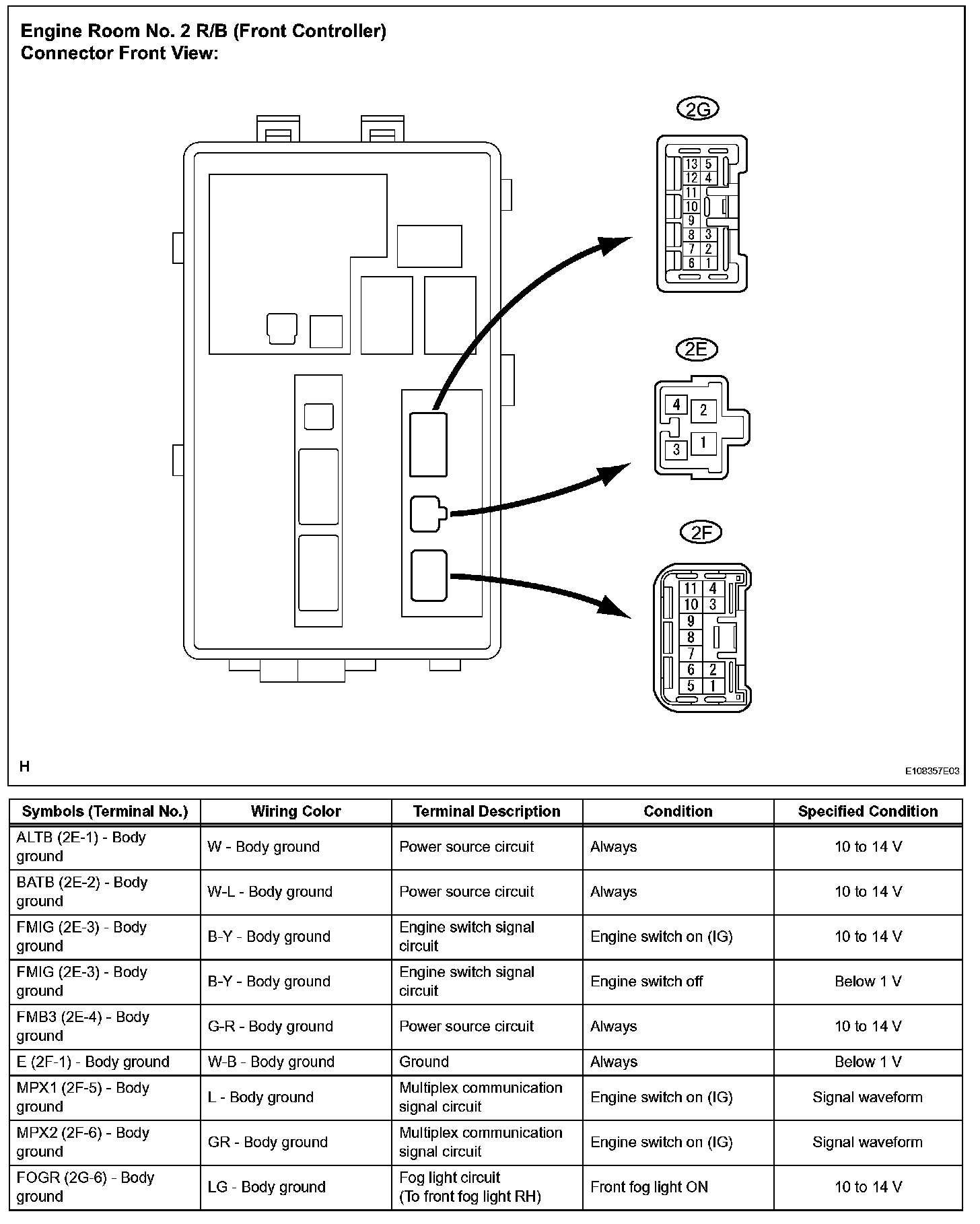

Terminals Of Control Module/Pinouts-Check Engine Room No.2 R/B (Front Controller) (Part 1):

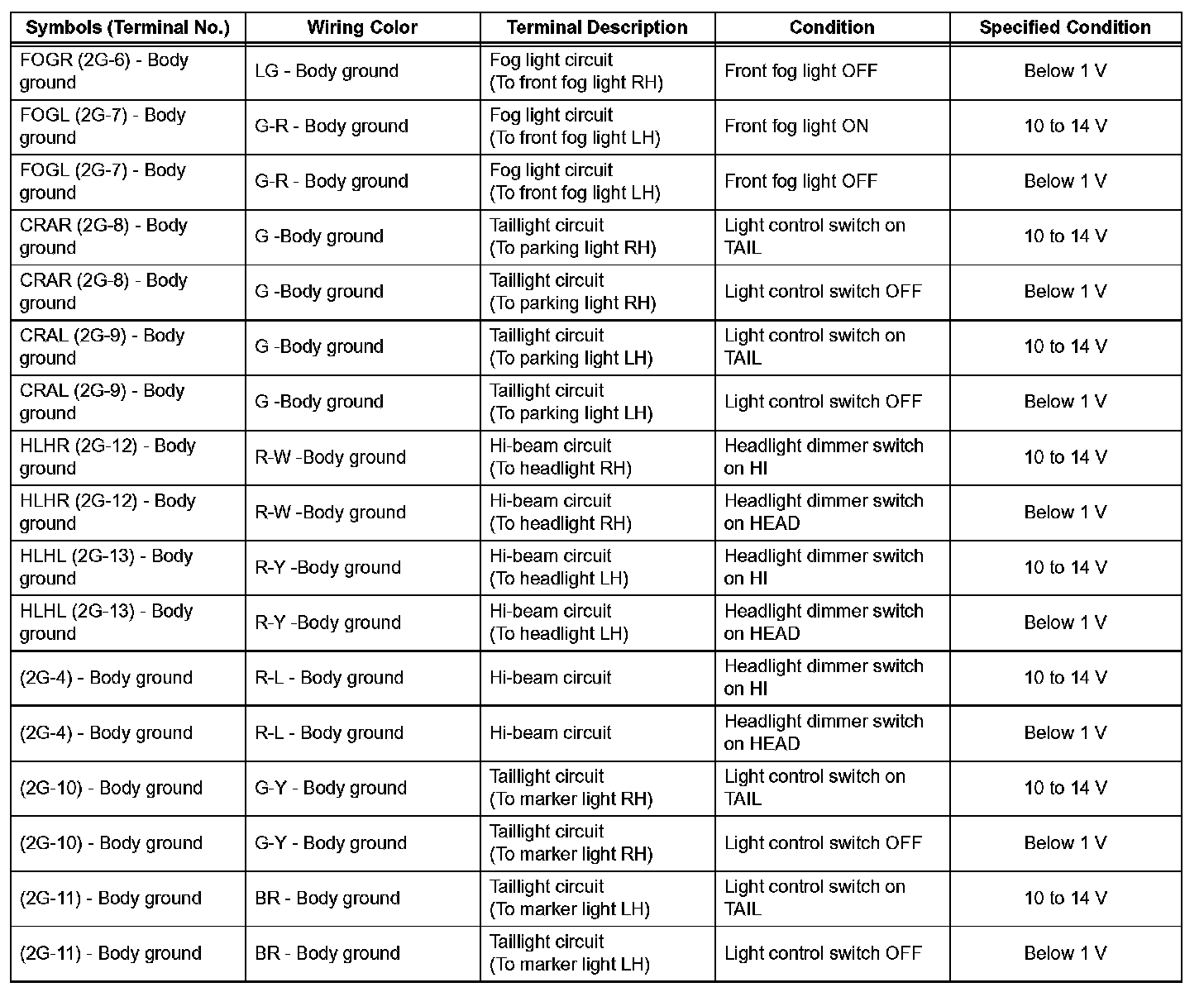

Terminals Of Control Module/Pinouts-Check Engine Room No.2 R/B (Front Controller) (Part 2):

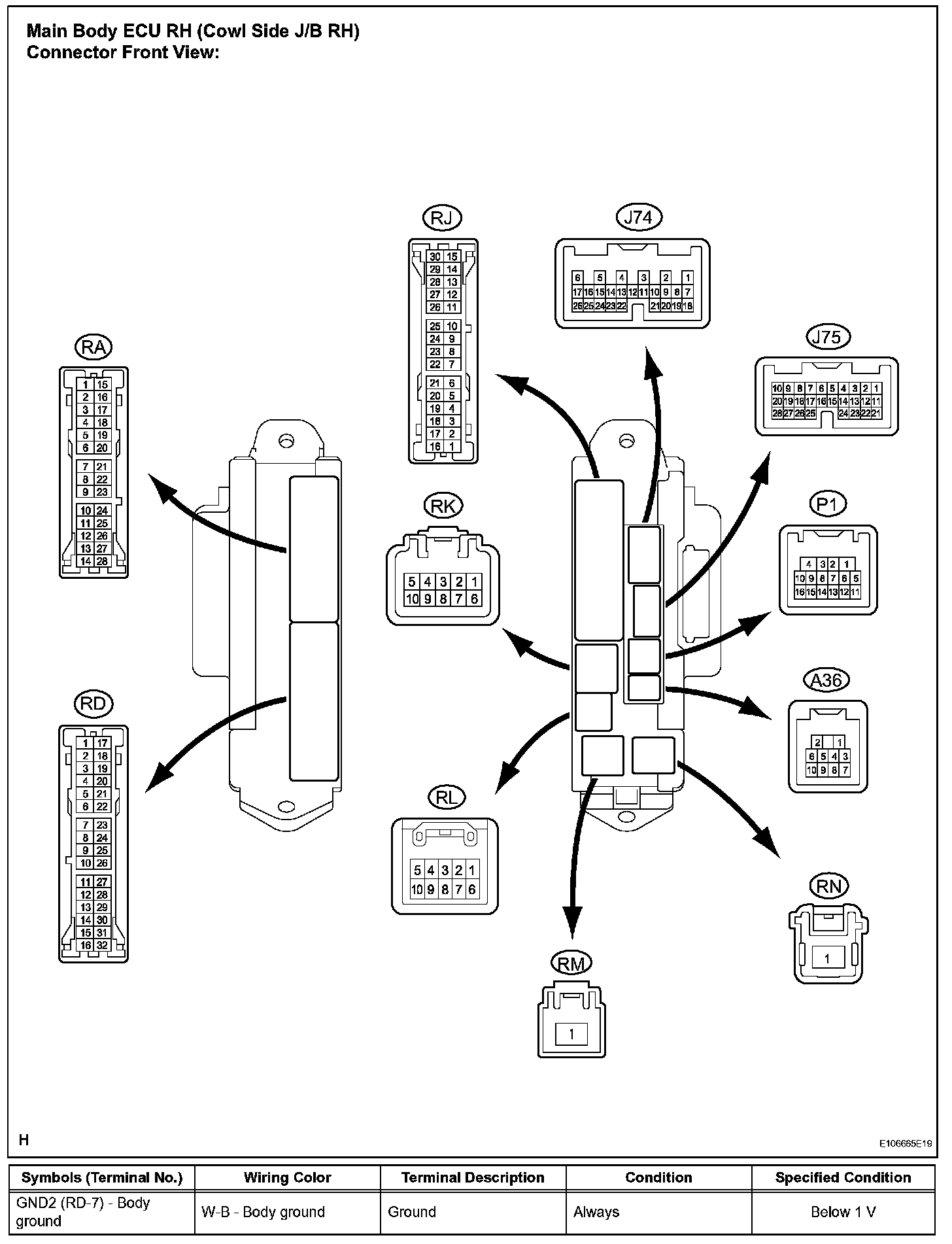

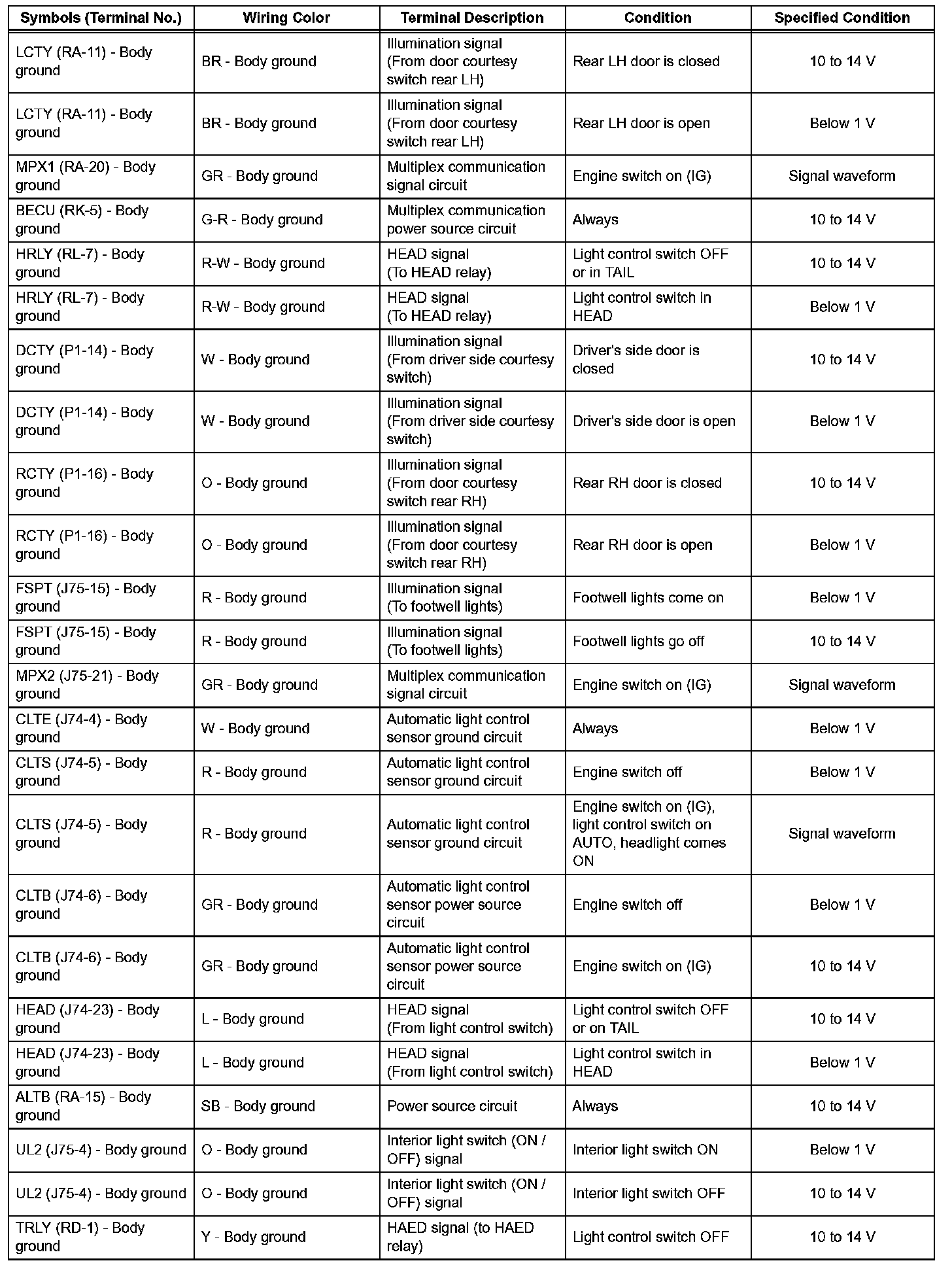

Terminals Of Control Module/Pinouts-Check Main Body ECU (Cowl Side J/B RH) (Part 1):

Terminals Of Control Module/Pinouts-Check Main Body ECU (Cowl Side J/B RH) (Part 2):

Terminals Of Control Module/Pinouts-Check Main Body ECU (Cowl Side J/B RH) (Part 3):

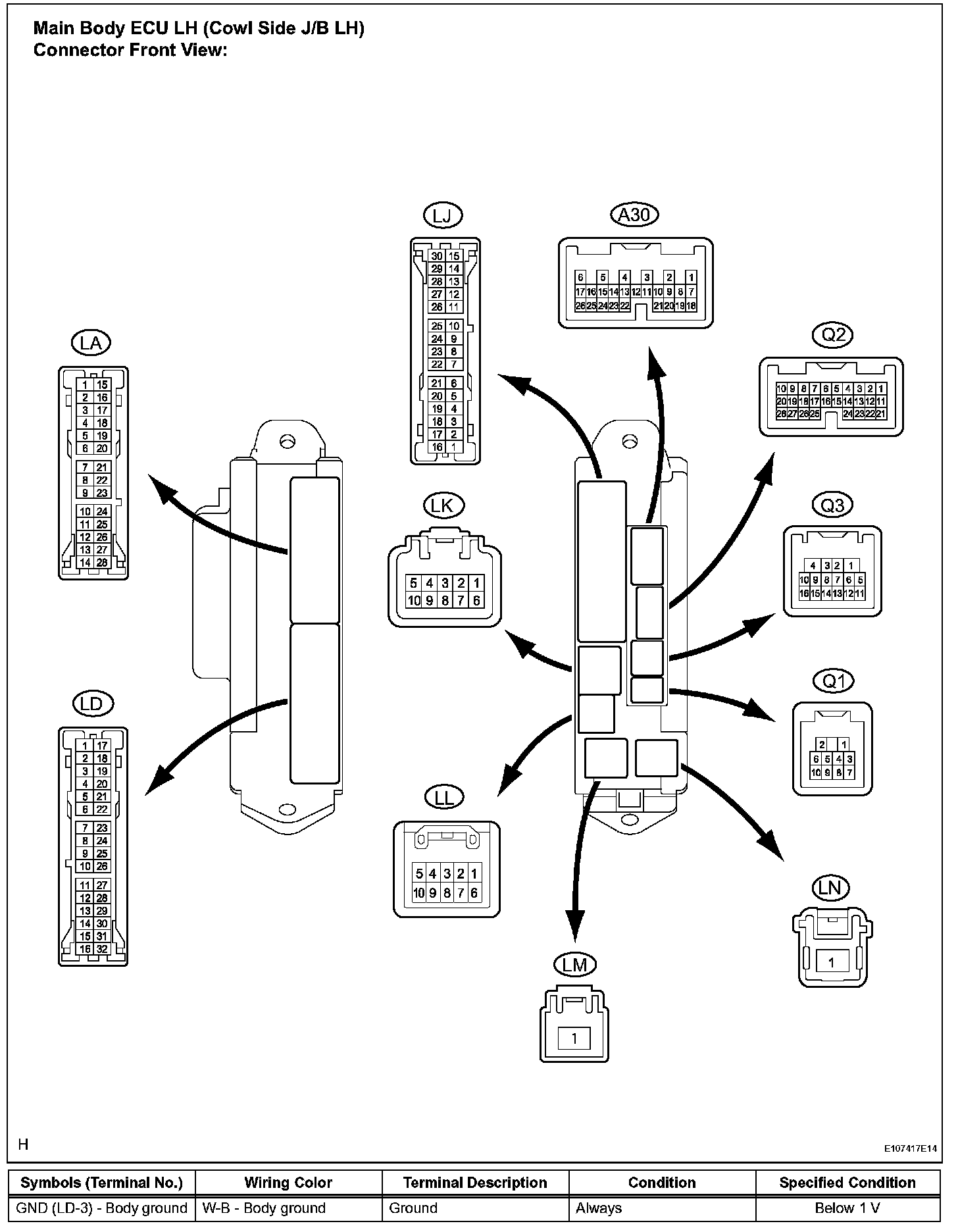

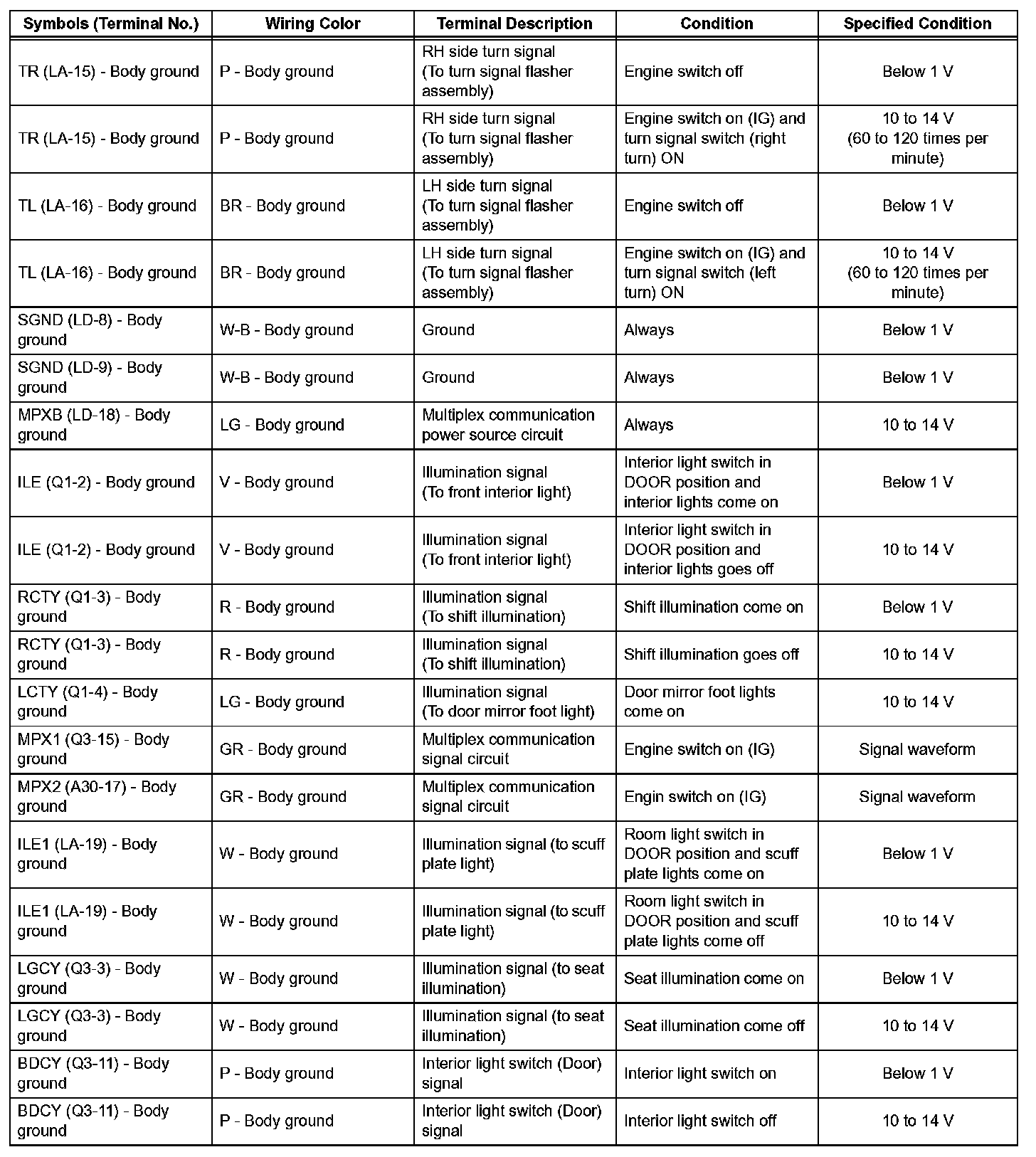

Terminals Of Control Module/Pinouts-Check Main Body ECU LH (Part 1):

Terminals Of Control Module/Pinouts-Check Main Body ECU LH (Part 2):

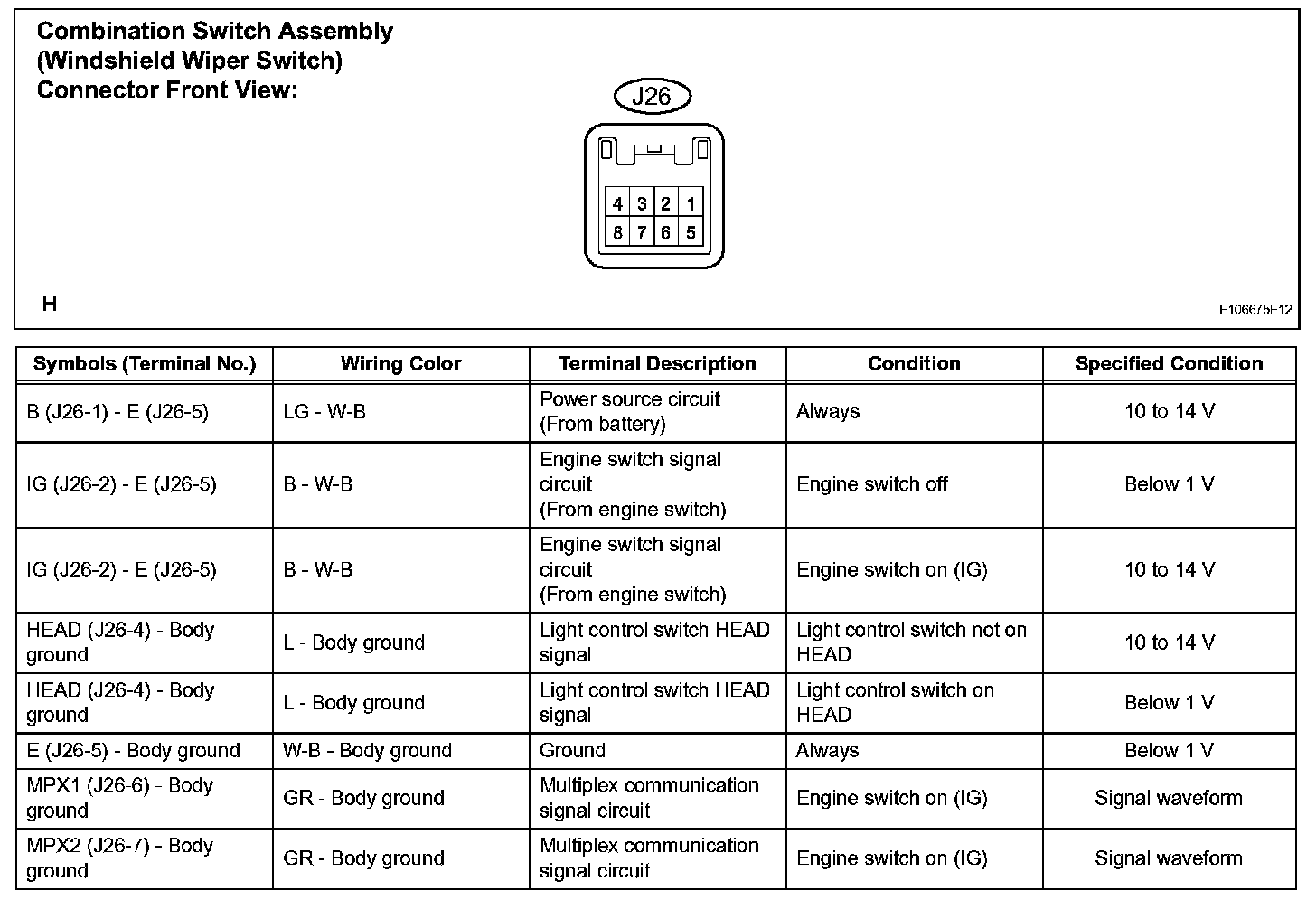

Terminals Of Control Module/Pinouts-Check Combination Switch Assembly (windshield Wiper Switch):

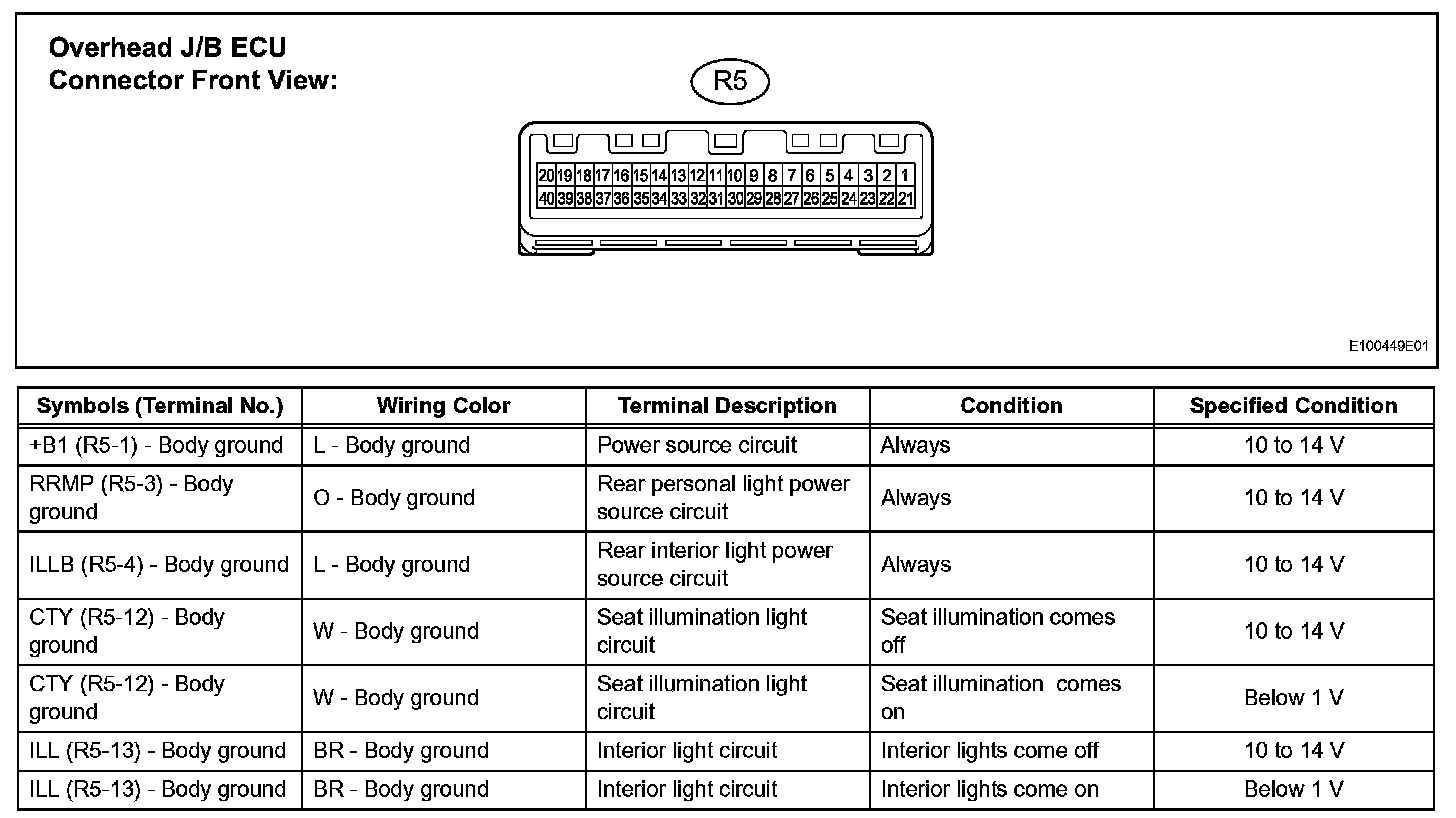

Terminals Of Control Module/Pinouts-Check Overhead J/B (Part 1):

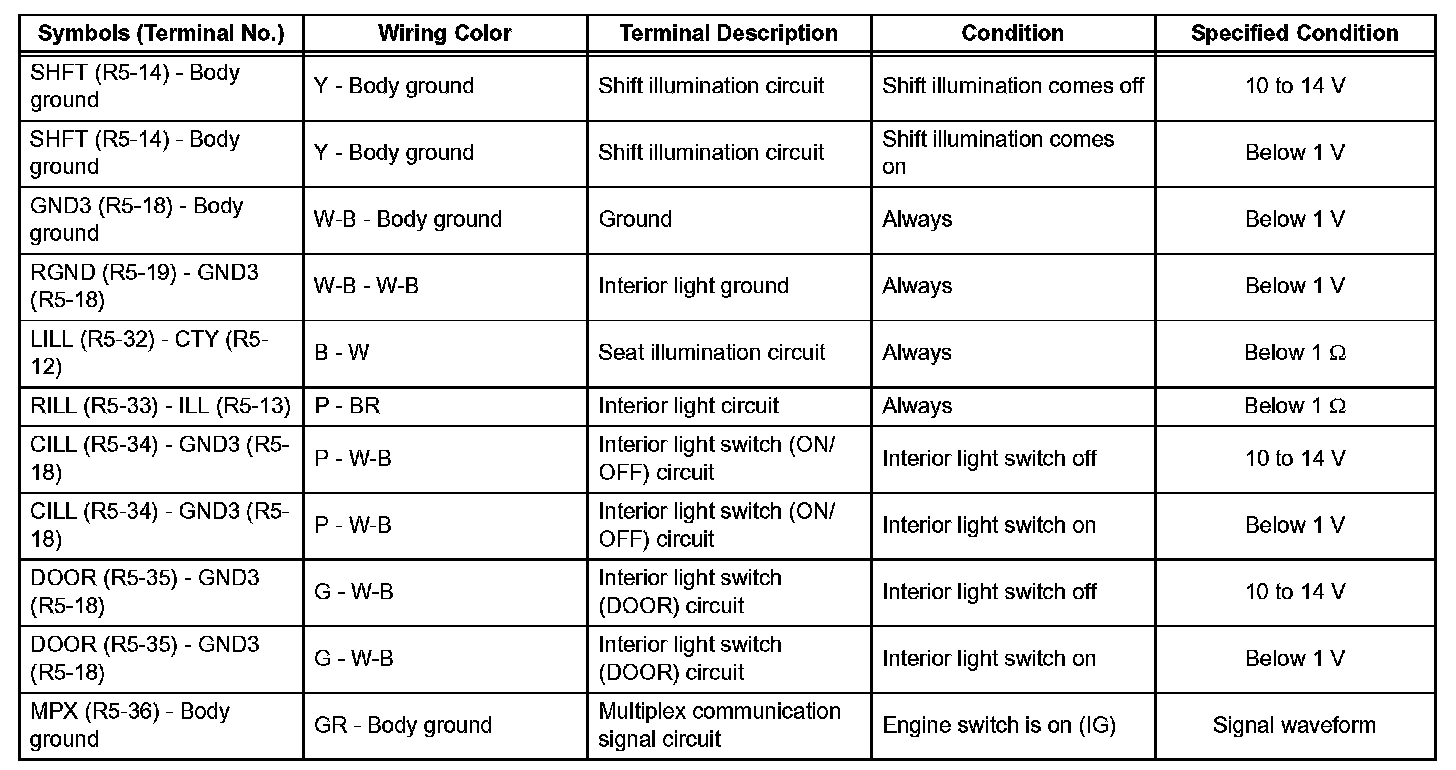

Terminals Of Control Module/Pinouts-Check Overhead J/B (Part 2):

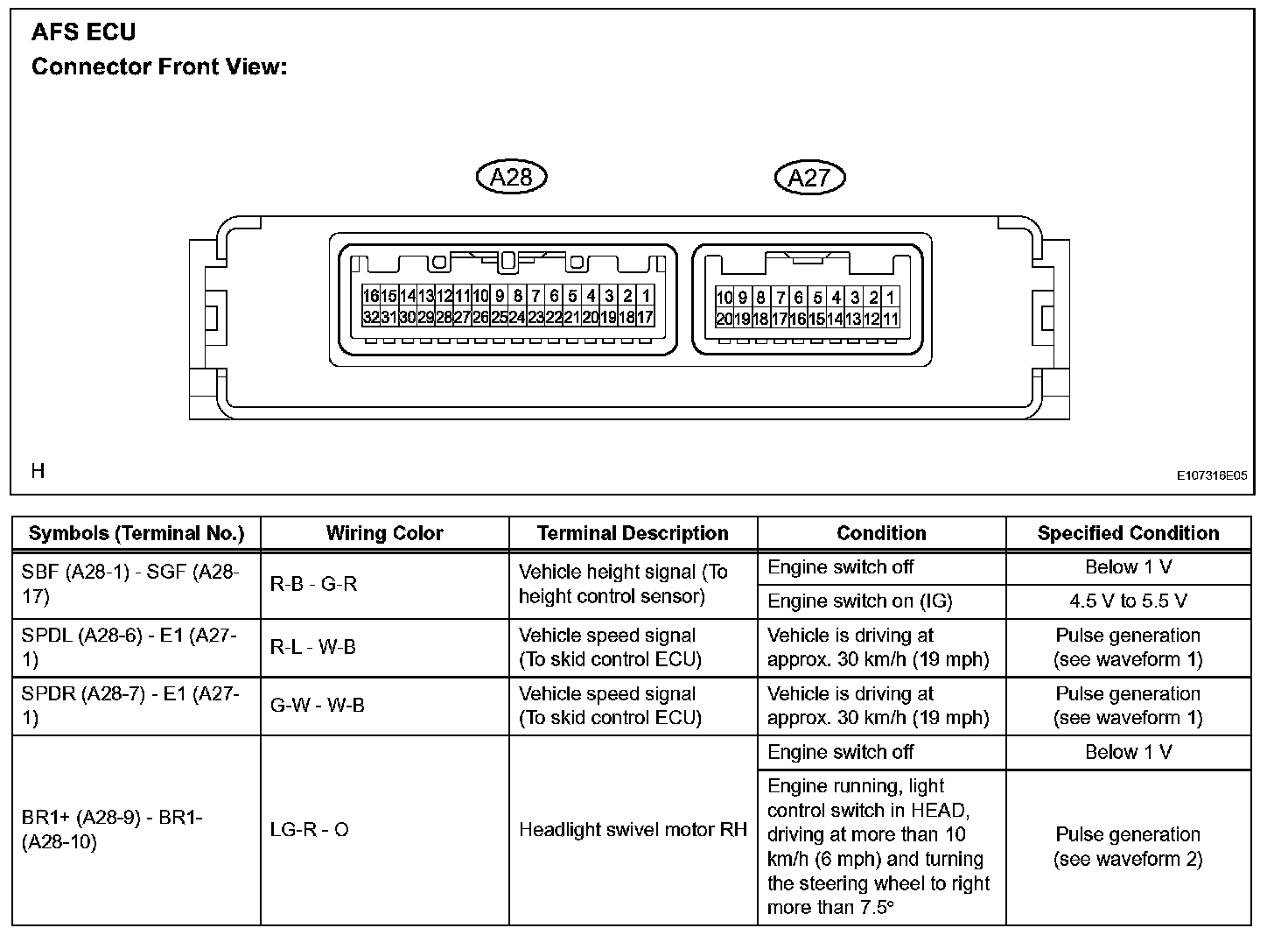

Terminals Of Control Module/Pinouts-Check AFS ECU (Part 1):

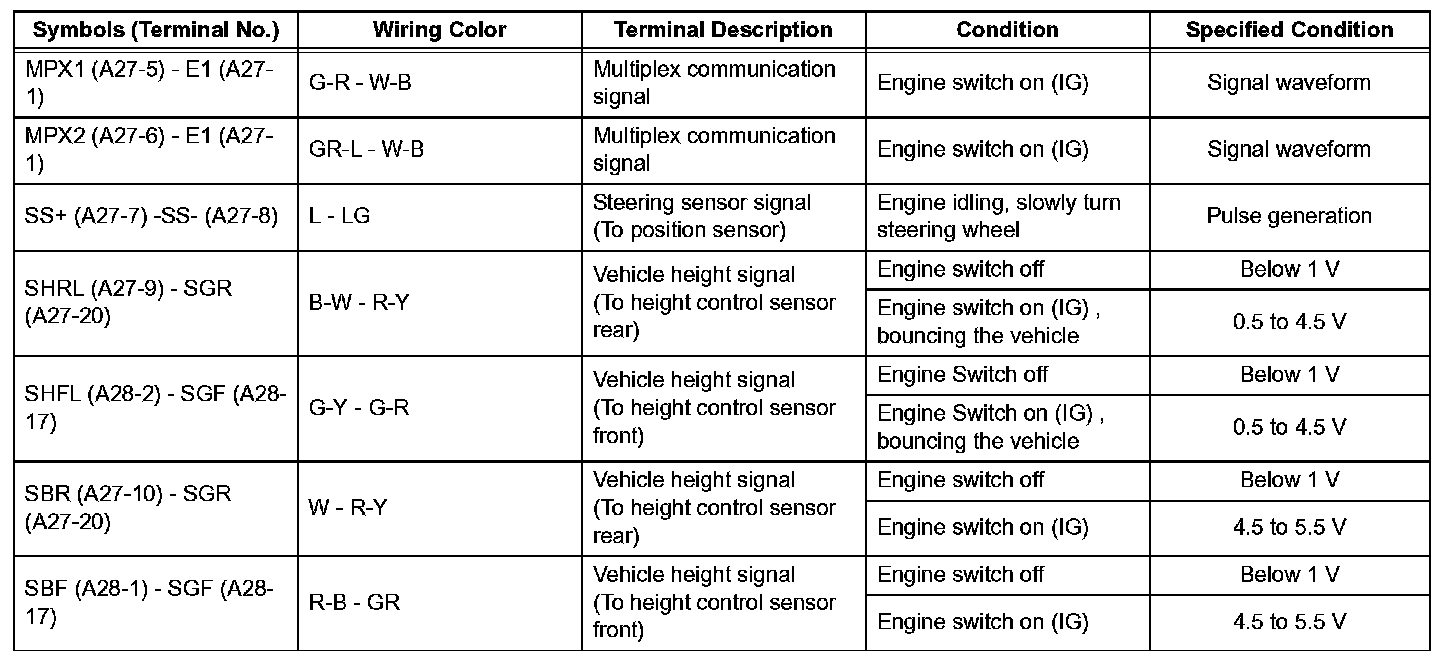

Terminals Of Control Module/Pinouts-Check AFS ECU (Part 2):

Terminals Of Control Module/Pinouts-Check AFS ECU (Part 3):

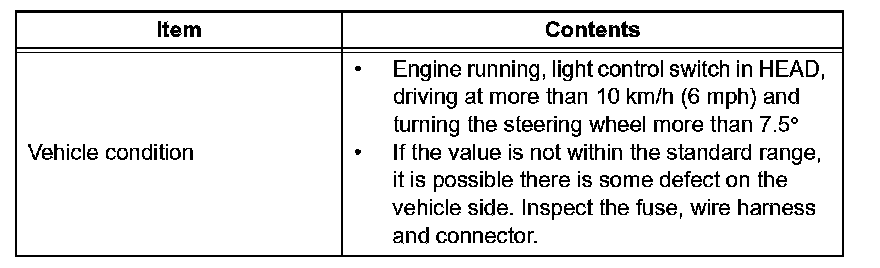

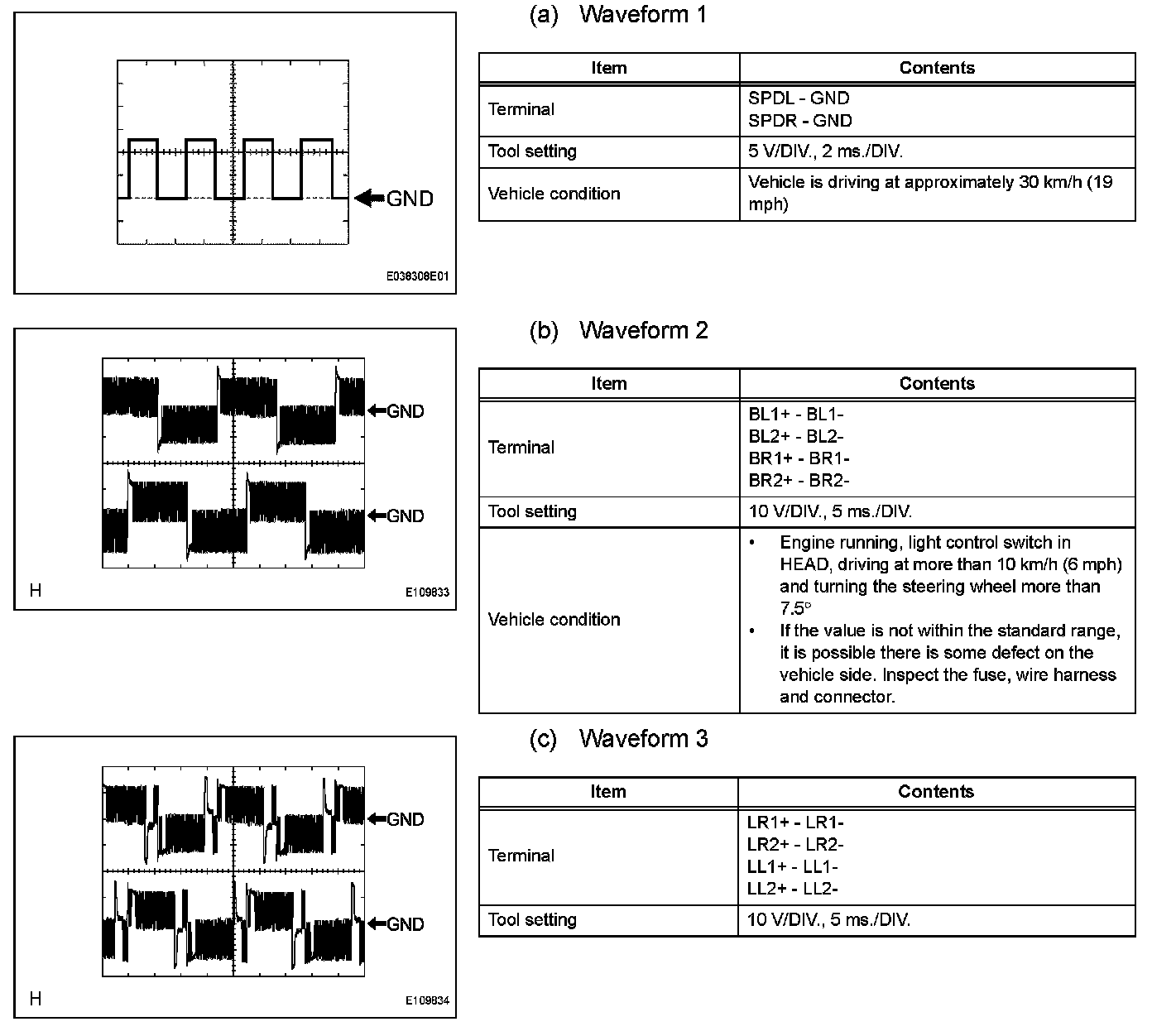

Oscilloscope Wave Forms:
