Home >> Lexus >> 2006 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> How To Proceed With Troubleshooting

How To Proceed With Troubleshooting

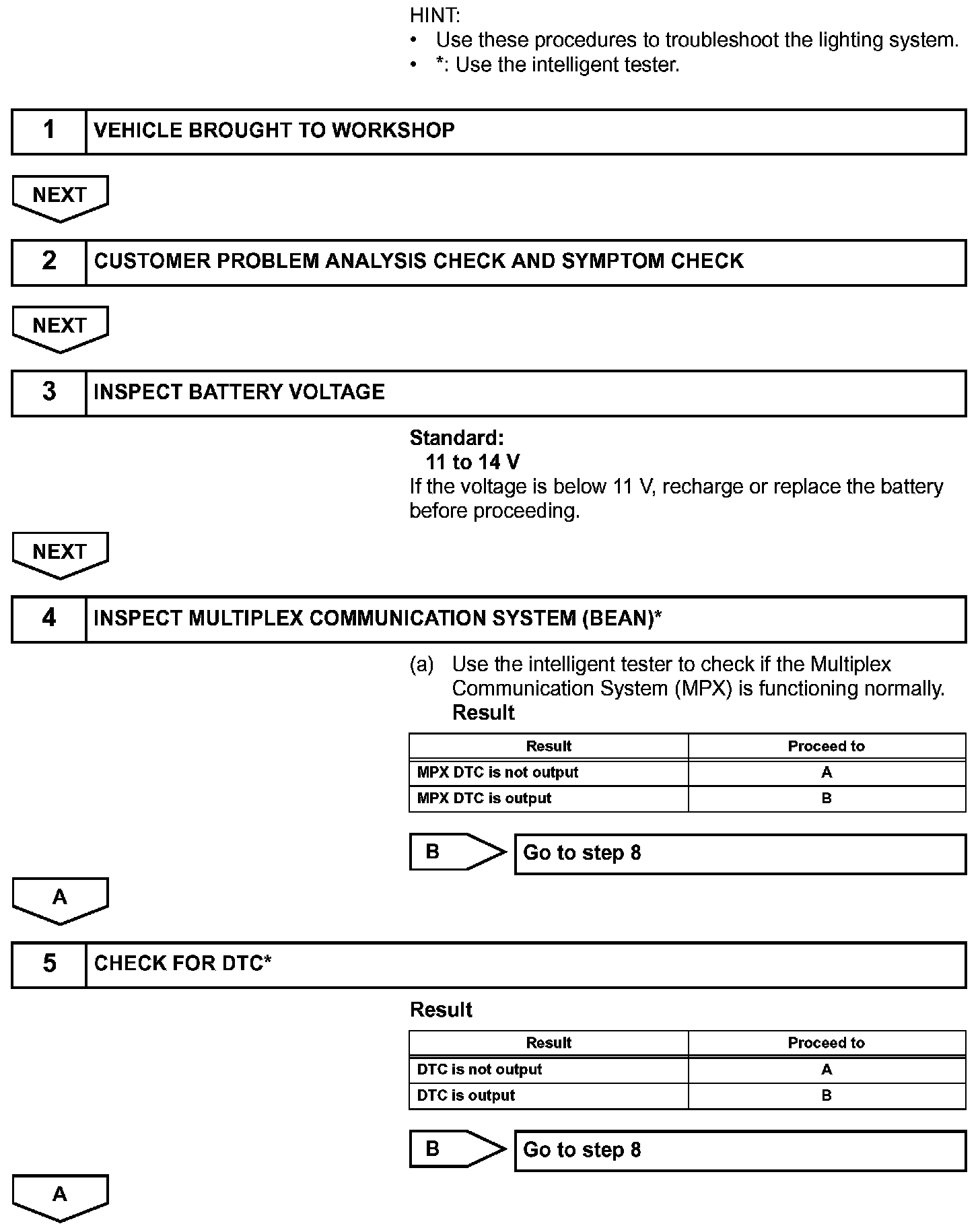

Step 1-5:

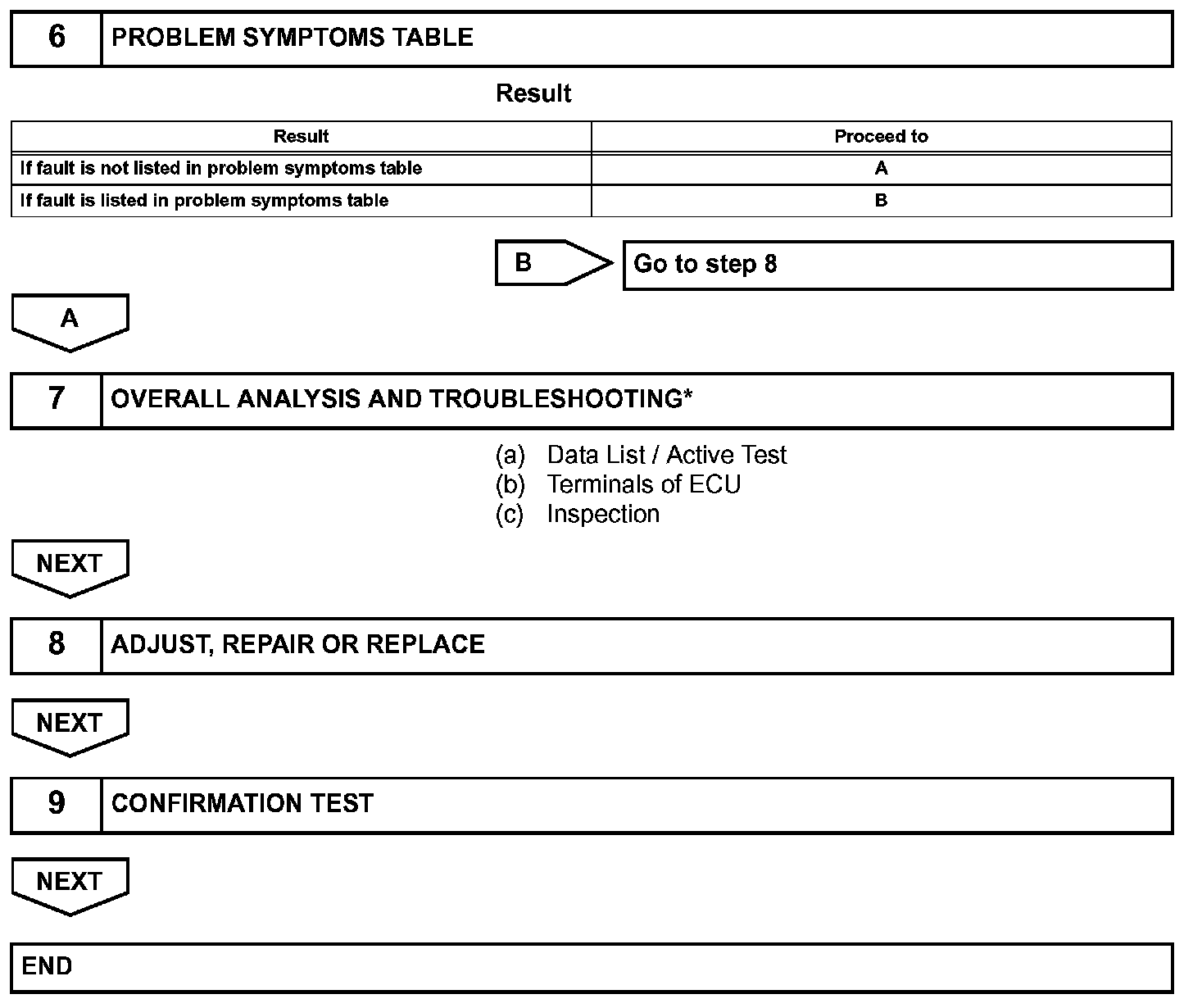

Step 6-9:
