Headlight Signal Circuit

Headlight Signal Circuit

DESCRIPTION

The main body ECU RH receives the HEAD position signal from the combination switch as a backup link. It also receives the signal from the combination switch via the multiplex communication system.
If this link is grounded, the headlights will illuminate.

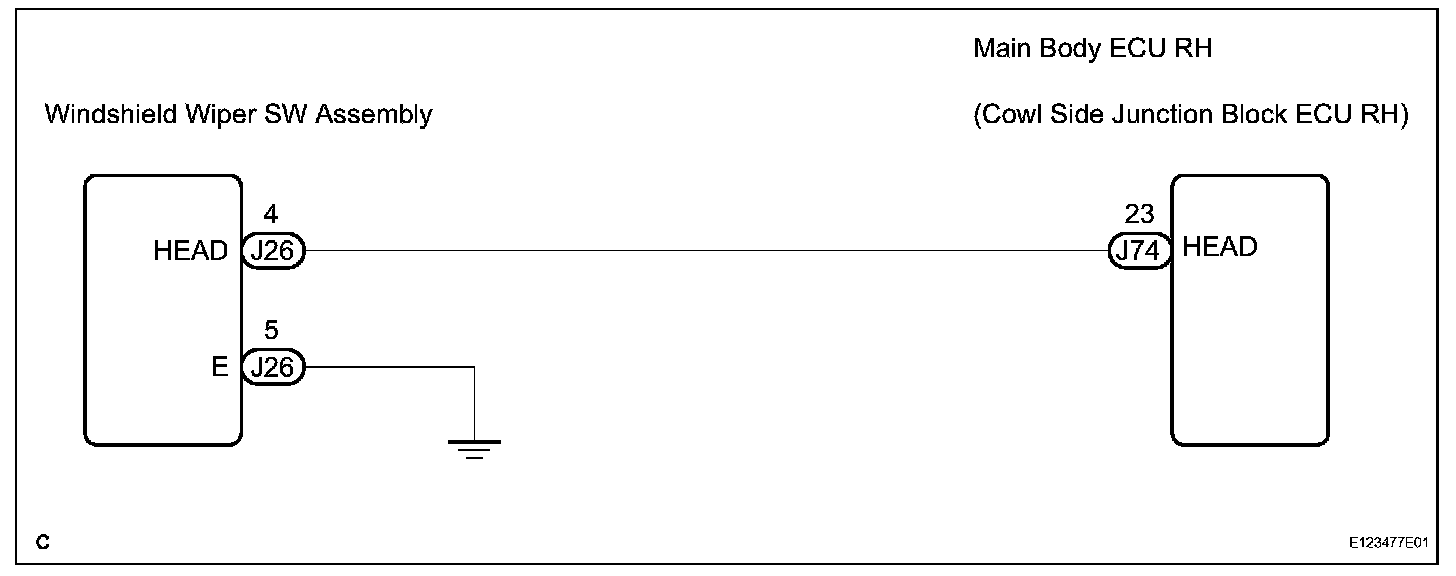

Wiring Diagram:

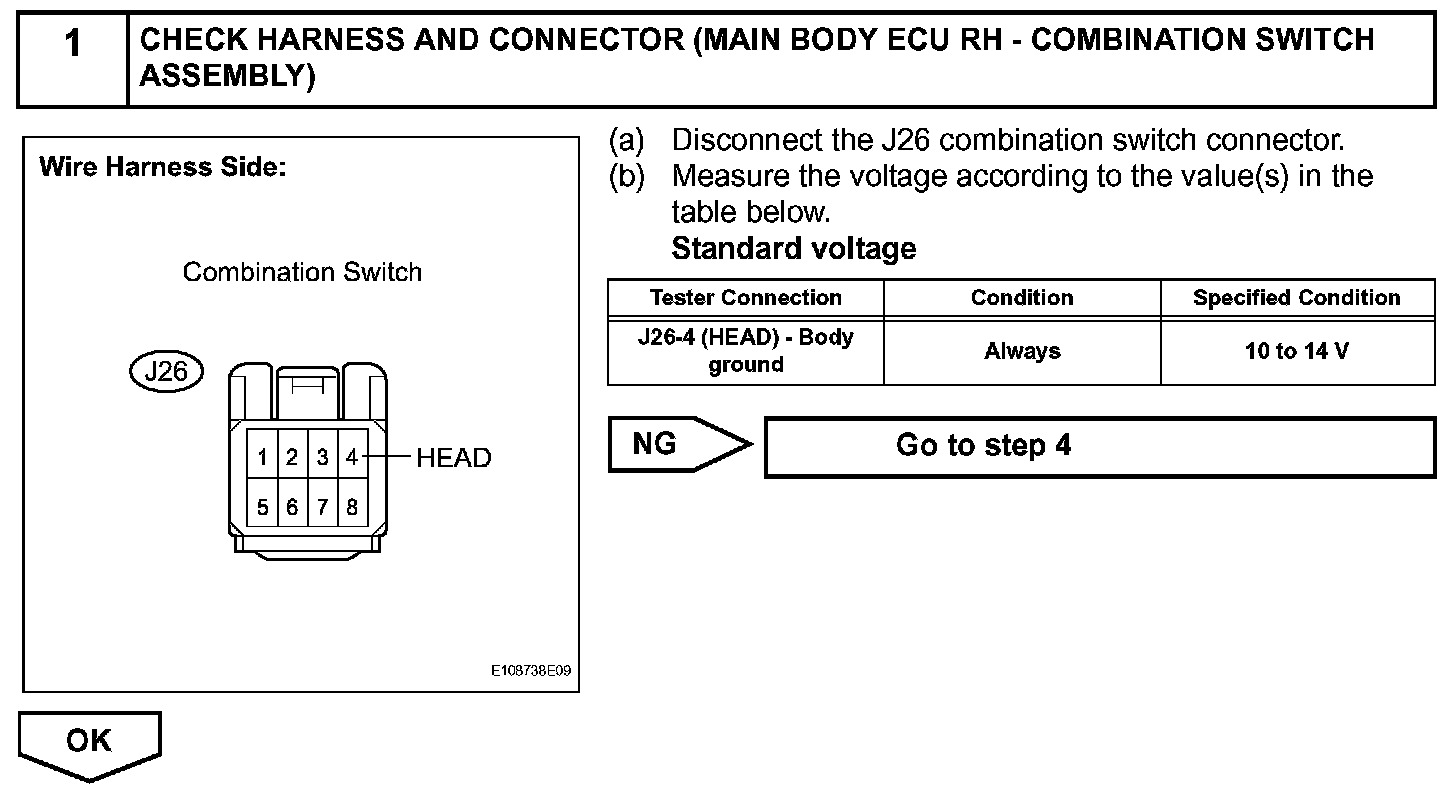

Step 1:

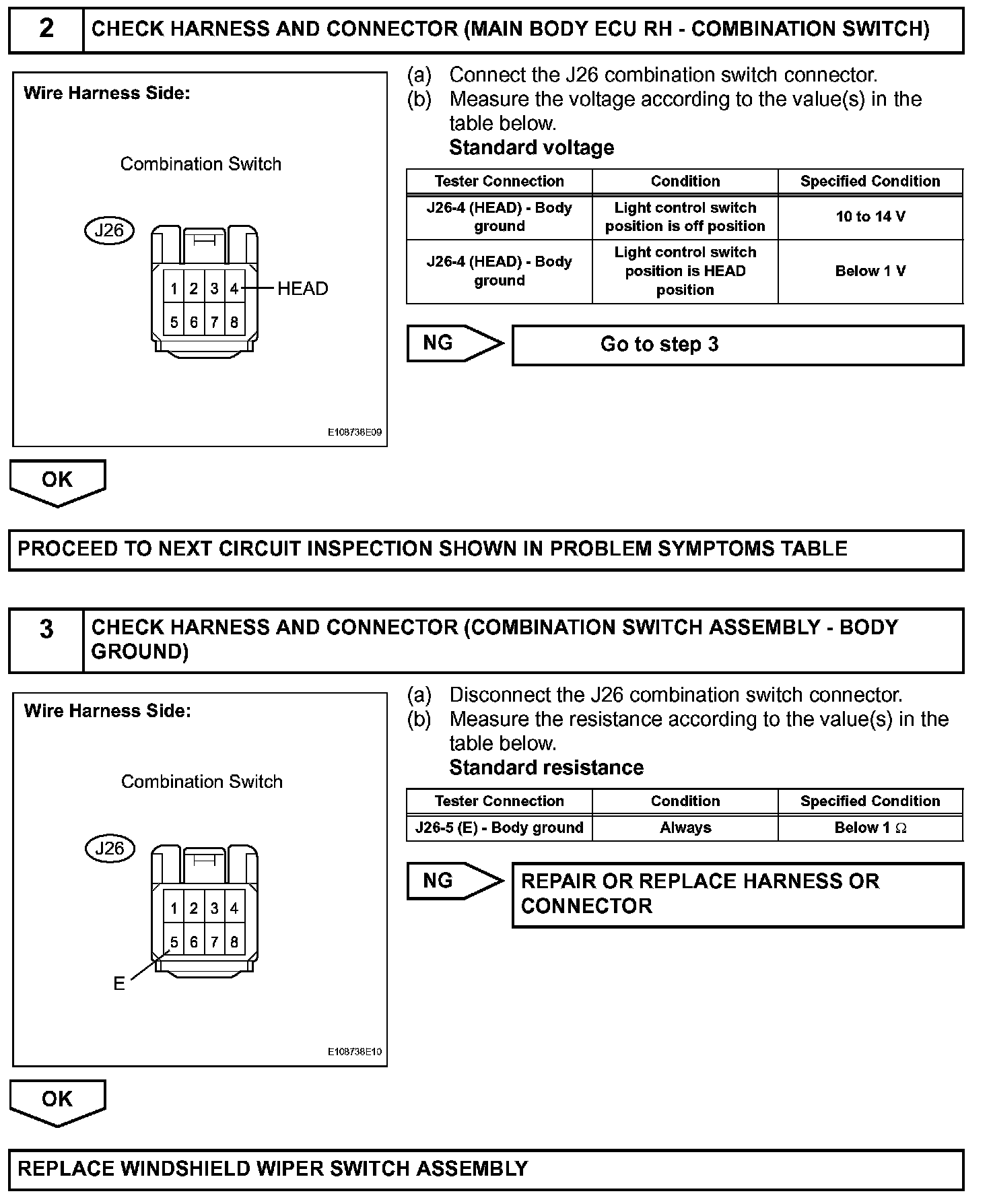

Step 2-3:

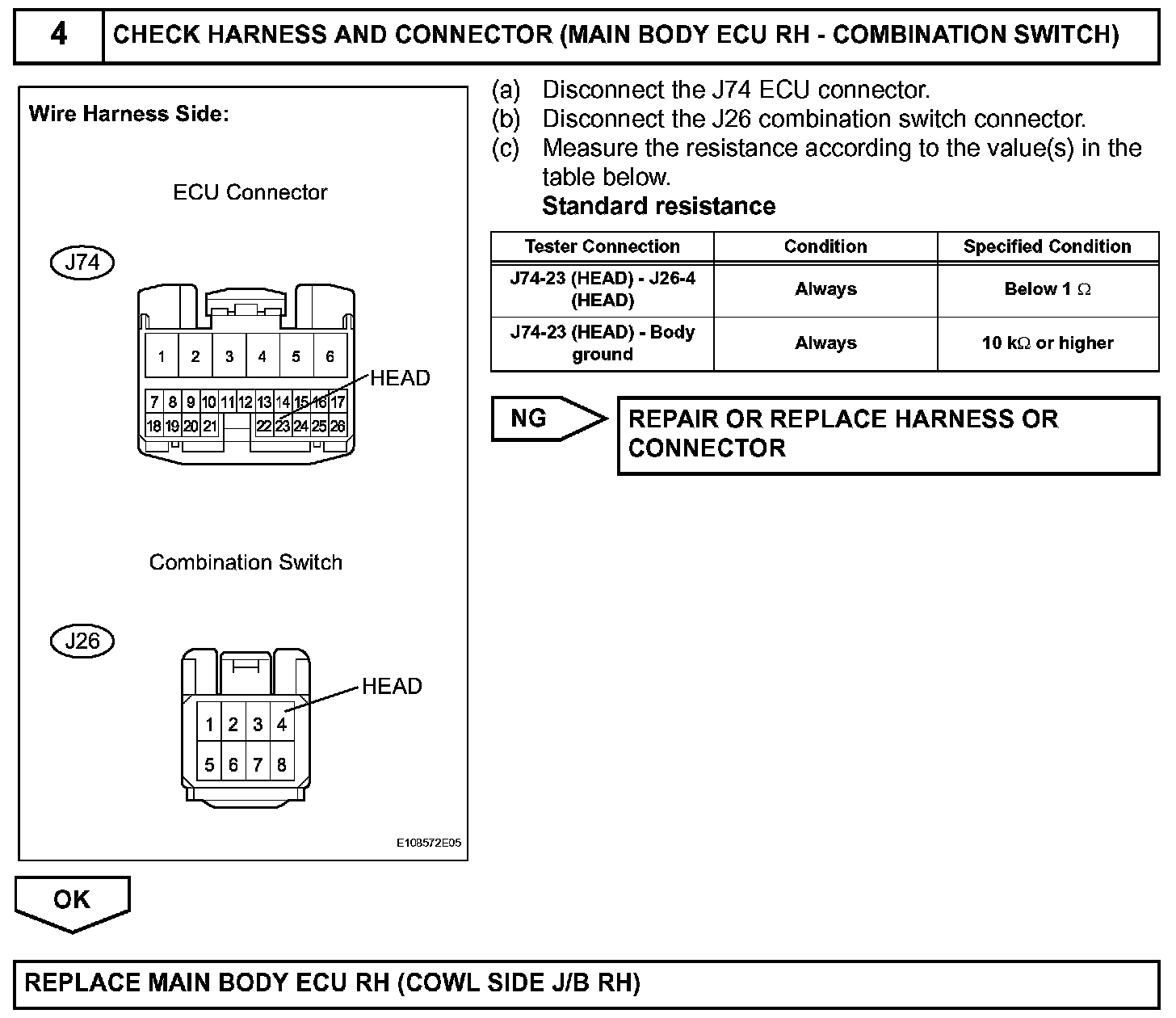

Step 4:

INSPECTION PROCEDURE
