Headlight (Hi-Beam) Circuit

Headlight (HI-BEAM) Circuit

DESCRIPTION

The front controller receives headlight HI switch information from the combination switch, and turns on the headlights.

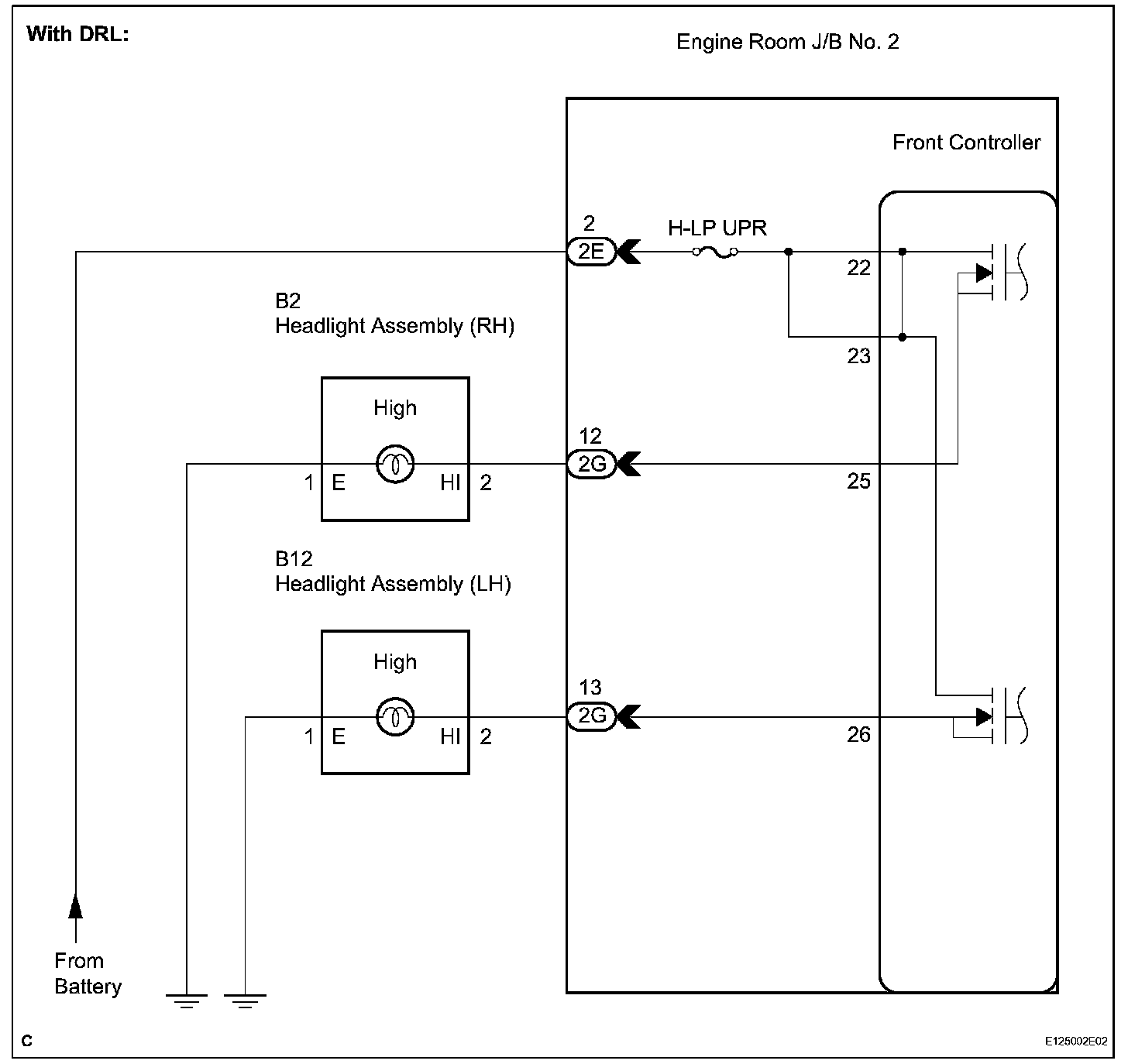

Wiring Diagram (Part 1):

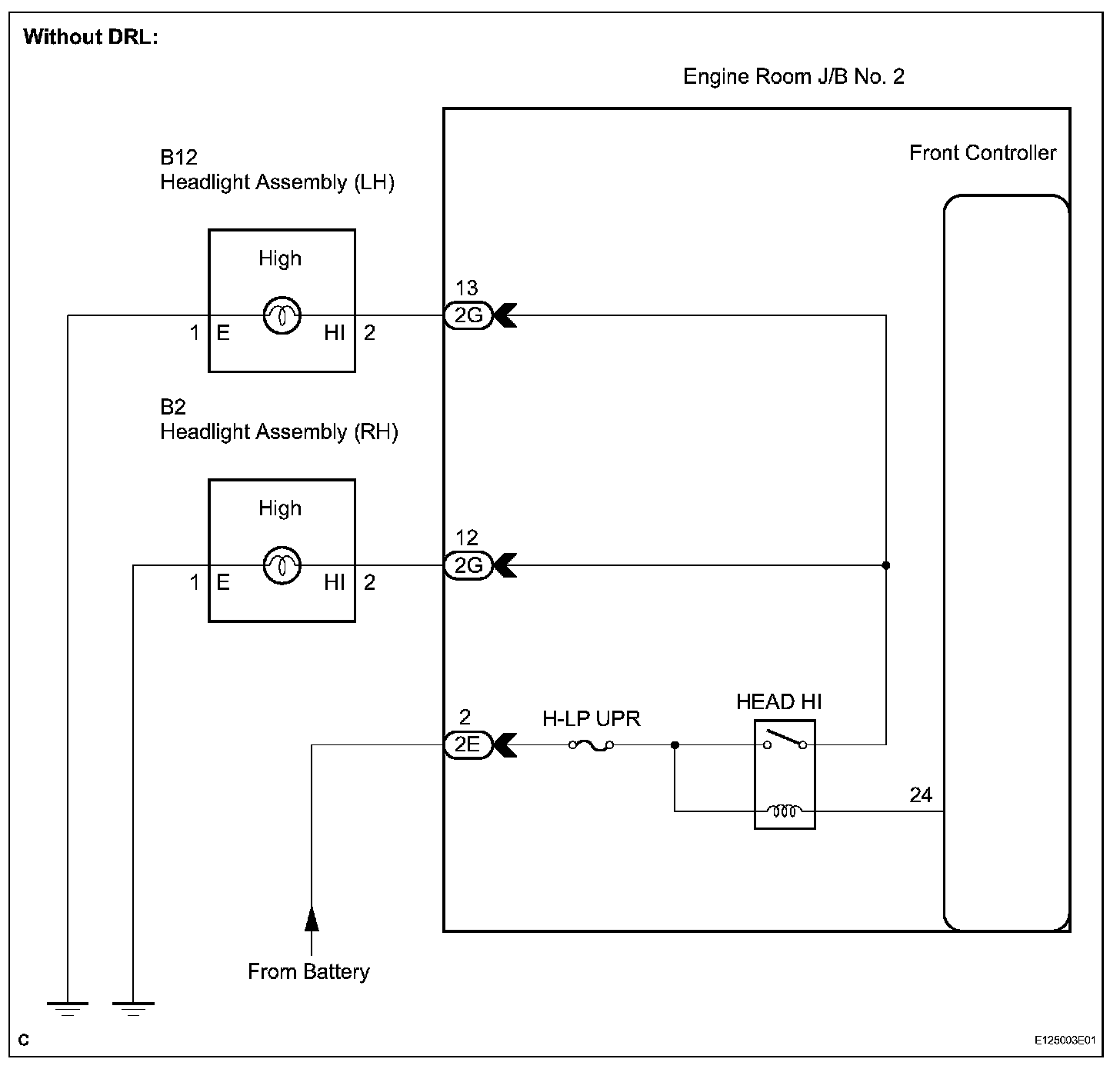

Wiring Diagram (Part 2):

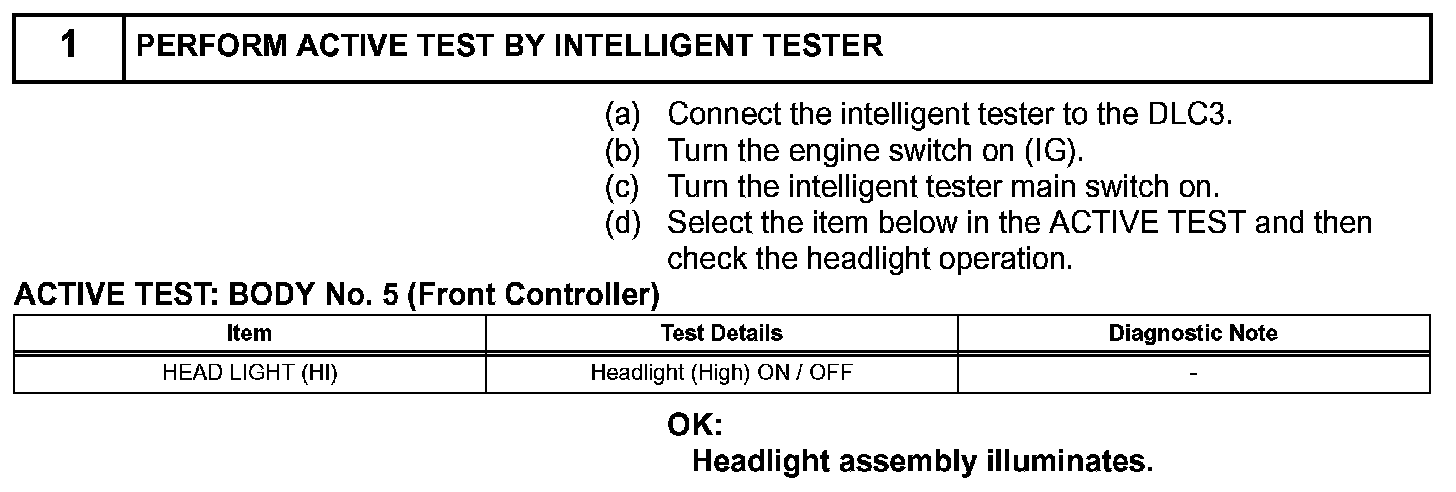

Step 1:

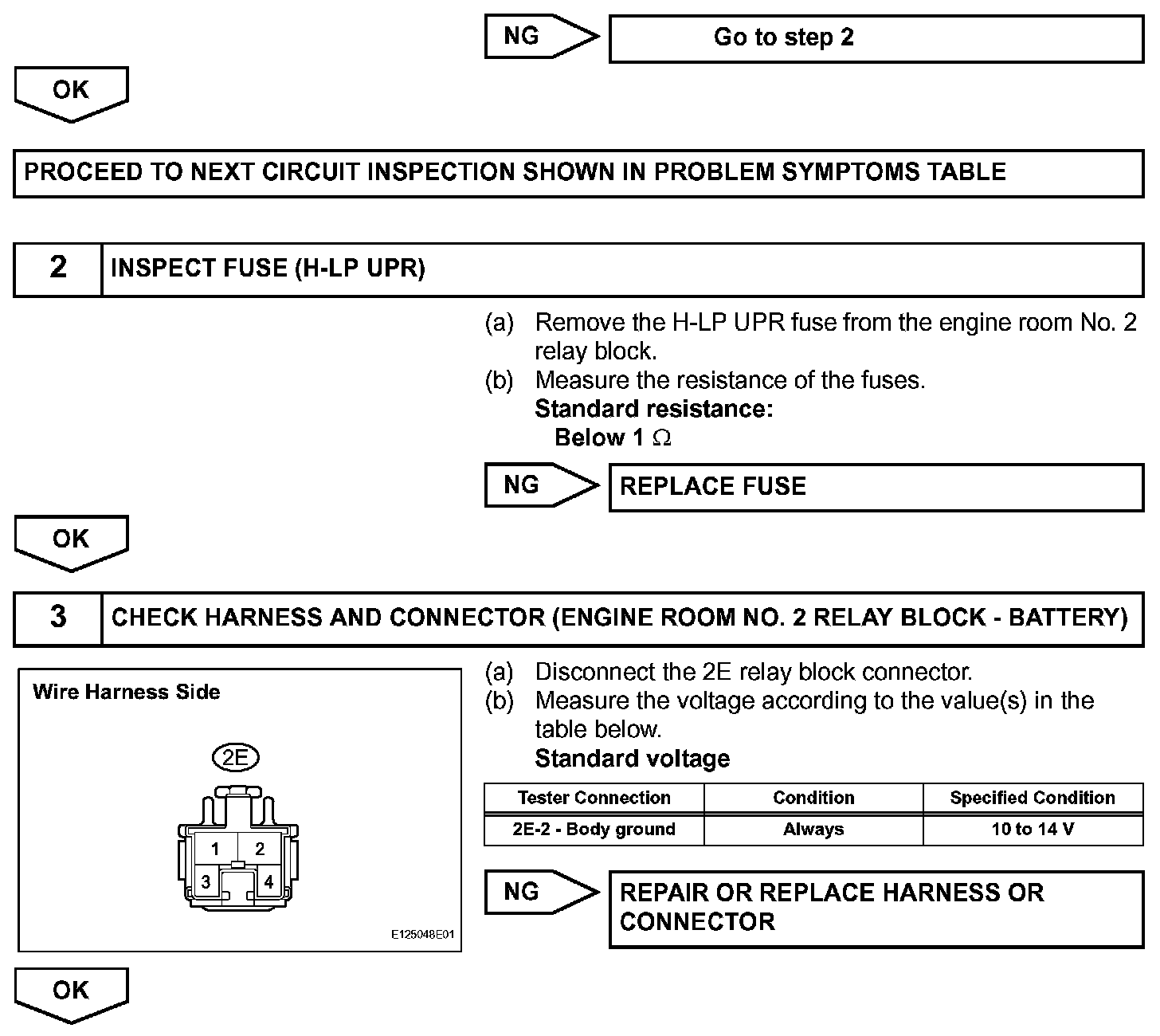

Step 1(continued)-3:

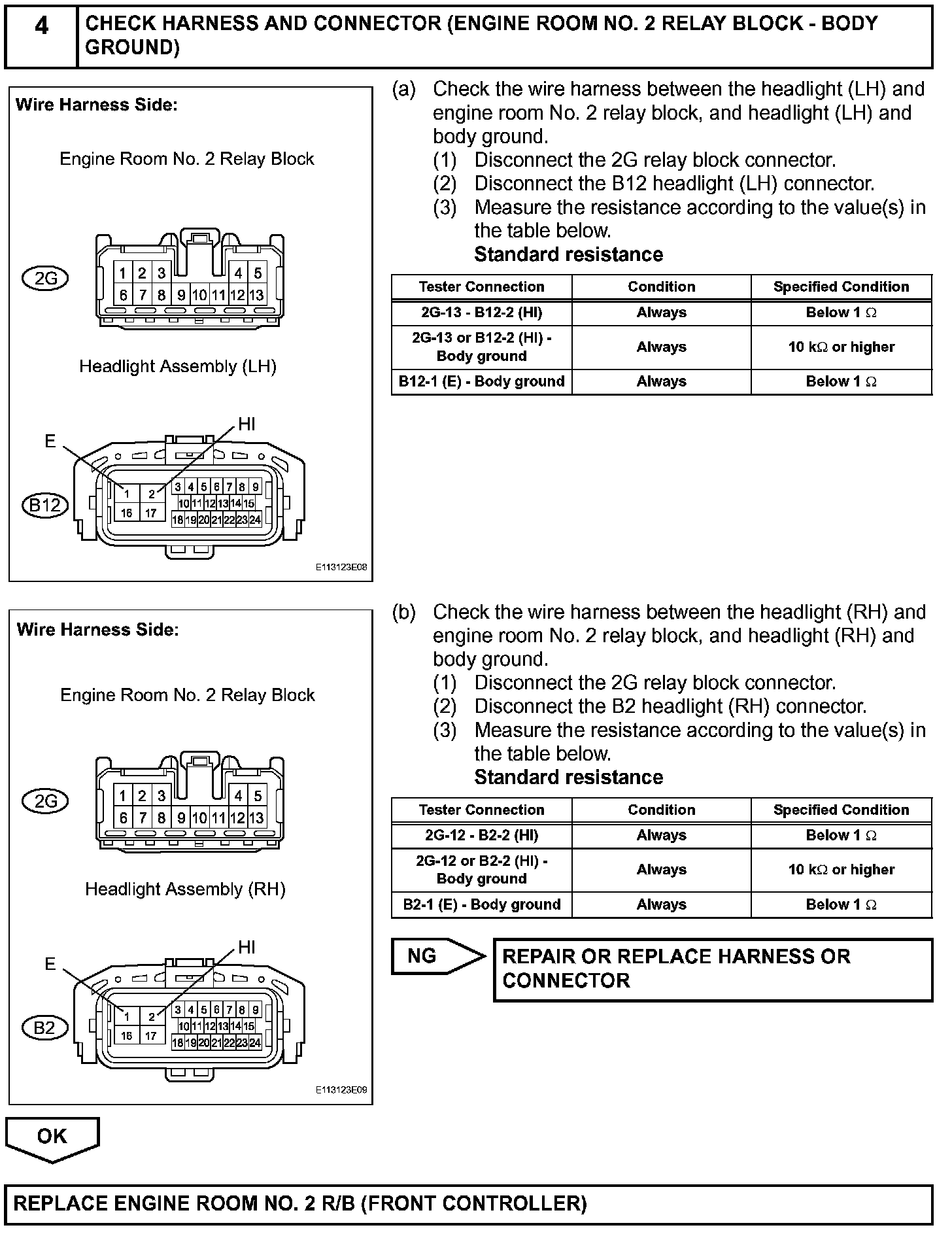

Step 4:

INSPECTION PROCEDURE
