Component Inspection

INSPECTION

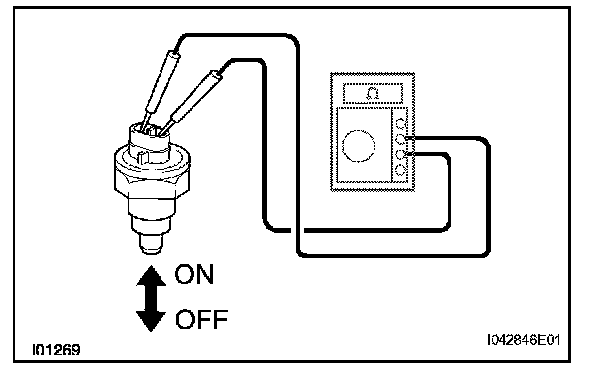

1. INSPECT BACK-UP LIGHT SWITCH ASSEMBLY

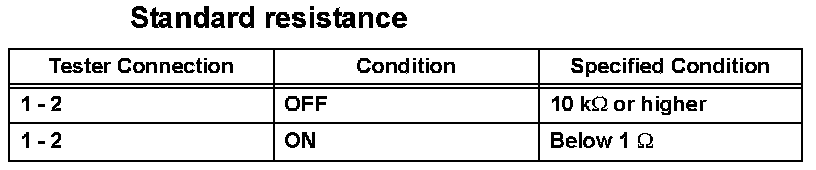

a. Measure the resistance according to the value(s) in the table.
If the result is not as specified, replace the switch assembly.
