Hazard Warning Switch: Testing and Inspection

INSPECTION

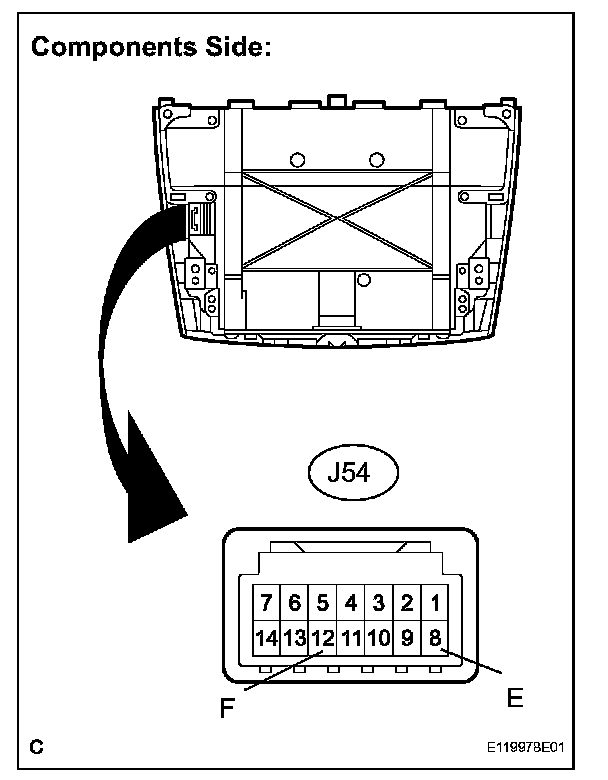

1. INSPECT INTEGRATION CONTROL PANEL (Without Navigation System)

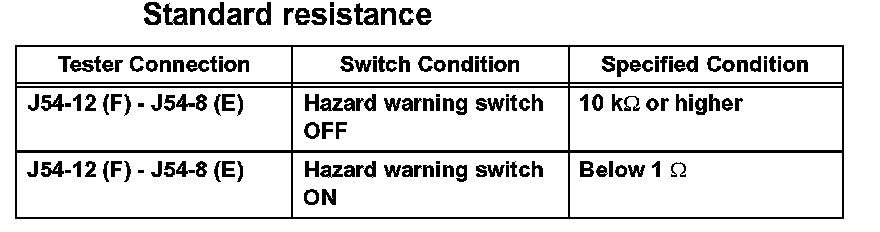

a. Measure the resistance of the integration control panel.

If the result is not as specified, replace the integration control panel.

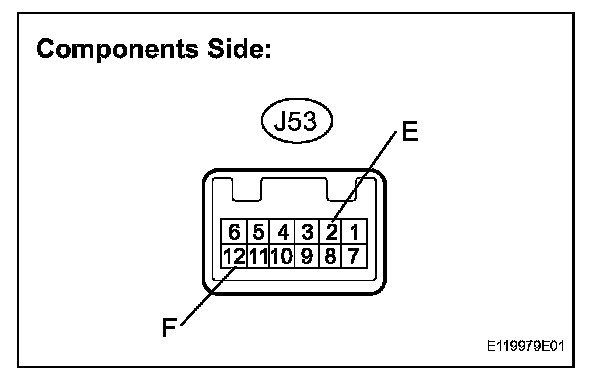

2. INSPECT CLOCK ASSEMBLY (With Navigation System)







a. Measure the resistance of the clock assembly.

If the result is not as specified, replace the clock assembly.
