Headlamp Relay: Testing and Inspection

HEADLIGHT RELAY

ON-VEHICLE INSPECTION

1. INSPECT HEADLIGHT RELAY (Marking: HEAD LP)




a. Remove the headlight relay from the engine room R/B No.1.

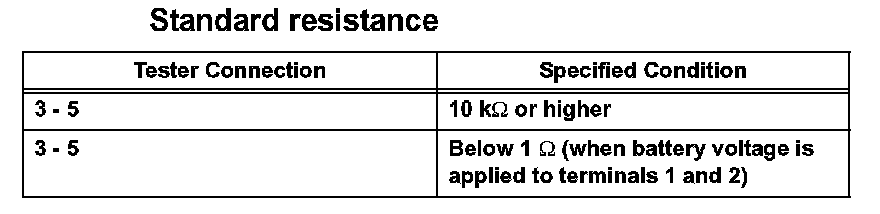

b. Measure the resistance of the relay.

If the result is not as specified, replace the relay.
