License Plate Lamp: Testing and Inspection

ON-VEHICLE INSPECTION

1. INSPECT LICENSE PLATE LIGHT ASSEMBLY

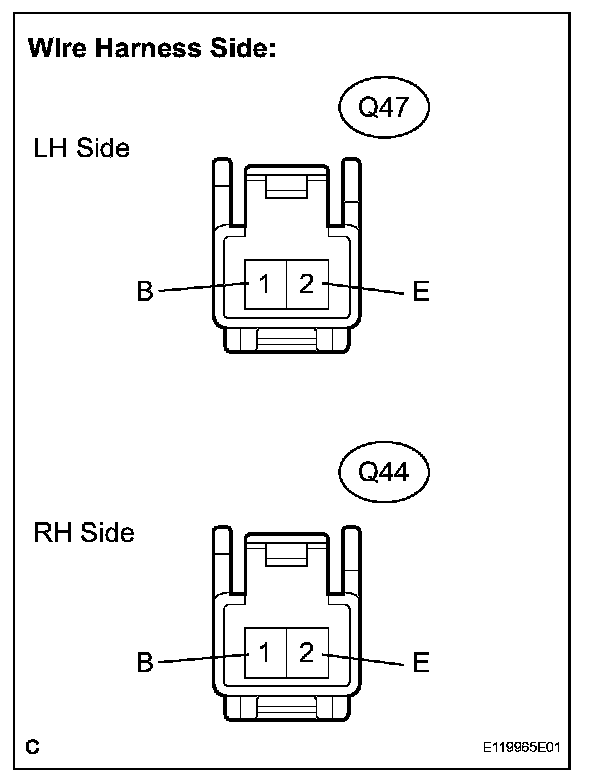

a. Disconnect the connector from the license plate light.

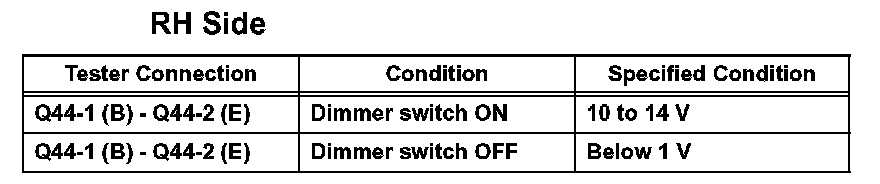

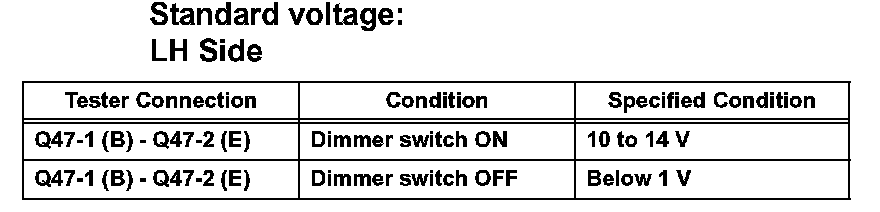

b. Measure the voltage of the connector.

If the result is not as specified, repair or replace wire harness or connector.
