Low Pitched Horn

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL

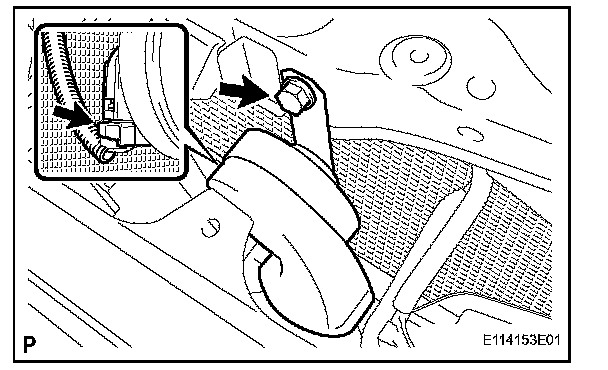

2. REMOVE LOW PITCHED HORN




a. Disconnect the connector.
b. Remove the bolt and the low pitched horn.

INSTALLATION

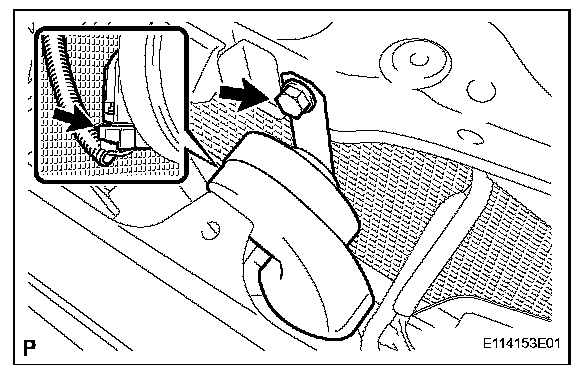

1. INSTALL LOW PITCHED HORN




a. Install the low pitched horn with the bolt.

Torque: 19 N.m (194 kgf.cm, 14 ft.lbf)

b. Connect the connector.

2. INSTALL COOL AIR INTAKE DUCT SEAL
