Canada - Lighting - Headlamp Support Bracket
BulletinTSB2242
Issue Date
April 06, 2006
Title
HEADLAMP SUPPORT BRACKET
Component
BODY COMPONENT
Models
'06 IS 250/350
INTRODUCTION:
In the event that the top mounting bracket that supports the headlamp assembly on the right or left side is damaged, the following service parts can be obtained to repair the top mounting bracket. This will eliminate the need to dispose of the complete headlamp assembly and also reduce the cost of the repair.
APPLICABLE VEHICLES:
- 2006 model year IS 250 and IS 350 vehicles.

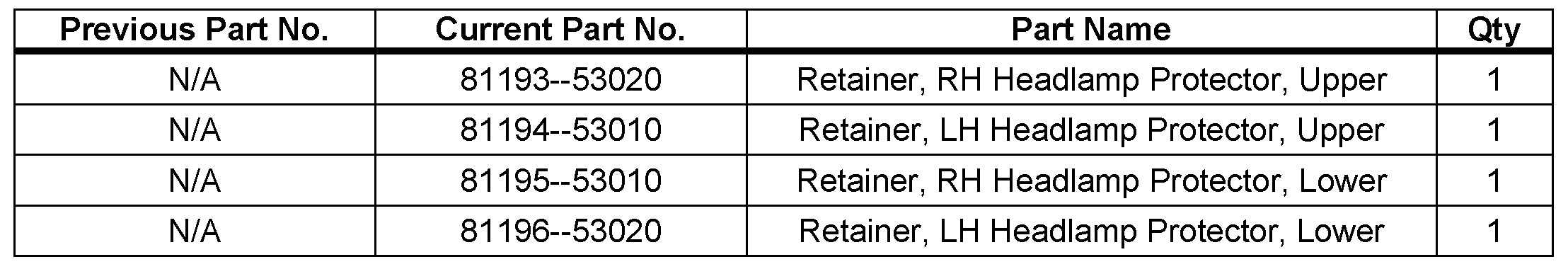

PARTS INFORMATION:

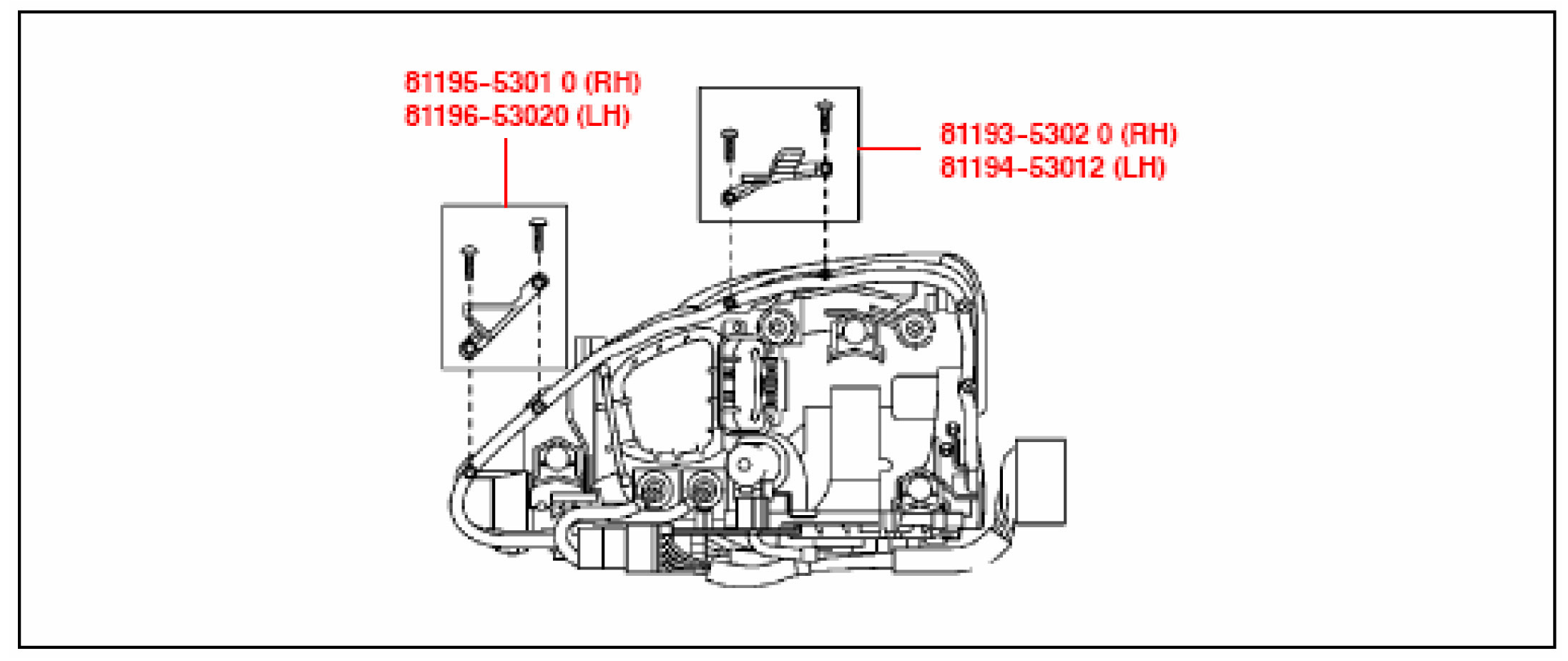

PARTS LOCATION:

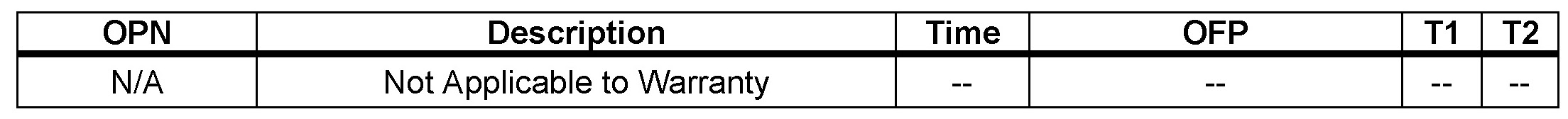

WARRANTY INFORMATION:
REPAIR PROCEDURE:

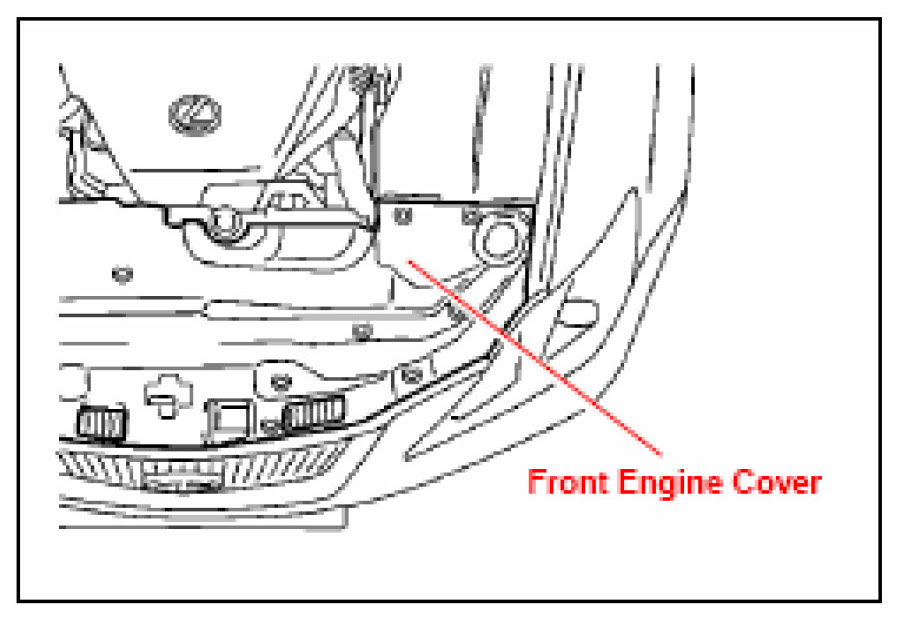

1. Remove the cover plate to access the top of the headlamp.

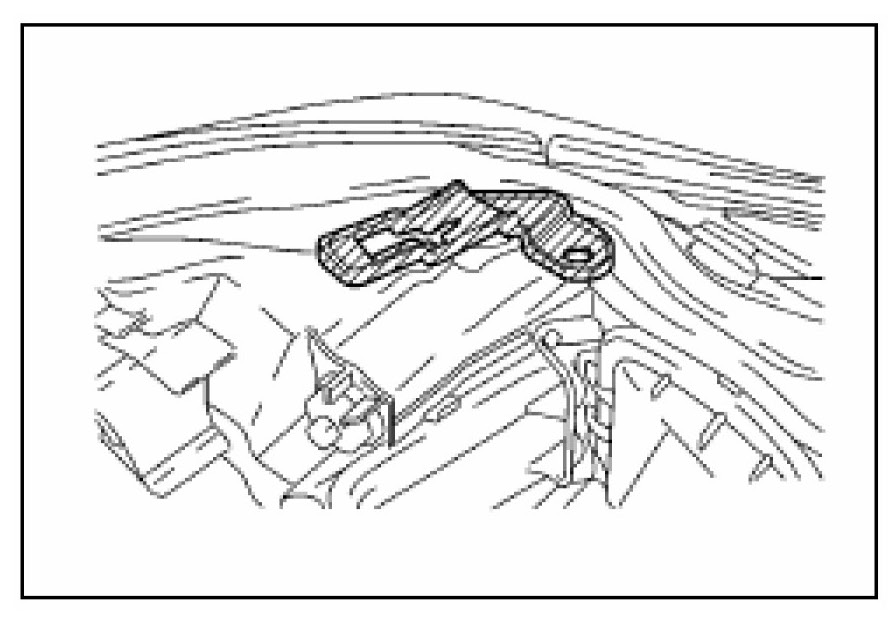

2. Cut off the remains of the headlight retainer (part shaded in the illustration) and sand smooth with medium/fine sand paper.

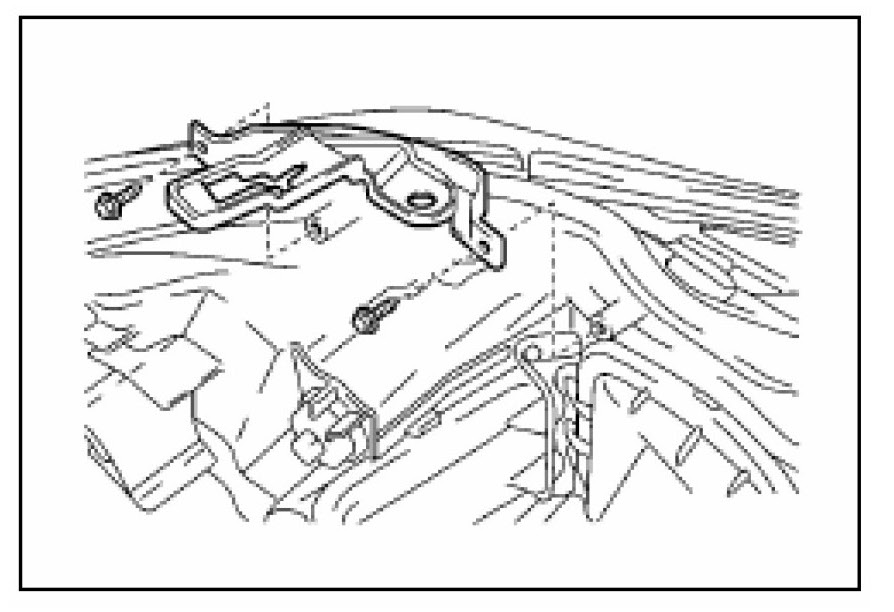

3. Install the NEW headlight retainer with the two (2) screws.
NOTE:
The repair method for the lower side is the same as the repair method for the upper side.
NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
