Body/Lighting - Headlamp Support Bracket Installation

BODY
BO007-06

Title:
HEADLAMP SUPPORT BRACKET

Models:
'06 IS 250 & IS 350

March 28, 2006

Introduction

In the event that the top mounting bracket that supports the headlamp assembly on the right or left side is damaged, the following service parts are available to repair the top mounting bracket. This will eliminate the need to dispose of the complete headlamp assembly and also reduce the cost of the repair.

Applicable Vehicles

2006 model year IS 250 and IS 350 vehicles.

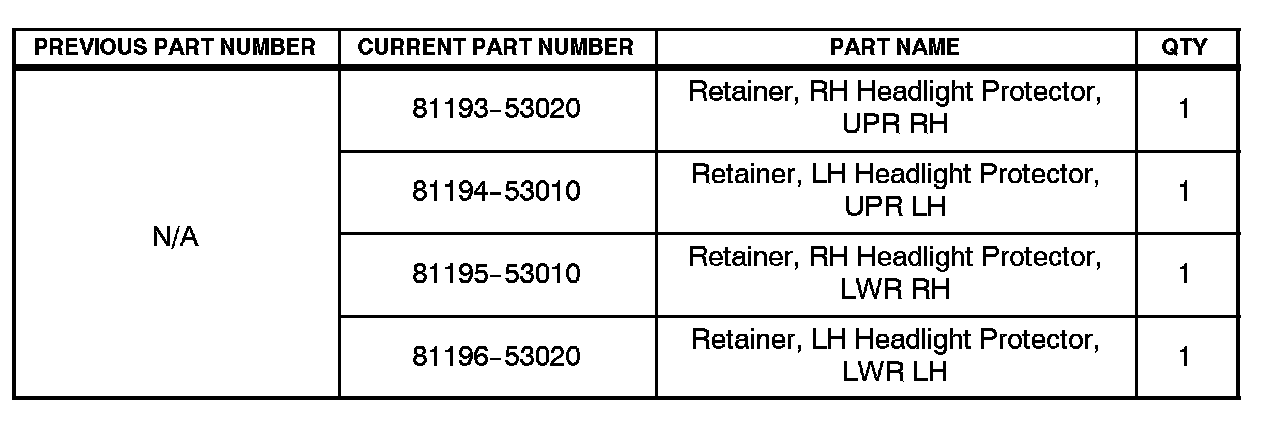

Parts Information

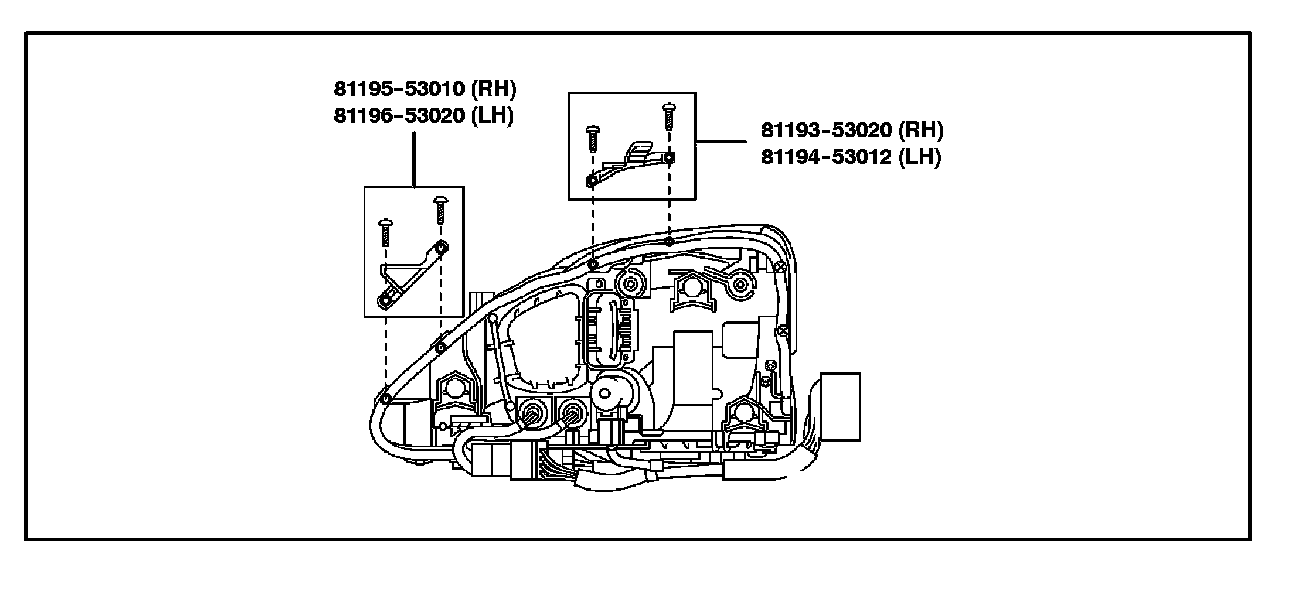

Parts Location

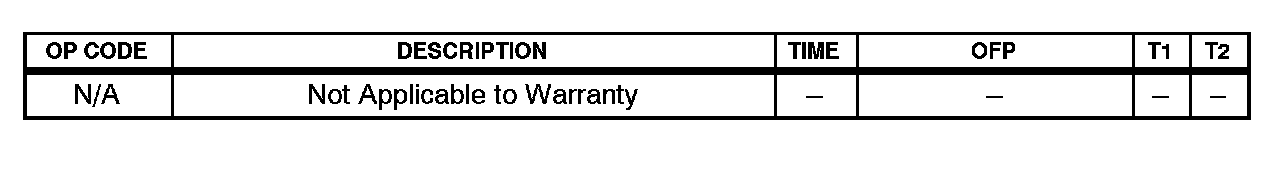

Warranty Information

Repair Procedure

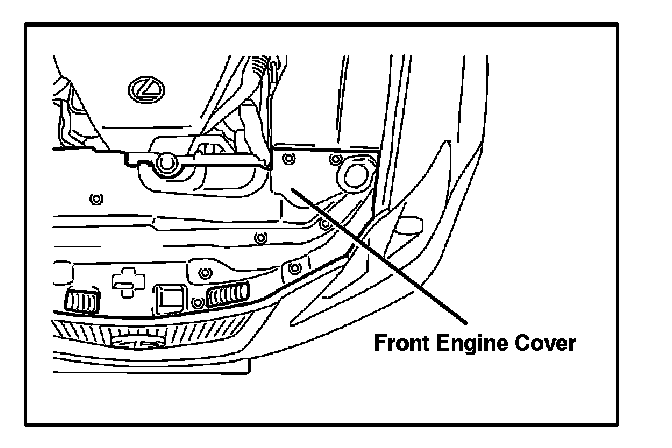

1. Remove the cover plate to access the top of the headlamp.

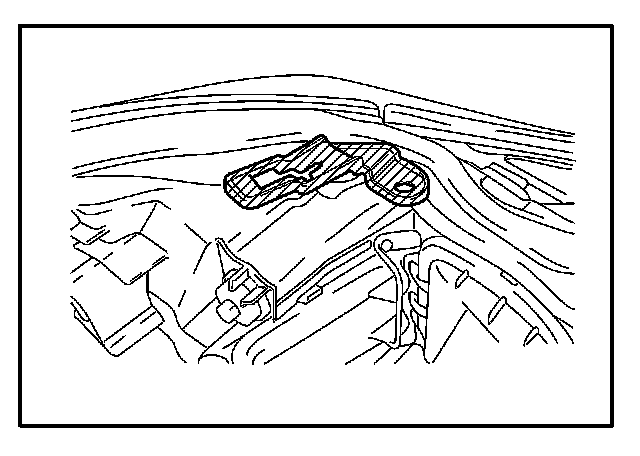

2. Cut off the remains of the headlight retainer (part shaded in the illustration) and sand smooth with medium/fine sand paper.

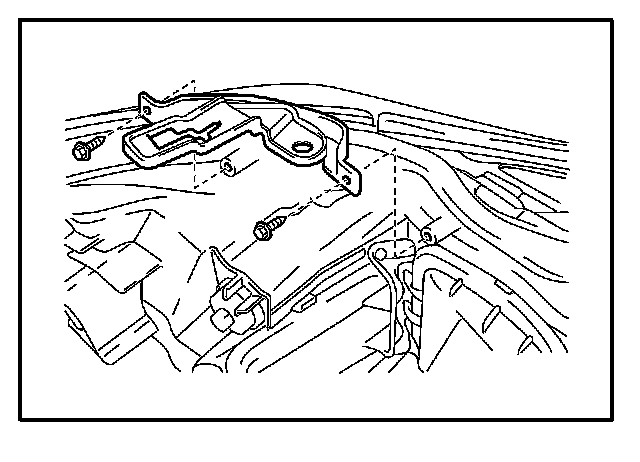

3. Install the NEW headlight retainer with the two (2) screws.

NOTE:
The repair method for the lower side is the same as the repair method for the upper side.
