Footwell Light

REMOVAL

1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
2. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH

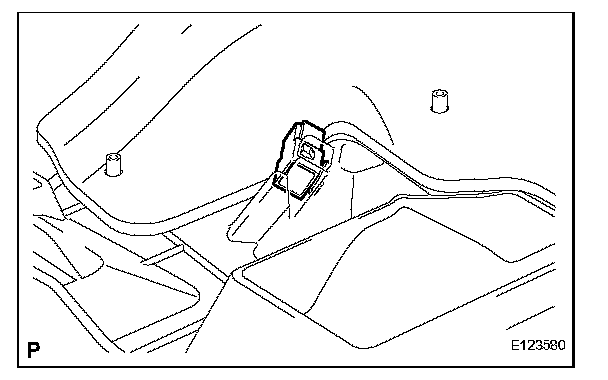

a. Remove the No. 1 interior illumination light assembly LH.

3. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
4. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH

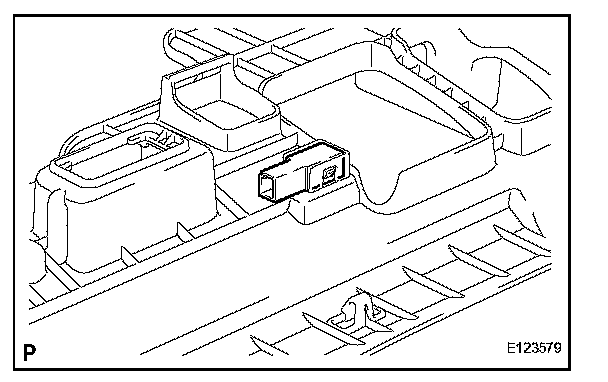

a. Remove the No. 1 interior illumination light assembly RH.

INSTALLATION

1. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH

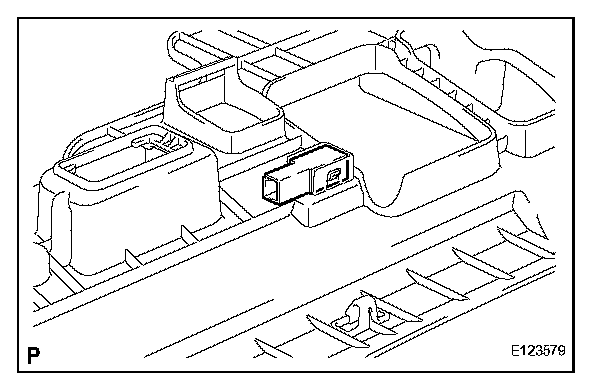

a. Install the No. 1 interior illumination light assembly RH.

2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
3. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH

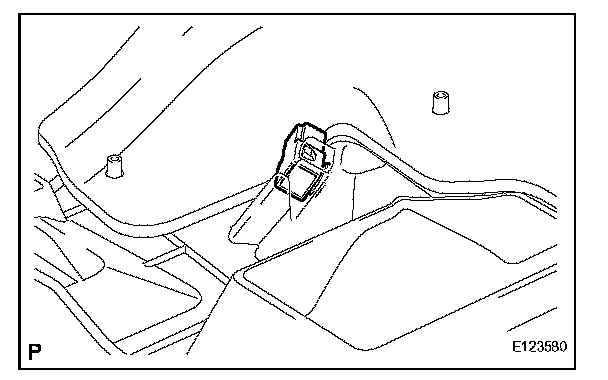

a. Install the No. 1 interior illumination light assembly LH.

4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
