Glove Box Lamp: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment
2. REMOVE FRONT DOOR SCUFF PLATE RH (w/o Illumination)
3. REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination)
4. REMOVE FRONT DOOR OPENING TRIM COVER RH
5. REMOVE SIDE INSTRUMENT PANEL RH
6. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
7. REMOVE PASSENGER SIDE KNEE AIRBAG ASSEMBLY
8. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
9. REMOVE GLOVE BOX LIGHT ASSEMBLY

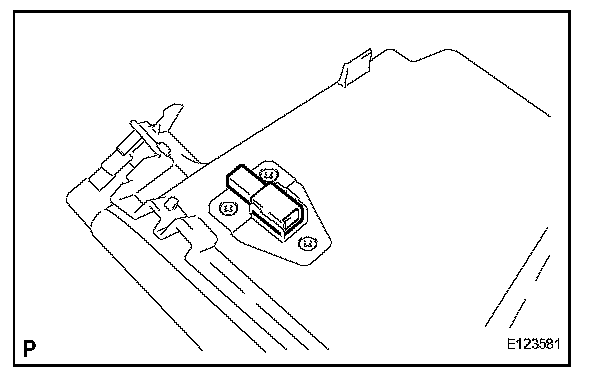

a. Remove the glove box light assembly.
INSTALLATION
1. INSTALL GLOVE BOX LIGHT ASSEMBLY

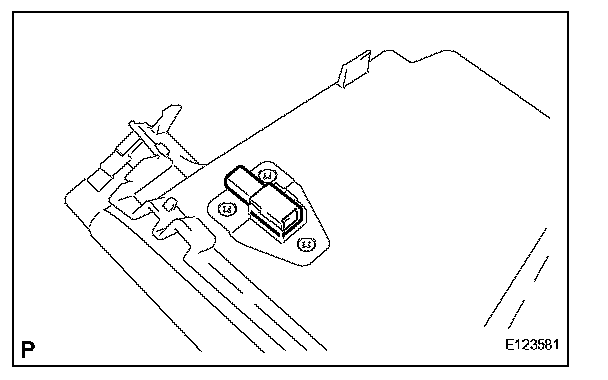

a. Install the glove box light assembly.
2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
3. INSTALL PASSENGER SIDE KNEE AIRBAG ASSEMBLY
4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
5. INSTALL SIDE INSTRUMENT PANEL RH
6. INSTALL FRONT DOOR OPENING TRIM COVER RH
7. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
8. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
10. PERFORM INITIALIZATION
Some systems need initialization after reconnecting the cable to the negative battery terminal.
11. INSPECT SRS WARNING LIGHT
