Tire Pressure Monitor Antenna: Service and Repair

TIRE PRESSURE WARNING ANTENNA

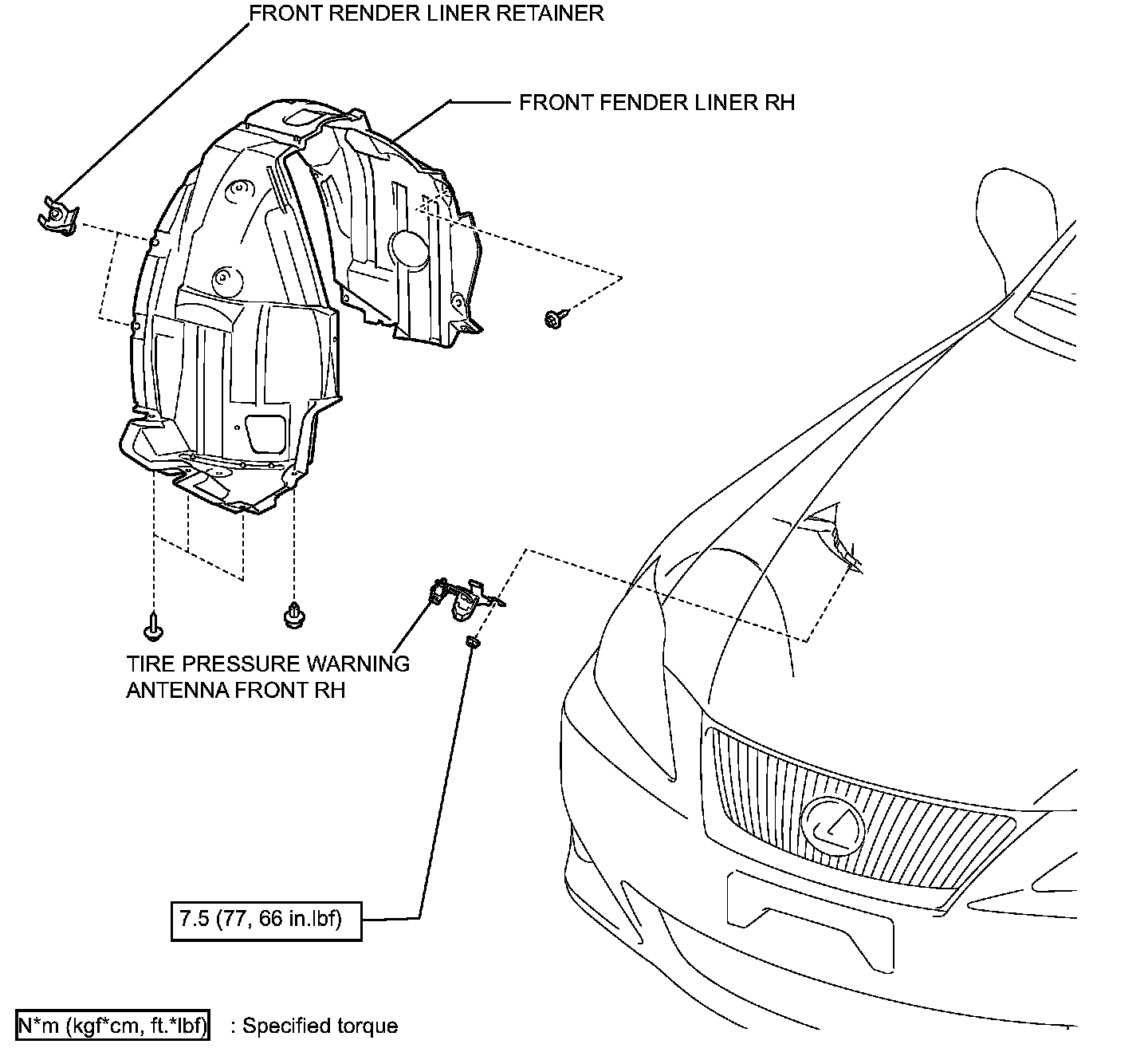

Components:

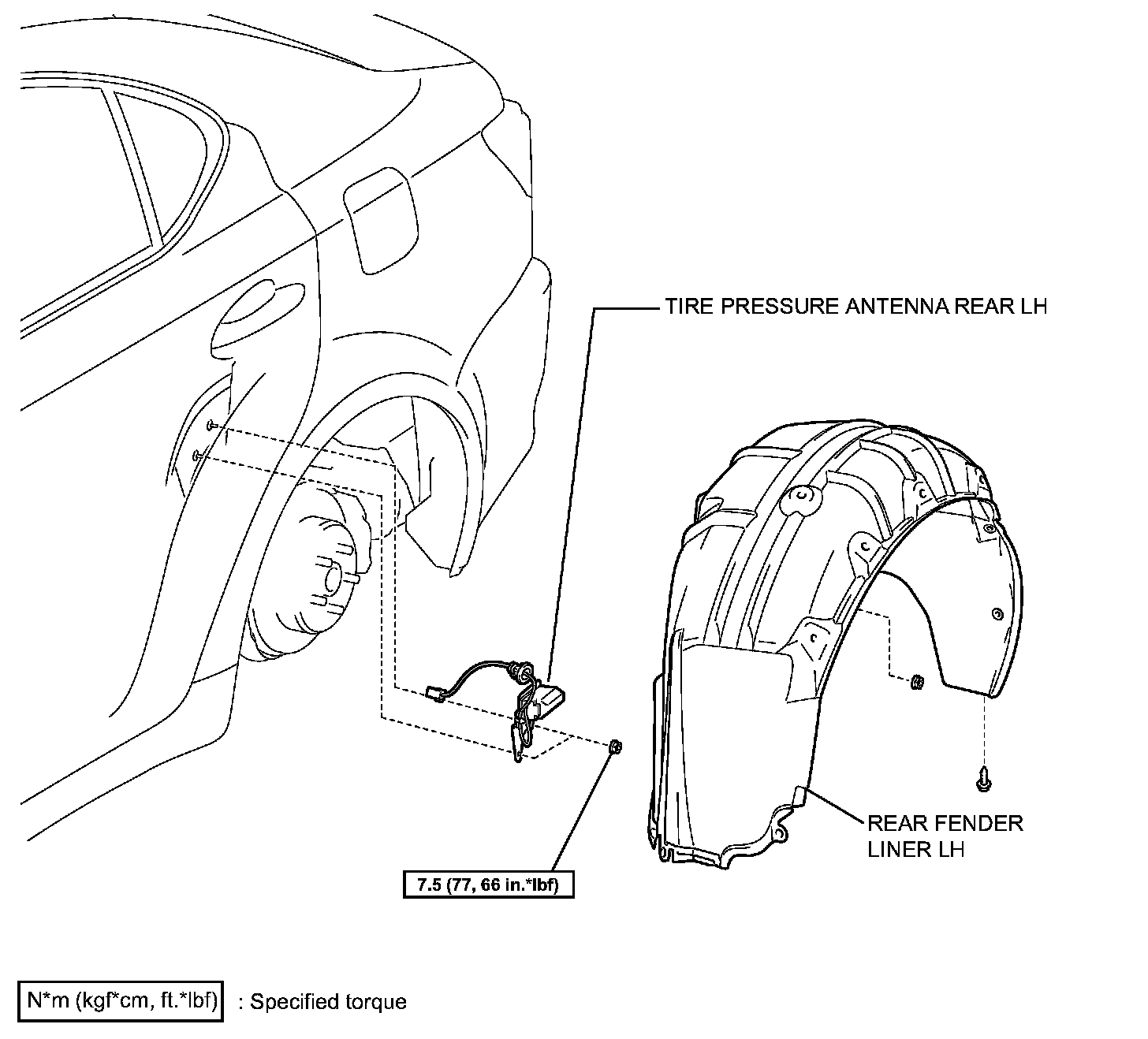

Components:

REMOVAL
1. REMOVE FRONT WHEEL RH
2. REMOVE FRONT FENDER LINER RH
3. REMOVE TIRE PRESSURE ANTENNA FRONT RH





a) Disconnect the connector.

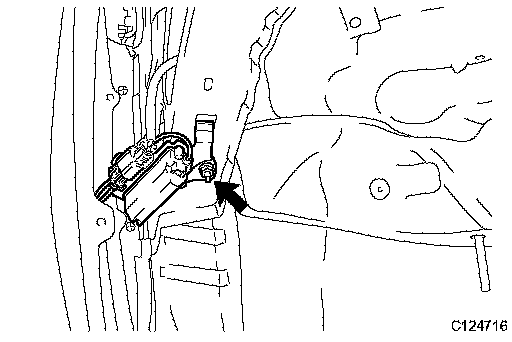

b) Remove the nut and the front right tire pressure warning antenna assembly

4. REMOVE REAR WHEEL LH
5. REMOVE REAR SEAT CUSHION ASSEMBLY
6. REMOVE REAR SEATBACK ASSEMBLY
7. REMOVE REAR FENDER LINER LH
8. REMOVE TIRE PRESSURE ANTENNA REAR LH

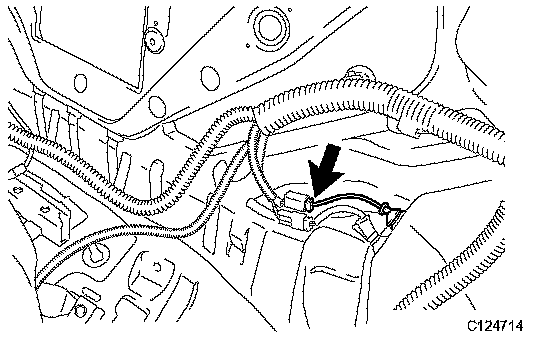

a) Disconnect the connector.

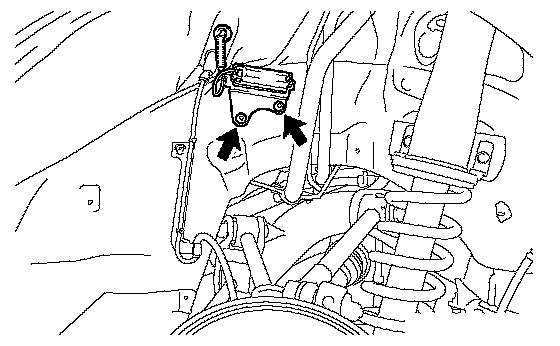

b) Remove the 2 nuts and the rear left tire pressure warning antenna assembly

INSTALLATION
1. INSTALL TIRE PRESSURE ANTENNA FRONT RH

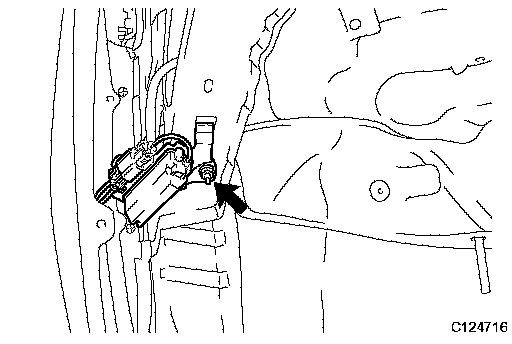

a) Install the front right tire pressure monitor antenna assembly with the nut.
Torque: 7.5 Nm (77 kgf-cm, 66 inch lbs.)
b) Connect the connector.

2. INSTALL FRONT FENDER LINER RH
3. INSTALL FRONT TIRE (RH)
Torque: 103 Nm (1,050 kgf-cm, 911 inch lbs.)

4. INSTALL TIRE PRESSURE ANTENNA REAR LH

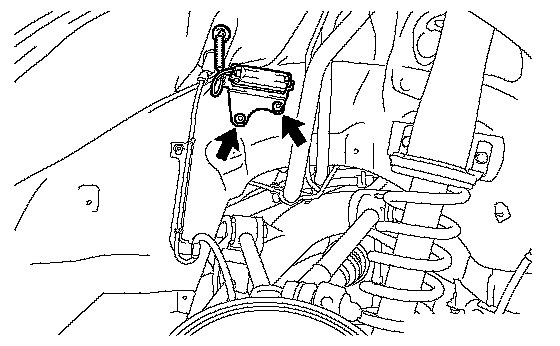

a) Install the rear left tire pressure monitor antenna assembly with the 2 nuts.
Torque: 7.5 Nm (77 kgf-cm, 66 inch lbs.)

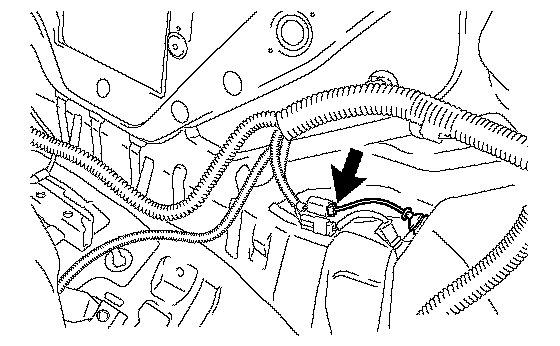

b) Connect the connector.

5. INSTALL REAR FENDER LINER LH
6. INSTALL REAR TIRE (LH)
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)

7. INSTALL REAR SEATBACK ASSEMBLY
8. INSTALL REAR SEAT CUSHION ASSEMBLY
9. REGISTRATION OF TRANSMITTER ID
SST 09843-18040

10. INSPECT TIRE PRESSURE WARNING SYSTEM
