Component Tests and General Diagnostics

INSPECT TACHOMETER

a. Connect a tune-up tachometer, and start the engine.

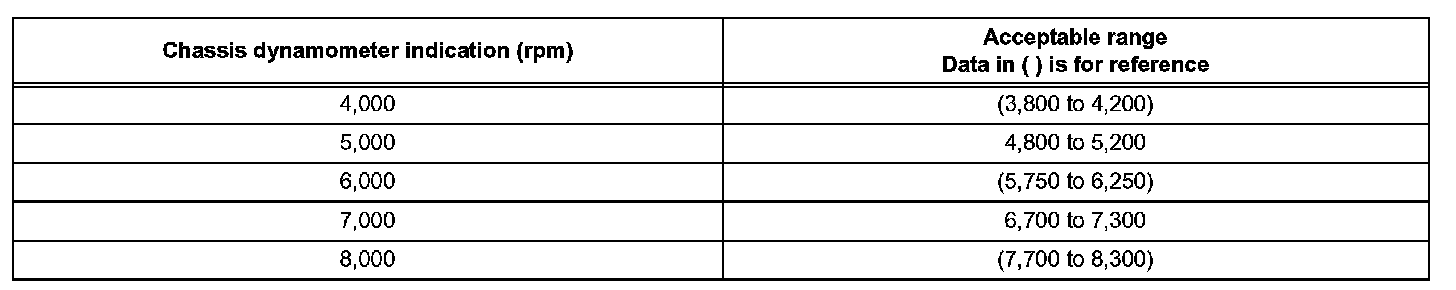

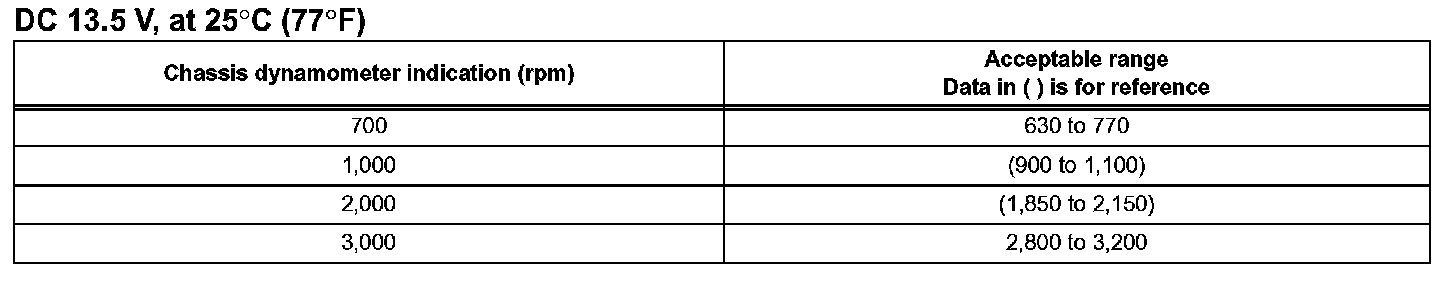

b. Compare the test results with the tachometer indications.

HINT: If the indication is not as specified, go to the problem symptoms table.
