Symptom Related Diagnostic Procedures

Speedometer Malfunction

DESCRIPTION
- The meter CPU receives vehicle speed signals from this circuit.
- The vehicle speed sensor detects the voltage that varies according to the vehicle speed.
- The ABS & traction actuator assembly supplies power to the vehicle speed sensor.
- The ABS & traction actuator assembly detects vehicle speed signals based on the pulses of the voltage.
- The ABS & traction actuator assembly transmits vehicle speed signals as pulses to the meter CPU.
- The meter CPU calculates the vehicle speed converting 4 pulses to 1 revolution

HINT: If the vehicle has a VDIM function, the skid control ECU is built into the ABS & traction actuator assembly.

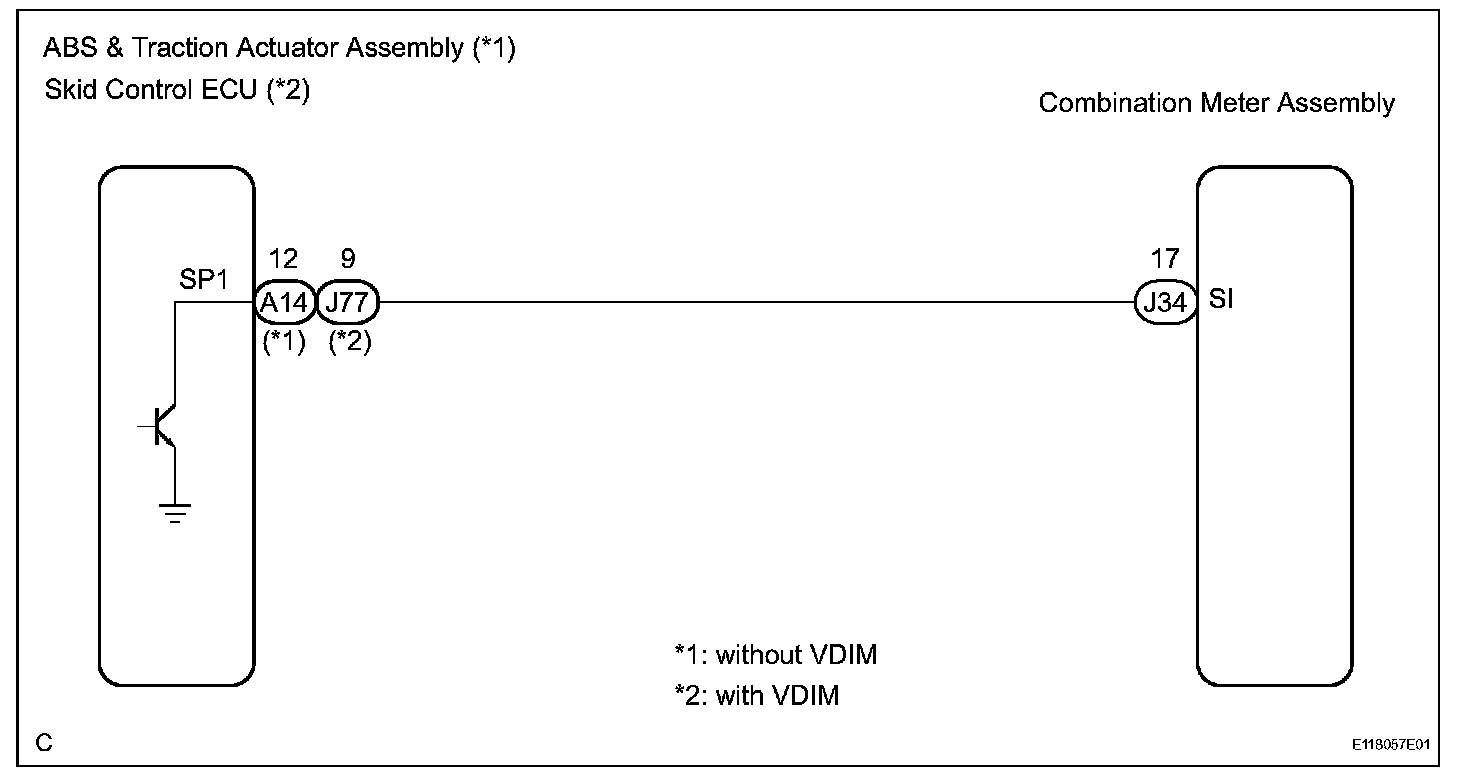

Wiring Diagram:

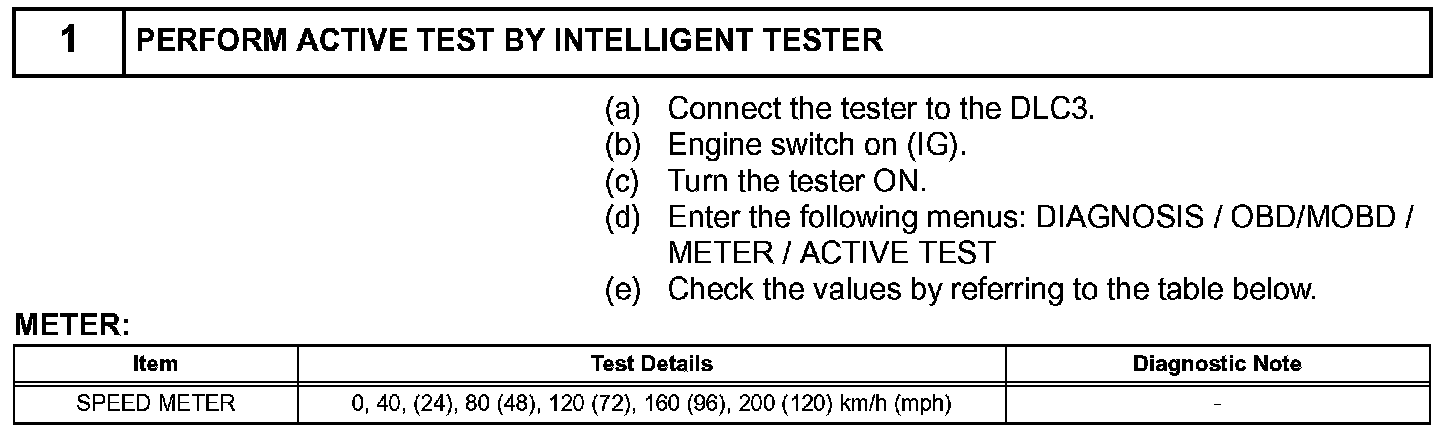

Step 1:

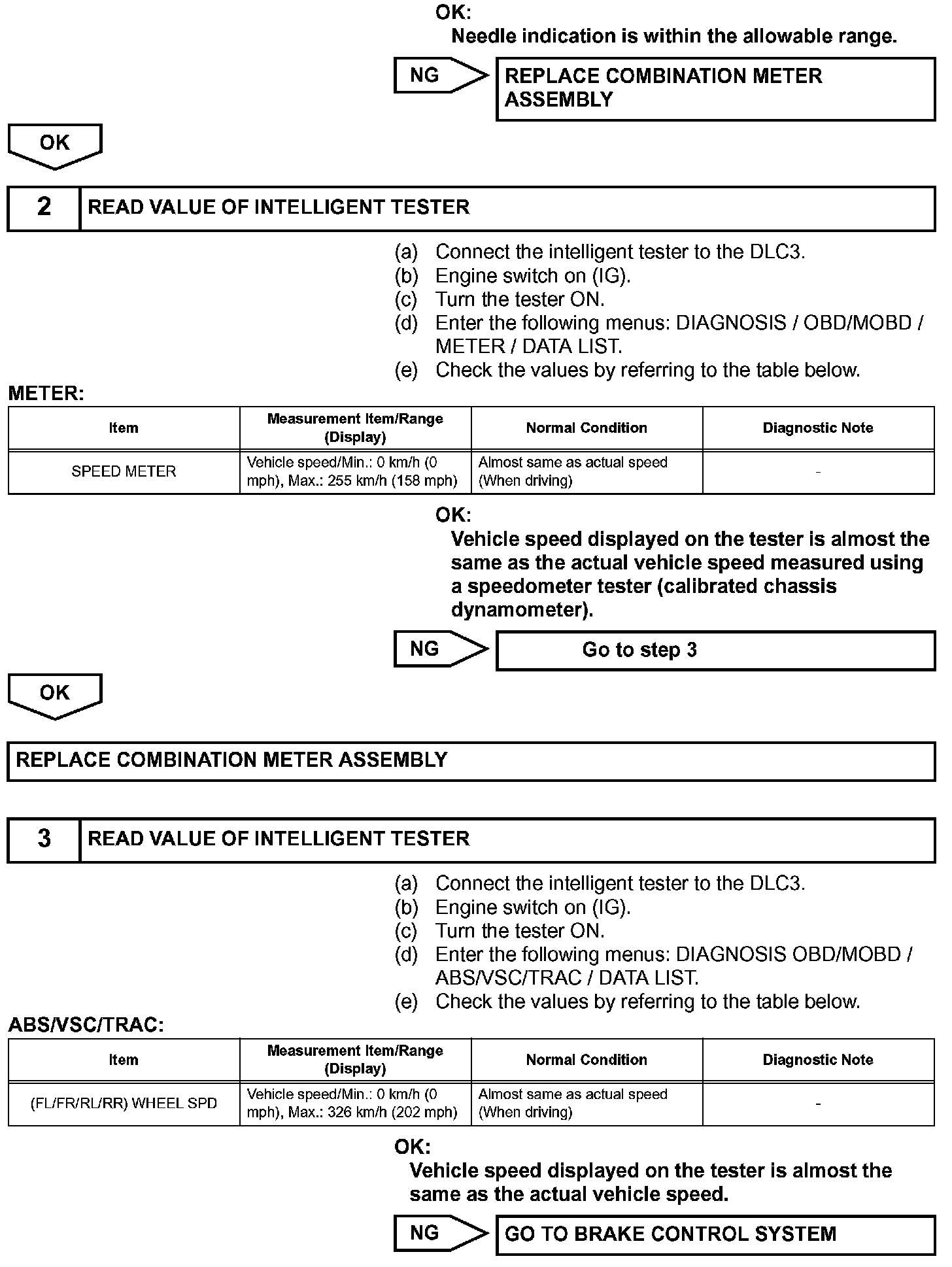

Step 1(continued)-3:

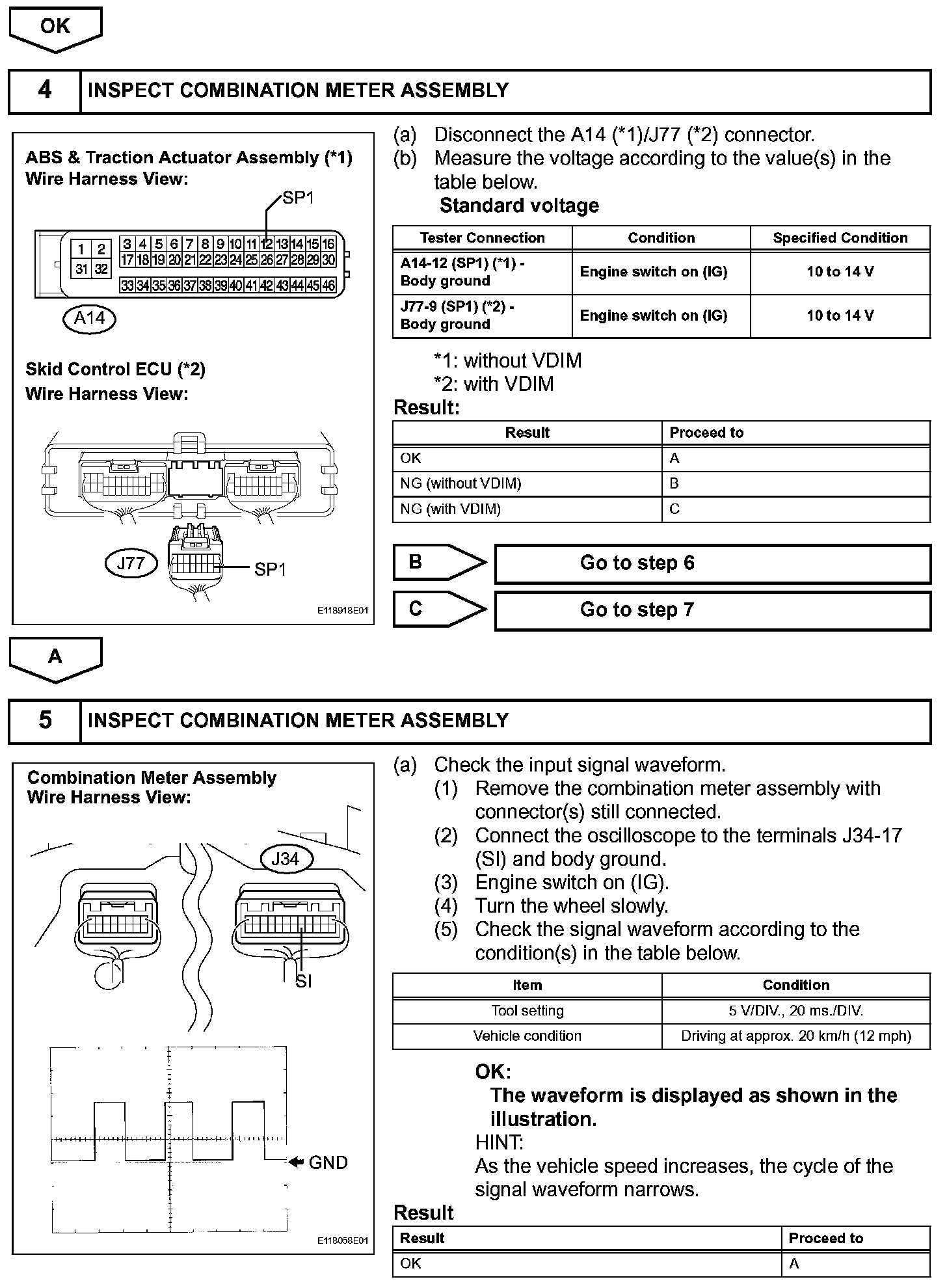

Step 3(continued)-5:

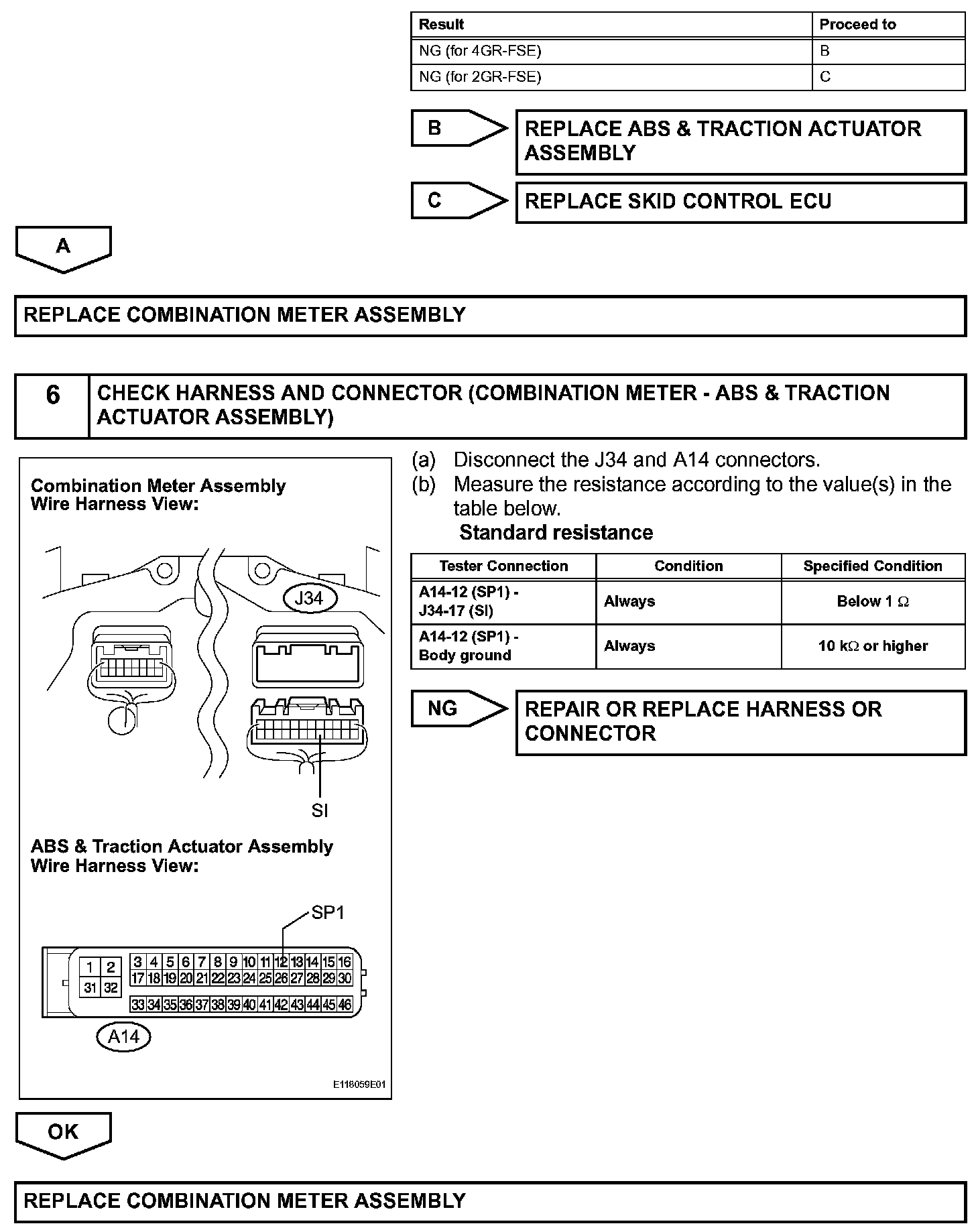

Step 5(continued)-6:

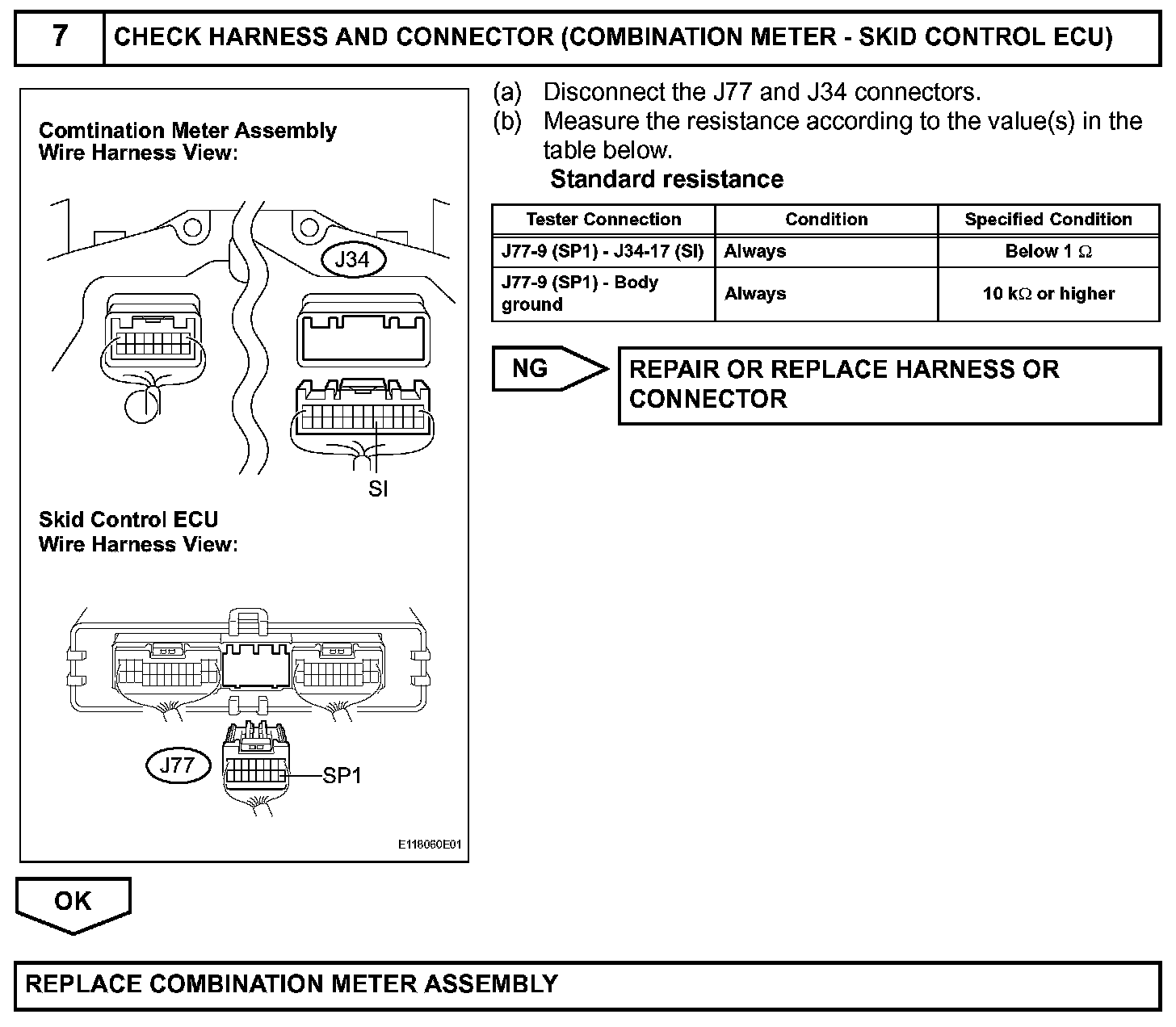

Step 7:

INSPECTION PROCEDURE
