On-Vehicle Inspection

ON-VEHICLE INSPECTION

INSPECT MULTI-INFORMATION DISPLAY




a. Engine switch off.
b. Press the "DISP" button and hold it down.
c. Engine switch on (IG).

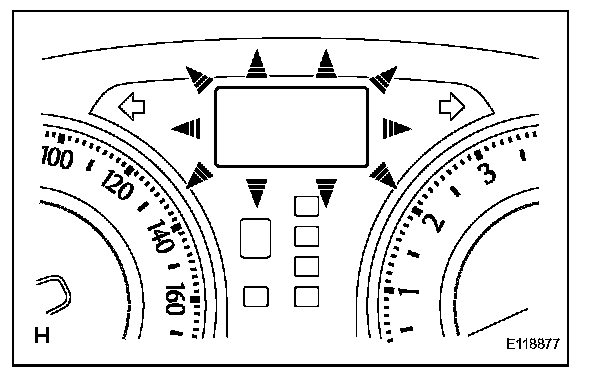

OK:All the dots in the multi- information display come on.

HINT: This test is also available on "DATA LIST / ACTIVE TEST".

d. Engine switch off to finish this test mode.

HINT: If the result is not as specified, replace the combination meter assembly.
