Instrument Panel Bulb: Testing and Inspection
INSPECTION1. INSPECT RESISTER ILLUMINATION (LH Side)

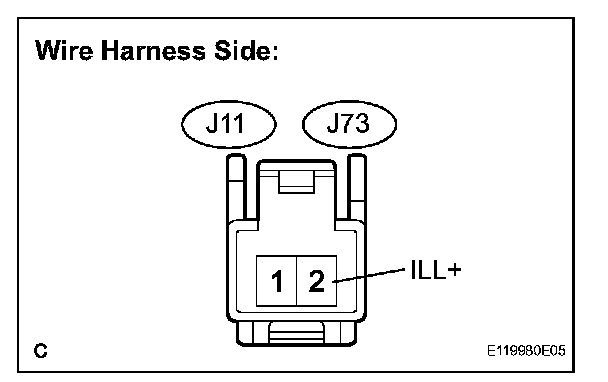

a. Disconnect the connector from the resister.

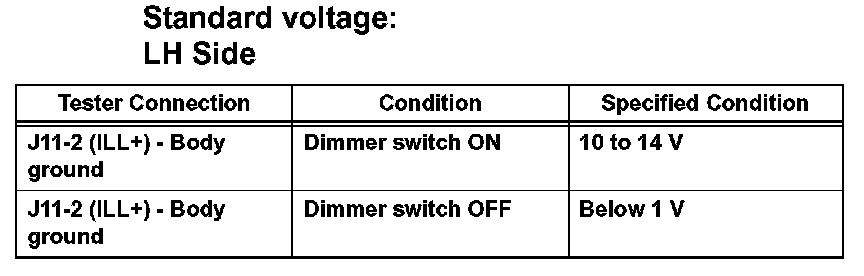

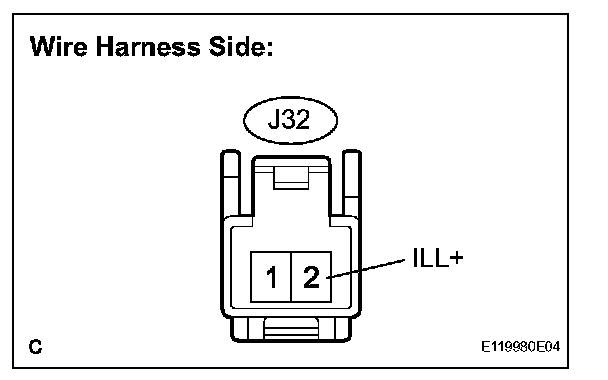

b. Measure the voltage of the connector.

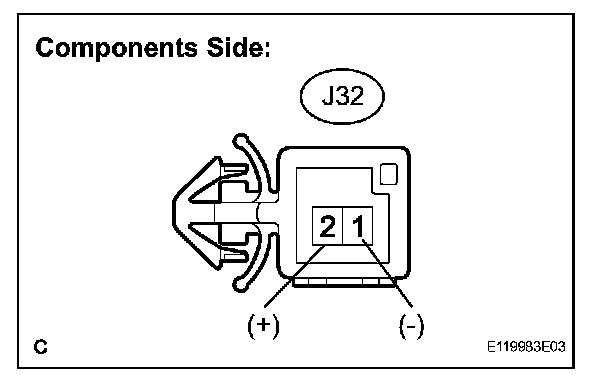

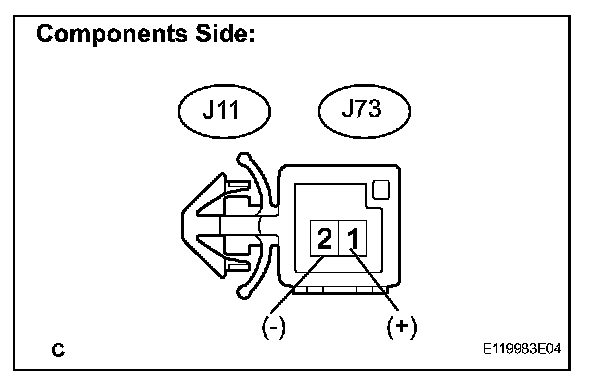

c. Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1.
d. Check that the resister illumination comes on.
OK: Comes on
If the result is not as specified, replace the resister illumination.
2. INSPECT RESISTER ILLUMINATION (RH Side)
a. Disconnect the connector from the resister.

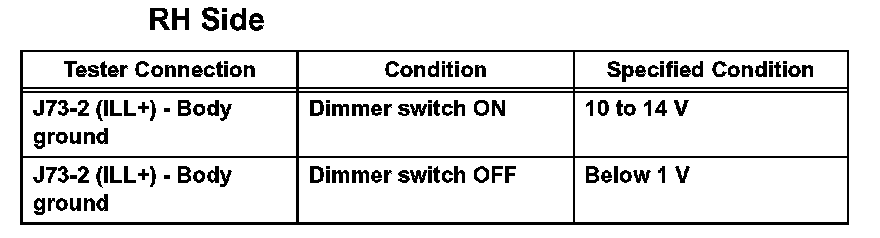

b. Measure the voltage of the connector.
If the result is not as specified, repair or replace wire harness or connector.
c. Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1.
d. Check that the resister illumination comes on.
OK: Comes on
If the result is not as specified, replace the resister illumination.
3. INSPECT RESISTER ILLUMINATION (Center)

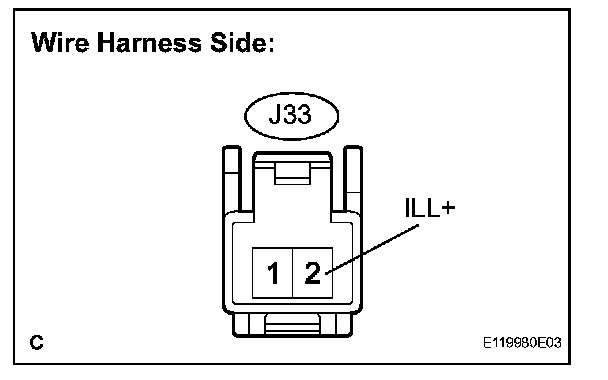

a. Disconnect the connector from the resister.

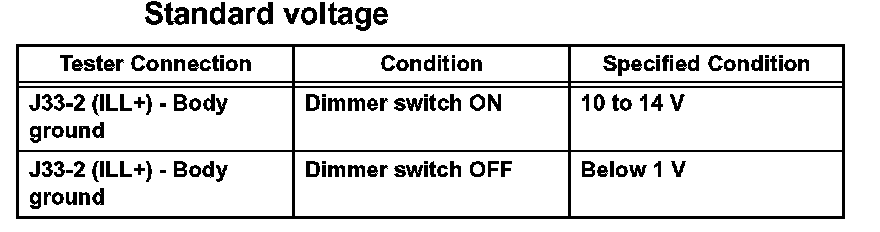

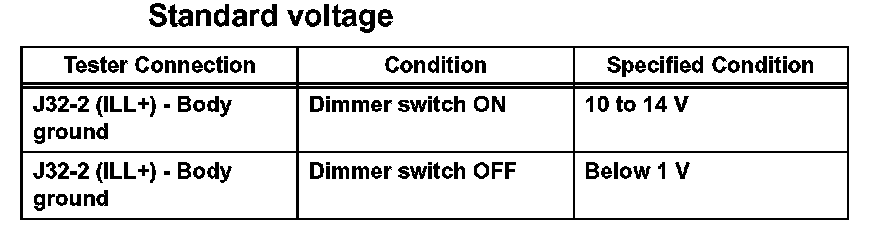

b. Measure the voltage of the connector.
If the result is not as specified, repair or replace wire harness or connector.

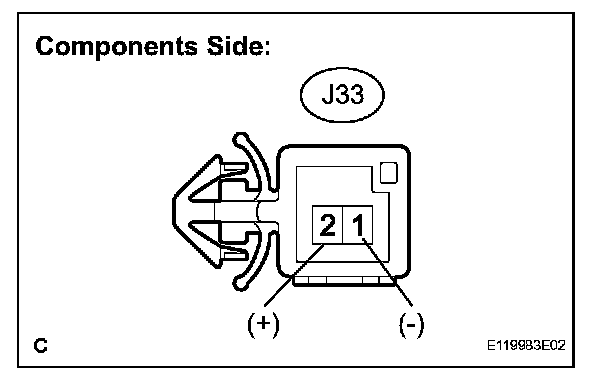

c. Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1.
d. Check that the resister illumination comes on.
OK: Comes on
If the result is not as specified, replace the resister illumination.
