Instrument Panel Bulb: Service and Repair

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination)
2. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)
3. REMOVE FRONT DOOR OPENING TRIM COVER LH
4. REMOVE SIDE INSTRUMENT PANEL LH
5. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
6. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

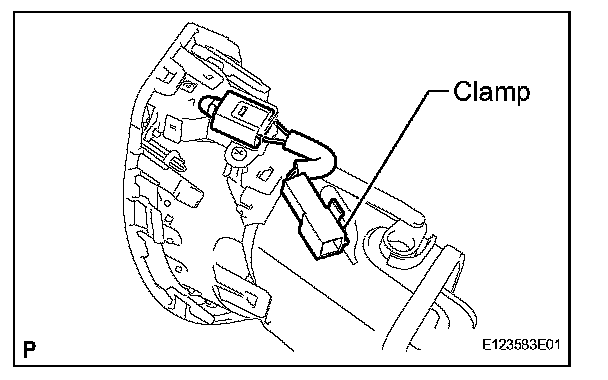

a. Disengage the clamp and remove the No. 1 interior illumination light assembly.

7. REMOVE FRONT DOOR SCUFF PLATE RH (w/o Illumination)
8. REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination)
9. REMOVE FRONT DOOR OPENING TRIM COVER RH
10. REMOVE SIDE INSTRUMENT PANEL RH
11. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
12. REMOVE NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY

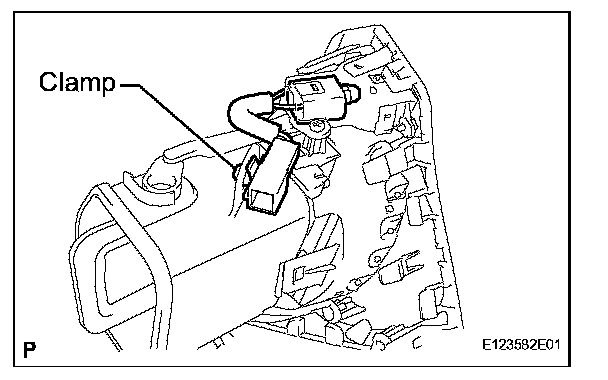

a. Disengage the clamp and remove the No. 2 interior illumination light assembly.

INSTALLATION

1. INSTALL NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY




a. Install the No. 2 interior illumination light assembly with the clamp.

2. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
3. INSTALL SIDE INSTRUMENT PANEL RH
4. INSTALL FRONT DOOR OPENING TRIM COVER RH
5. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
6. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)
7. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

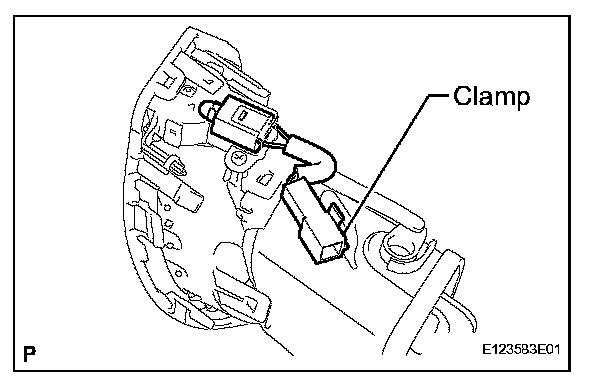

a. Install the No. 1 interior illumination light assembly with the clamp.

8. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
9. INSTALL SIDE INSTRUMENT PANEL LH
10. REMOVE FRONT DOOR OPENING TRIM COVER LH
11. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination)
12. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)
