Pinout Values and Diagnostic Parameters

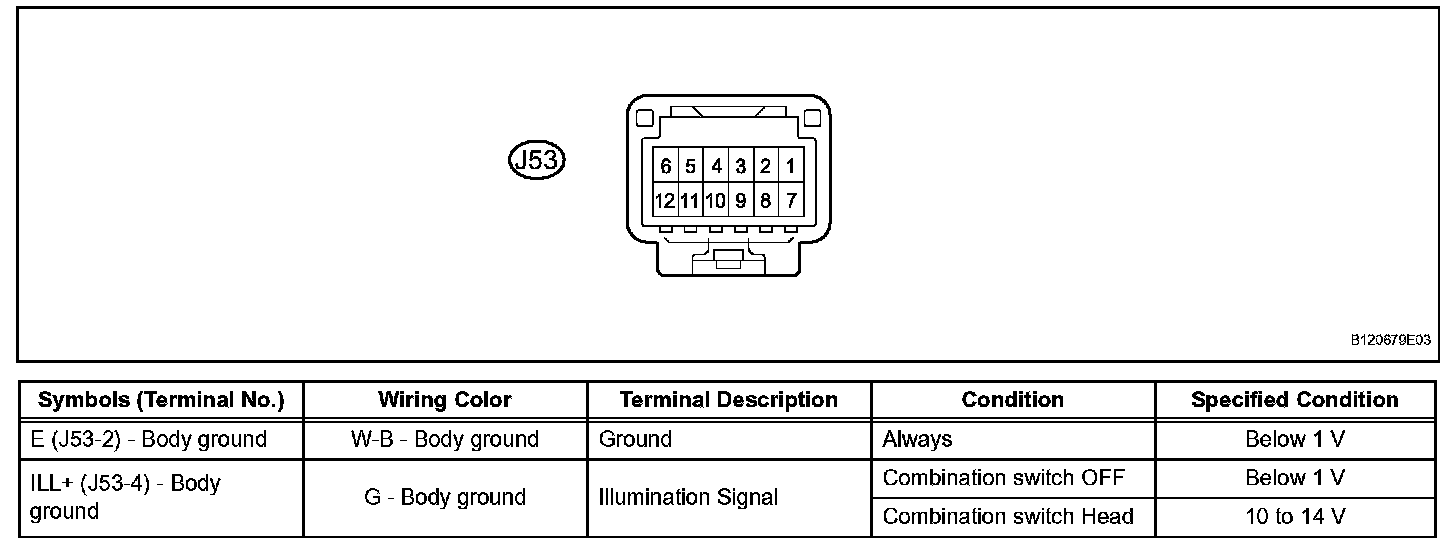

Terminals Of Control Module/Pinouts-Clock Assembly (Without Navigation System):

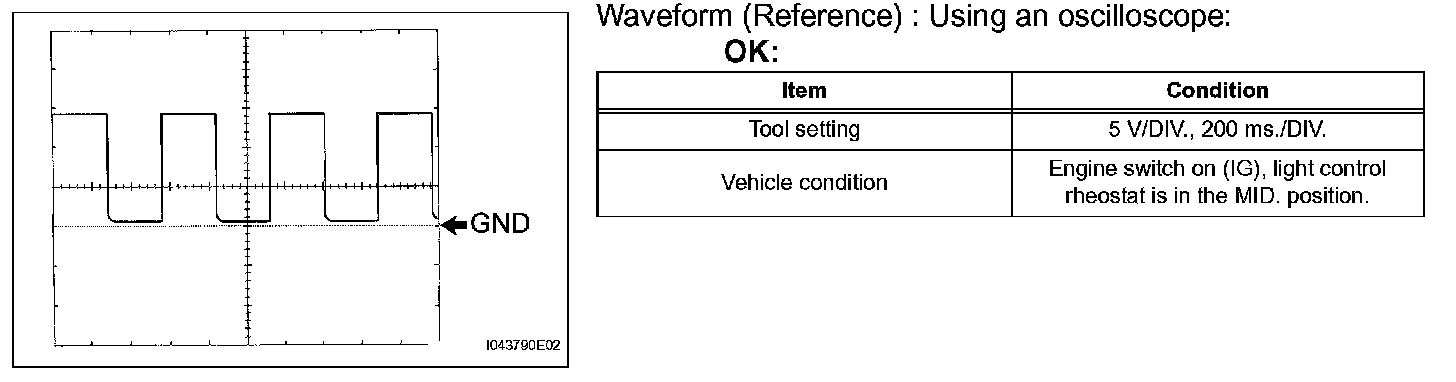

Oscilloscope Waveform:

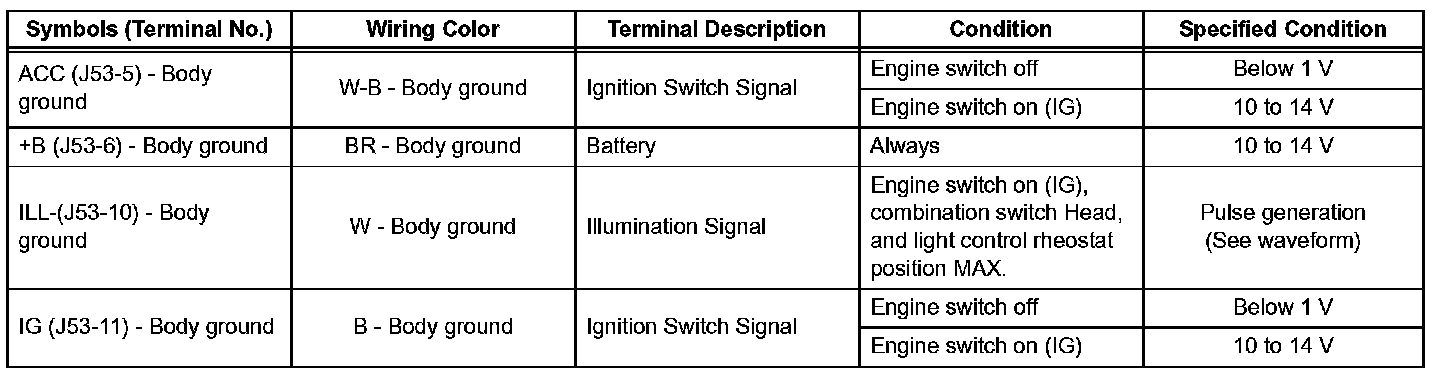

Terminals Of Control Module/Pinouts-Clock Assembly (With Navigation System) (Part 1):

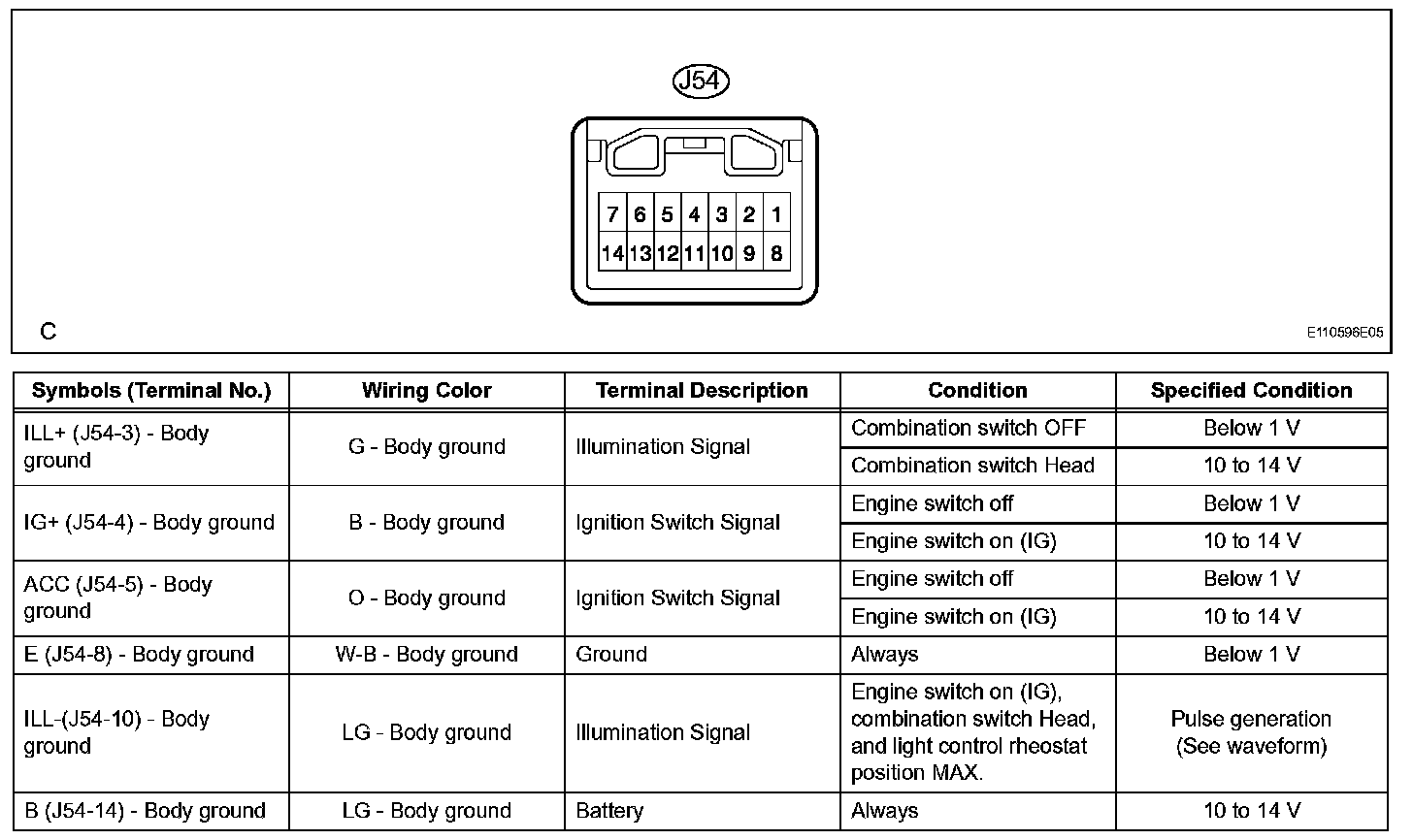

Terminals Of Control Module/Pinouts-Clock Assembly (With Navigation System) (Part 2):

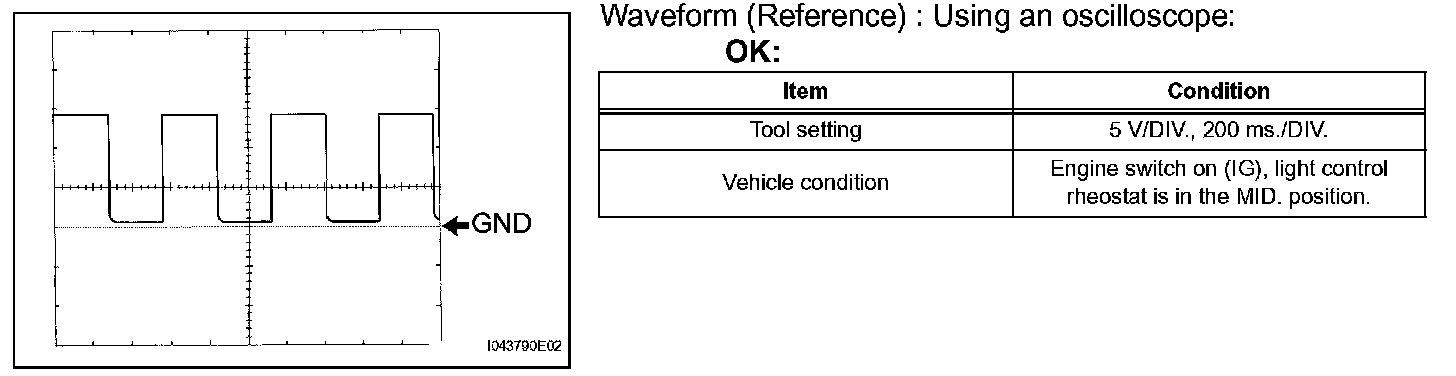

Oscilloscope Waveform:
