Component Tests and General Diagnostics

ON-VEHICLE INSPECTION




1. INSPECT CLOCK ASSEMBLY (W/o Navigation System)

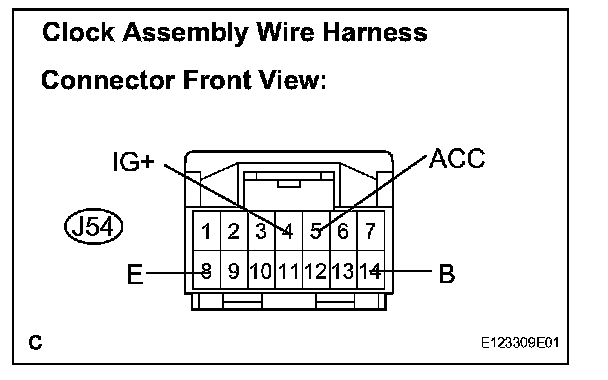

a. Disconnect the J54 connector.

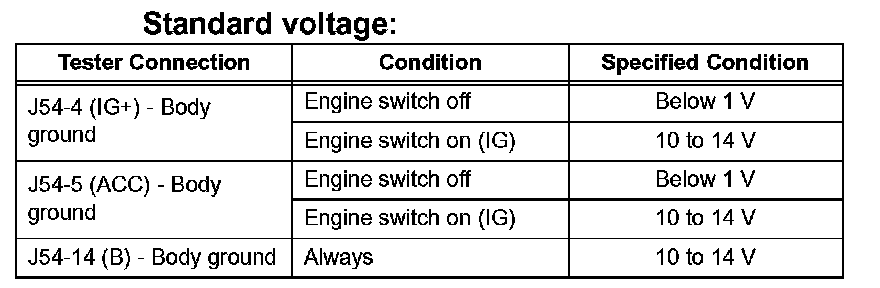

b. Measure the voltage according to the value(s) in the given table.

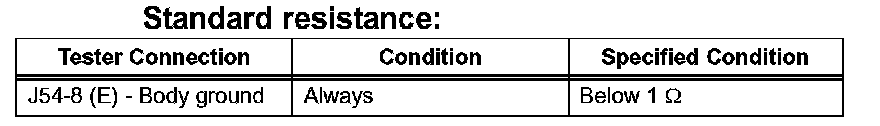

c. Measure the resistance according to the value(s) in the given table.

HINT: If the value is not as specified, repair or replace wire harness or connector.




2. INSPECT CLOCK ASSEMBLY (W/ Navigation System)

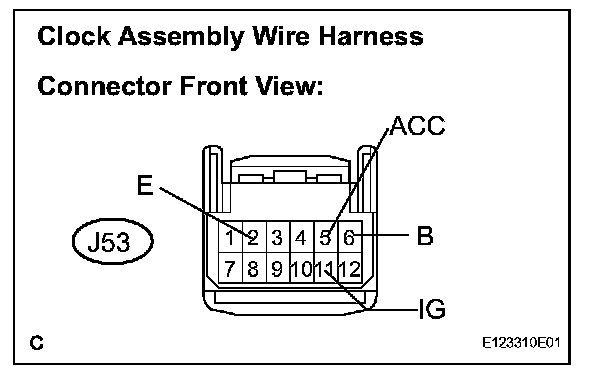

a. Disconnect the J53 connector.

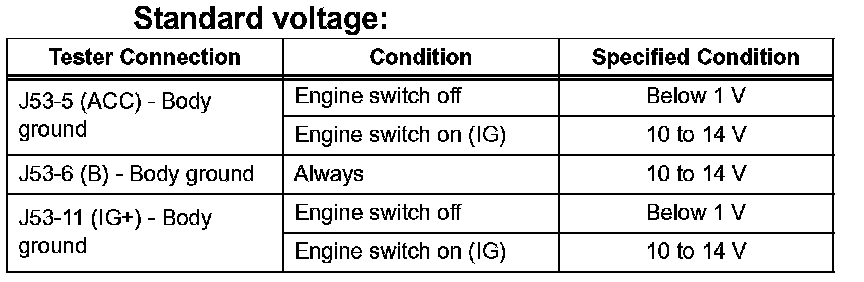

b. Measure the voltage according to the value(s) in the given table.

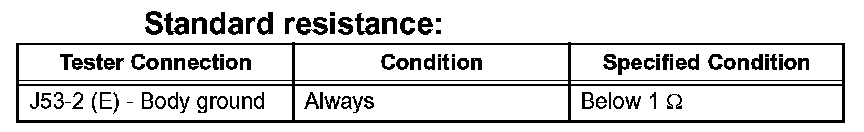

c. Measure the resistance according to the value(s) in the given table.

HINT: If the value is not as specified, repair or replace the wire harness or connector.
