Cigarette Lighter: Service and Repair
REMOVAL1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
3. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)
4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)
5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
8. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY
9. REMOVE CIGARETTE LIGHTER ASSEMBLY
a. Remove the cigarette lighter knob and element assembly.

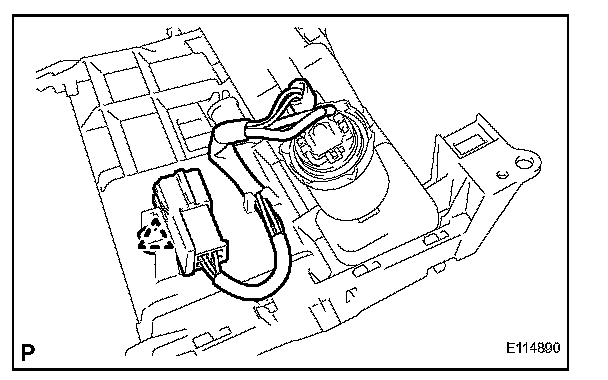

b. Disengage the clip.

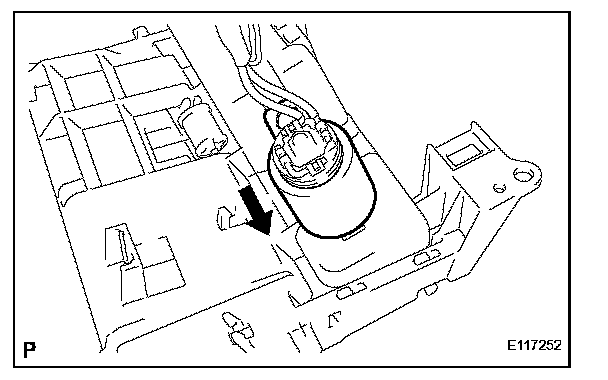

c. Turn the cigarette lighter nut in the direction indicated by the arrow to remove it.

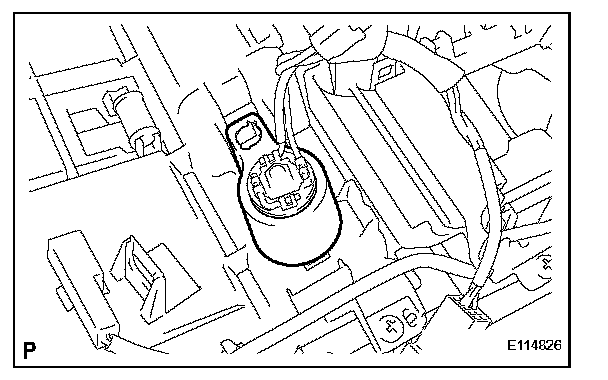

d. Remove the cigarette lighter retainer.

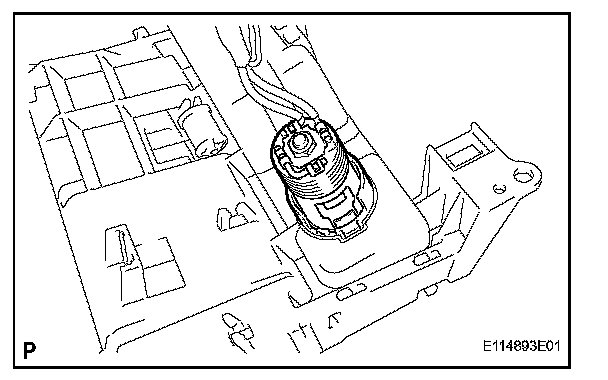

e. Remove the cigarette lighter socket.
INSTALLATION
1. INSTALL CIGARETTE LIGHTER ASSEMBLY
a. Install the cigarette lighter socket.
b. Install the cigarette lighter retainer.

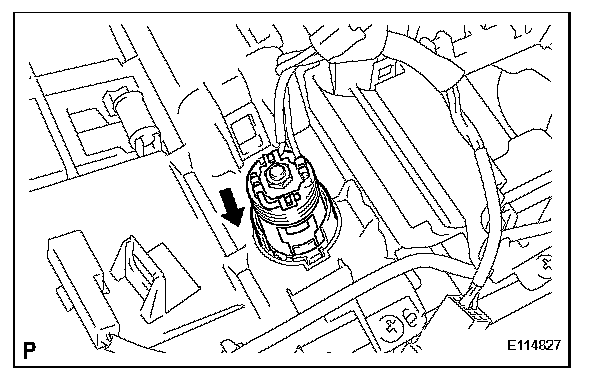

c. Turn the cigarette lighter nut in the direction indicated by the arrow to install it.

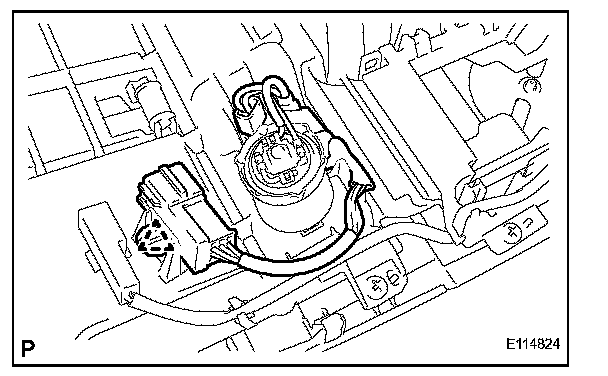

d. Engage the clip.
2. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY
3. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
4. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
5. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
6. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)
7. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)
8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
9. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
