With Manufacturer's Scan Tool

DTC CHECK USING INTELLIGENT TESTER

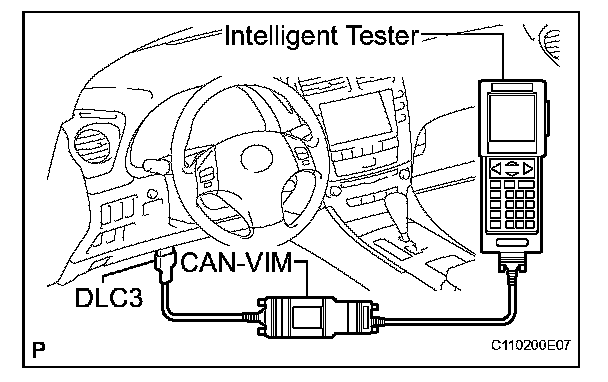

a. Connect the intelligent tester to the DLC3.
b. Turn the engine switch on (IG).
c. Turn the tester ON.
d. Enter the menu items: DIAGNOSIS / OBD/ MOBD / DTC INFO / CURRENT CODES.

HINT: Refer to the intelligent tester operator's manual for further details.

e. Check the details of the DTCs.
f. Clear the DTCs.

HINT: After repairing the malfunctions, clear the DTC.

1. Connect the intelligent tester to the DLC3.
2. Turn the engine switch on (IG).
3. Enter the menu items: DIAGNOSIS / OBD/MOBD / DTC INFO / CLEAR CODES.

HINT: Refer to the intelligent tester operator's manual for further details.

4. Press the YES button.
