Pinout Values and Diagnostic Parameters

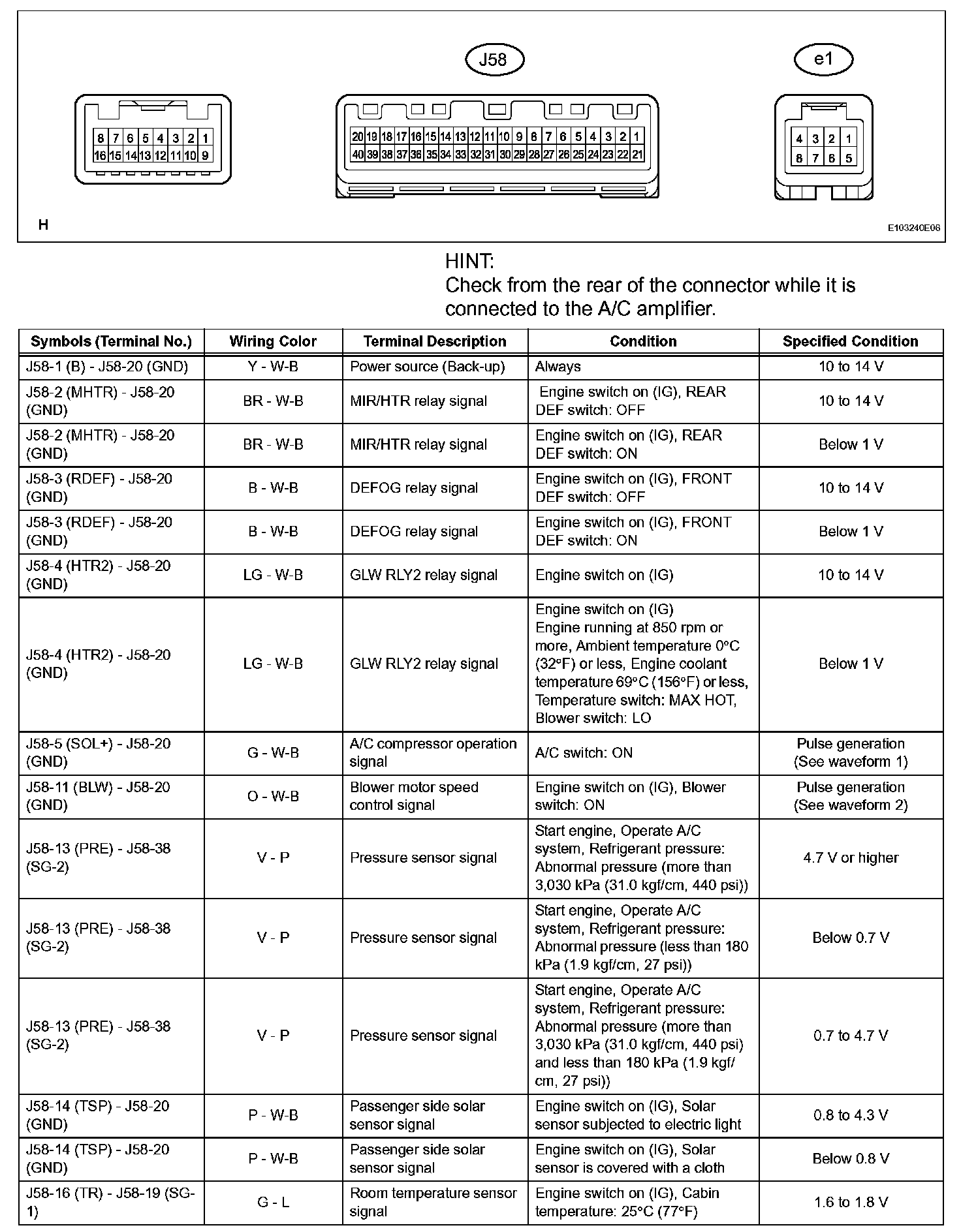

Terminals Of Control Module/Pinouts-Air Conditioning Amplifier (Part 1):

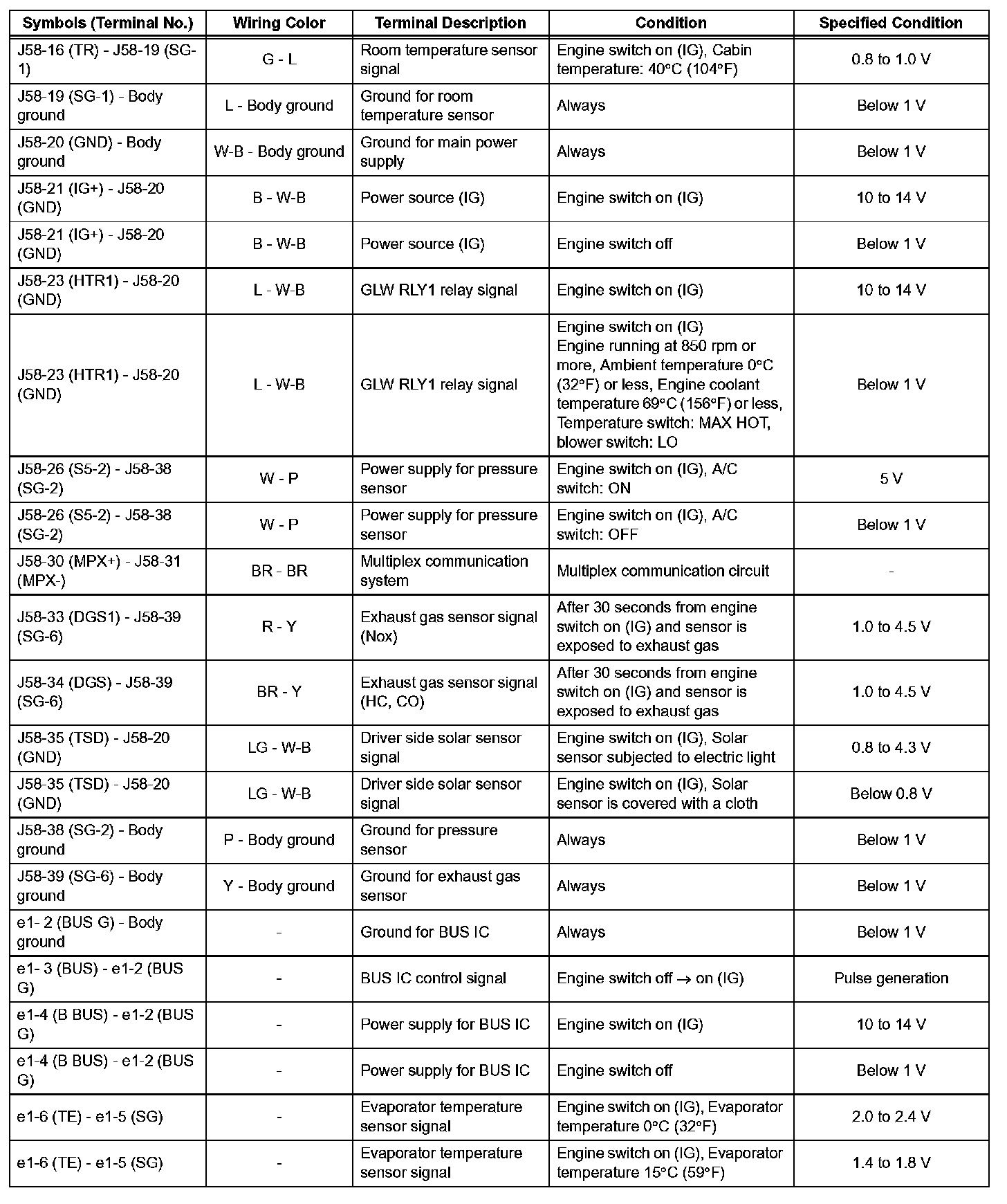

Terminals Of Control Module/Pinouts-Air Conditioning Amplifier (Part 2):

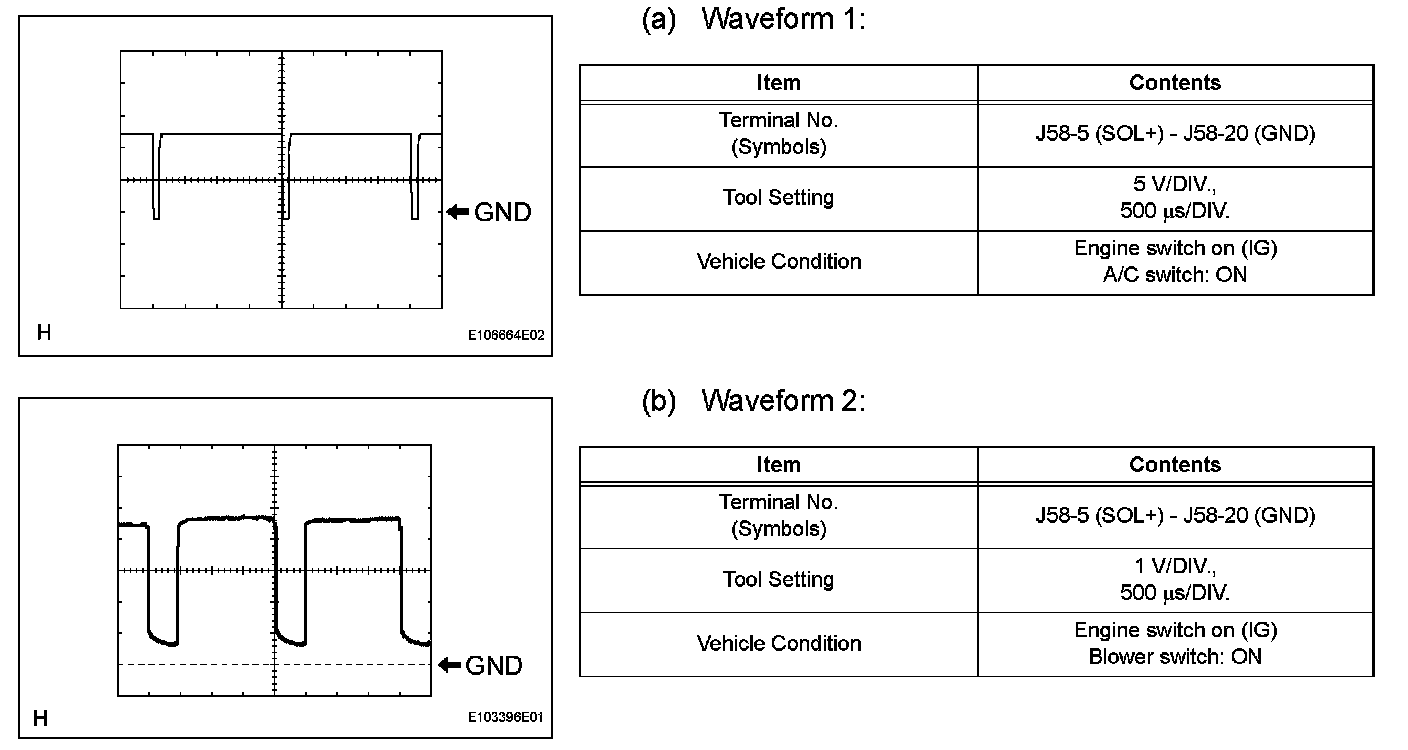

Oscilloscope Waveforms:

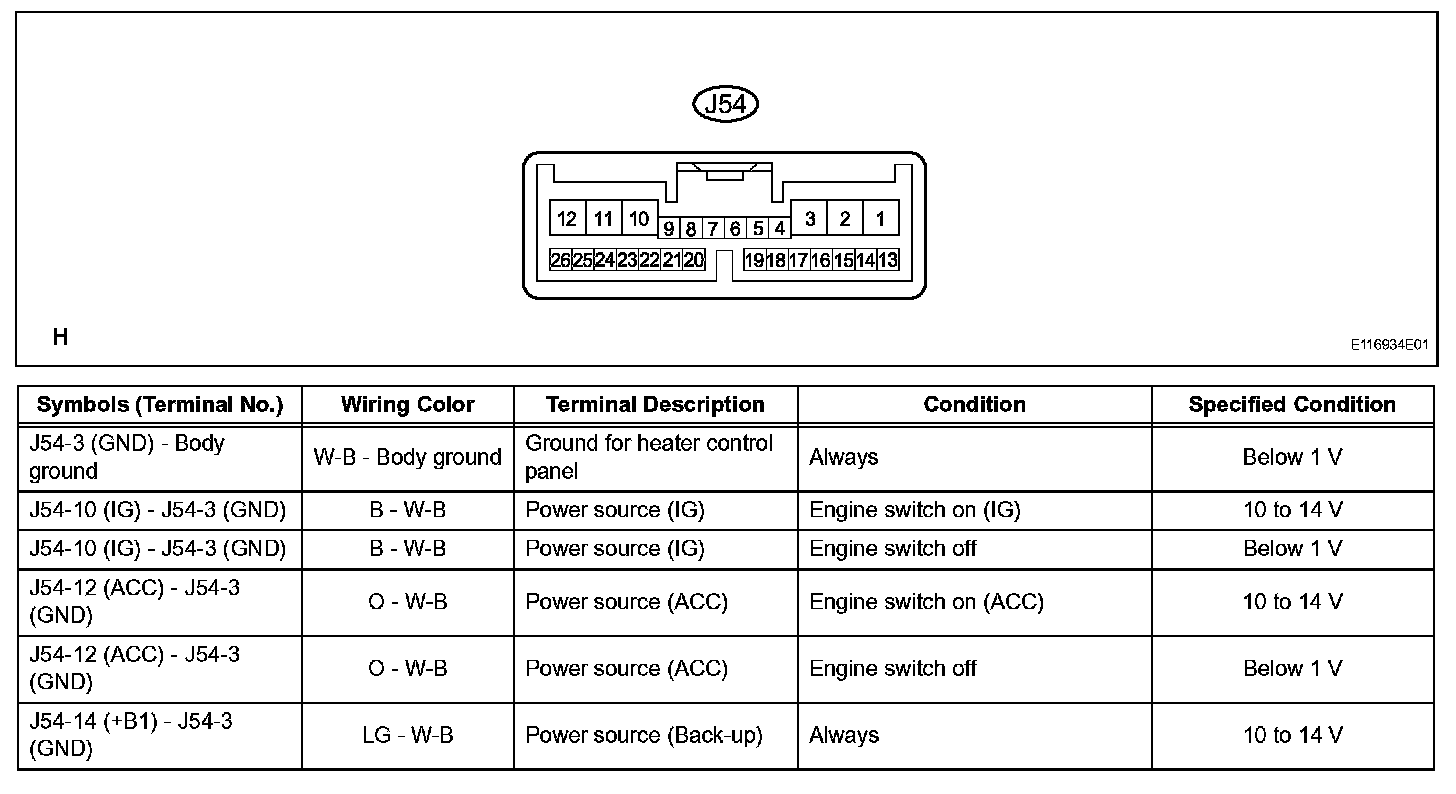

Terminals Of Control Module/Pinouts-Multi-Display (w/Navigation System:

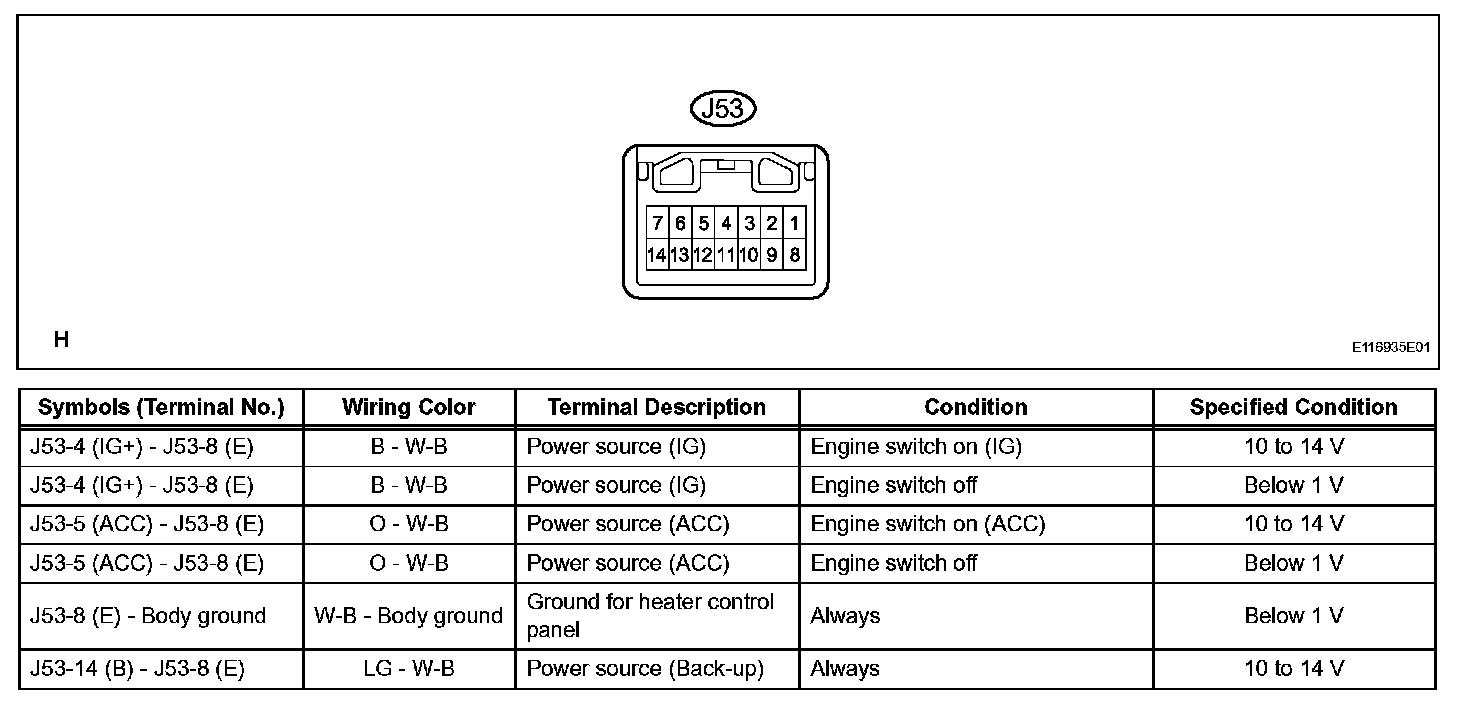

Terminals Of Control Module/Pinouts-Integration Control and Panel Assembly (w/o Navigation System):

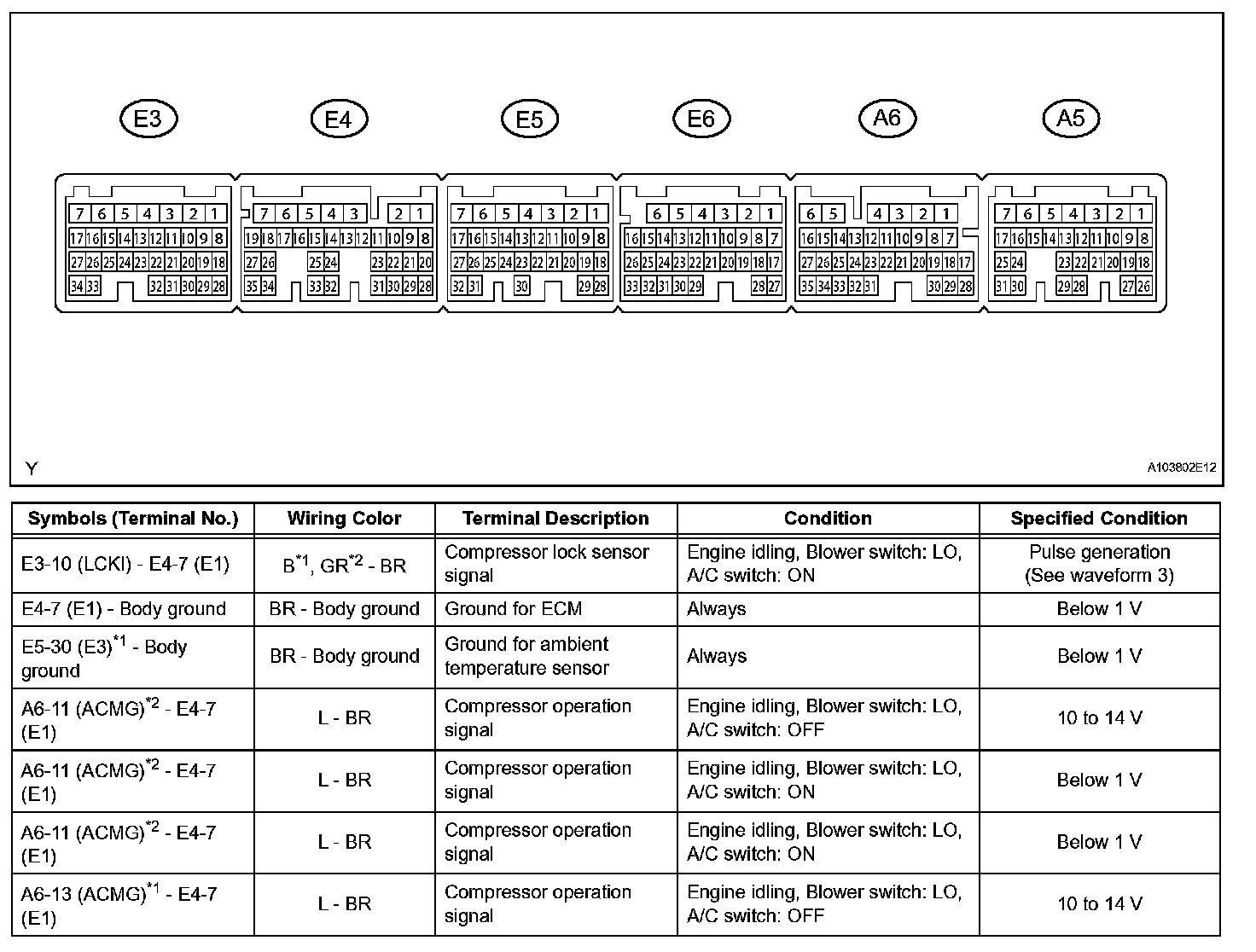

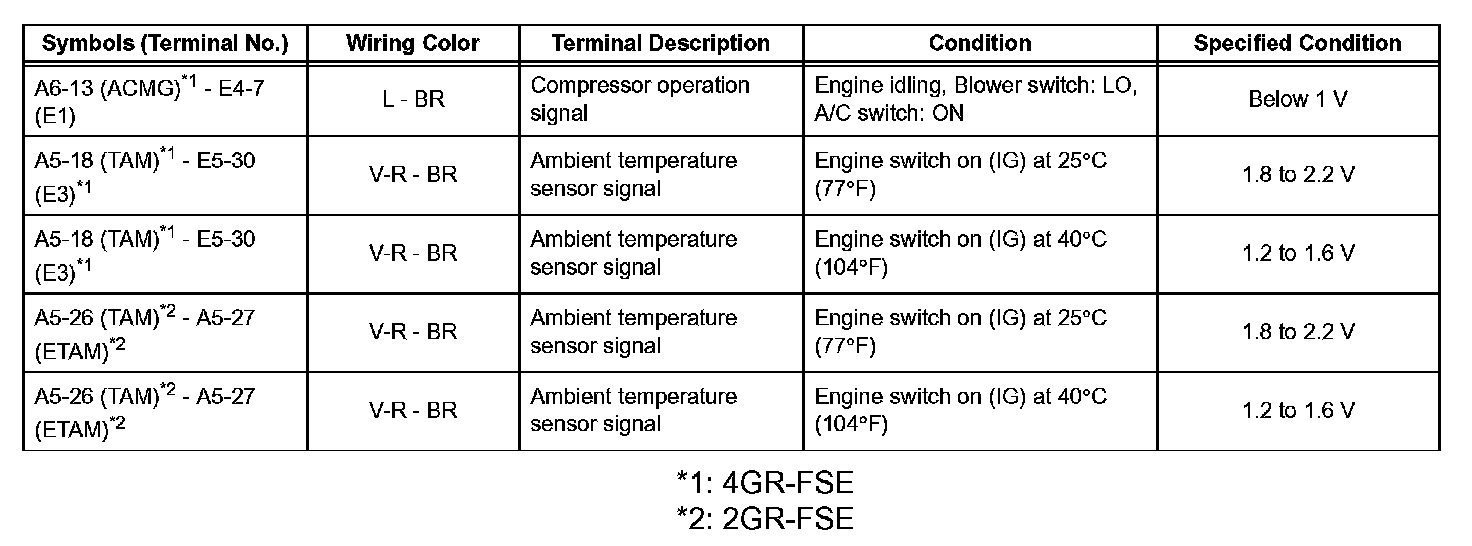

Terminals Of Control Module/Pinouts-ECM:

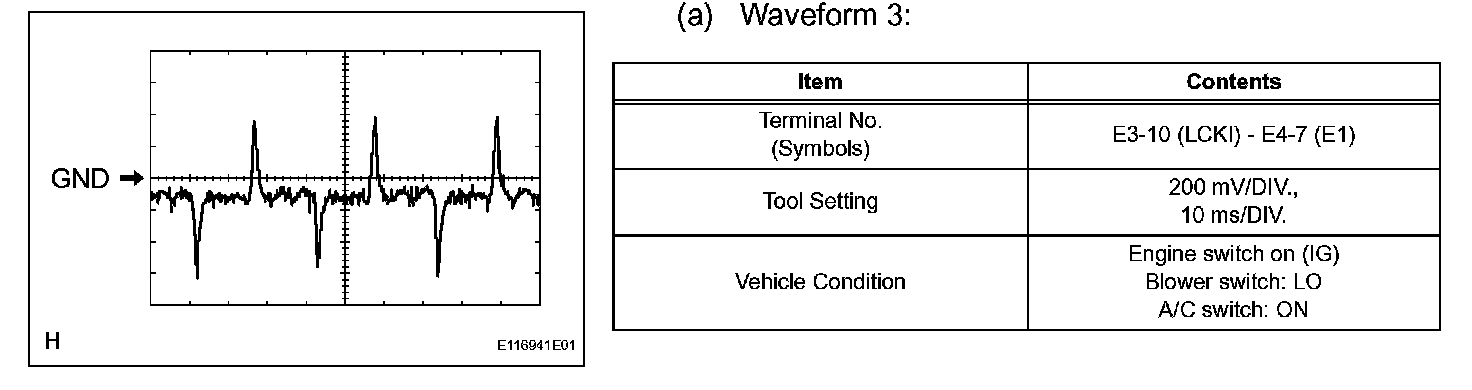

Oscilloscope Wave Forms:
