List of Operation Methods

LIST OF OPERATION METHODS

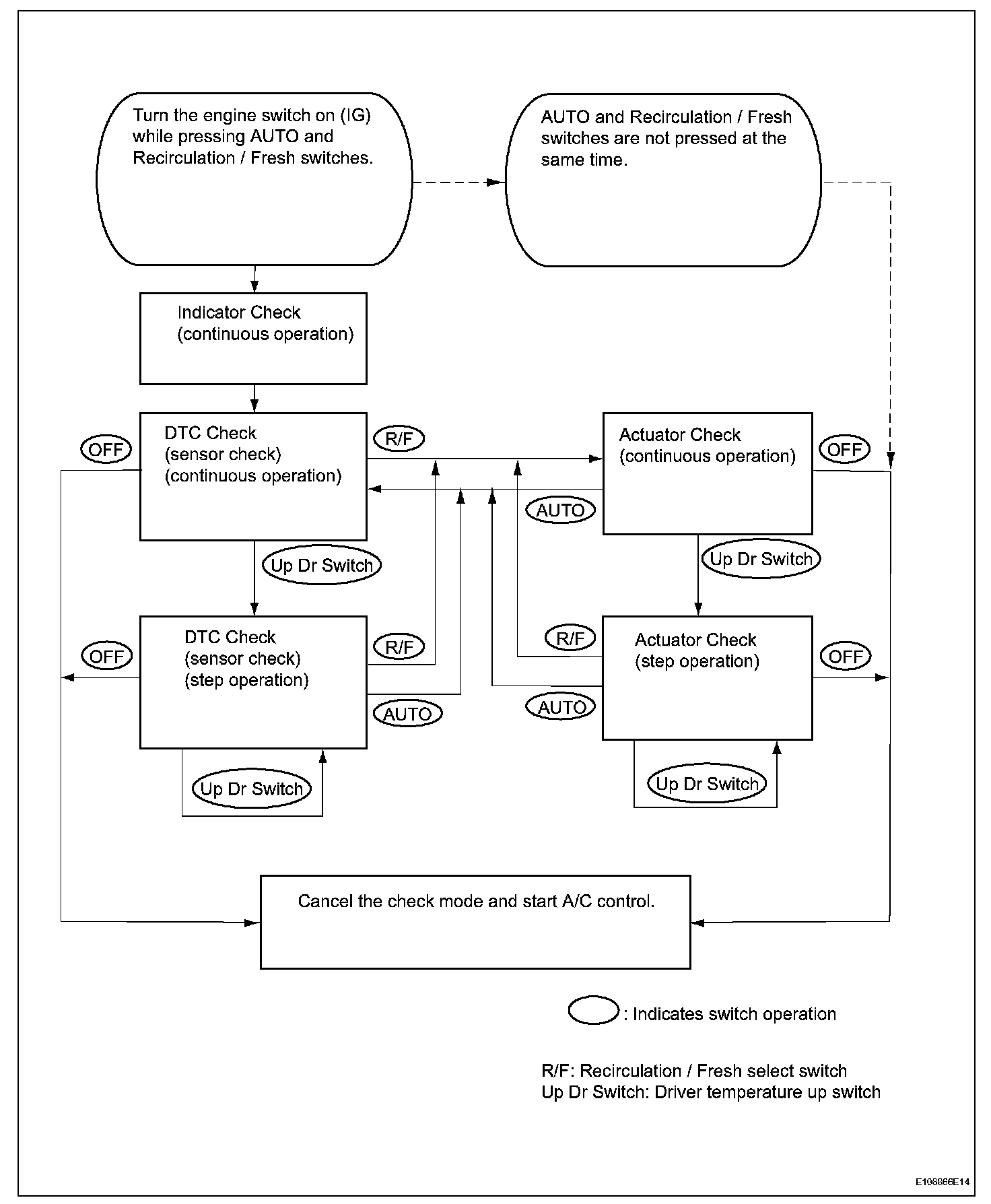

a. By operating each of the A/C control switches as shown in the diagram, it is possible to enter the diagnostic check mode.
