Disassembly and Reassembly

DISASSEMBLY

1. REMOVE INLET CONTROL SERVO MOTOR

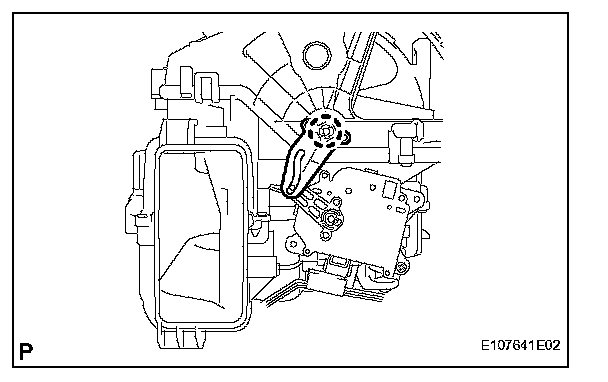

a. Detach the claw and remove the lever.

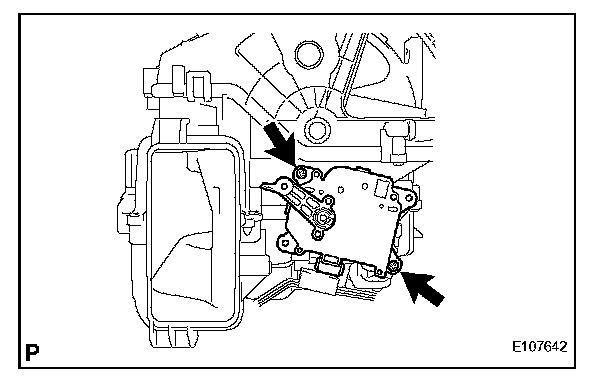

b. Remove the 2 screws and inlet control servo motor.

2. REMOVE CLEAN AIR FILTER

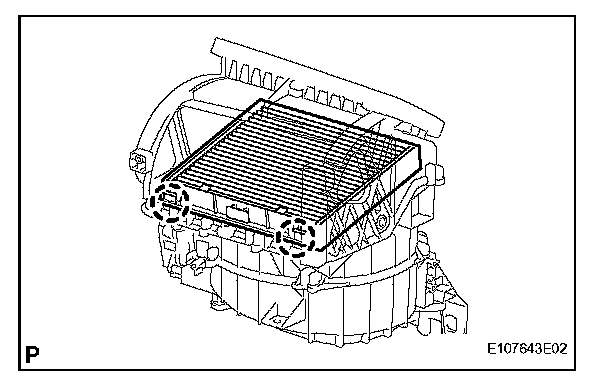

a. Detach the 2 claws and remove the air filter.

HINT: Be sure to turn the engine switch on (IG) and set the A/C to RECIRCULATION mode before removing the air filter.

3. REMOVE COOLING UNIT WITH FAN MOTOR SUBASSEMBLY

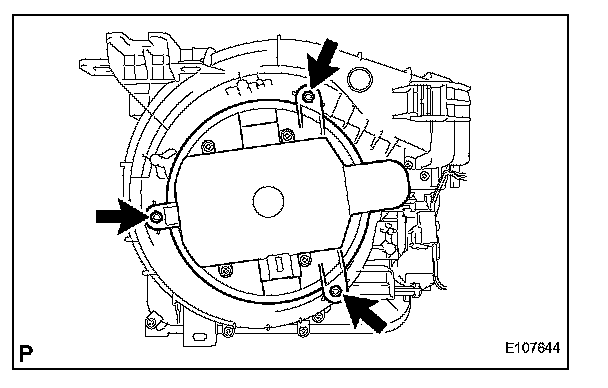

a. Remove the 3 screws and fan motor.

REASSEMBLY

1. INSTALL COOLING UNIT WITH FAN MOTOR SUBASSEMBLY

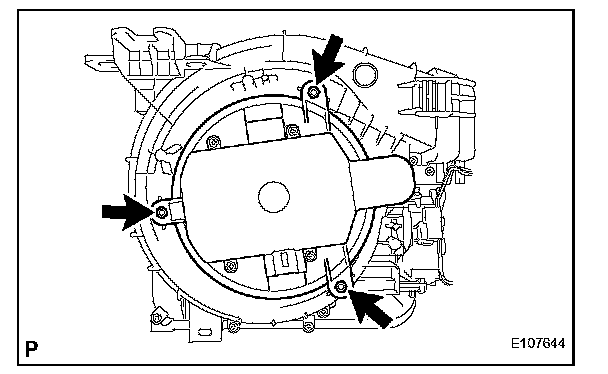

a. Install the fan motor with the 3 screws.

2. INSTALL CLEAN AIR FILTER




a. Attach the 2 claws to install the air filter.

3. INSTALL INLET CONTROL SERVO MOTOR

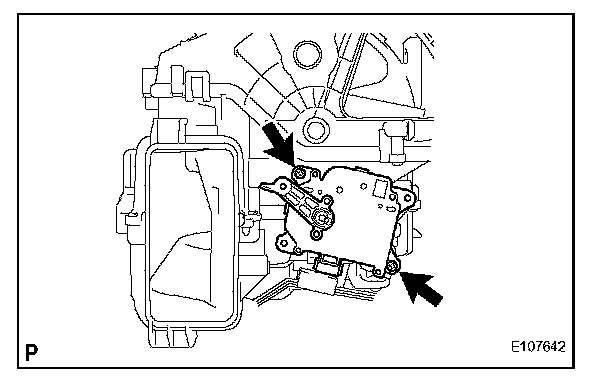

a. Install the inlet control servo motor with the 2 screws.

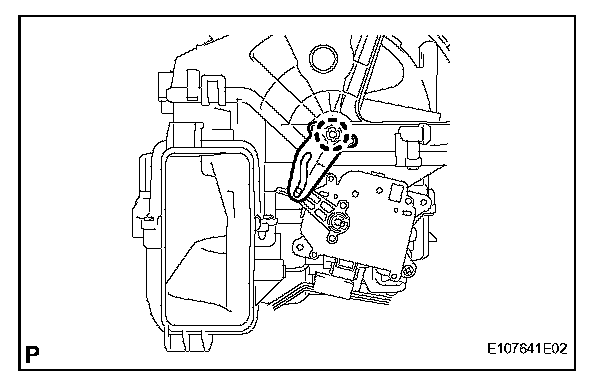

b. Attach the claw and install the lever.
