Auxiliary Heater Element: Service and Repair
REMOVAL1. REMOVE HEATER WATER OUTLET HOSE
2. REMOVE HEATER WATER INLET HOSE
3. REMOVE WATER BY-PASS GLOW PLUG

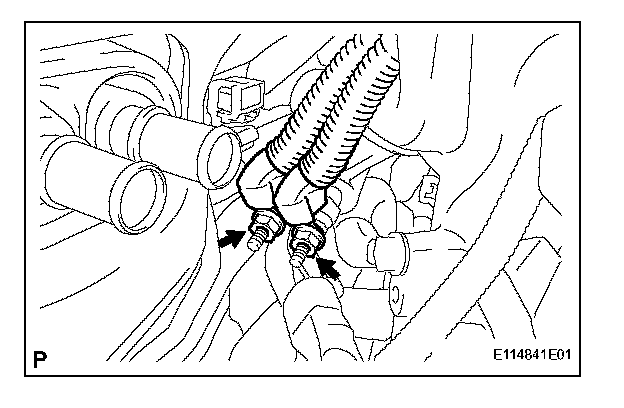

a. Remove the 2 grommets, 2 nuts, 2 spring washers, and 2 washers. Disconnect the heater blower wire.

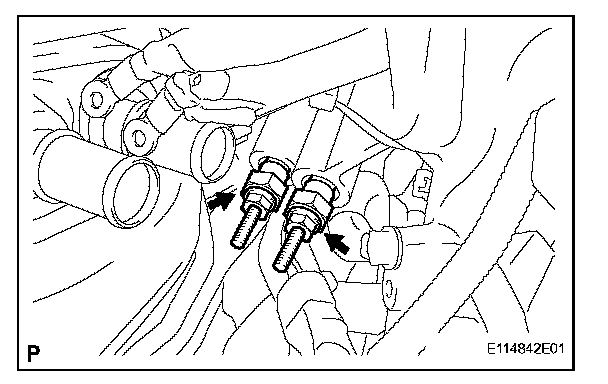

b. Remove the water by-pass glow plug.
NOTE: Prepare a container or a piece of cloth in case of coolant leakage.
INSTALLATION
1. INSTALL WATER BY-PASS GLOW PLUG

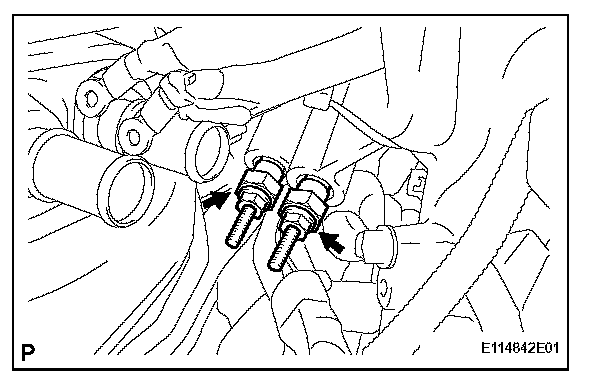

a. Install the water by-pass glow plug.
Torque: 15 N.m (157 kgf.cm, 11 ft.lbf)
b. Install the heater blower wire with the 2 nuts and 2 grommets.
Torque: 2.7 N.m (28 kgf.cm, 24 in.lbf)
2. INSTALL HEATER WATER INLET HOSE
3. INSTALL HEATER WATER OUTLET HOSE
4. ADD ENGINE COOLANT
5. CHECK FOR ENGINE COOLANT LEAKS
