Seat Temperature Element

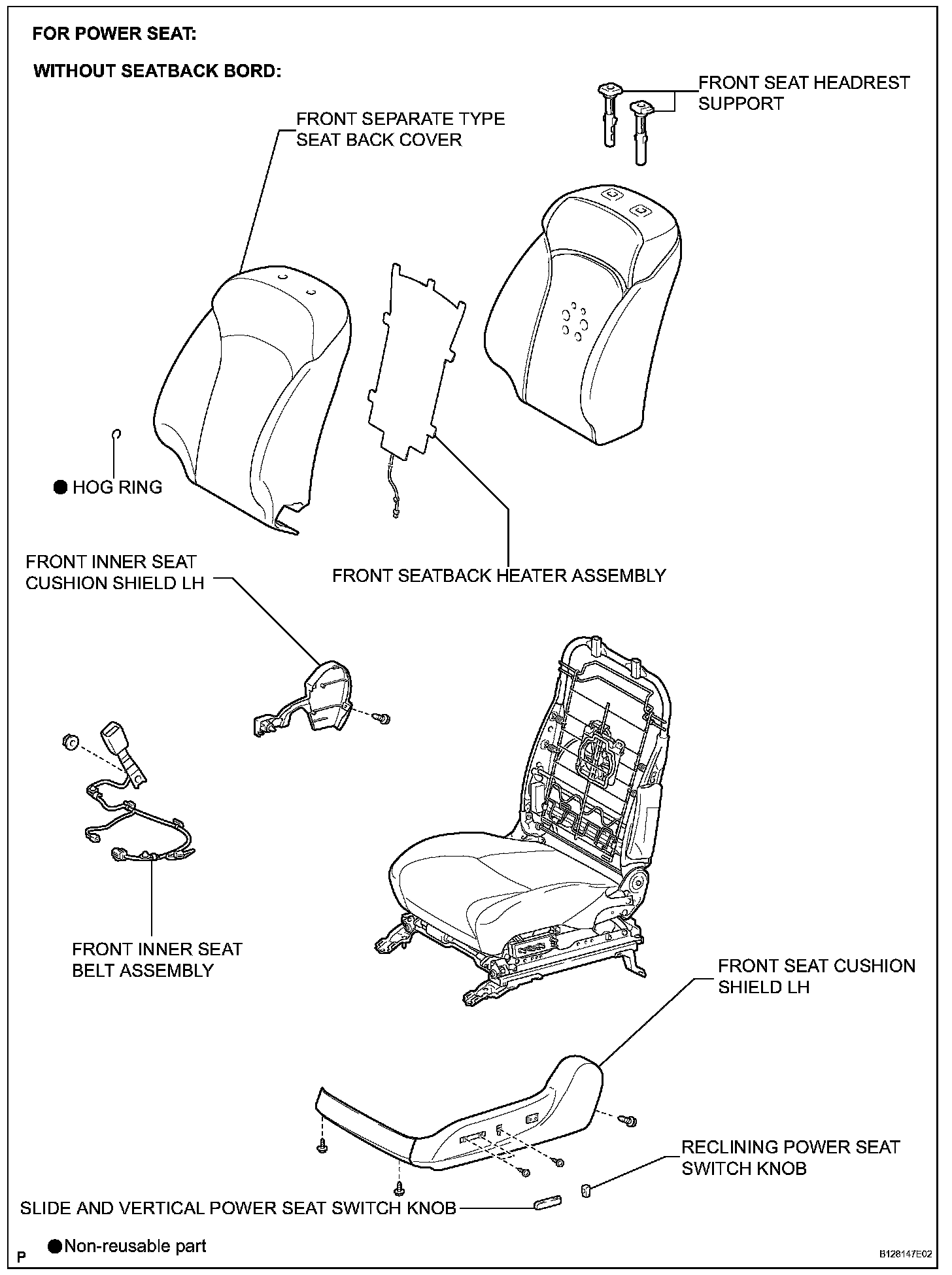

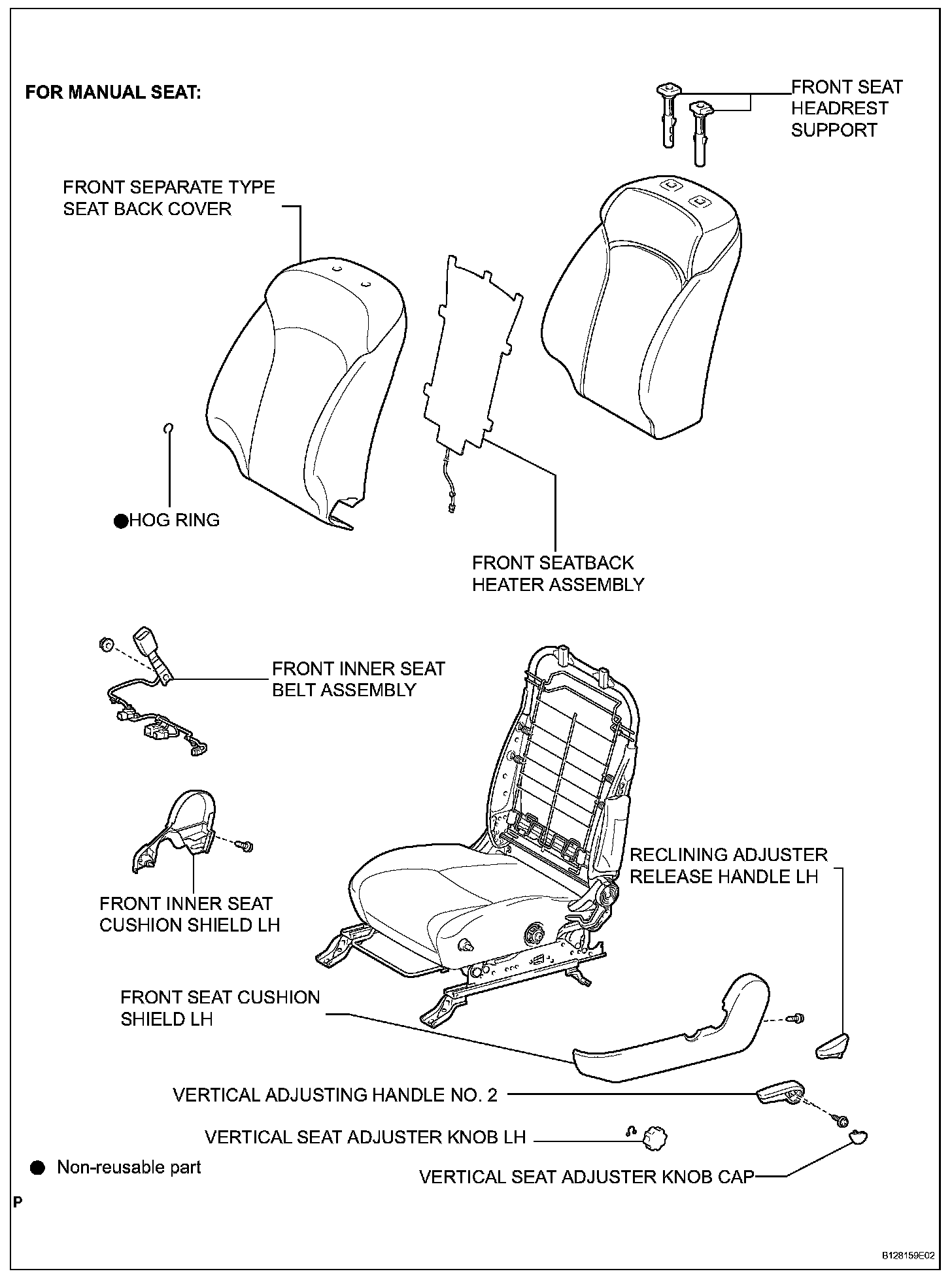

Front Seatback Heater:

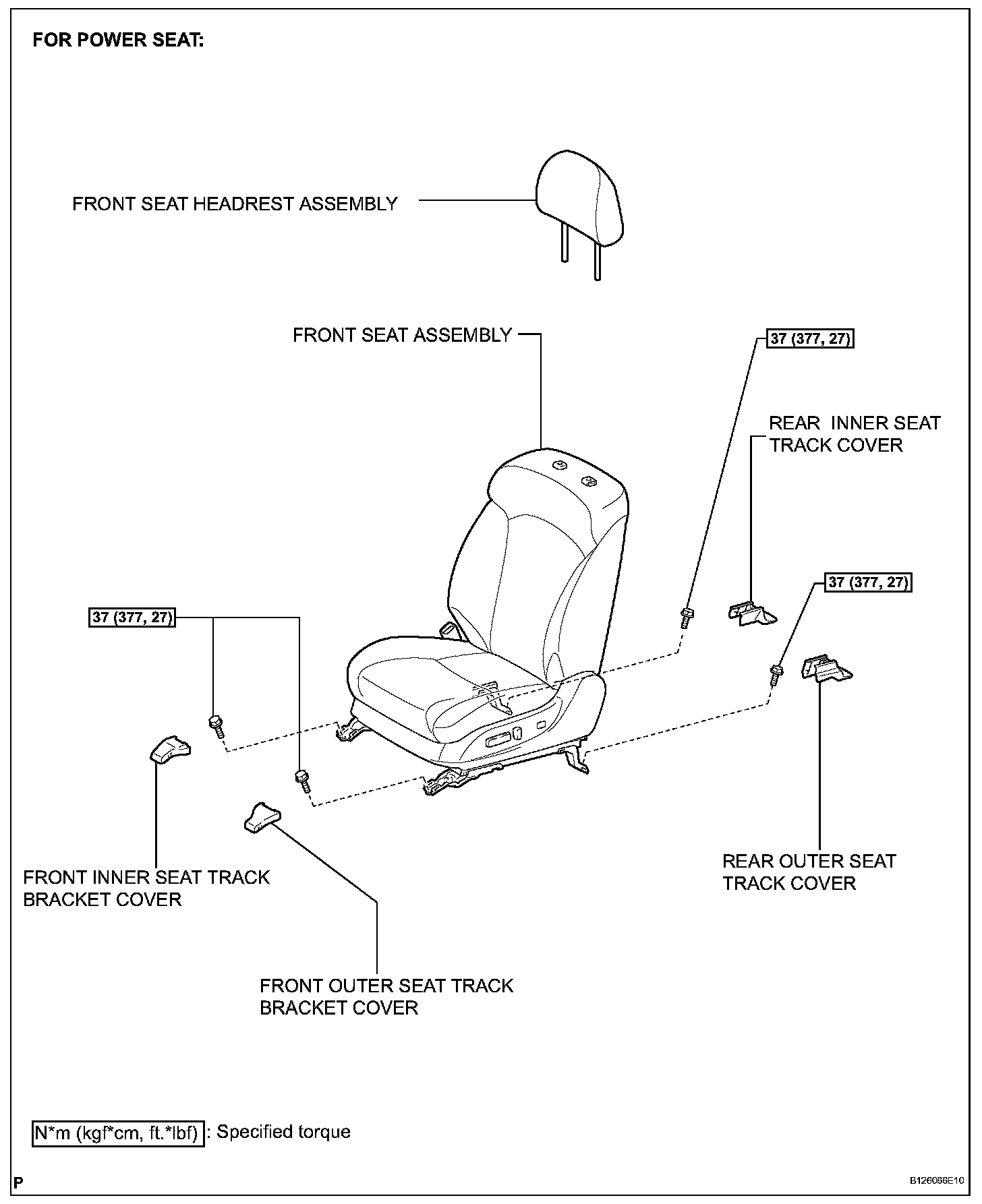

Front Seatback Heater:

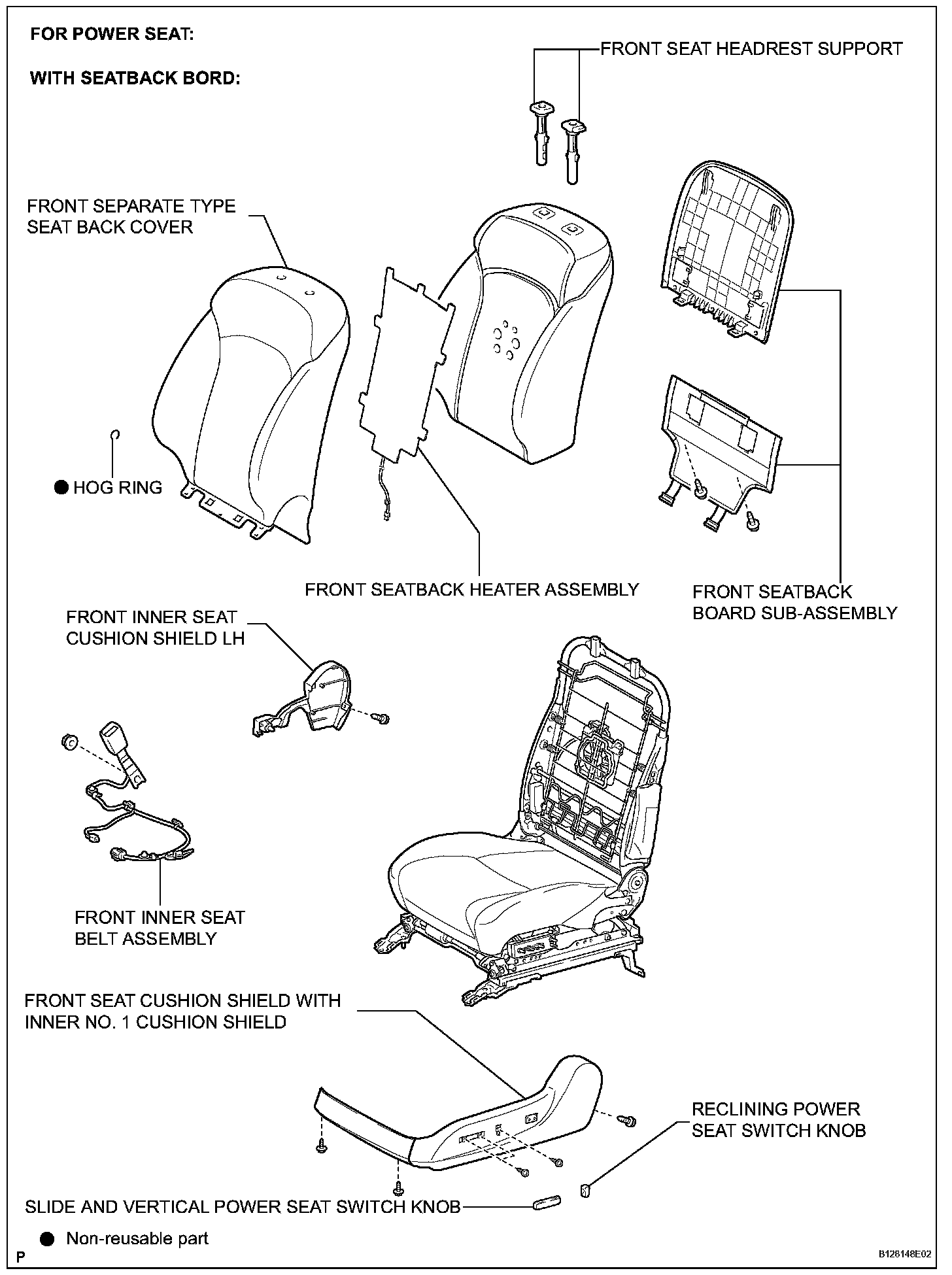

Front Seatback Heater:



Front Seatback Heater:



Front Seatback Heater:

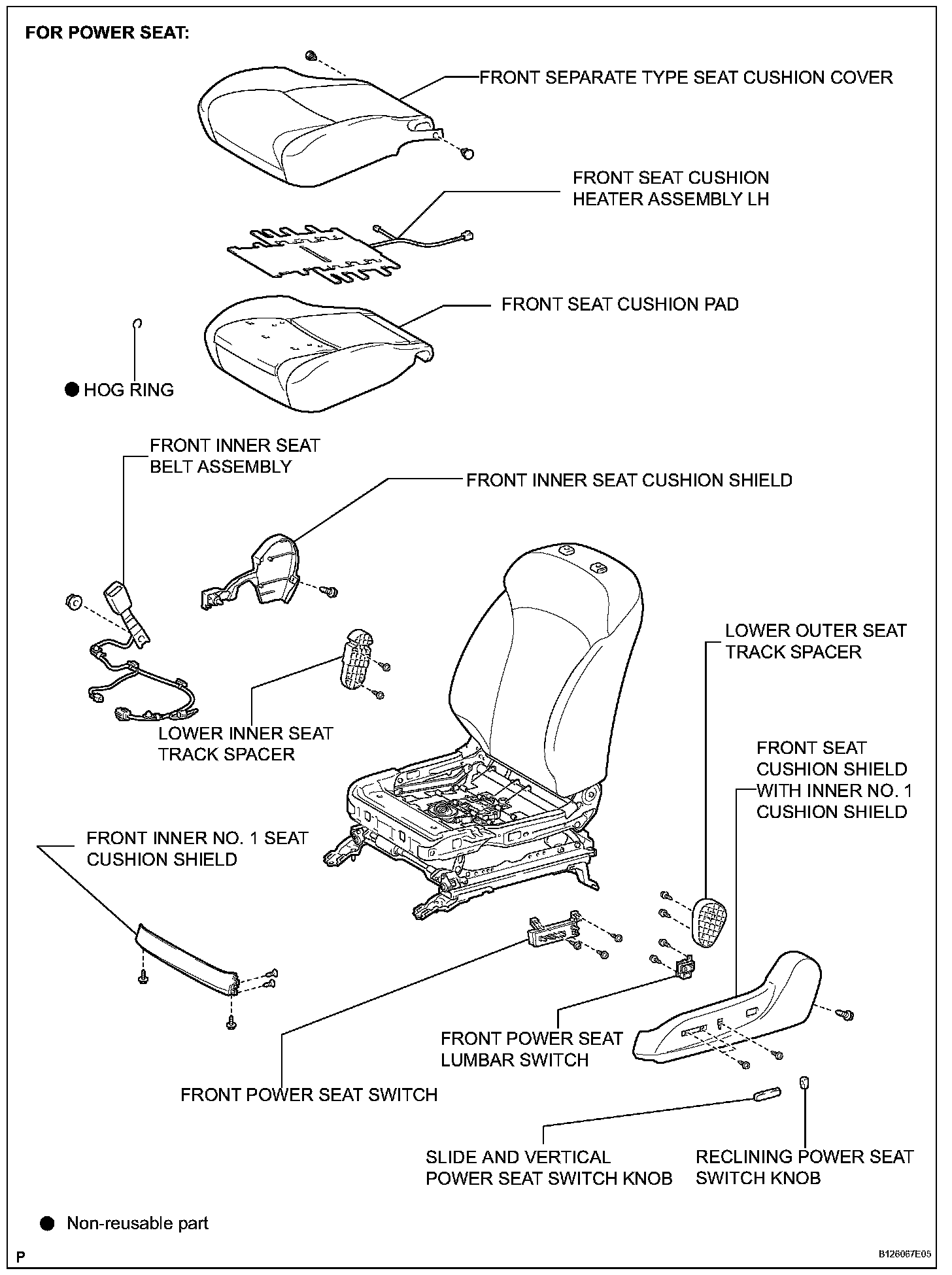

Front Seat Cushion Heater:

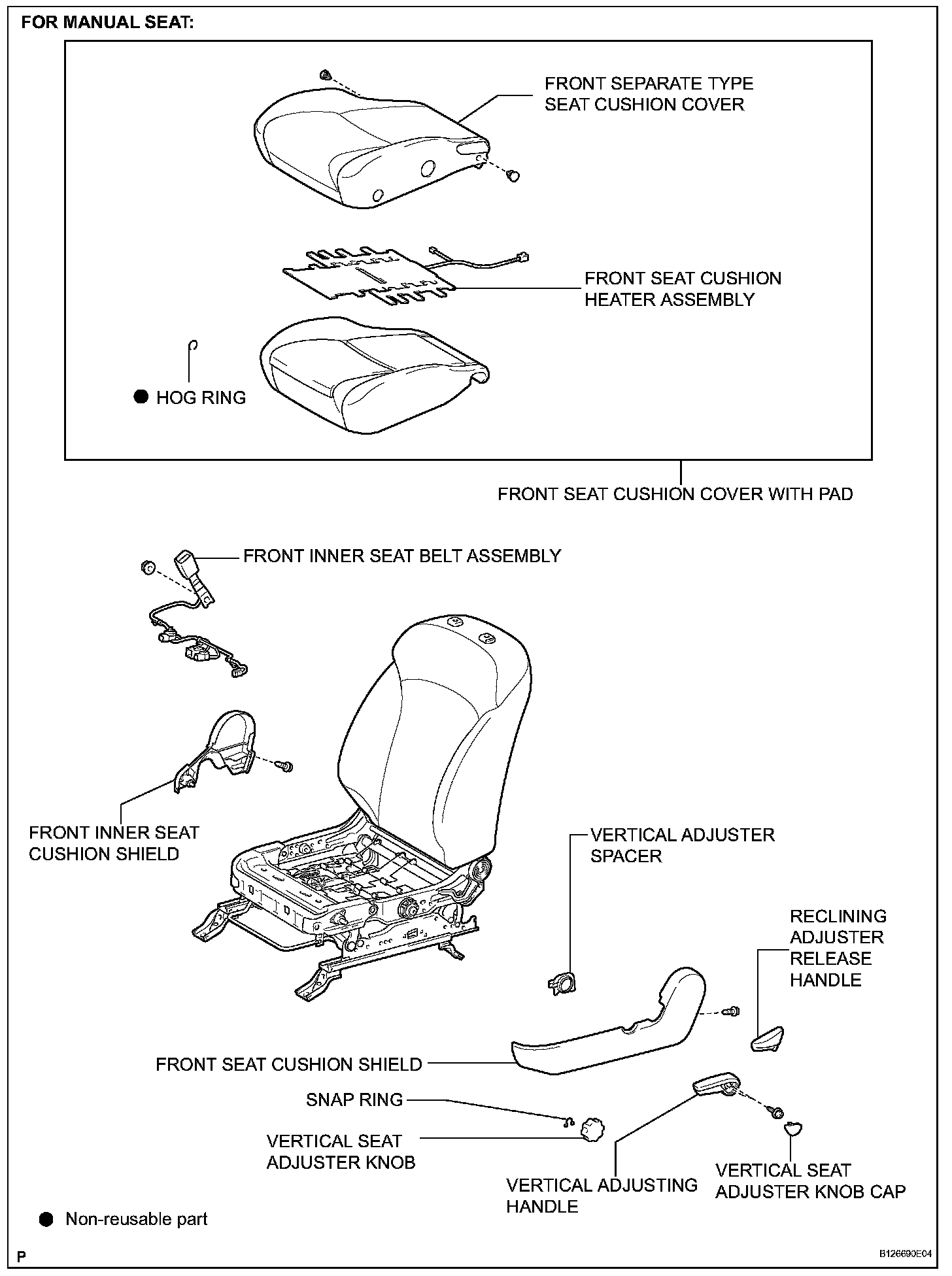

Front Seat Cushion Heater:

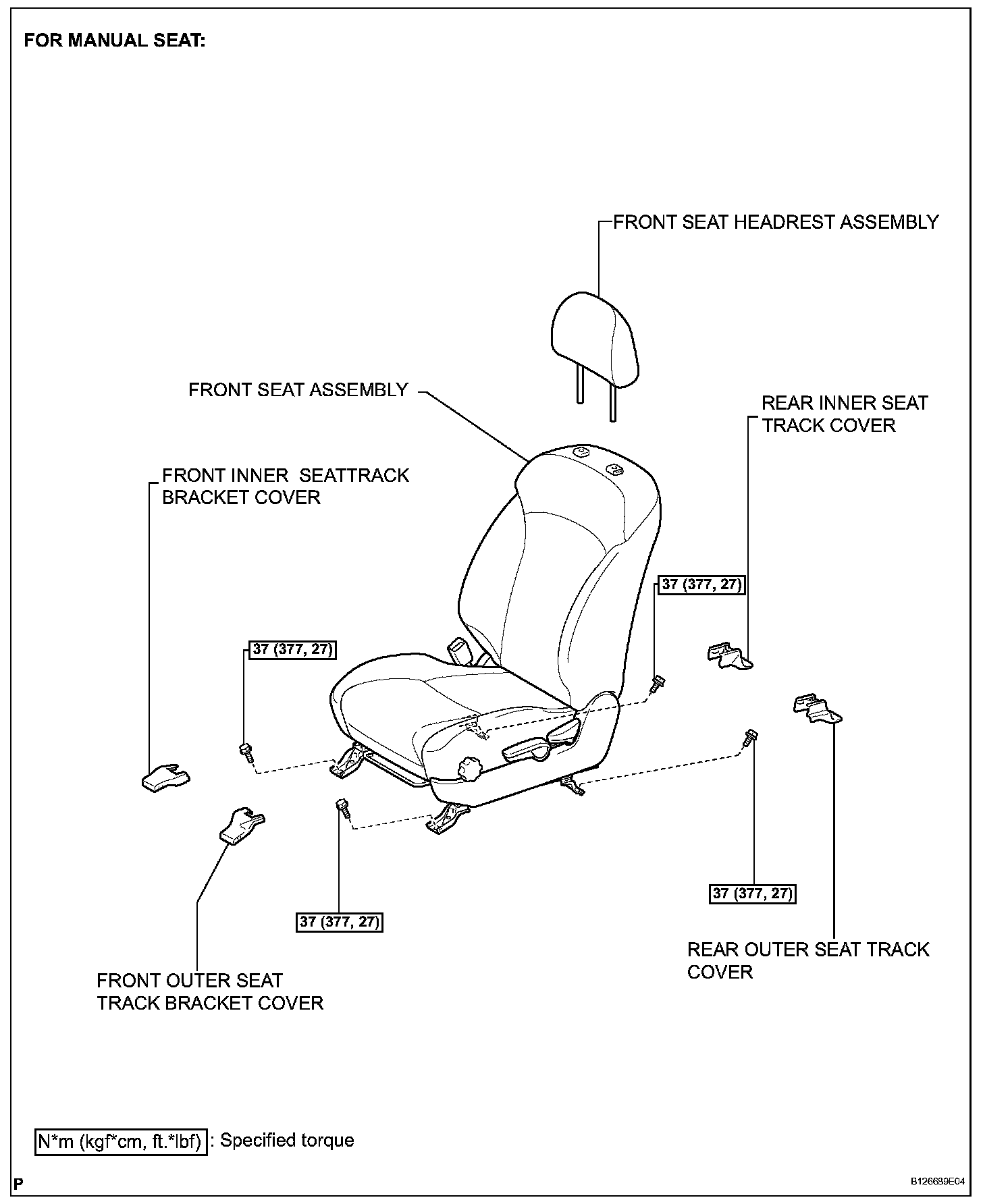

Front Seat Cushion Heater:

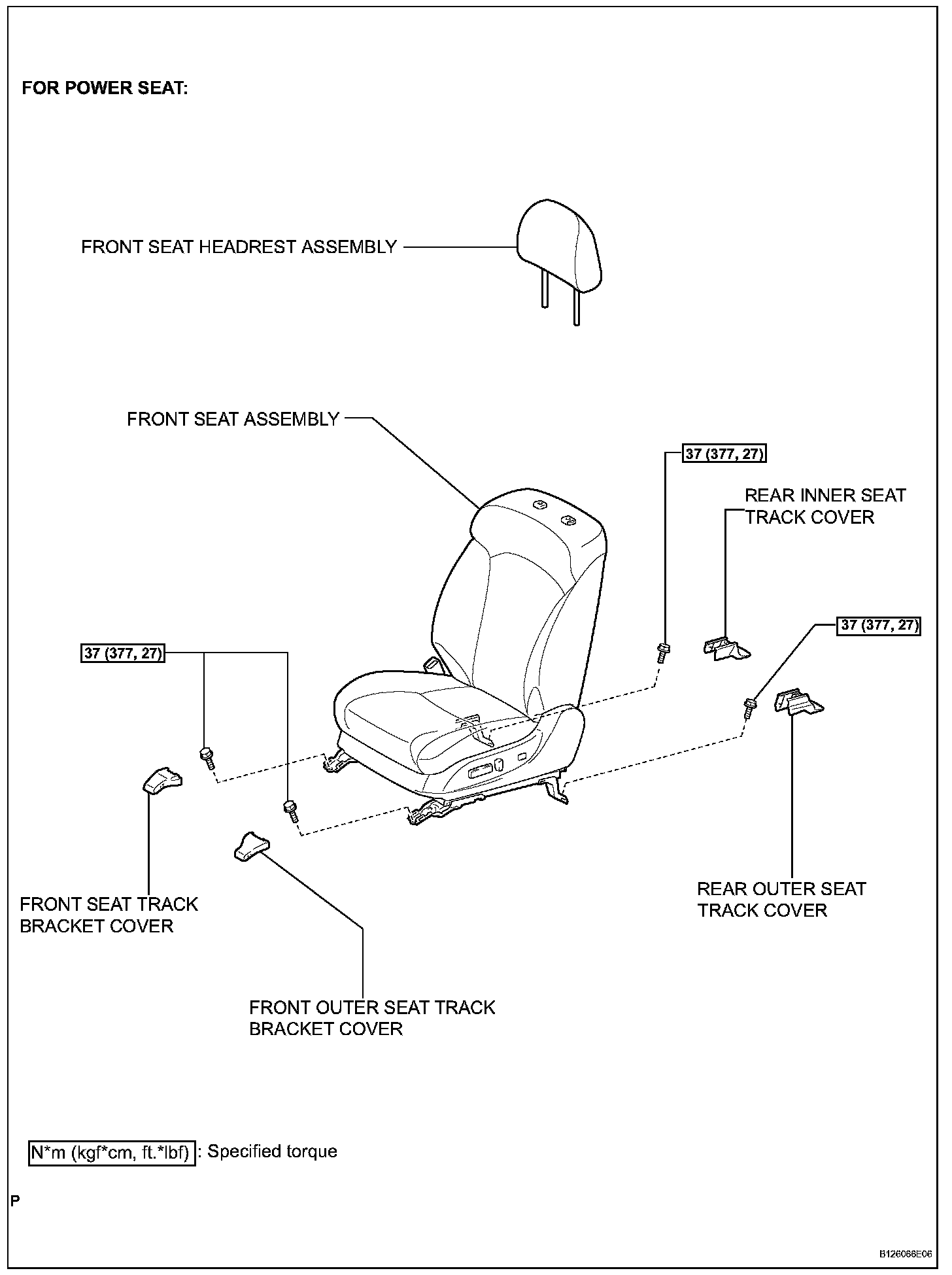

Front Seat Cushion Heater:

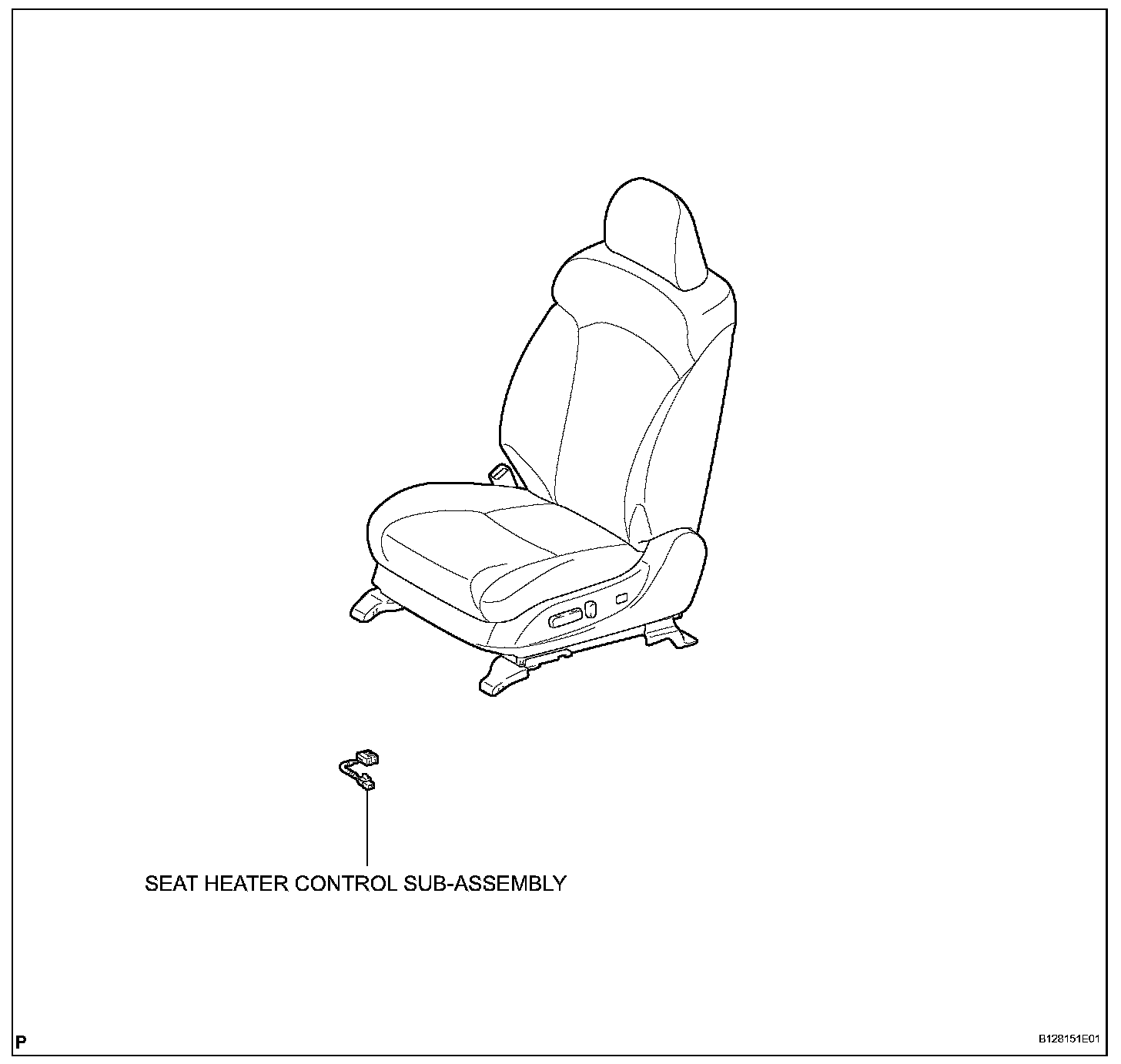

Seat Heater Control:
